Rear Compartment Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

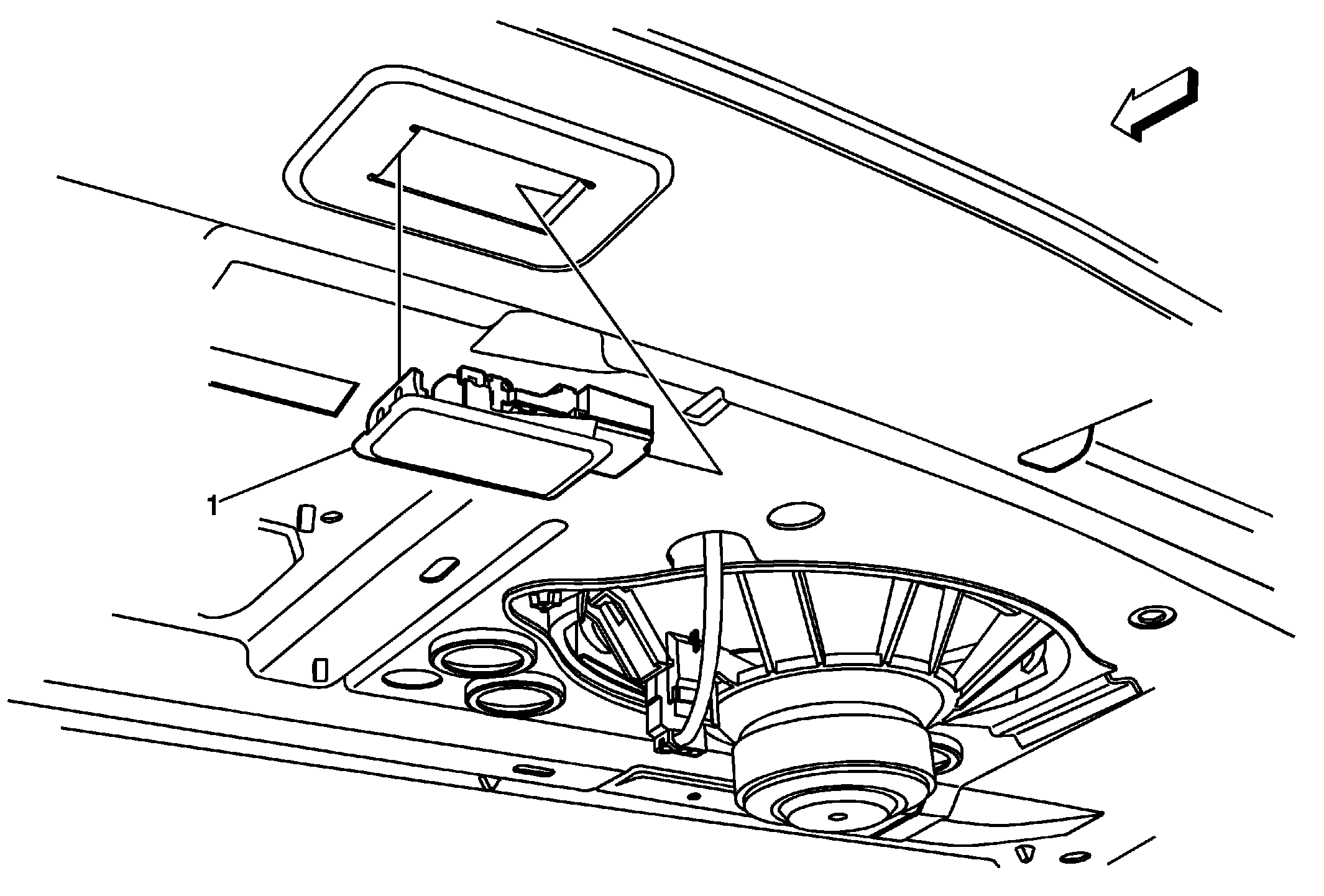

Fig 1: Rear Compartment Courtesy Lamp
GM2197576Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Courtesy Lamp

Procedure

  1. Open the rear compartment.
  2. Remove the rear compartment lamp using a small fat bladed tool to release the retaining tabs.
  3. Disconnect the electrical connector.
