Front Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

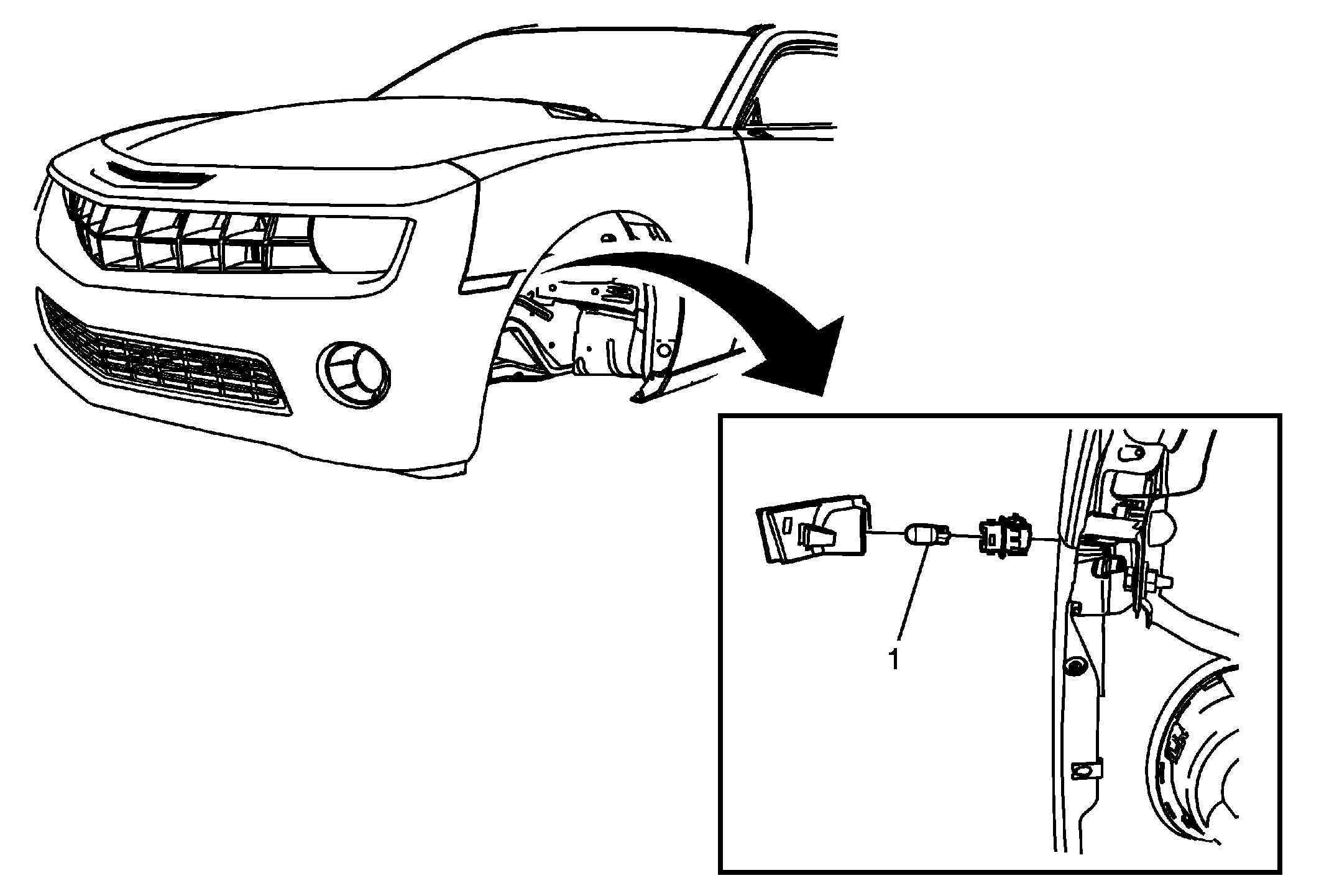

Fig 1: Front Side Marker Lamp Bulb
GM2200293Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front side marker lamp assembly. Refer to Front Side Marker Lamp Replacement .
1 Front Side Marker Lamp Bulb
Tip:  Pull the marker lamp bulb straight out of the lamp socket.
