Radio Front Speaker Grille Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

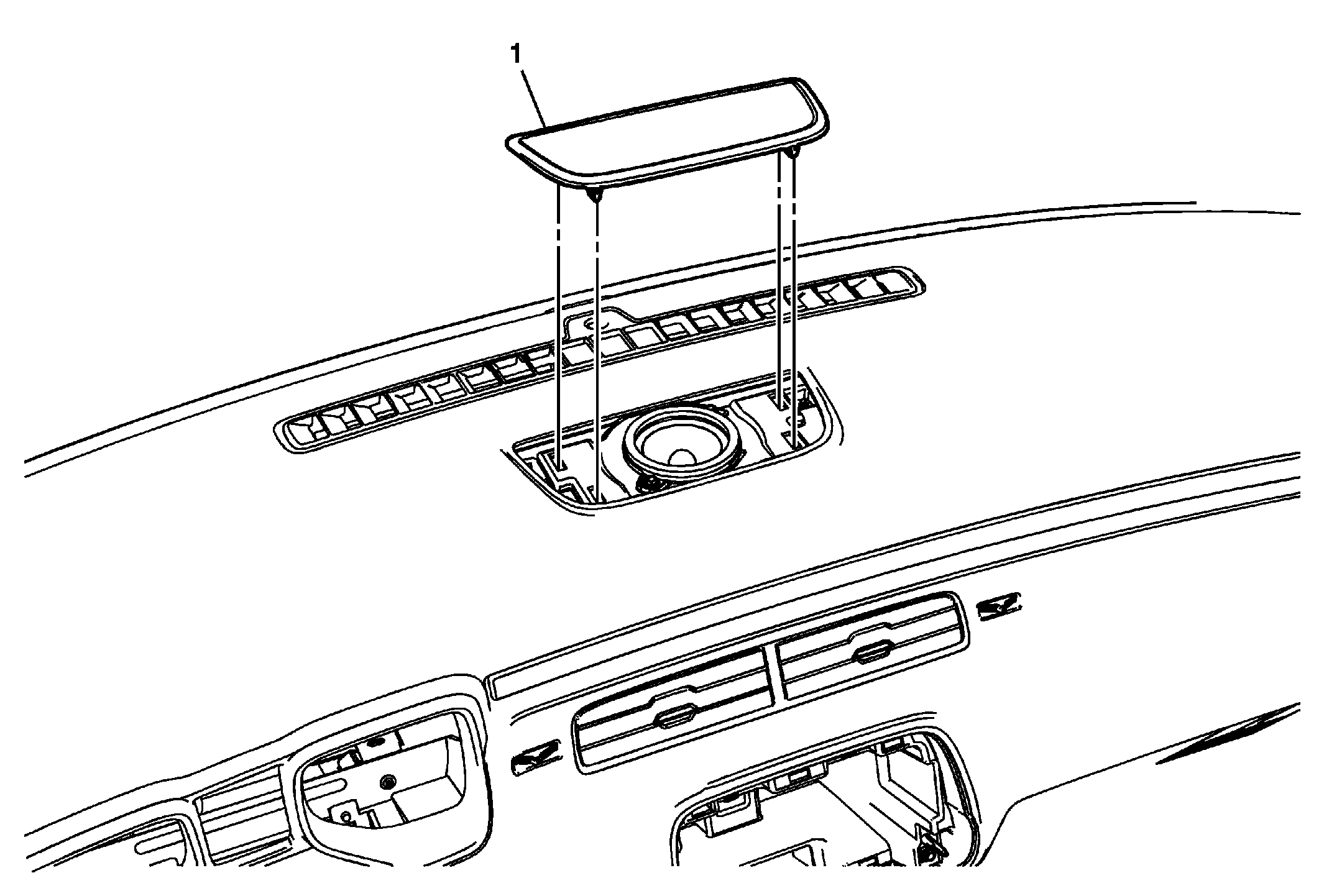

| Callout |
Component Name |
| 1 |
Radio Front Speaker Grille
Procedure:
Using a flat bladed tool, gently unsnap speaker grille from the instrument panel trim pad. The grille is attached with four integral clips. |
