Instrument Panel Assembly Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

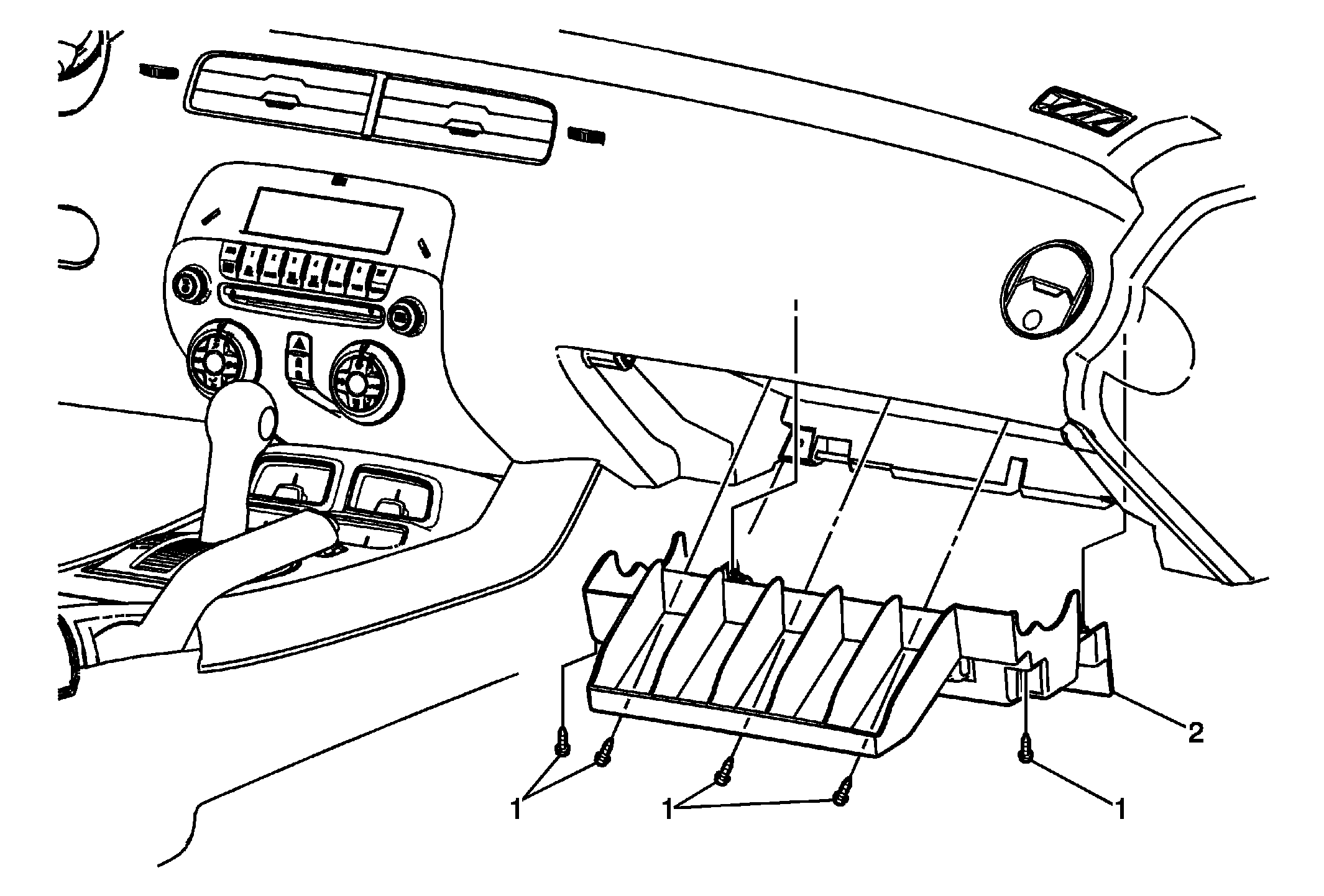

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement . |
|
| 1 | Instrument Panel Assembly Fasteners (Qty: 5)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Assembly |
