Accessory Wakeup Serial Data Wiring Schematics

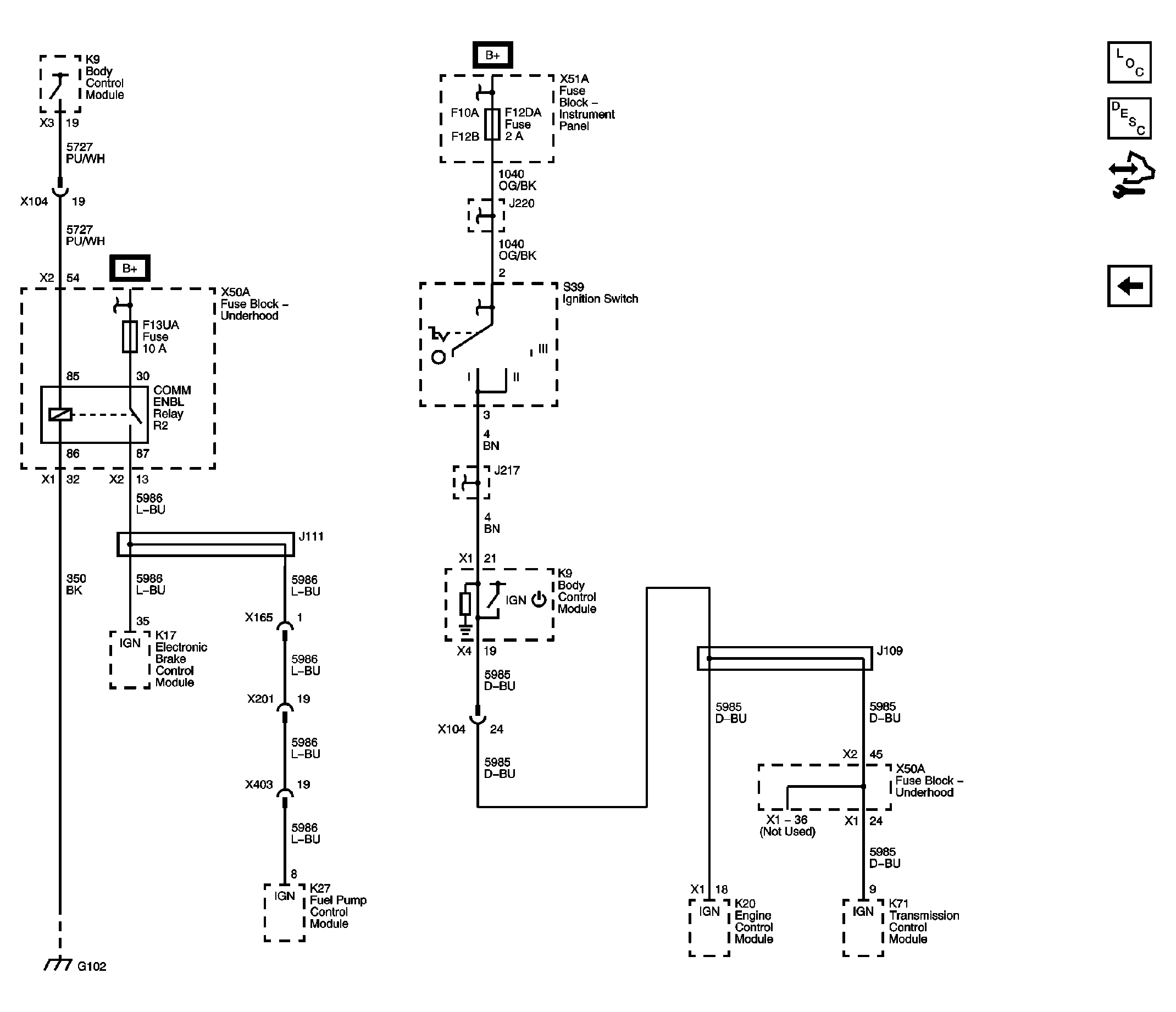

Fig 1: Accessory Wakeup Serial Data Wiring Schematic

GM2531626

Courtesy of GENERAL MOTORS CORP.
