Installation Procedure

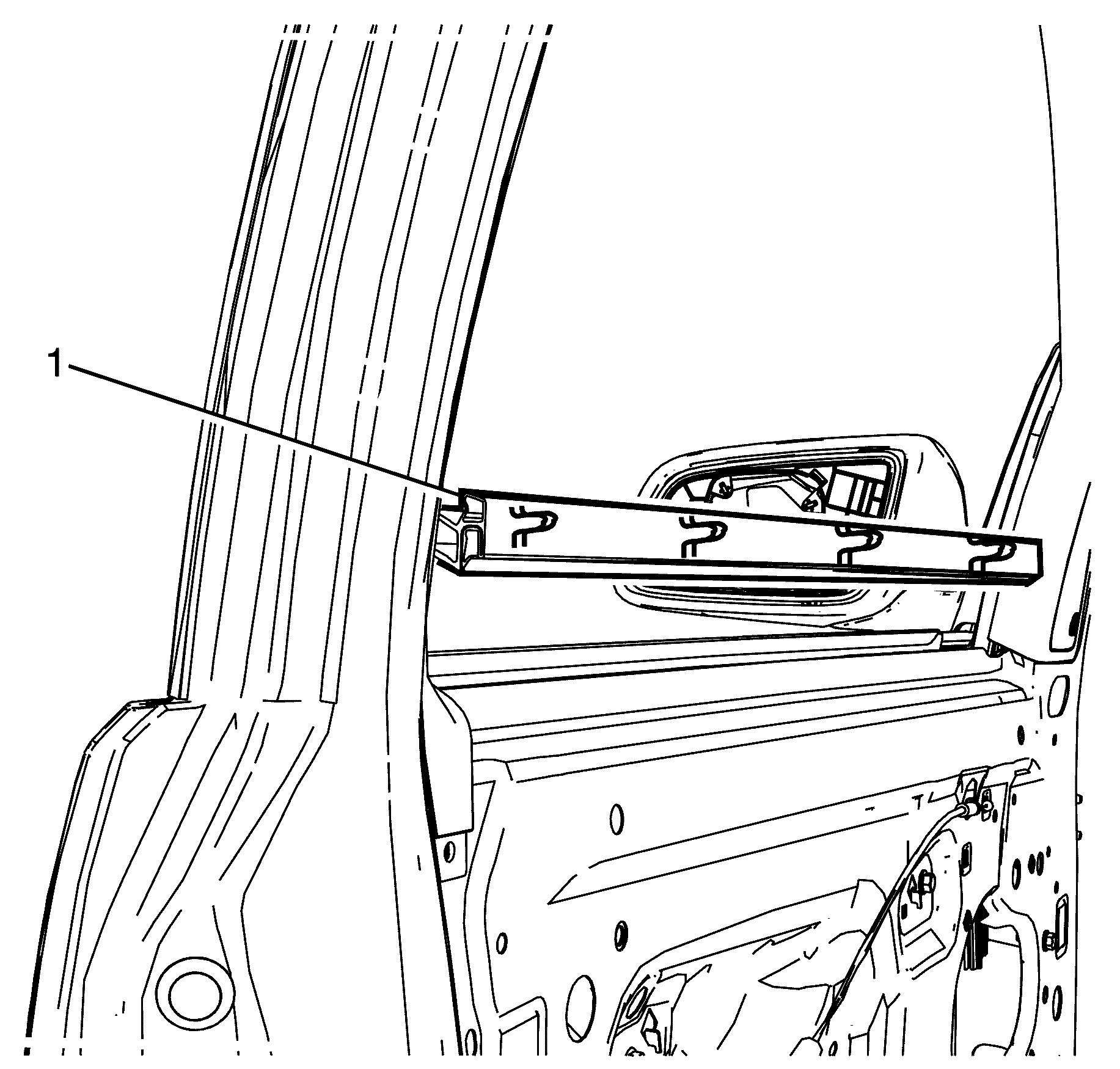

    Fig 1: Identifying Window Inner Belt Sealing Strip
    GM1940049Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:

    Push downward to attach the window inner sealing strip (1).

  1. Install the window inner sealing strip (1).
  2. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
