Cellular Telephone Wiring Schematics: UPH

WARNING: This page is about a different car, the 2012 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

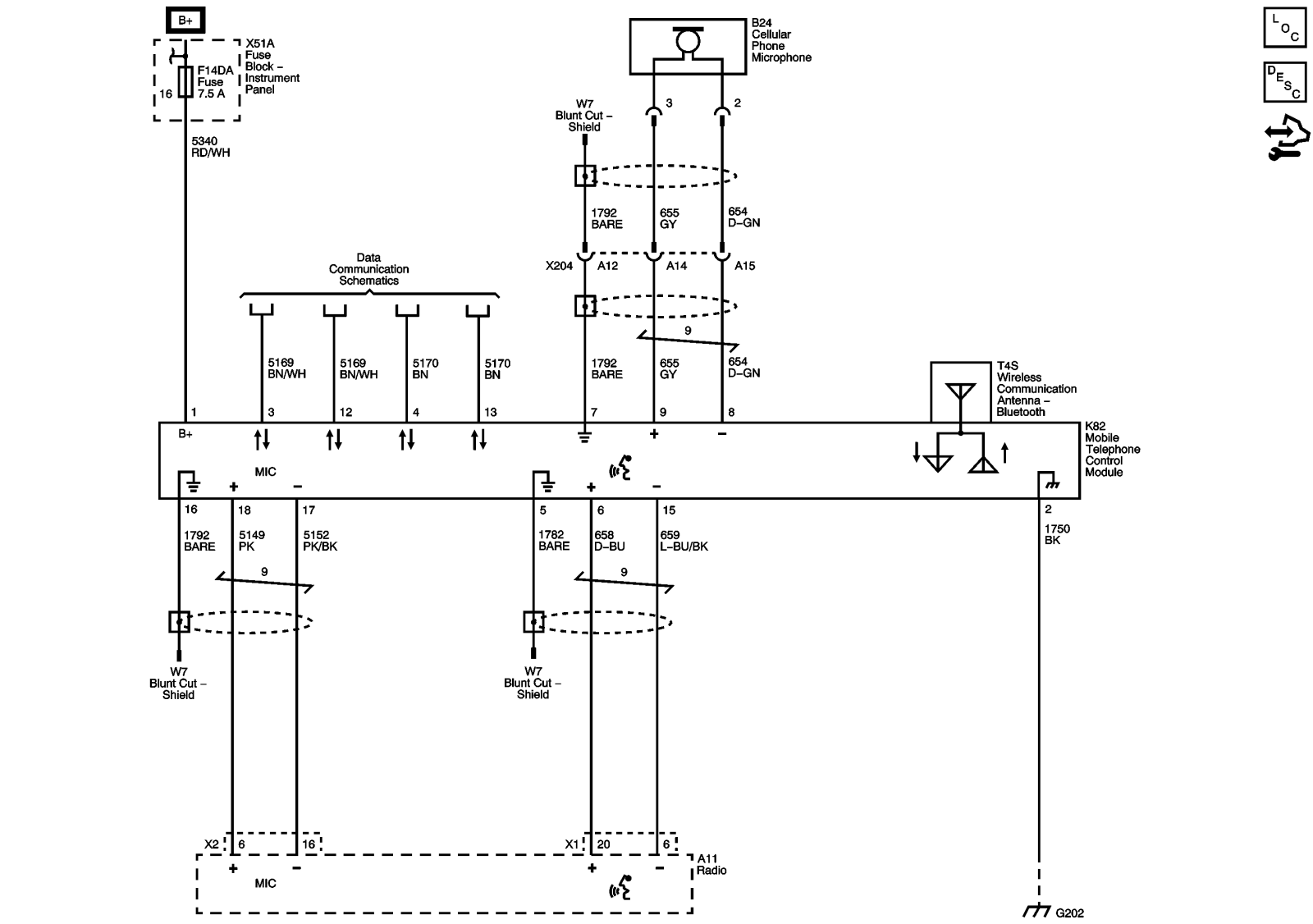

Fig 1: UPH Wiring Schematic
GM2625115Courtesy of GENERAL MOTORS COMPANY
