Removal Procedure

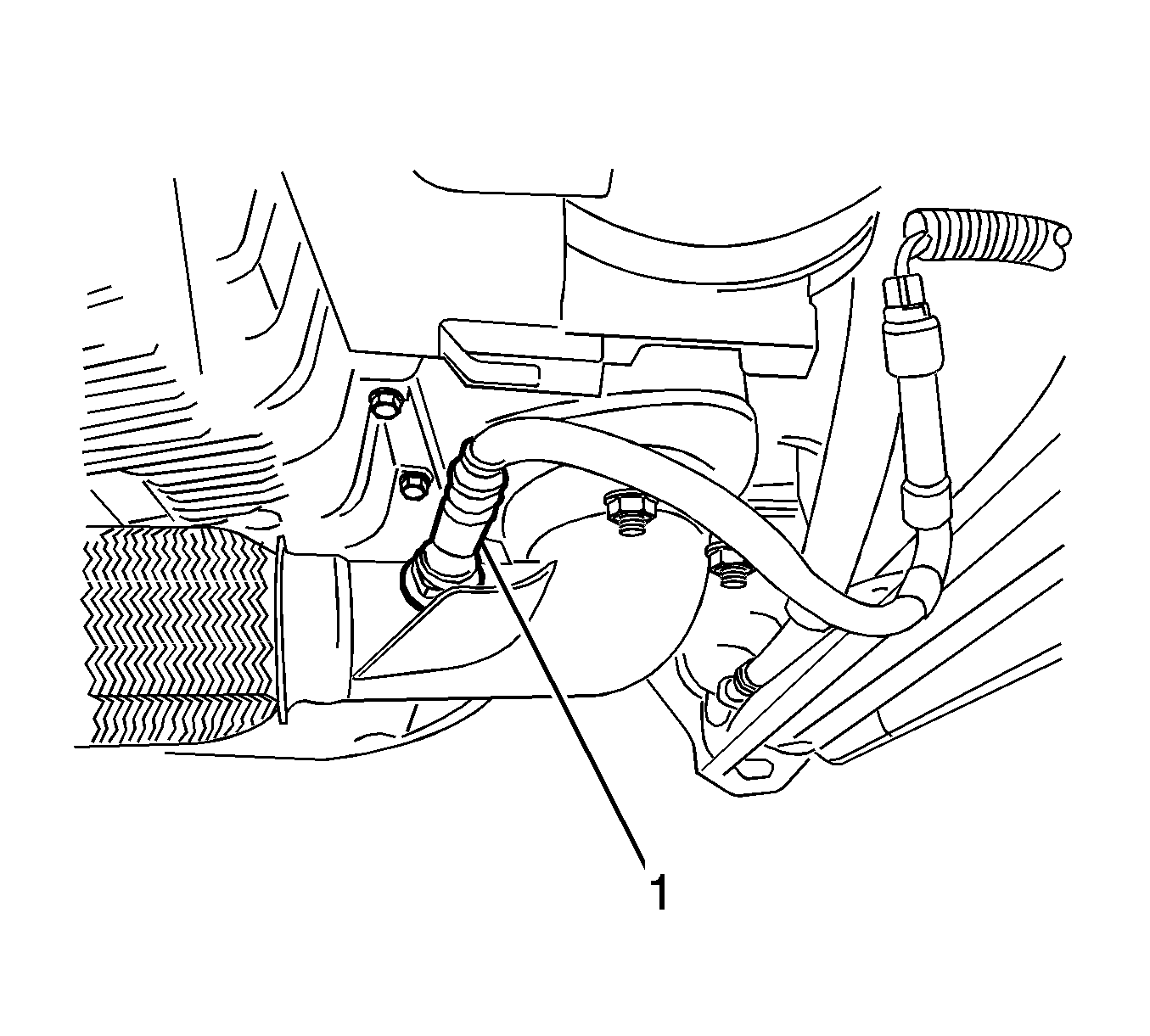

    Fig 1: View of Heated Oxygen Sensor 2 (HO2S2)
    GM2042535Courtesy of GENERAL MOTORS CORP.
    WARNING: Refer to Battery Disconnect Warning .
    CAUTION: Refer to Heated Oxygen and Oxygen Sensor Caution
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the HO2S2 connector.
  3. Install the EN-46577  .
  4. Remove the HO2S2 (1).
