Removal Procedure

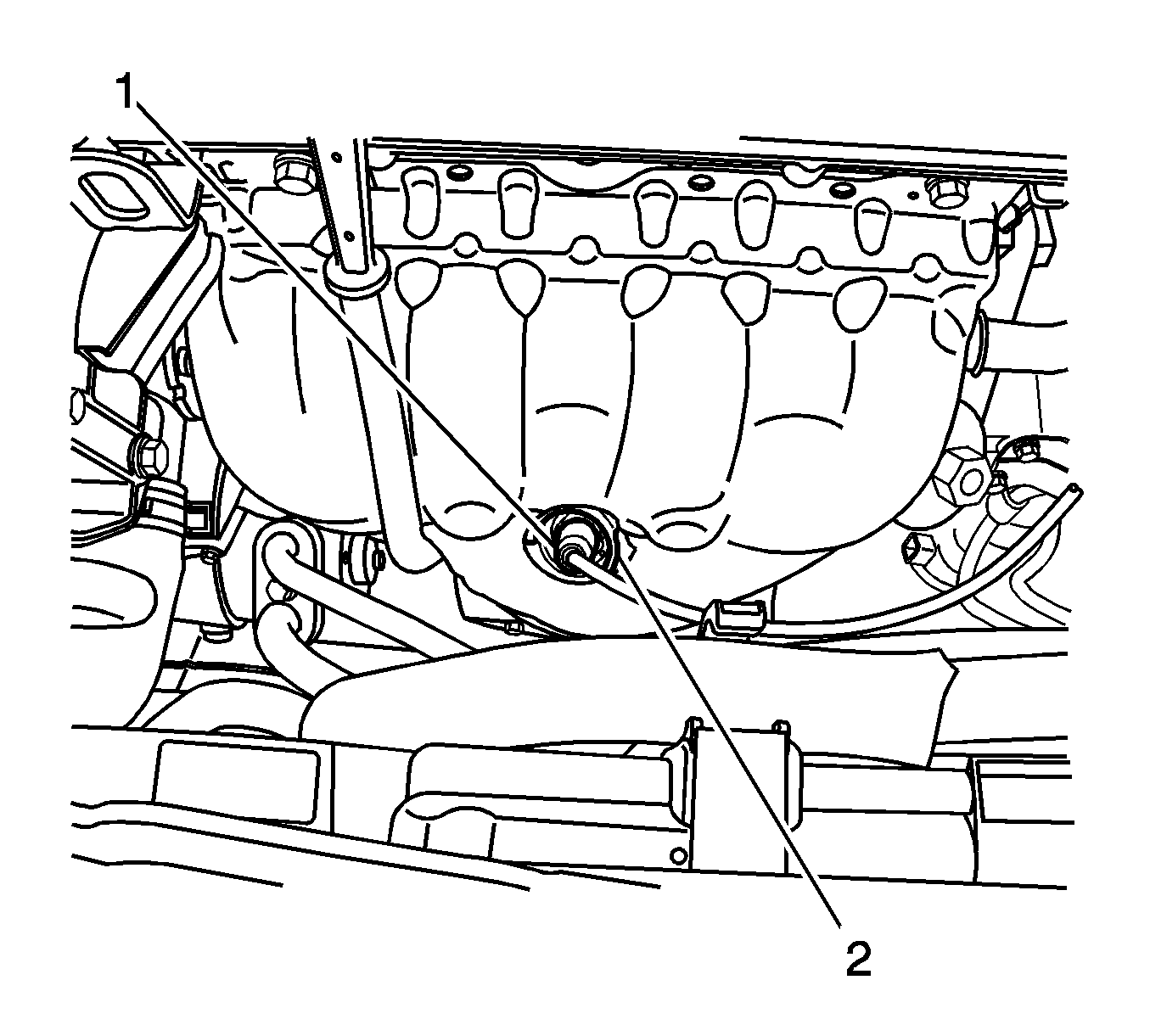

    Fig 1: HO2S1 & Connector
    GM2178817Courtesy of GENERAL MOTORS CORP.
    WARNING: Refer to Battery Disconnect Warning .
    CAUTION: Refer to Heated Oxygen and Oxygen Sensor Caution
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the HO2S1 connector.
  3. Install the EN-46577  .
  4. Remove the HO2S1 (1).
