Fuel Pressure Relief

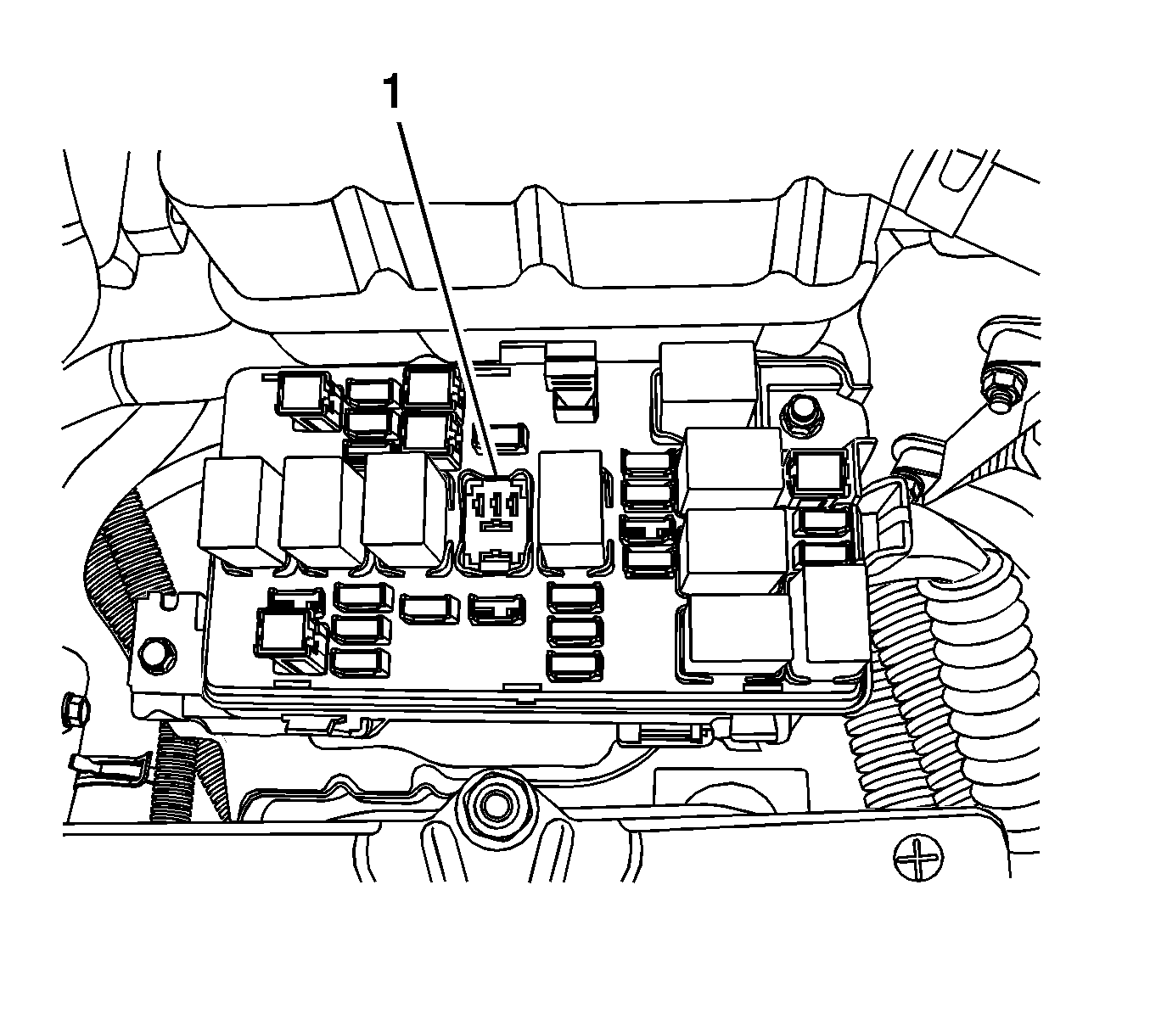

    Fig 1: Locating Fuel Pump Relay
    GM2049228Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fuel Pressure Caution .
  1. Remove the fuel cap.
  2. Remove the fuel pump fuse (1) from the engine fuse block.
  3. Start the engine and allow the engine to stall.
  4. Crank the engine for an additional 10 seconds.
