Home >> Chevrolet >> 2011 >> Aveo LS, 4D Hatchback, Standard >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Mirror System >> Repair Instructions >> Power Mirror Switch Replacement >> Removal Procedure

Removal Procedure

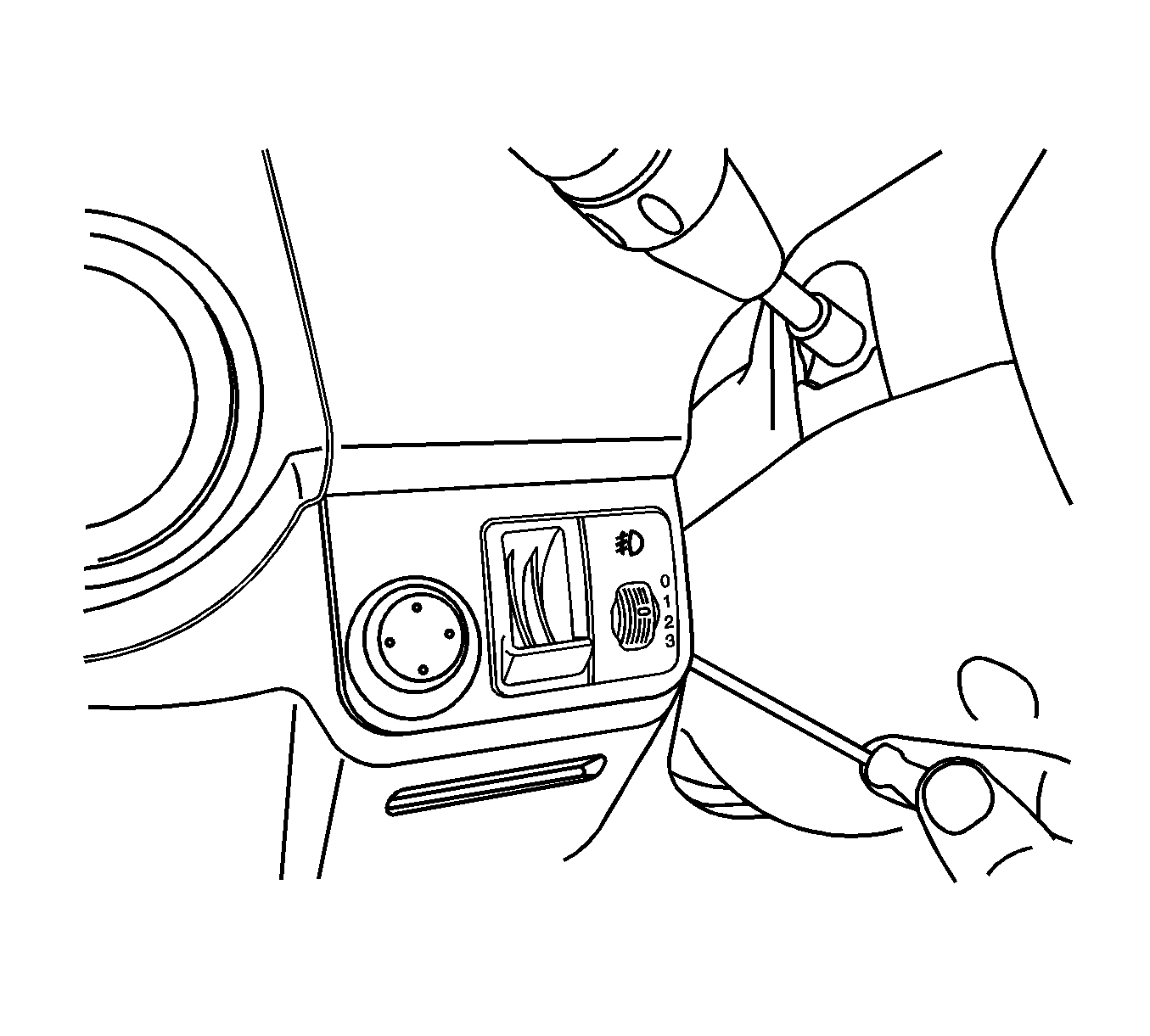

    Fig 1: Removing Power Mirror Switch
    GM2248225Courtesy of GENERAL MOTORS CORP.
  1. Using a taped flat-bladed tool, carefully remove the switch from the instrument panel.
    2. Fig 2: Power Mirror Switch
    GM2248238Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors and remove the switch
