Data Communication Wiring Schematics (WHB)

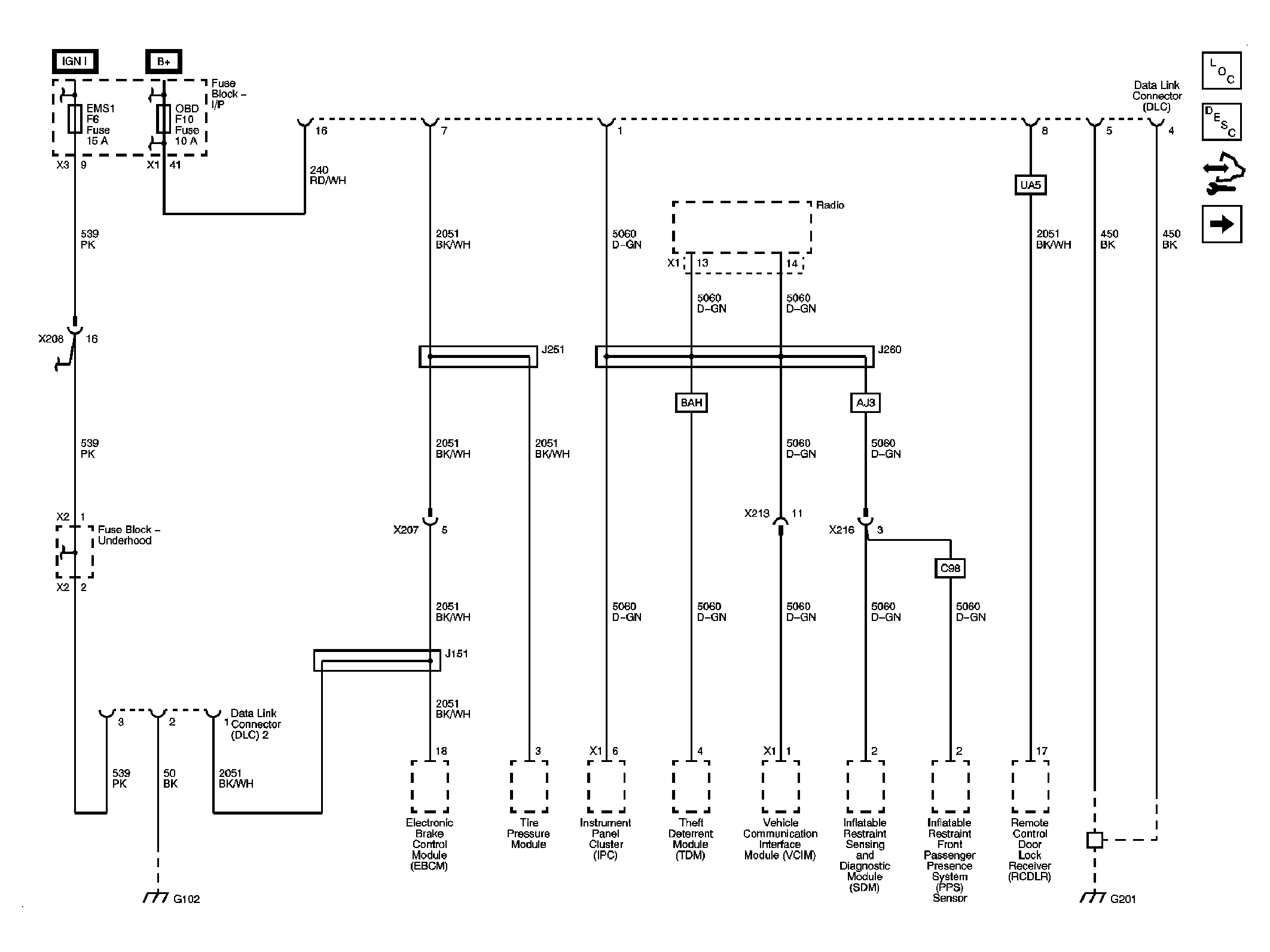

Fig 1: Power, Ground, Data Link Connector, and Low Speed GMLAN Wiring Schematic
GM2383878Courtesy of GENERAL MOTORS CORP.

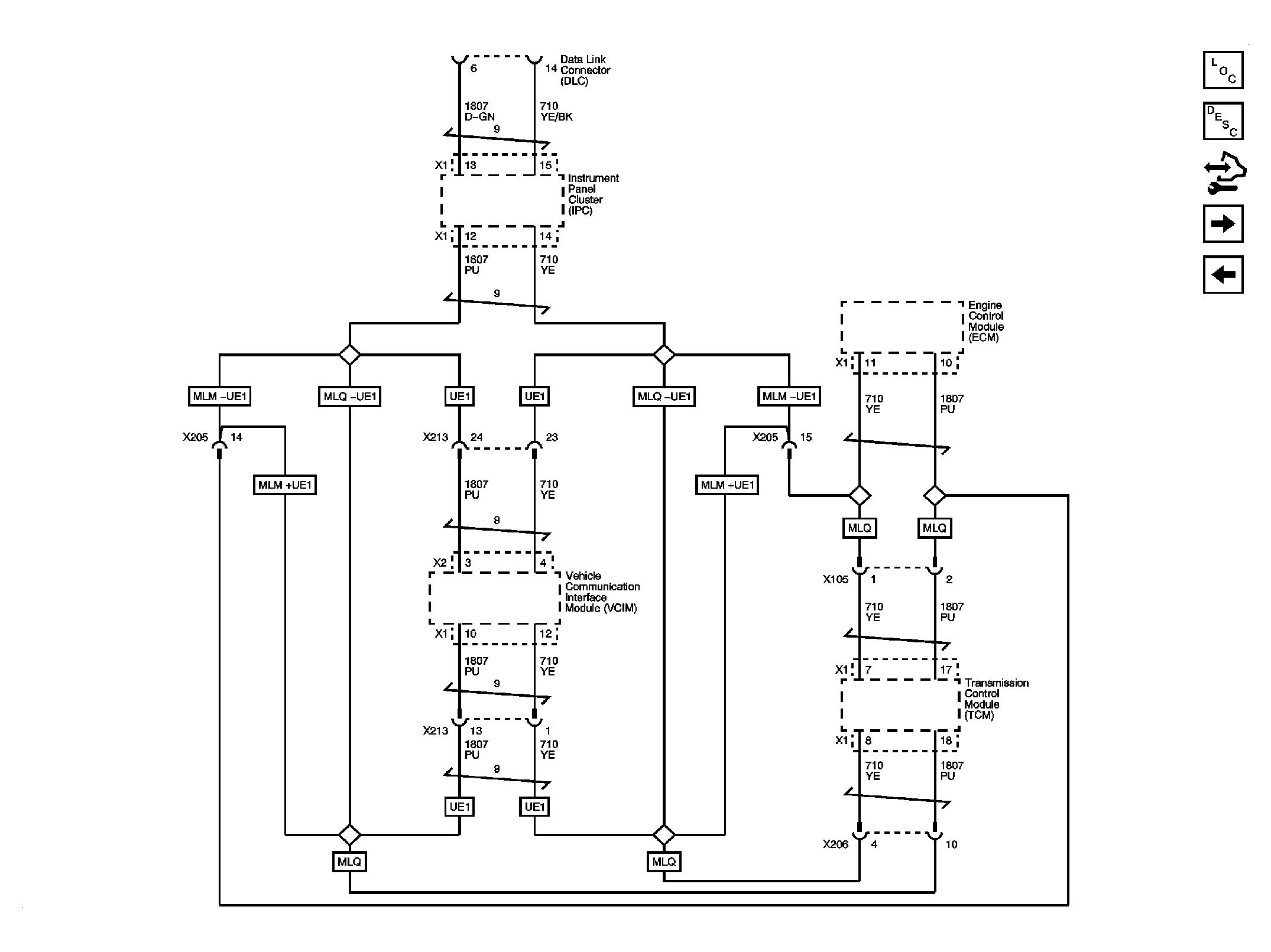

Fig 2: High Speed GMLAN Wiring Schematic
GM2383882Courtesy of GENERAL MOTORS CORP.
Fig 3: Accessory Wake Up Wiring Schematic
GM2383888Courtesy of GENERAL MOTORS CORP.
