Removal Procedure

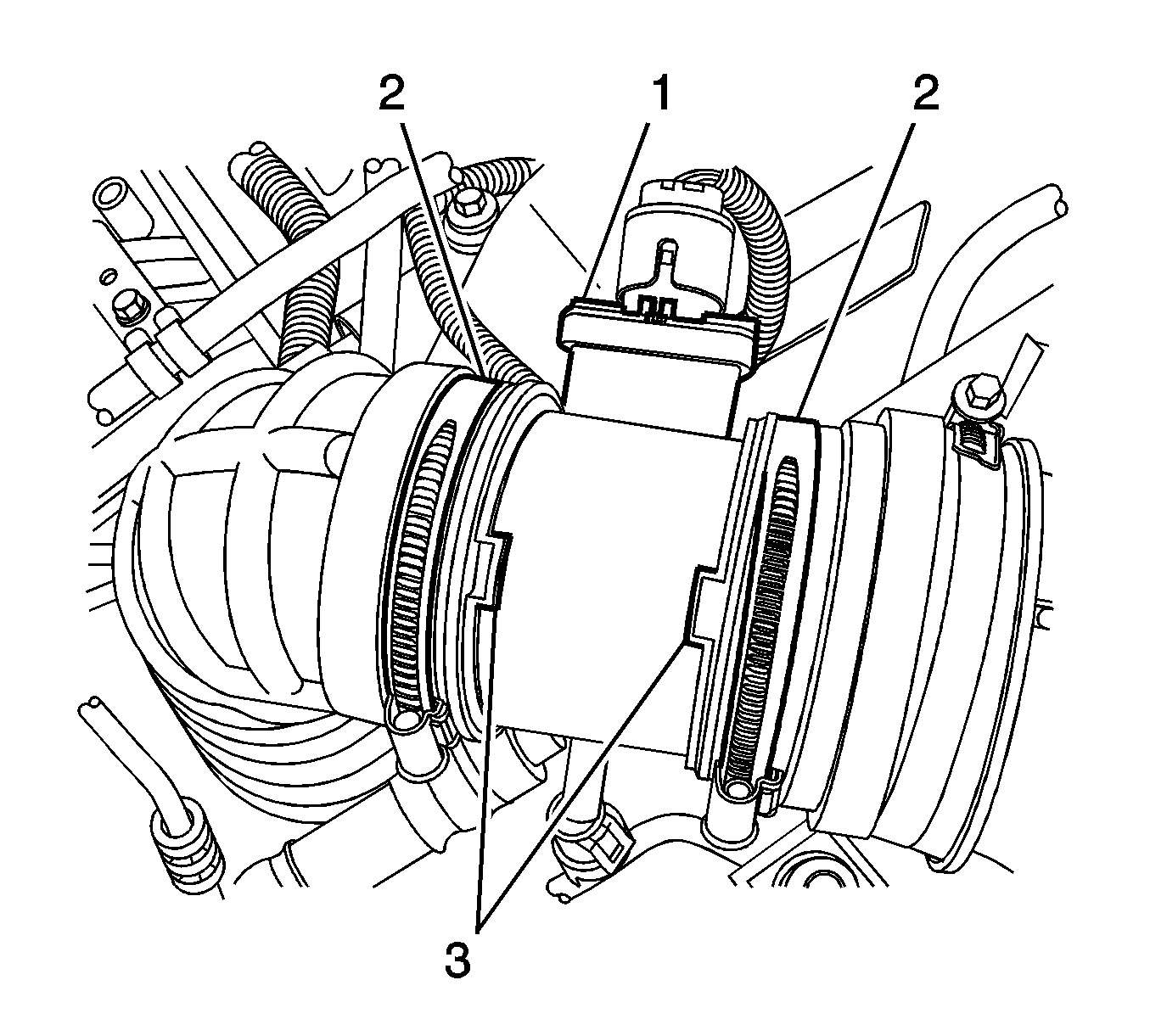

    Fig 1: Mass Airflow Sensor & Connector
    GM2167842Courtesy of GENERAL MOTORS CORP.
    WARNING: Refer to Battery Disconnect Warning .
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the mass airflow sensor connector (1).
  3. Loosen the two clamps (2).
  4. Remove the mass airflow sensor.
