Recirculation Actuator Replacement

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

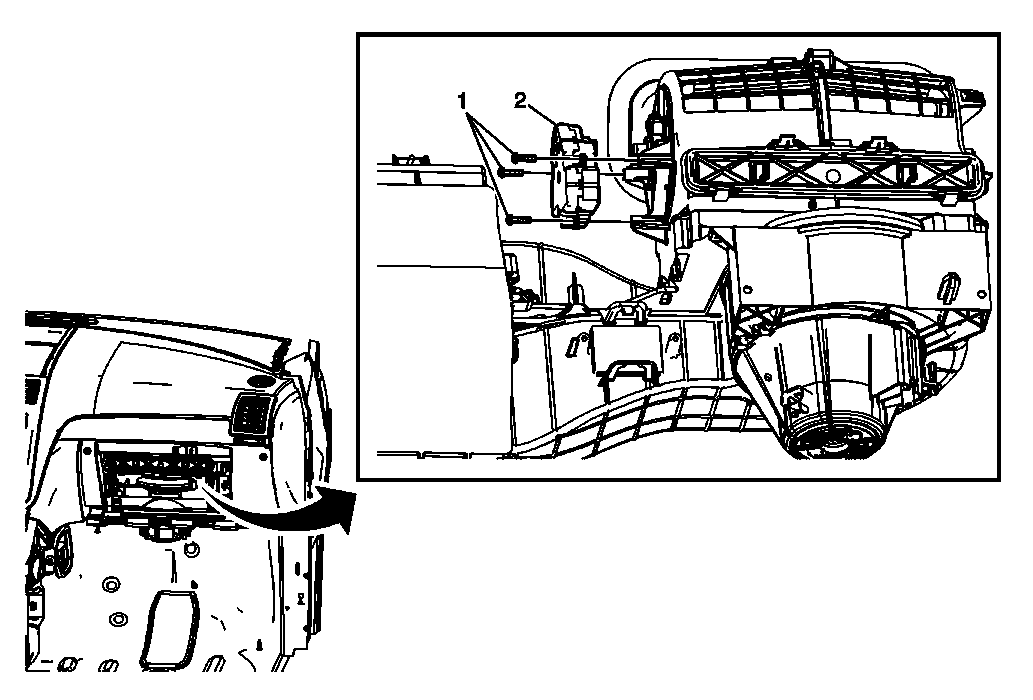

Fig 1: Identifying Recirculation Actuator
GM1866737Courtesy of GENERAL MOTORS CORP.
Callout Component Name
CAUTION: In order to avoid actuator damage, DO NOT apply power to the actuator when it is not installed in the HVAC module.

Preliminary Procedures

  1. Remove the instrument panel insulator - right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Acadia) or Instrument Panel Insulator Panel Replacement - Right Side (Enclave) or Instrument Panel Insulator Panel Replacement - Right Side (OUTLOOK) or Instrument Panel Insulator Panel Replacement - Right Side (Traverse) .
  2. Remove the instrument panel (I/P) compartment. Refer to Instrument Panel Compartment Replacement (Acadia) or Instrument Panel Compartment Replacement (Enclave) or Instrument Panel Compartment Replacement (OUTLOOK) or Instrument Panel Compartment Replacement (Traverse) .
1 Recirculation Actuator Screw (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Recirculation Actuator

Procedure

  1. Disconnect the electrical connectors.
  2. Re-calibrate the air recirculation actuator. Refer to Actuator Recalibration .
