Front Wipers

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

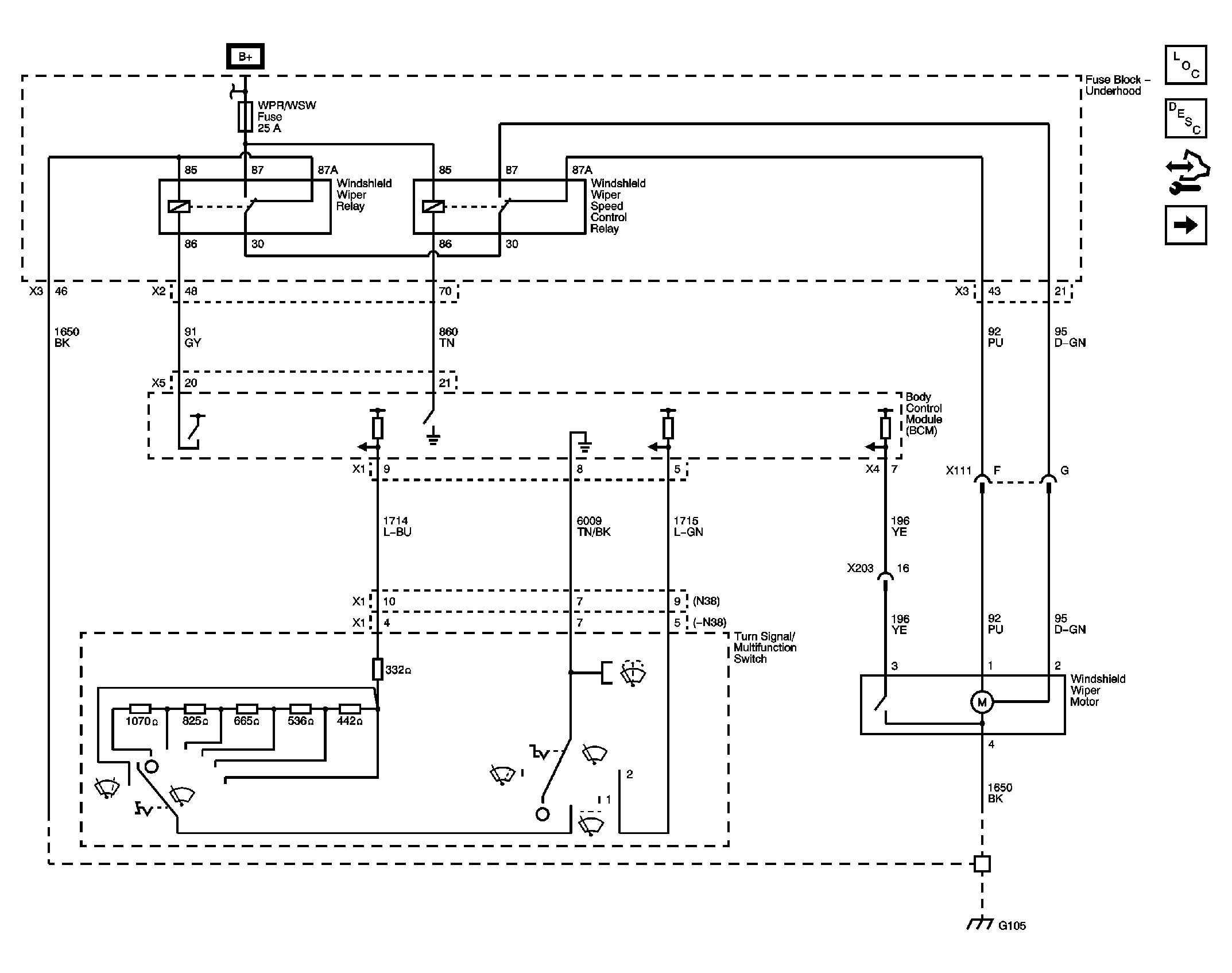

Fig 1: Front Wipers Wiring Schematic
GM2381645Courtesy of GENERAL MOTORS CORP.
