Special Tools

Illustration	Tool Number/Description
Courtesy of GENERAL MOTORS CORP.	7341 Fuel Line Quick Connect Separator
Courtesy of GENERAL MOTORS CORP.	7370 Fuel Line Quick Connect Separator
Courtesy of GENERAL MOTORS CORP.	CH 47831 Fuel Line Disconnect Tool
Courtesy of GENERAL MOTORS CORP.	CH 47976 Active Fuel Injector Tester
Courtesy of GENERAL MOTORS CORP.	CH 47976-60 AFIT Harness Adapter
Courtesy of GENERAL MOTORS CORP.	CH 47976-75 Fuel Injector Harness Adapter
Courtesy of GENERAL MOTORS CORP.	CH 48027 (KM J 34730-A) Digital Pressure Gage
Courtesy of GENERAL MOTORS CORP.	CH 48096 EVAP Service Access Port Tool
Courtesy of GENERAL MOTORS CORP.	CH 48482 Fuel Sender Lock Ring Wrench
Courtesy of GENERAL MOTORS CORP.	CH 49290 Centering Adapter Engine Subframe
Courtesy of GENERAL MOTORS CORP.	DT 49407 (83 90 270) Sliding Hammer
Courtesy of GENERAL MOTORS CORP.	DW 170-010 Oxygen Sensor Remover/Installer
Courtesy of GENERAL MOTORS CORP.	EL 39021-460 Fuel Injector Test Adapter
Courtesy of GENERAL MOTORS CORP.	EN 32 025 012 Sliding Hammer Adapter
Courtesy of GENERAL MOTORS CORP.	EN 338-AU Fuel Pressure Gage
Courtesy of GENERAL MOTORS CORP.	EN 453-AU Fuel Pressure Test Hose Adapter
Courtesy of GENERAL MOTORS CORP.	EN 465-AU Fuel Gage Adapter Hose
Courtesy of GENERAL MOTORS CORP.	EN 46786 (32 025 013) Injector Removal Tool
Courtesy of GENERAL MOTORS CORP.	EN 46790 (32 025 005) Puller
Courtesy of GENERAL MOTORS CORP.	EN 46843 Quick Connect Release Tool
Courtesy of GENERAL MOTORS CORP.	EN 46999 Displacement On Demand Electric Tool
Courtesy of GENERAL MOTORS CORP.	EN 47632 (32 025 010) Cleaning Tool
Courtesy of GENERAL MOTORS CORP.	EN 47969 Fuel Supply Diagnostic Hose
Courtesy of GENERAL MOTORS CORP.	EN 48248 Cylinder Compression Pressure Gage
Courtesy of GENERAL MOTORS CORP.	EN 48266 Injector Seal Installer/Sizer
Courtesy of GENERAL MOTORS CORP.	EN 48278 Sub Fuel Pump Locking Ring Remover/Installer
Courtesy of GENERAL MOTORS CORP.	EN 48279 Main Fuel Pump Locking Ring Remover/Installer
Courtesy of GENERAL MOTORS CORP.	EN 48303 Fuel Filter Housing Holder
Courtesy of GENERAL MOTORS CORP.	EN 48304 Fuel Filter Locker Installer/Remover
Courtesy of GENERAL MOTORS CORP.	EN 48357 Injector Remover
Courtesy of GENERAL MOTORS CORP.	EN 48536 Frame Support Tool (Engine Lower 65 mm Kit)
Courtesy of GENERAL MOTORS CORP.	EN 48565 EGR Test Harness
Courtesy of GENERAL MOTORS CORP.	EN 48896 HP Fuel Pump Installation Alignment Gage
Courtesy of GENERAL MOTORS CORP.	EN 49232 Fuel Pump Lock Ring
Courtesy of GENERAL MOTORS CORP.	EN 49495 Fuel Pressure Gage
Courtesy of GENERAL MOTORS CORP.	EN 49799 Fuel Pressure Gage Adapter
Courtesy of GENERAL MOTORS CORP.	EN 83 95 261 Fuel Line Tool
Courtesy of GENERAL MOTORS CORP.	EN 8396350 Remover/Installer Oxygen Sensor
Courtesy of GENERAL MOTORS CORP.	GE 41415-50 Fuel Tank Cap Adaptor
Courtesy of GENERAL MOTORS CORP.	J 22610 Keystone Clamp Pliers
Courtesy of GENERAL MOTORS CORP.	J 23738-A Hand Vacuum Pump
Courtesy of GENERAL MOTORS CORP.	J 24460-01 Cooling System Pressure Tester
Courtesy of GENERAL MOTORS CORP.	J 25070 Heat Gun 260-399°C (500-750°F)
Courtesy of GENERAL MOTORS CORP.	J 2619-01 (DT 2619-01) Slide Hammer
Courtesy of GENERAL MOTORS CORP.	J 26792 (EL 26792) HEI Spark Tester
Courtesy of GENERAL MOTORS CORP.	J 28428-E High Intensity Black Light Kit
Courtesy of GENERAL MOTORS CORP.	J 34730-1A Fuel Pressure Gage
Courtesy of GENERAL MOTORS CORP.	J 34730-262 Fuel Pressure Test Gage Adapter
Courtesy of GENERAL MOTORS CORP.	J 34730-375 Injector Test Lamp
Courtesy of GENERAL MOTORS CORP.	J 34730-405 (EL 34730-405) Injector Test Lamp
Courtesy of GENERAL MOTORS CORP.	J 35555 (EL 35555) Metal Mityvac
Courtesy of GENERAL MOTORS CORP.	J 35616-200 Test Light - Probe Kit
Courtesy of GENERAL MOTORS CORP.	J 35616-A/B-8637 (EL 35616-F) Connector Test Adapter Kit
Courtesy of GENERAL MOTORS CORP.	J 35800-A Fuel Injector Cleaner
Courtesy of GENERAL MOTORS CORP.	J 36012-A Ignition System Diagnostic Harness
Courtesy of GENERAL MOTORS CORP.	J 36169-HD Heavy Duty Fused Jumper
Courtesy of GENERAL MOTORS CORP.	J 36850 (DT 36850) Transjel Lubricant
Courtesy of GENERAL MOTORS CORP.	J 37027-1A IAC Motor Driver
Courtesy of GENERAL MOTORS CORP.	J 37088-A Fuel Line Disconnect Tool Set
Courtesy of GENERAL MOTORS CORP.	J 37281-A (EN 37281-A) Injector Remover
Courtesy of GENERAL MOTORS CORP.	J 37287 (EN 37287) Fuel Line Shut-Off Adaptors
Courtesy of GENERAL MOTORS CORP.	J 38491 Spark Plug Boot Removal Tool
Courtesy of GENERAL MOTORS CORP.	J 38522 (EN 38522) Variable Signal Generator
Courtesy of GENERAL MOTORS CORP.	J 38641-B Diesel Fuel Quality Tester
Courtesy of GENERAL MOTORS CORP.	J 39021 (EL 39021) Fuel Injector Coil and Balancer Tester
Courtesy of GENERAL MOTORS CORP.	J 39021-210 (EL 39021-210) Injector Tester Adapter Box
Courtesy of GENERAL MOTORS CORP.	J 39021-380 Fuel Injector Harness Adapter
Courtesy of GENERAL MOTORS CORP.	J 39021-450 Fuel Injector Harness Adapter
Courtesy of GENERAL MOTORS CORP.	J 39765 Fuel Sender Locknut Wrench
Courtesy of GENERAL MOTORS CORP.	J 41413-200 (EN 41413-100) Evaporative Emissions System Tester (EEST)
Courtesy of GENERAL MOTORS CORP.	J 41413-300 EVAP Cap and Plug Kit

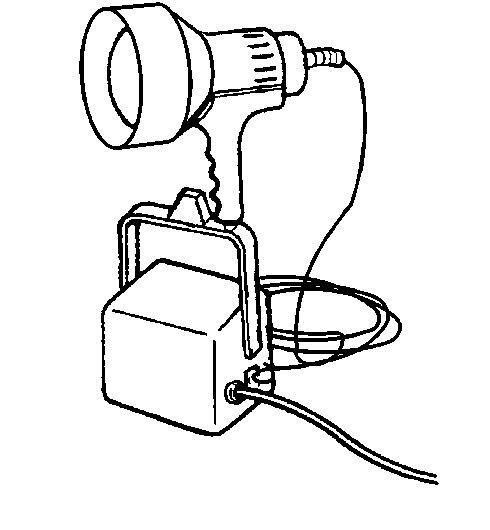

Courtesy of GENERAL MOTORS CORP.	J 41413-SPT High Intensity White Light
Courtesy of GENERAL MOTORS CORP.	J 41413-VLV (EN 41413-VLV) EVAP Service Port Vent Fitting
Courtesy of GENERAL MOTORS CORP.	J 41415-30 Fuel Tank Cap Adapter
Courtesy of GENERAL MOTORS CORP.	J 41415-40 Fuel Tank Cap Adapter
Courtesy of GENERAL MOTORS CORP.	J 41415-50 Fuel Tank Cap Adapter
Courtesy of GENERAL MOTORS CORP.	J 41515-A Glow Plug Socket
Courtesy of GENERAL MOTORS CORP.	J 41769 (EN 41769) (KM J 41769) Fuel Line Disconnect Tool Set
Courtesy of GENERAL MOTORS CORP.	J 42242 Fuel Pressure Gage Adapter
Courtesy of GENERAL MOTORS CORP.	J 42598 Vehicle Data Recorder
Courtesy of GENERAL MOTORS CORP.	J 42873-1 3/8 Fuel Line Shut-Off Valve
Courtesy of GENERAL MOTORS CORP.	J 42873-2 5/16 Return Pipe Shut-Off Valve
Courtesy of GENERAL MOTORS CORP.	J 42960-2 (CH 42960-2) Fuel Flapper Door Holder
Courtesy of GENERAL MOTORS CORP.	J 42964-1 3/8 Fuel Pipe Shut-Off Valve
Courtesy of GENERAL MOTORS CORP.	J 42964-2 5/16 Fuel Pipe Shut-Off Valve
Courtesy of GENERAL MOTORS CORP.	J 42982 Fuel Pressure Gage Adapter
Courtesy of GENERAL MOTORS CORP.	J 43094 Spark Plug Boot Puller
Courtesy of GENERAL MOTORS CORP.	J 43178 Fuel Line Disconnect Tool
Courtesy of GENERAL MOTORS CORP.	J 43244 (EL 43244) Relay Puller Pliers
Courtesy of GENERAL MOTORS CORP.	J 43883 Ignition System Diagnosis Harness
Courtesy of GENERAL MOTORS CORP.	J 43936 (EN 43936) Fuel Pressure Adapter Cap
Courtesy of GENERAL MOTORS CORP.	J 43937 (EN 43937) Fuel Pressure Adapter Lines
Courtesy of GENERAL MOTORS CORP.	J 44175 (CH 44175) Fuel Composition Tester
Courtesy of GENERAL MOTORS CORP.	J 44402 Fuel Tank Sending Unit Wrench
Courtesy of GENERAL MOTORS CORP.	J 44581 Fuel Line Disconnector Tool
Courtesy of GENERAL MOTORS CORP.	J 44602 (EN 44602) Injector Test Adapter
Courtesy of GENERAL MOTORS CORP.	J 44603 Injector Test Lamp
Courtesy of GENERAL MOTORS CORP.	J 45004 (CH 45004) Fuel Tank Drain Hose
Courtesy of GENERAL MOTORS CORP.	J 45059 Angle Meter
Courtesy of GENERAL MOTORS CORP.	J 45289 CANdi Module
Courtesy of GENERAL MOTORS CORP.	J 45722 (CH 45722) Fuel Sender Lock Ring Wrench
Courtesy of GENERAL MOTORS CORP.	J 45747 Fuel Line Ring Wrench
Courtesy of GENERAL MOTORS CORP.	J 45861 ECT Sensor Socket
Courtesy of GENERAL MOTORS CORP.	J 45873 Fuel Return Volume Test Kit
Courtesy of GENERAL MOTORS CORP.	J 45873-30 Injector Flow Test Adapter
Courtesy of GENERAL MOTORS CORP.	J 46091 Charge Air Cooler Tester
Courtesy of GENERAL MOTORS CORP.	J 46091-5 Charge Air Cooler Tester Adapter
Courtesy of GENERAL MOTORS CORP.	J 46091-15 Engine Pressure Test Adapter
Courtesy of GENERAL MOTORS CORP.	J 46594 Fuel Injector Puller
Courtesy of GENERAL MOTORS CORP.	KM 6009 Remover/Installer
Courtesy of GENERAL MOTORS CORP.	KM 807 Closure Plugs
Courtesy of GENERAL MOTORS CORP.	SA9127E-7 (CH 9127-E) Fuel Pressure/Flow Adapter
Courtesy of GENERAL MOTORS CORP.	SA9156E Fuel Tank Lock Ring Remover
Courtesy of GENERAL MOTORS CORP.	SA9182-E Electronic Fuel Injector Tester
Courtesy of GENERAL MOTORS CORP.	SA 9804E Fuel Tank Drain Hose
Courtesy of GENERAL MOTORS CORP.	SA9805E Fuel Line Separator
