Home >> Chevrolet >> 2010 >> Traverse LS, AWD >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Schematic and Routing Diagrams >> Immobilizer Schematics

Immobilizer Schematics

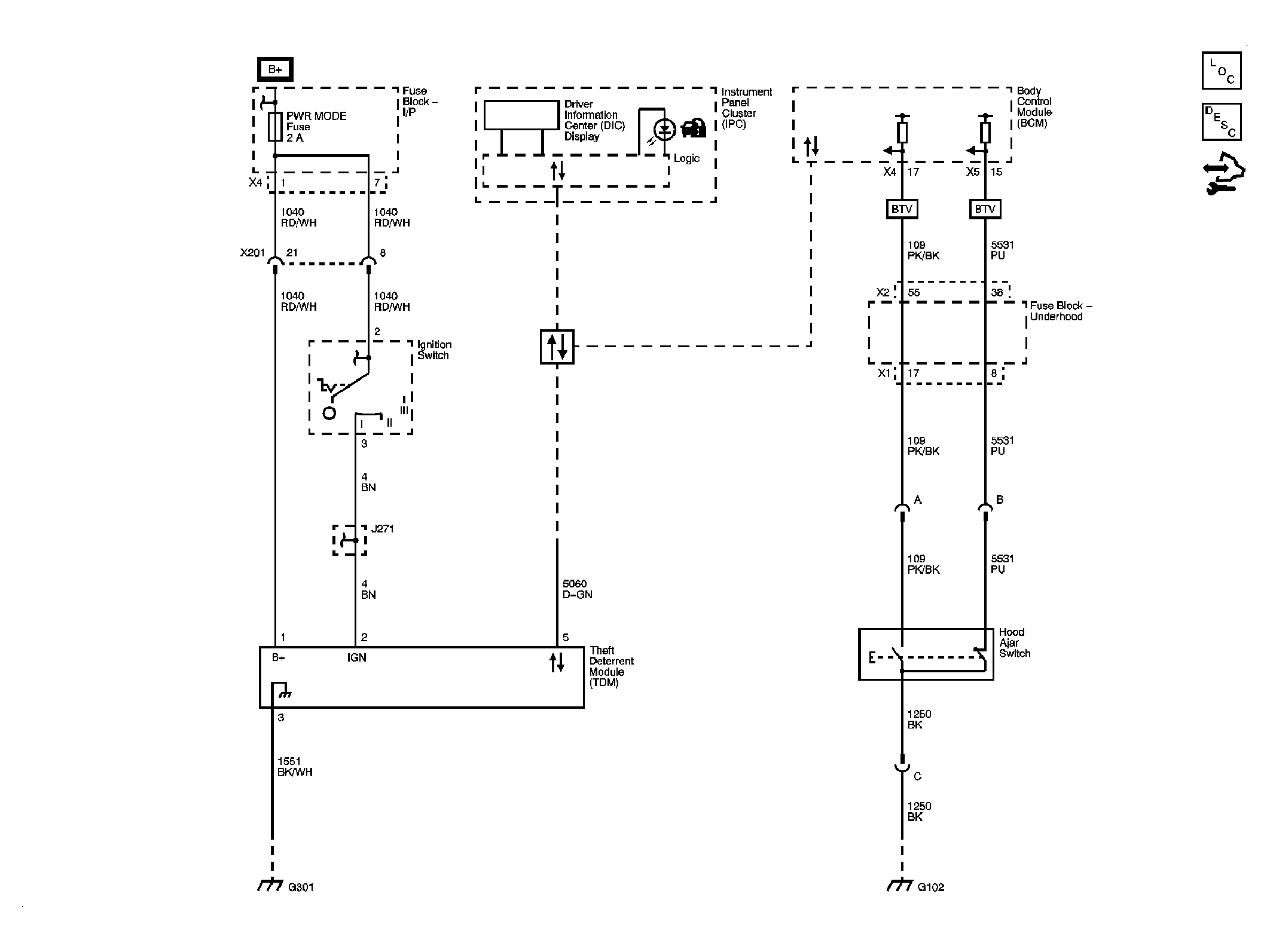

Fig 1: Immobilizer Circuit Schematic

GM2248465

Courtesy of GENERAL MOTORS CORP.
