Antilock Brake System Schematics

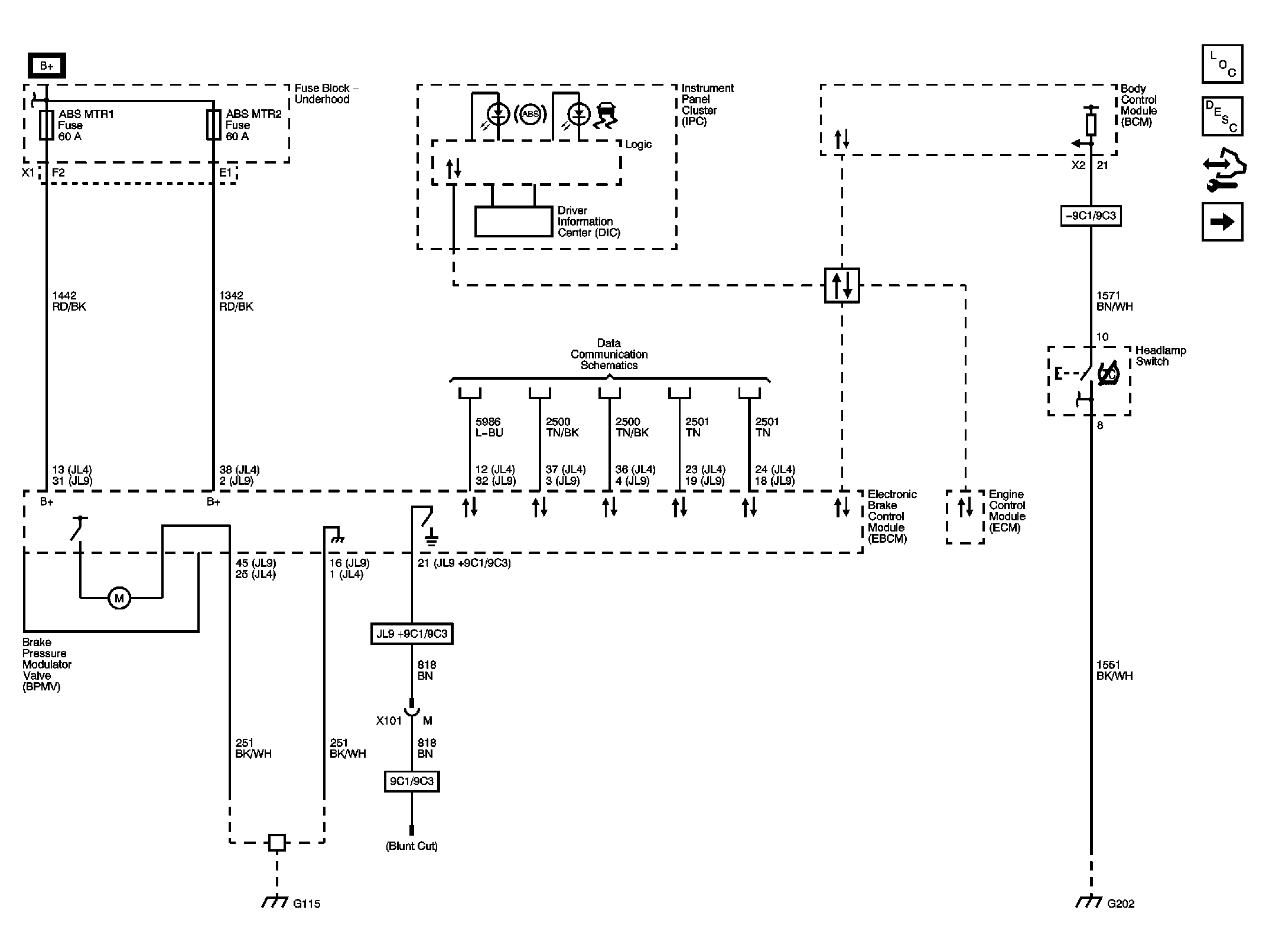

Fig 1: Power, Ground, and Brake Pressure Modulator Valves
GM2227779Courtesy of GENERAL MOTORS CORP.

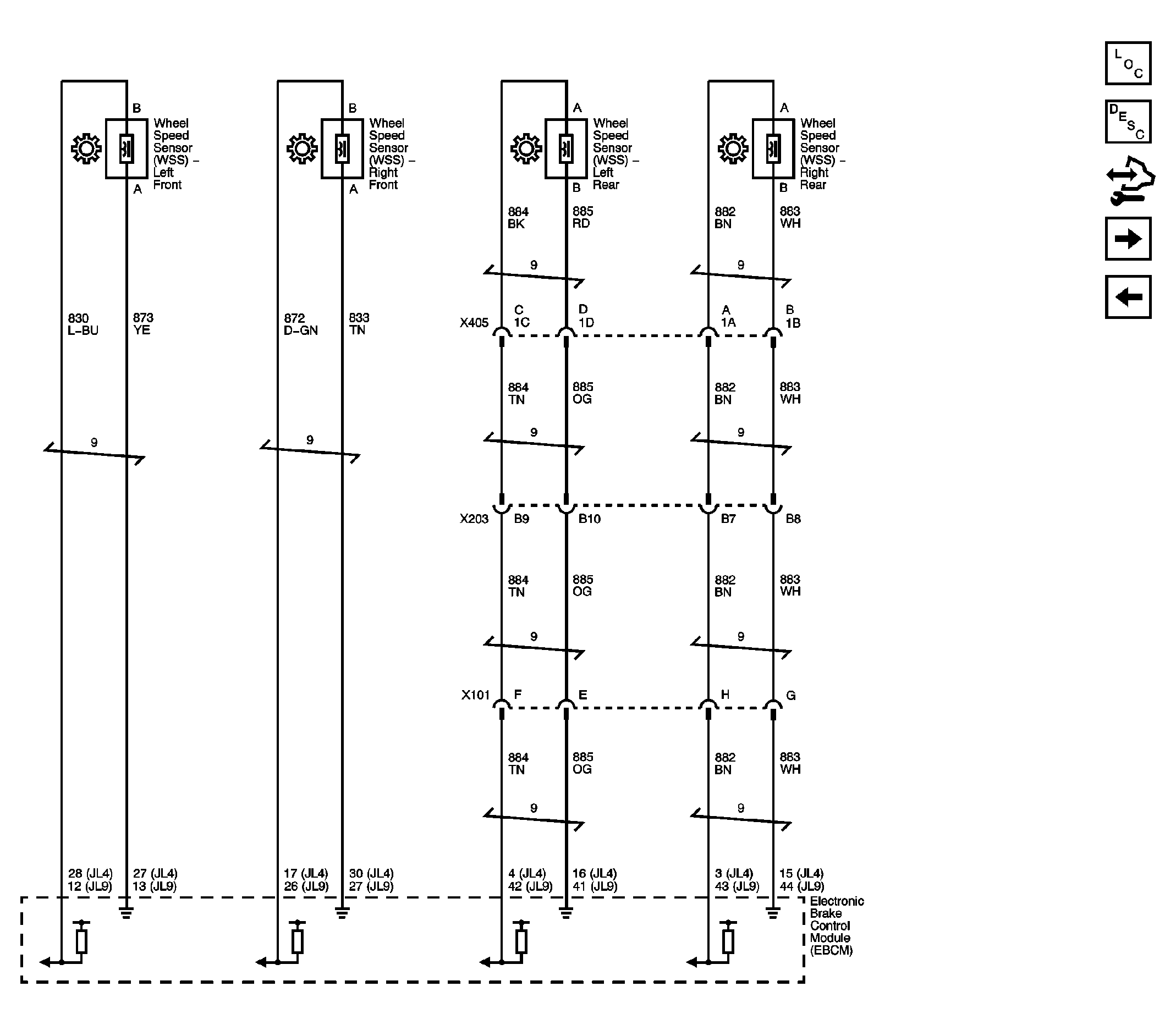

Fig 2: Wheel Speed Sensors
GM2227791Courtesy of GENERAL MOTORS CORP.

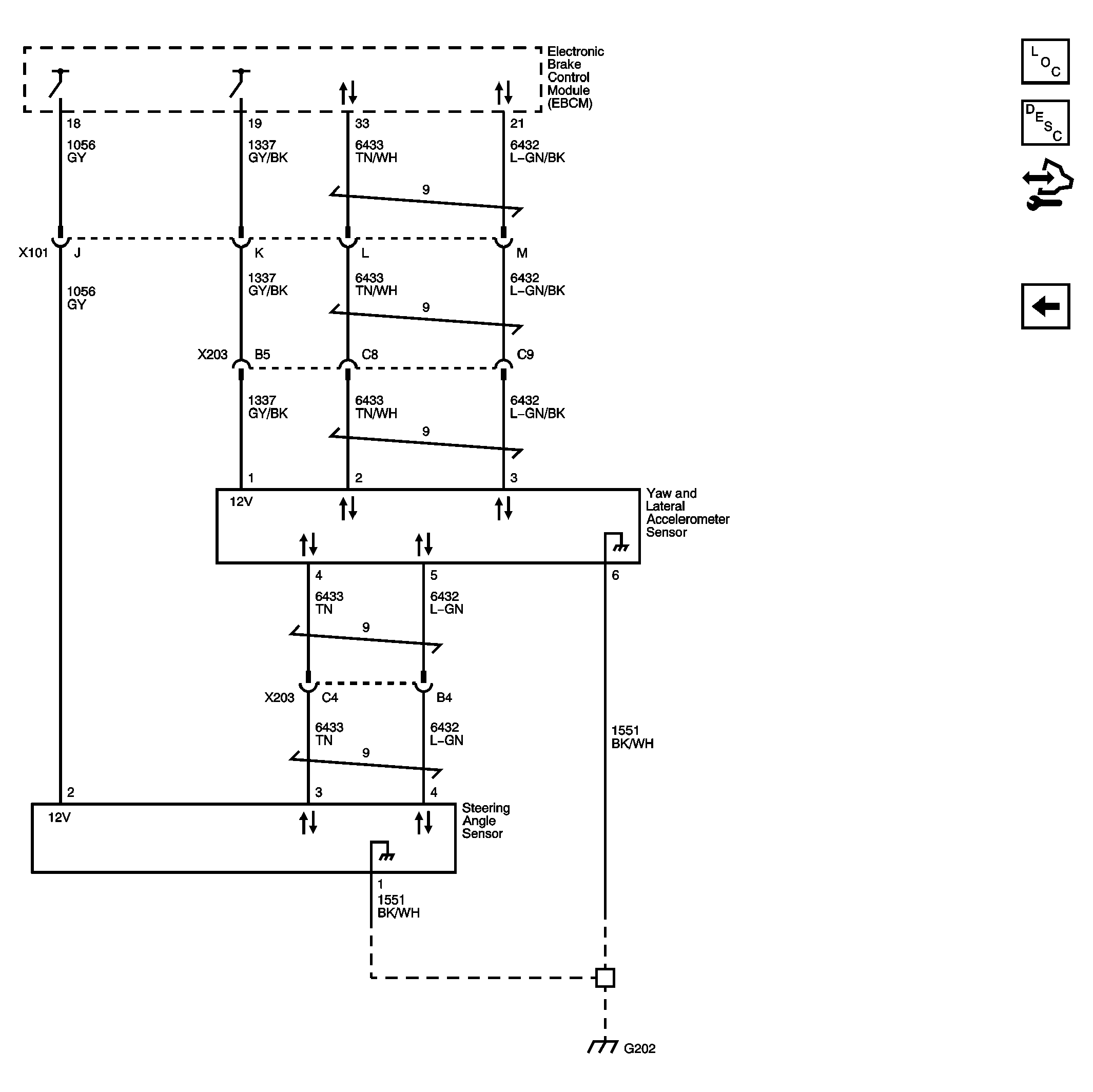

Fig 3: Steering Angle and Yaw and Lateral Accelerometer Sensors (JL4)
GM2227793Courtesy of GENERAL MOTORS CORP.
