Home >> Chevrolet >> 2010 >> HHR SS, Standard >> Repair and Diagnosis >> Steering >> Power Steering System >> Schematic and Routing Diagrams >> Power Steering Schematics

Power Steering Schematics

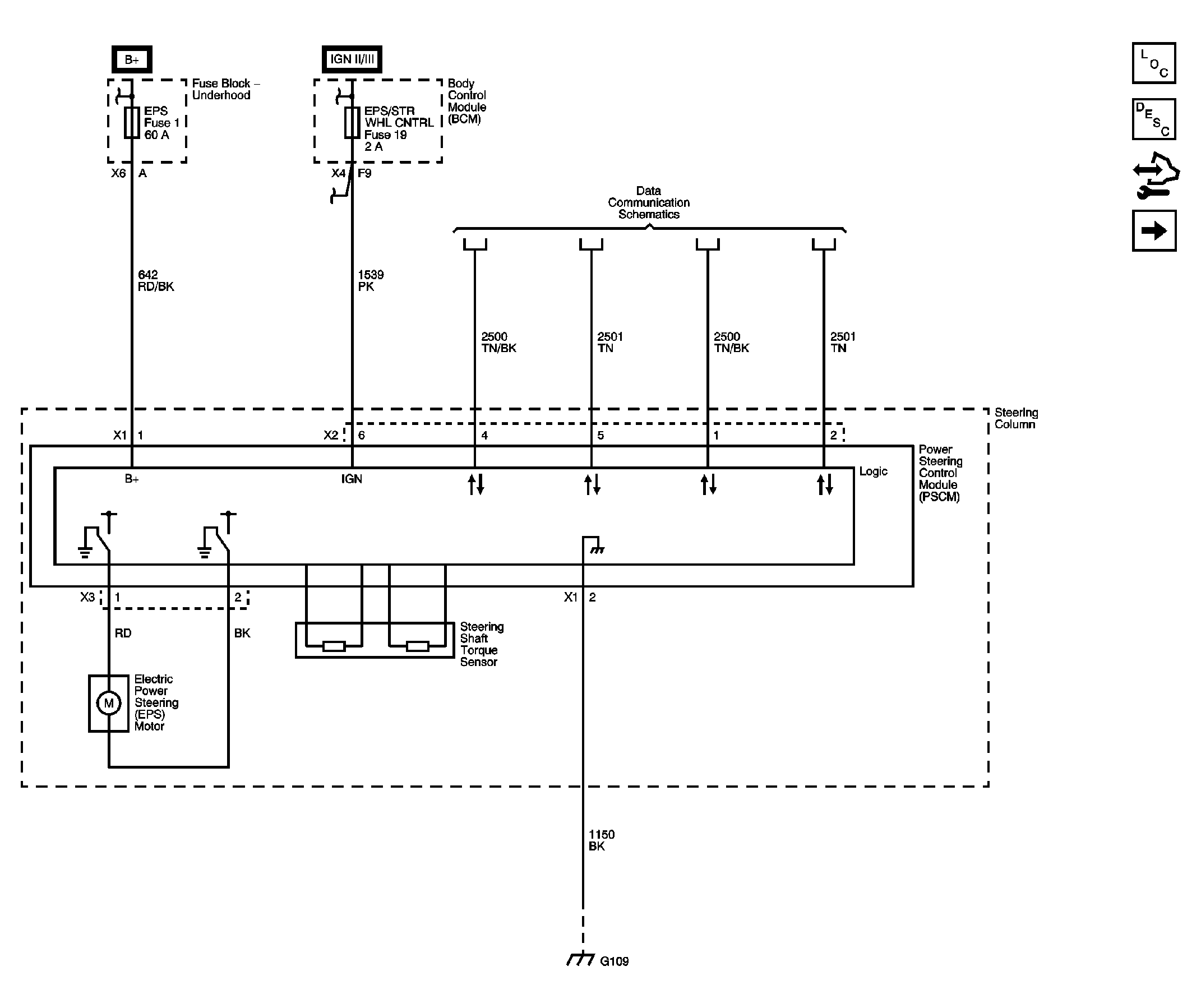

Fig 1: LE8/LE9

GM2248106

Courtesy of GENERAL MOTORS CORP.

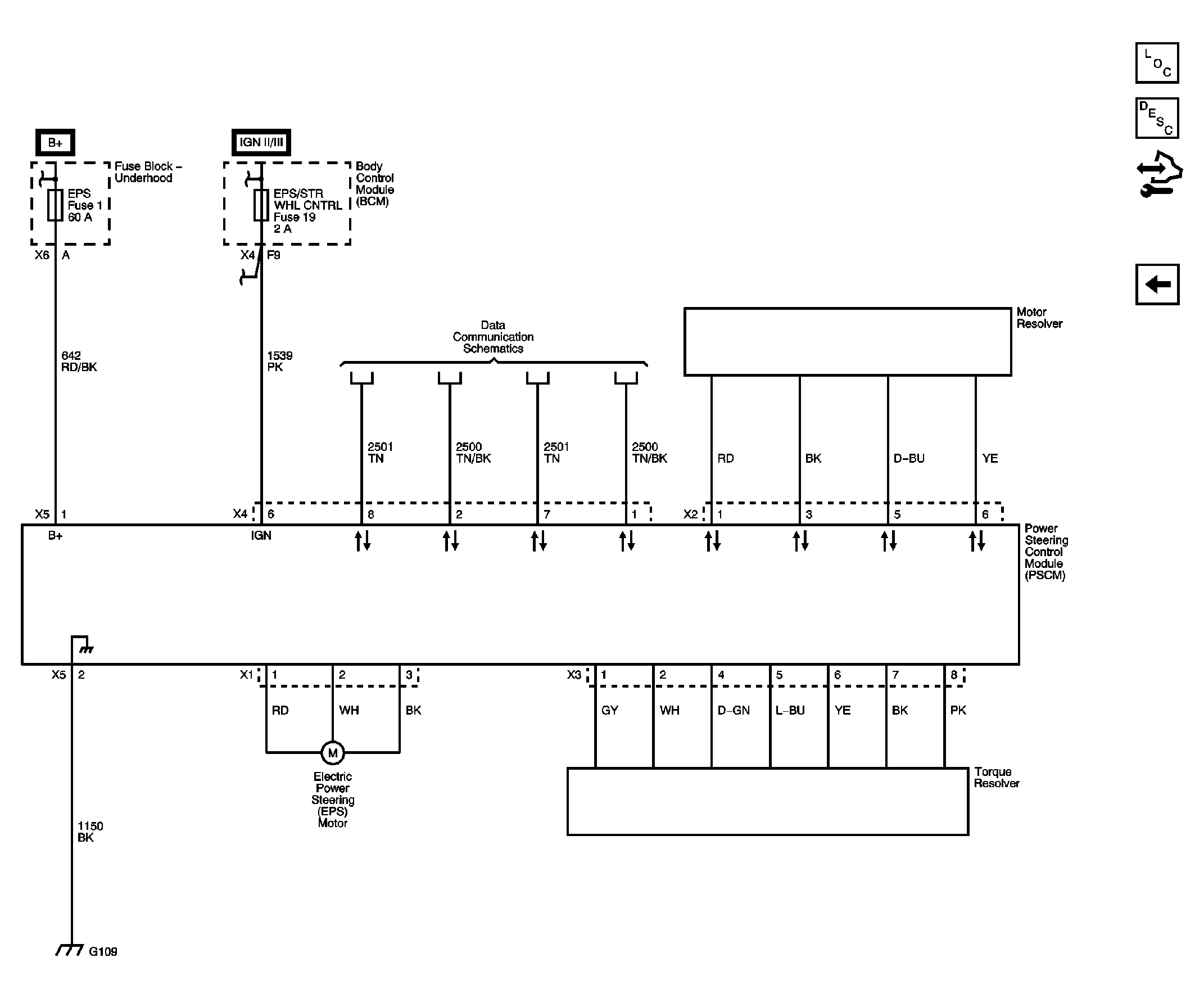

Fig 2: LNF

GM2248112

Courtesy of GENERAL MOTORS CORP.
