Antilock Brake System Schematics

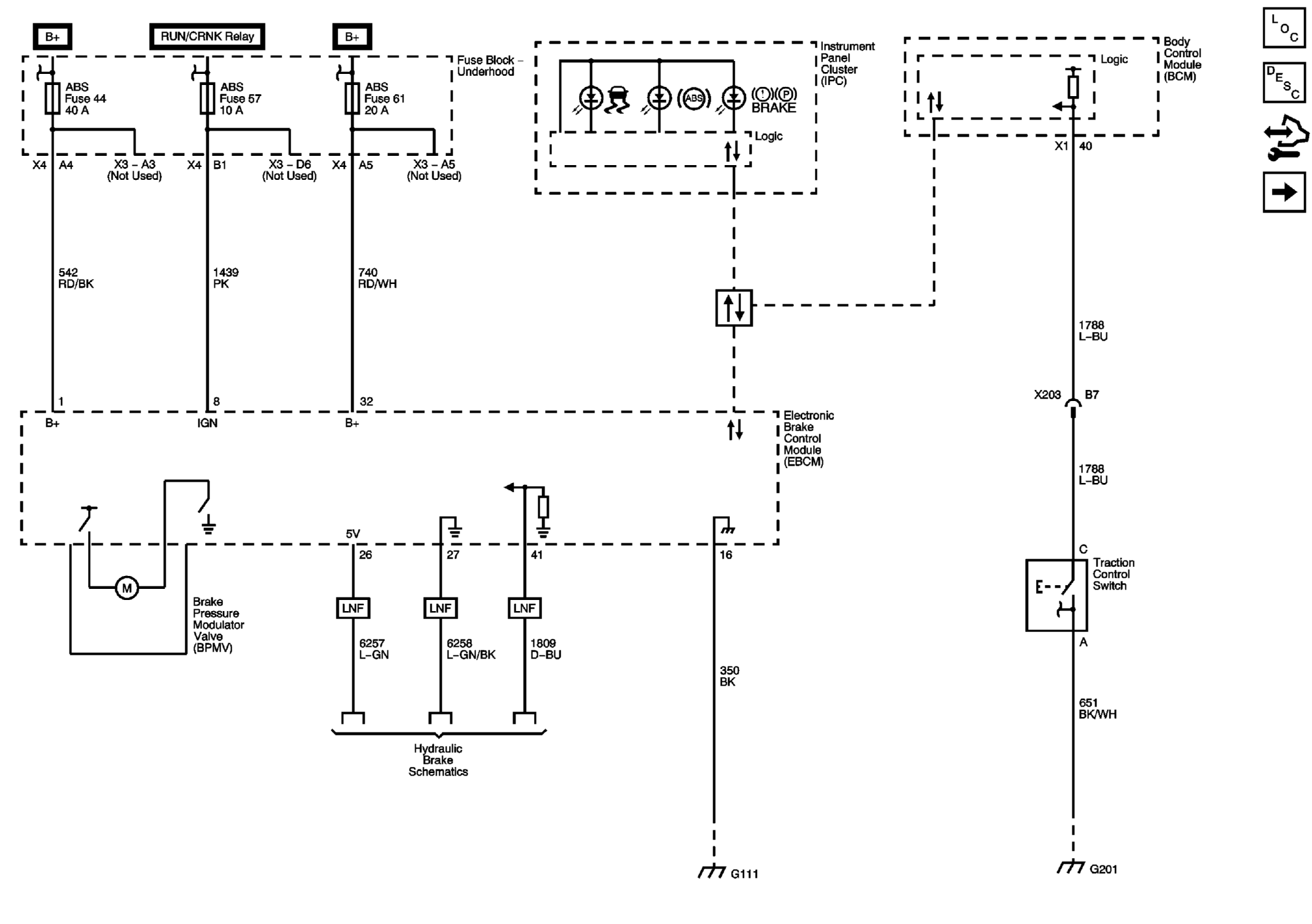

Fig 1: Power, Ground, Serial Data and Traction Control
GM2247512Courtesy of GENERAL MOTORS CORP.

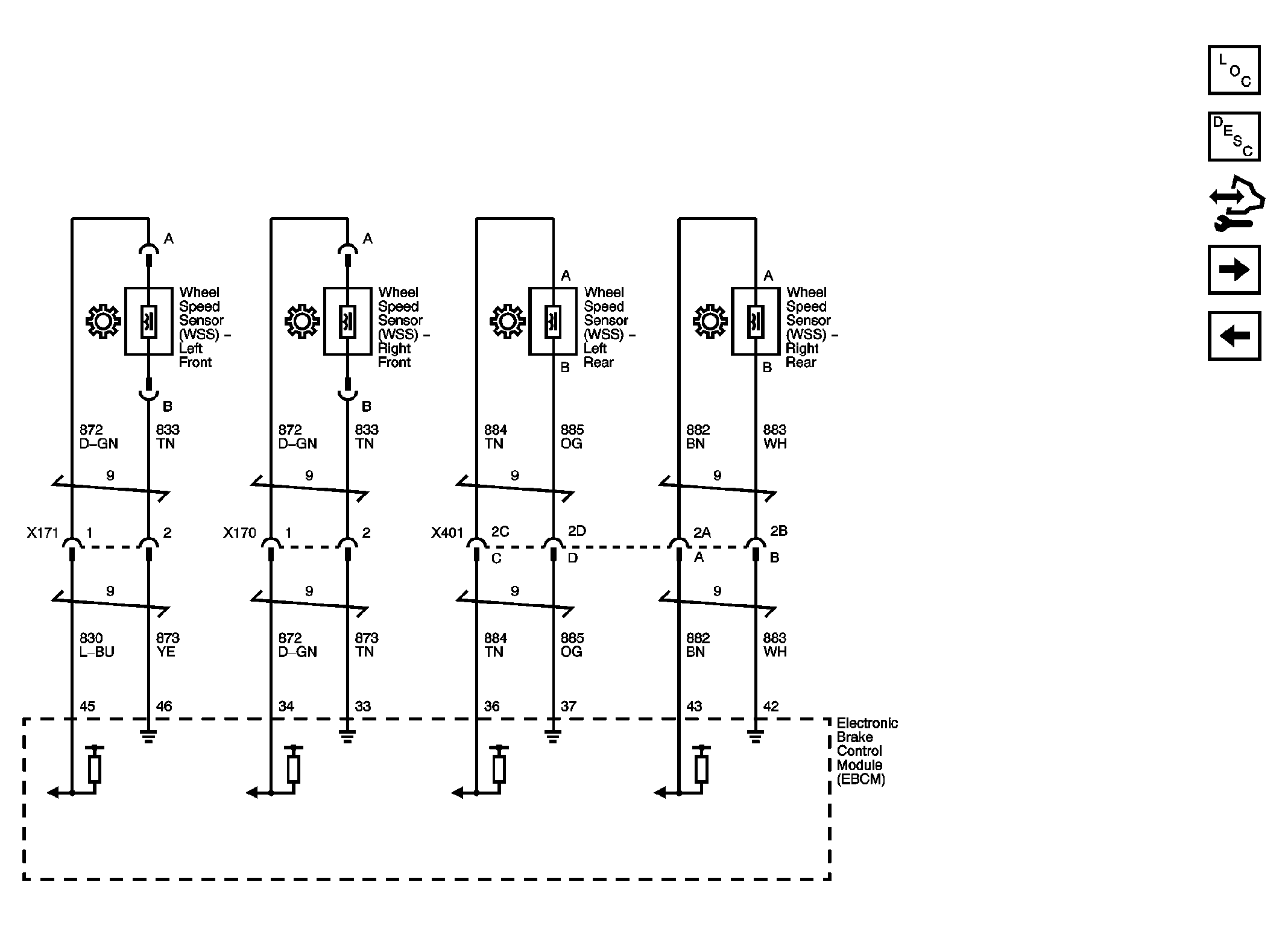

Fig 2: Wheel Speed Signals
GM2247514Courtesy of GENERAL MOTORS CORP.

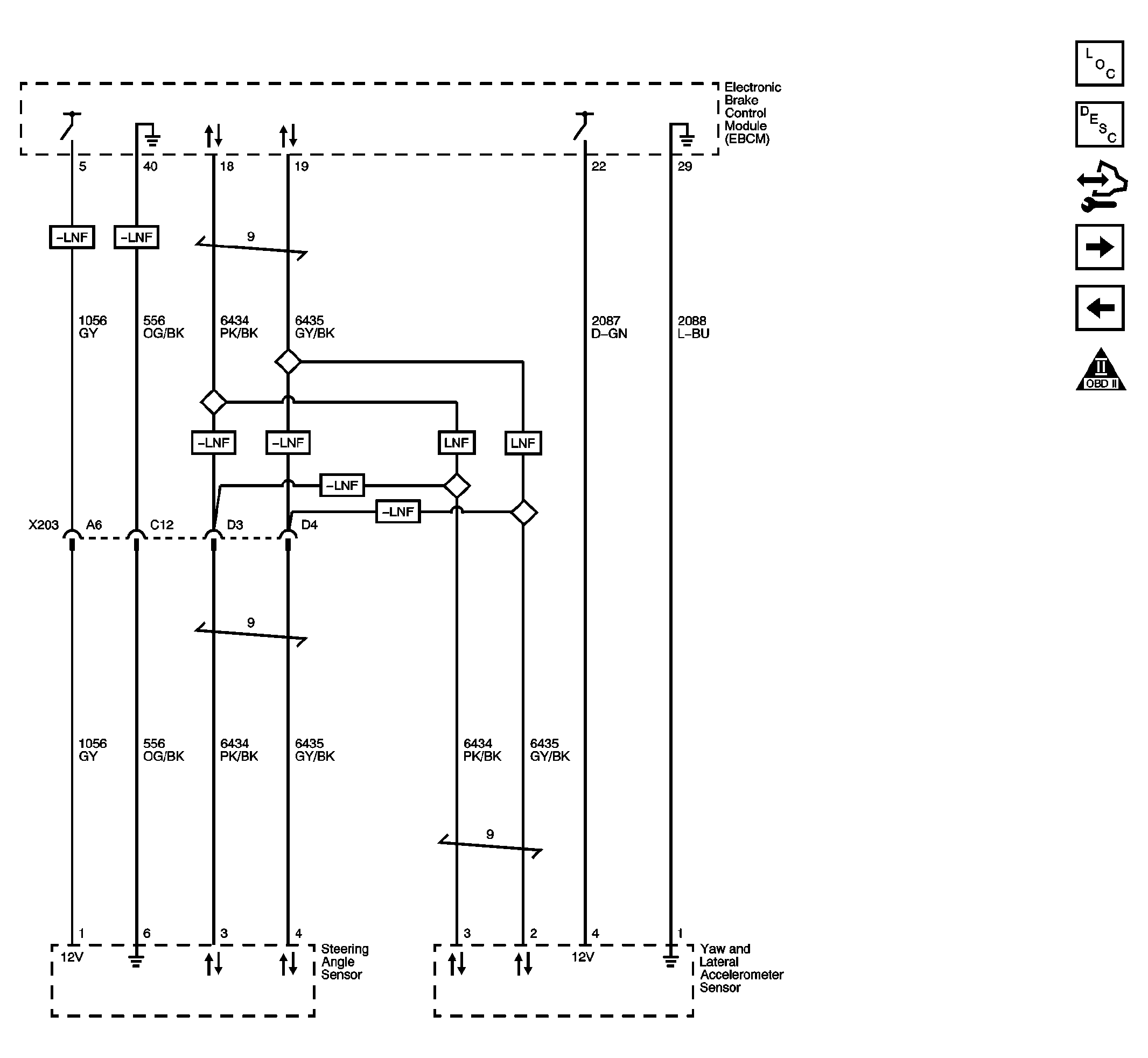

Fig 3: Vehicle Stability Control
GM2247516Courtesy of GENERAL MOTORS CORP.
