Front Side Door Window Regulator Motor Replacement

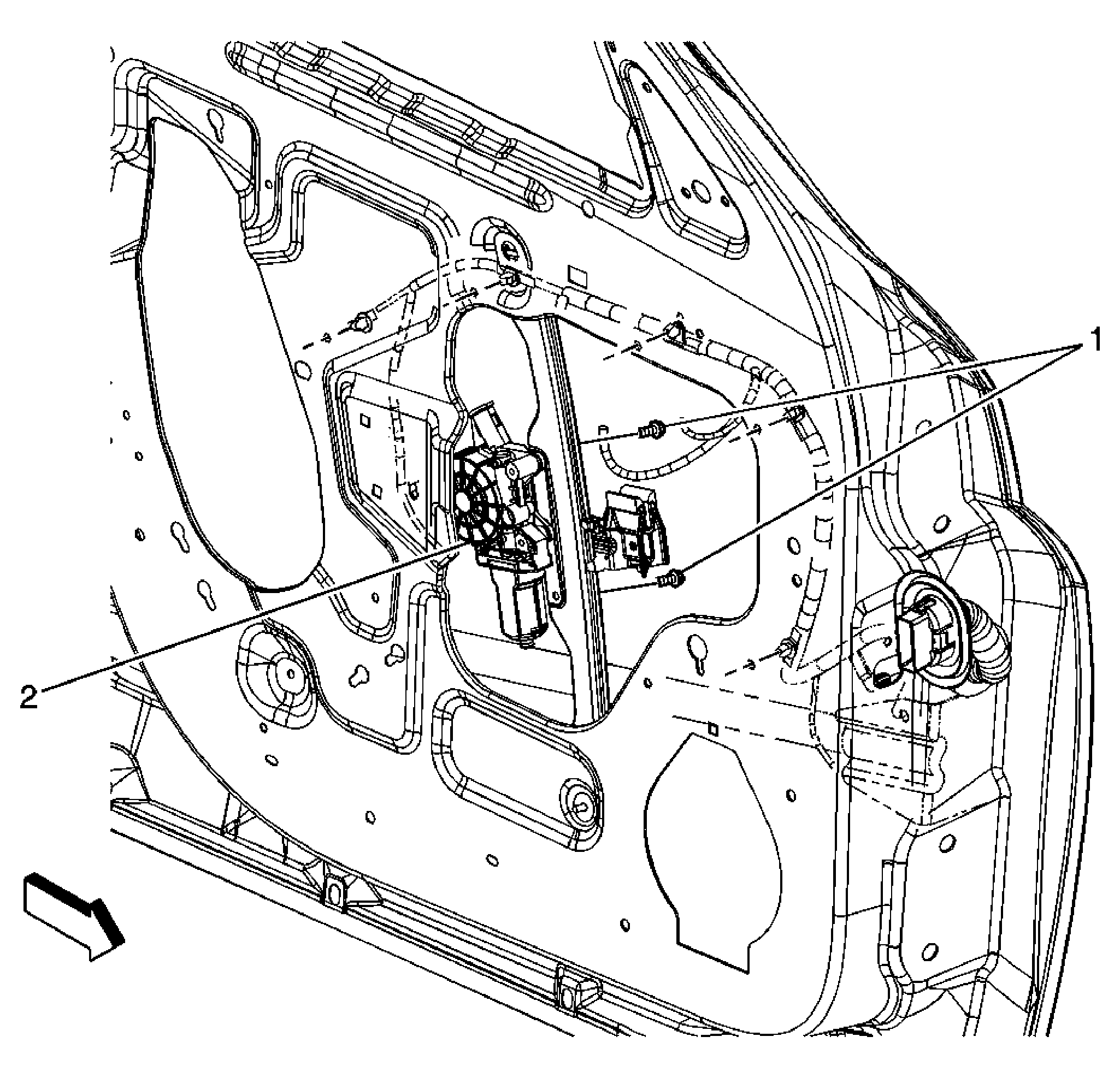

Fig 1: Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Move the window to the full up position and secure in place with tape. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Side Door Window Regulator Motor (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Front Side Door Window Regulator Motor Tip: Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Move the window to the full up position and secure in place with tape.
Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .

Side Door Window Regulator Motor (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Front Side Door Window Regulator Motor
Tip: Disconnect the electrical connector.
