Level and Temperature Emission Reduction Fluid Tank Module Replacement

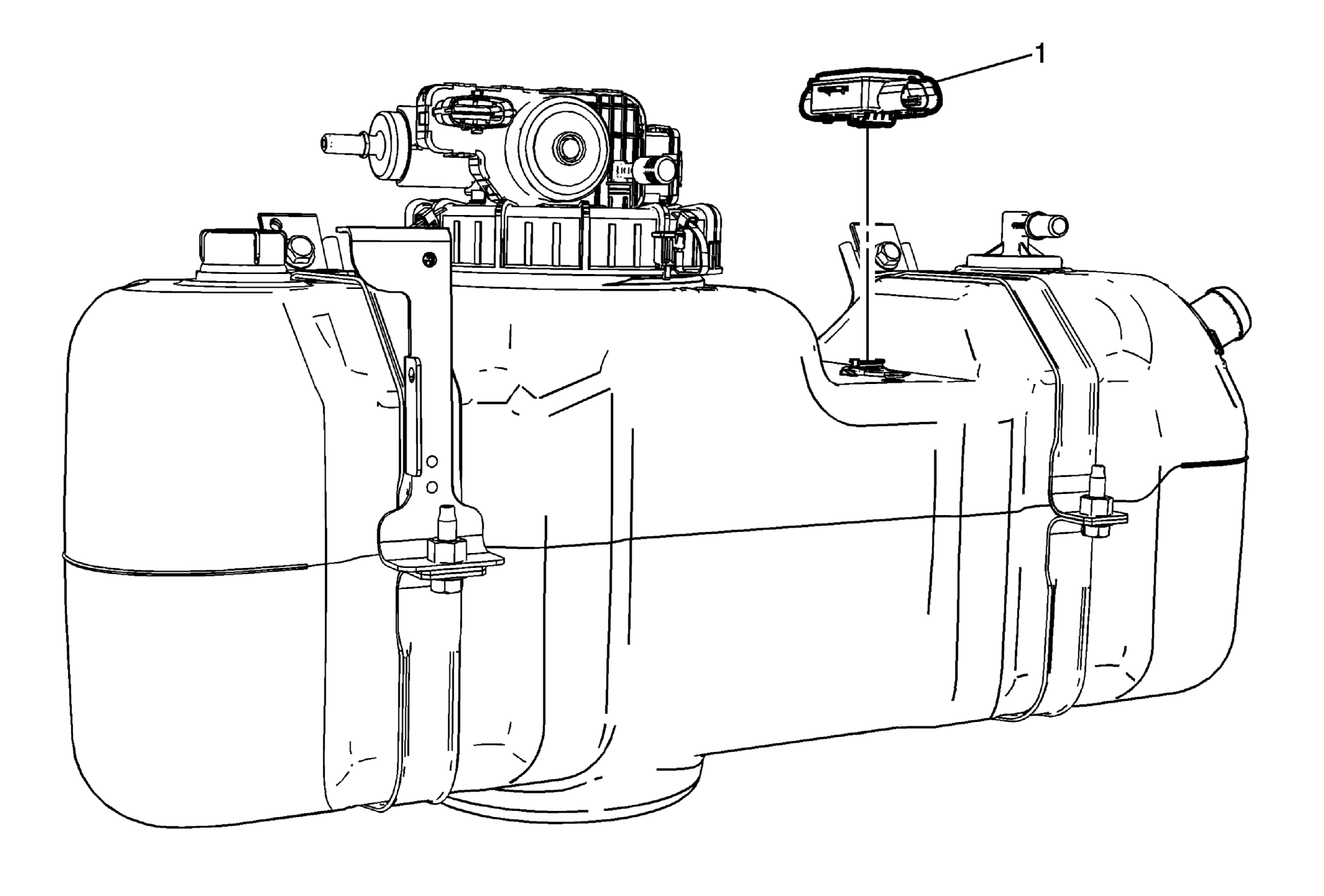

Fig 1: Level and Temperature Emission Reduction Fluid Tank Module
GM3351600Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the emission reduction fluid tank. Refer to Emission Reduction Fluid Tank Replacement .
  2. Disconnect the electrical connectors from module.
1 Level and Temperature Emission Reduction Fluid Tank Module
Procedure
Depress tab to remove module from tank.
