Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 2

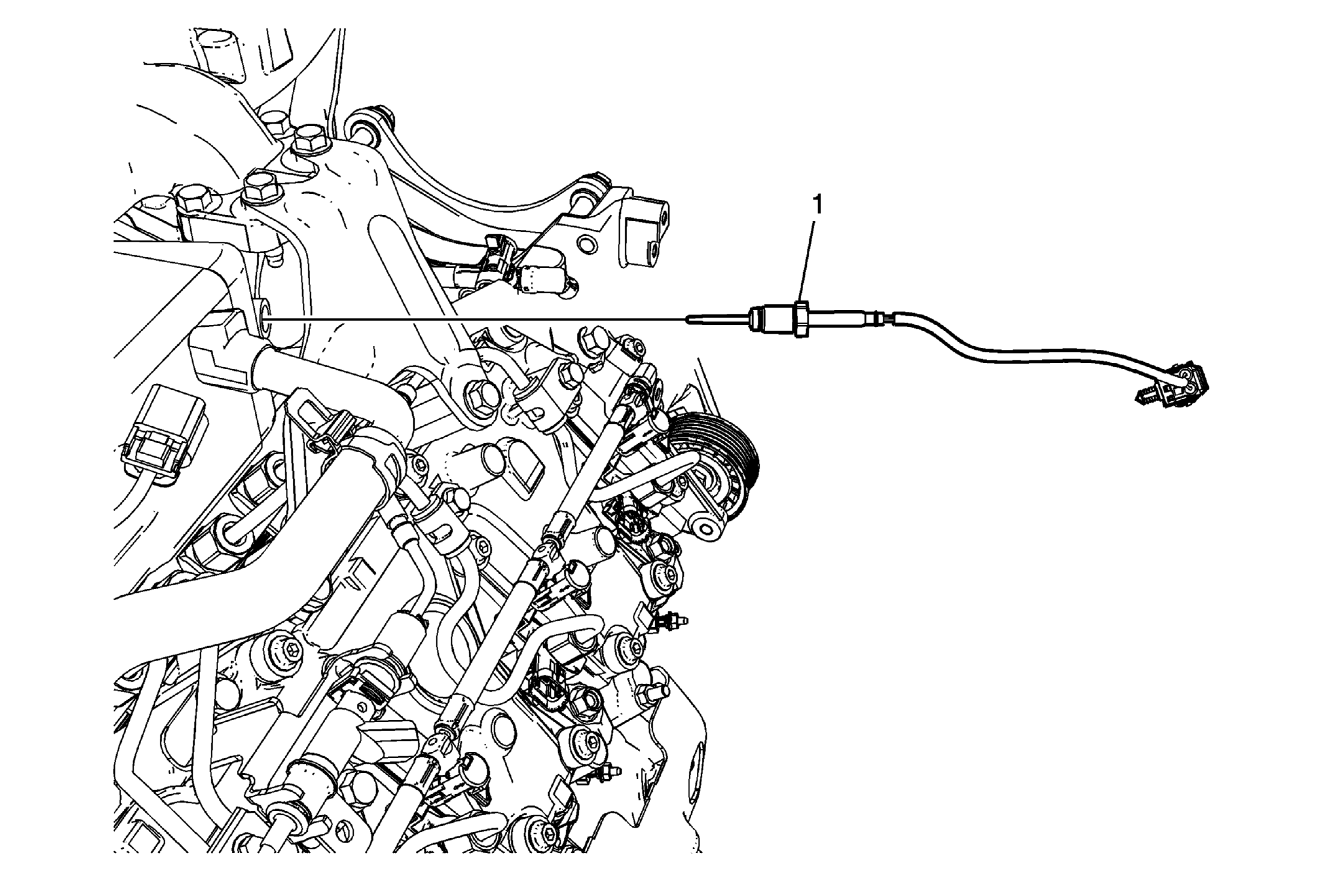

Fig 1: Exhaust Gas Recirculation Valve Temperature Sensor - Position 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the exhaust gas recirculation valve bracket. Refer to Exhaust Gas Recirculation Valve Bracket Replacement . Remove the engine cover. Refer to Engine Cover Replacement .
1	Exhaust Gas Recirculation Valve Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 44 N.m (32 lb ft)

Callout

Component Name

Preliminary Procedures

Remove the exhaust gas recirculation valve bracket. Refer to Exhaust Gas Recirculation Valve Bracket Replacement .
Remove the engine cover. Refer to Engine Cover Replacement .

Exhaust Gas Recirculation Valve Temperature Sensor

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
44 N.m (32 lb ft)
