Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 1

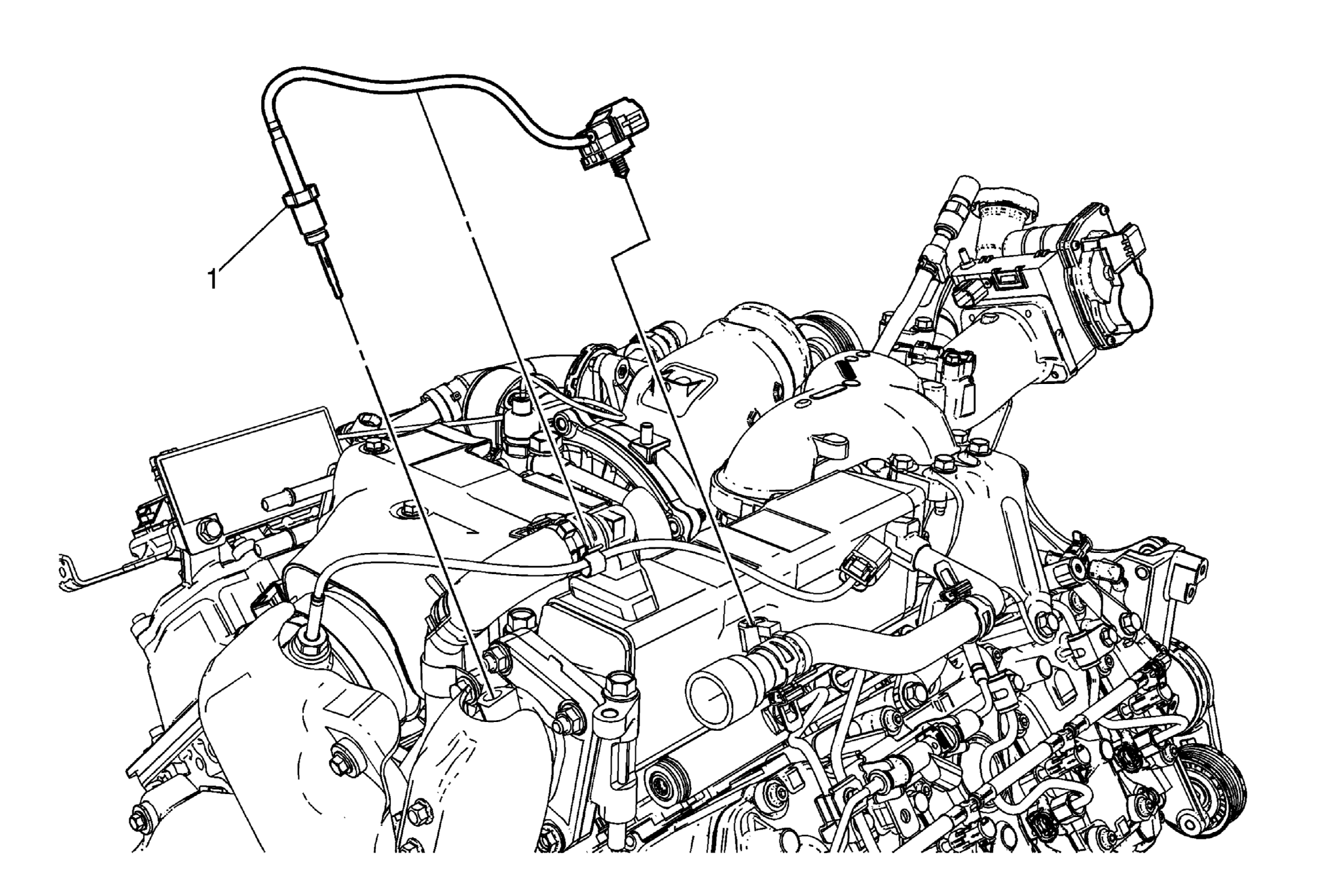

Fig 1: Identifying Exhaust Gas Recirculation Valve Temperature Sensor - Position 1

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the engine cover. Refer to Engine Cover Replacement .
1	Exhaust Gas Recirculation Valve Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure  Disconnect the electrical connector. Tighten  44 N.m (32 lb ft)
