Door Component Views

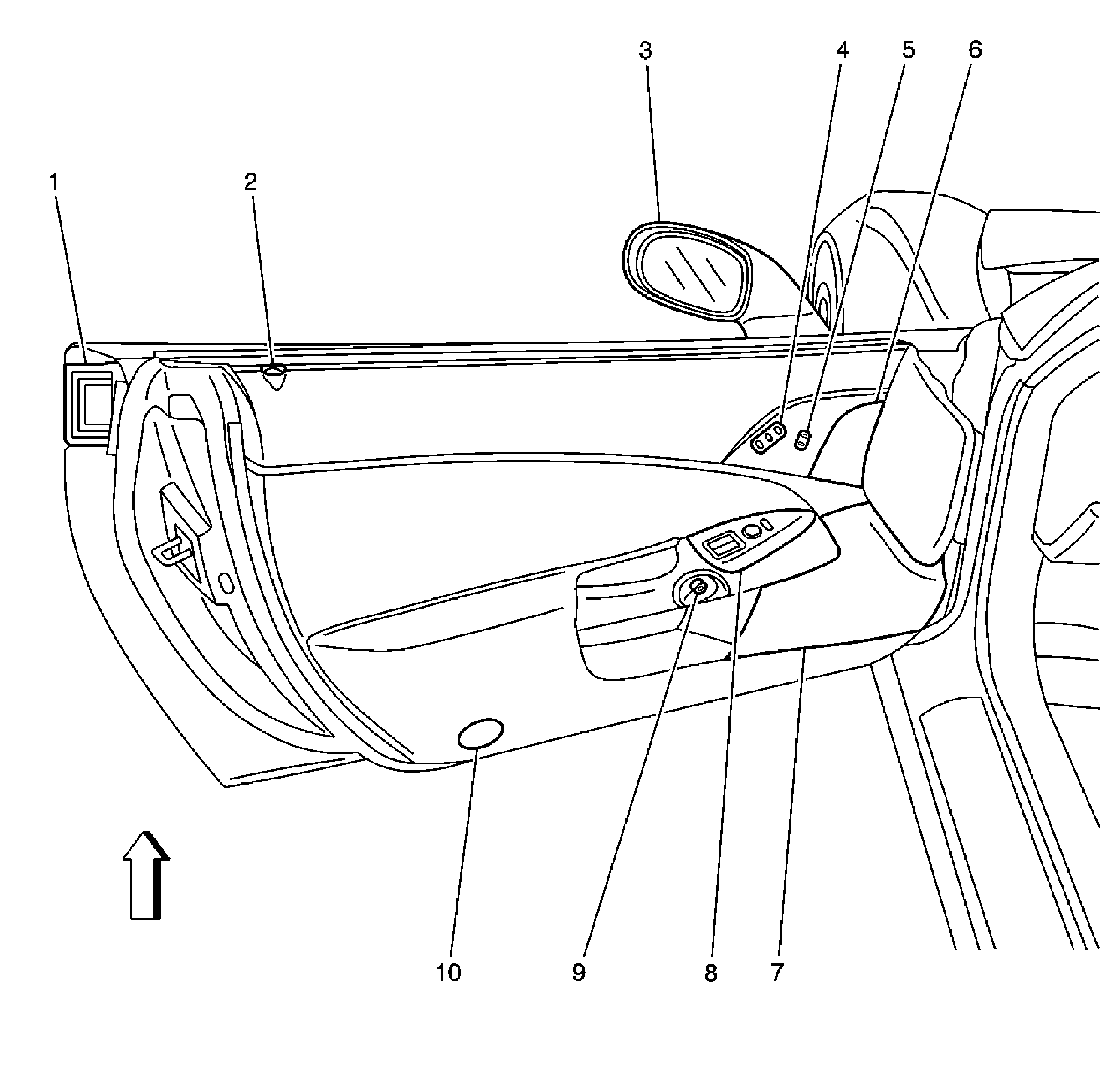

| Callout | Component Name |
|---|---|
| 1 | Door Handle Switch - Driver Exterior |
| 2 | Door Lock Indicator - Driver |
| 3 | Outside Rearview Mirror - Driver |
| 4 | Memory Seat Adjuster Switch - Driver (AAB) |
| 5 | Door Lock Switch - Driver |
| 6 | Speaker - Left Front |
| 7 | Speaker - Left Subwoofer |
| 8 | Window Switch - Driver |
| 9 | Door Handle Switch - Driver Interior |
| 10 | Door Reflector (if equipped) |

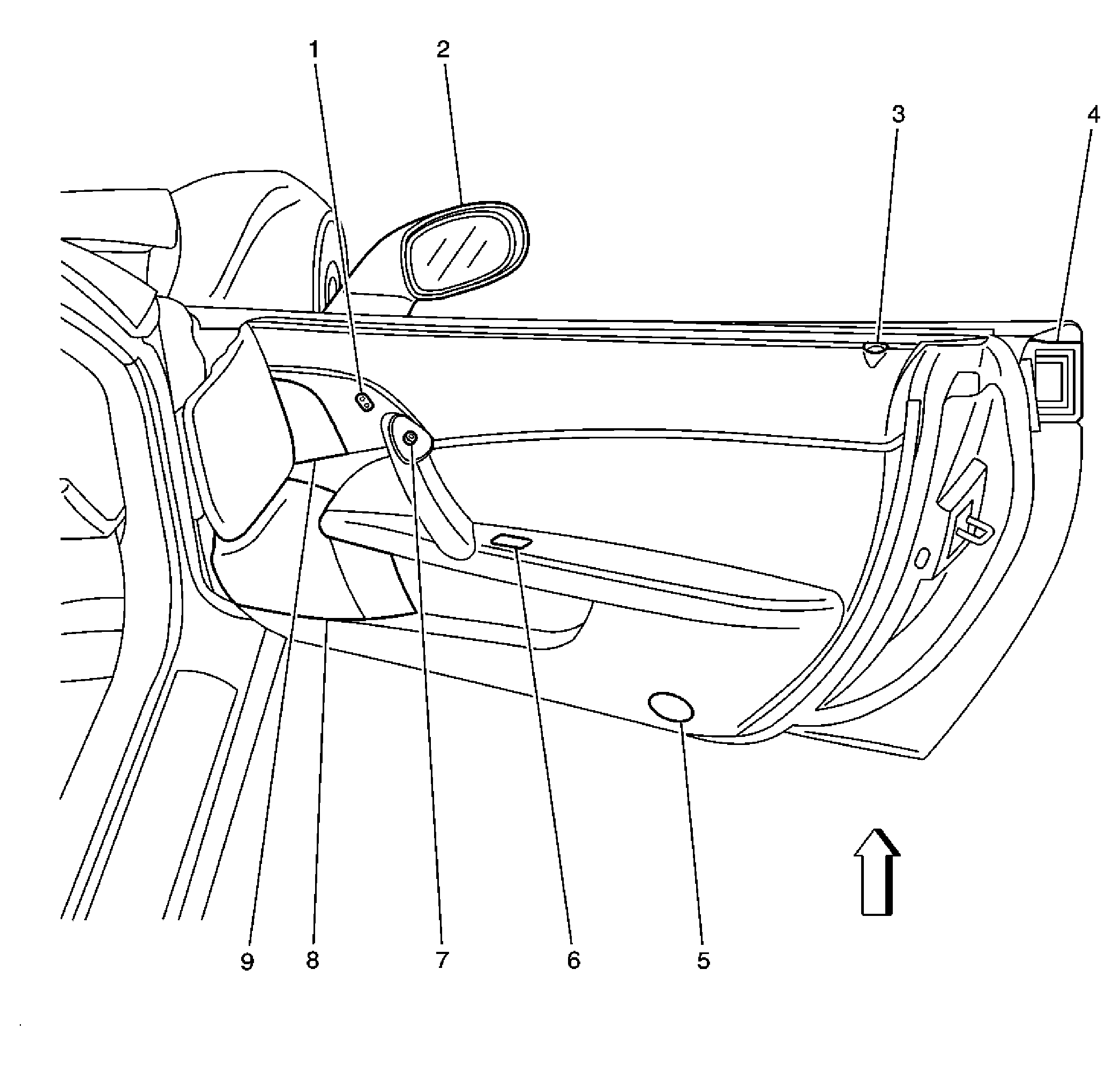

| Callout | Component Name |
|---|---|
| 1 | Door Lock Switch - Passenger |
| 2 | Outside Rearview Mirror - Passenger |
| 3 | Door Lock Indicator - Passenger |
| 4 | Door Handle Switch - Passenger Exterior |
| 5 | Door Reflector (if equipped) |
| 6 | Window Switch - Passenger |
| 7 | Door Handle Switch - Passenger Interior |
| 8 | Speaker - Right Subwoofer |
| 9 | Speaker - Right Front |
| Callout | Component Name |
|---|---|
| 1 | Door Latch - Passenger |
| 2 | Door Latch - Driver |
