Moveable Window Schematics

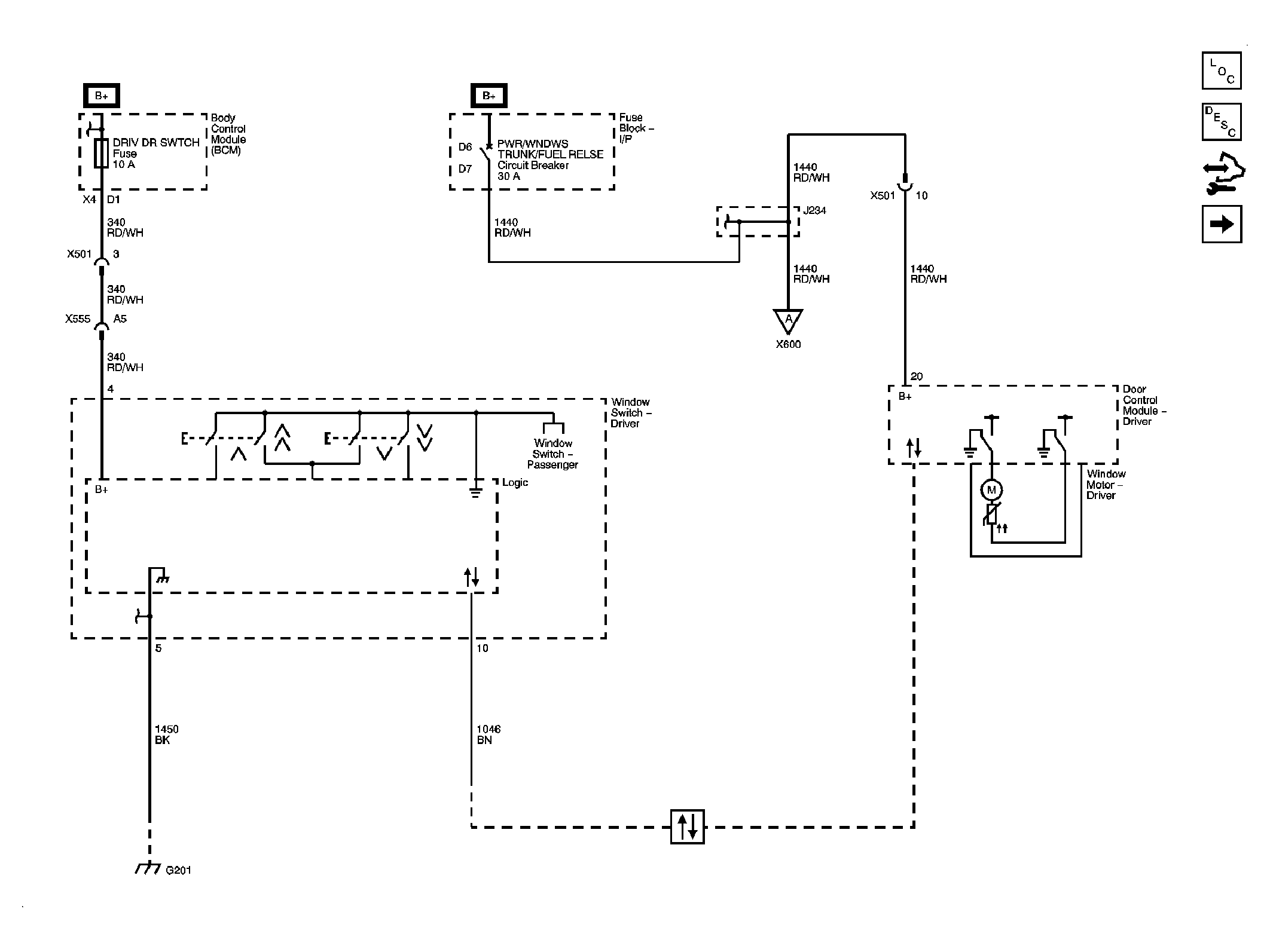

Fig 1: Driver Window

GM2225696

Courtesy of GENERAL MOTORS CORP.

Fig 2: Passenger Window

GM2225699

Courtesy of GENERAL MOTORS CORP.
