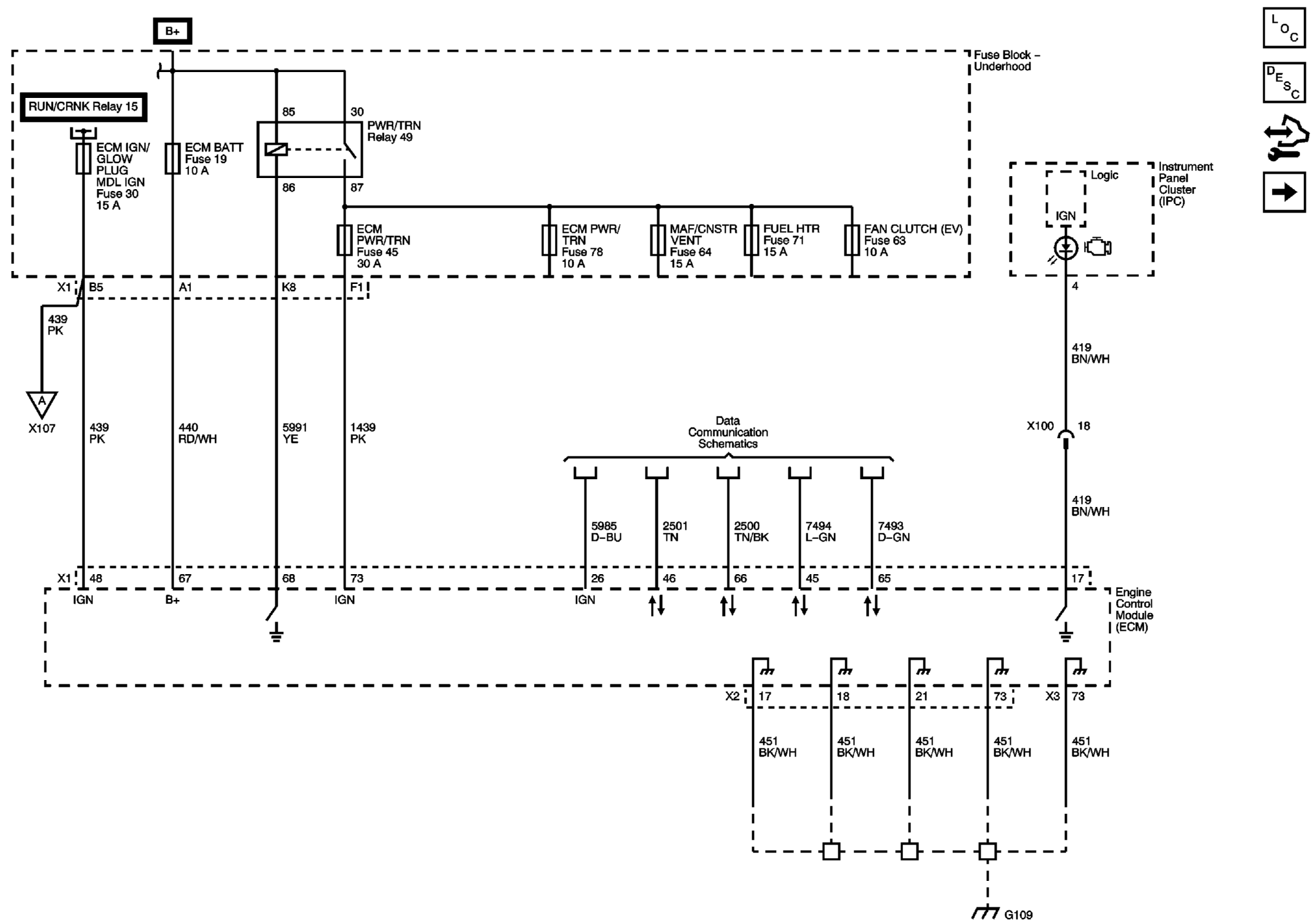

Module Power, Ground, Serial Data and MIL

Fig 1: NO CONTENT

GM2407864

Courtesy of GENERAL MOTORS COMPANY
