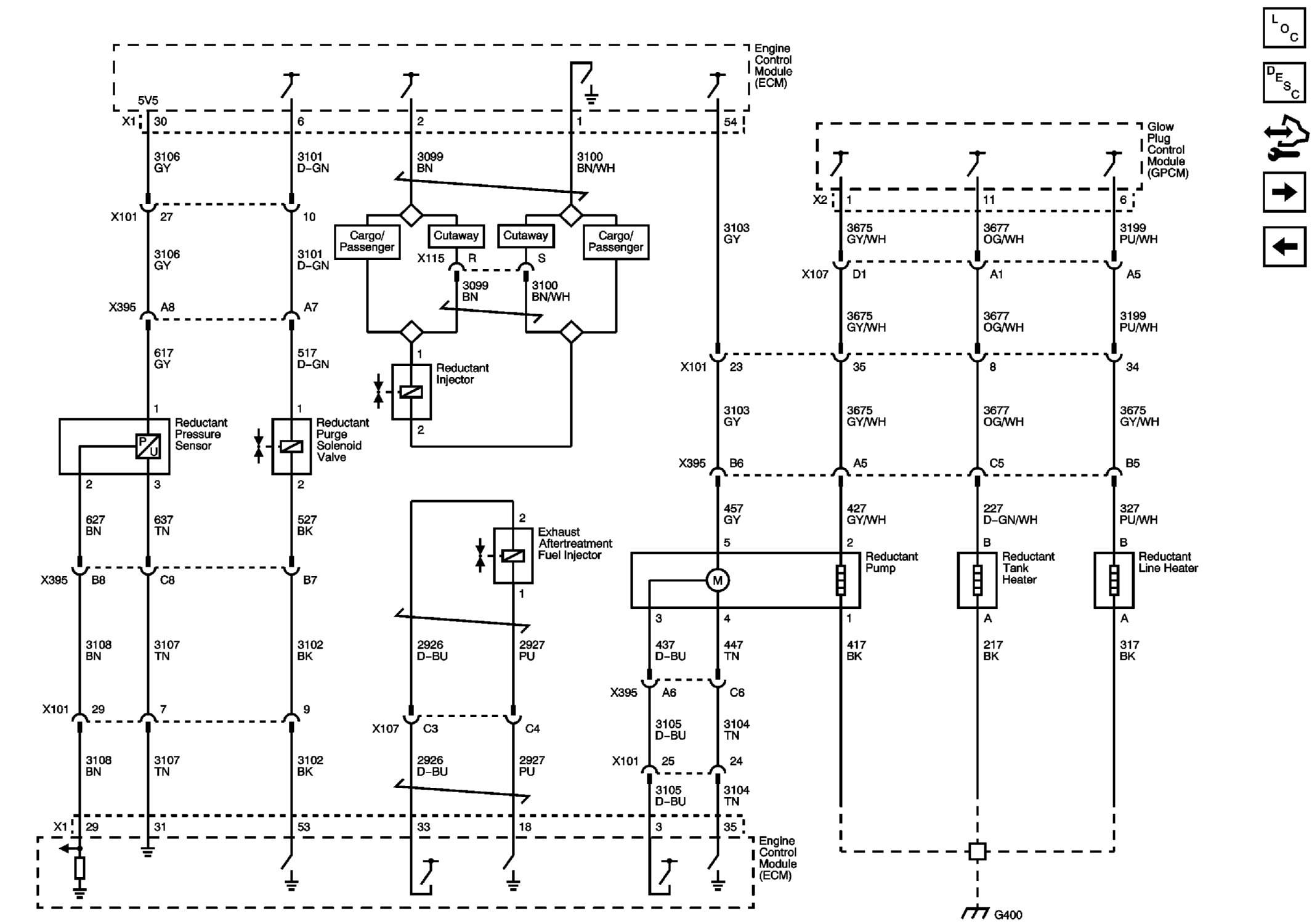

Home >> Chevrolet >> 2010 >> Chevy Express G2500, Van Cargo Extended, 6.6 L >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 6.6L (LGH) - Schematic And Routing Diagrams >> Schematic and Routing Diagrams >> Engine Controls Schematics >> Emissions Controls- Reductant System
