Controlled/Monitored Subsystem References

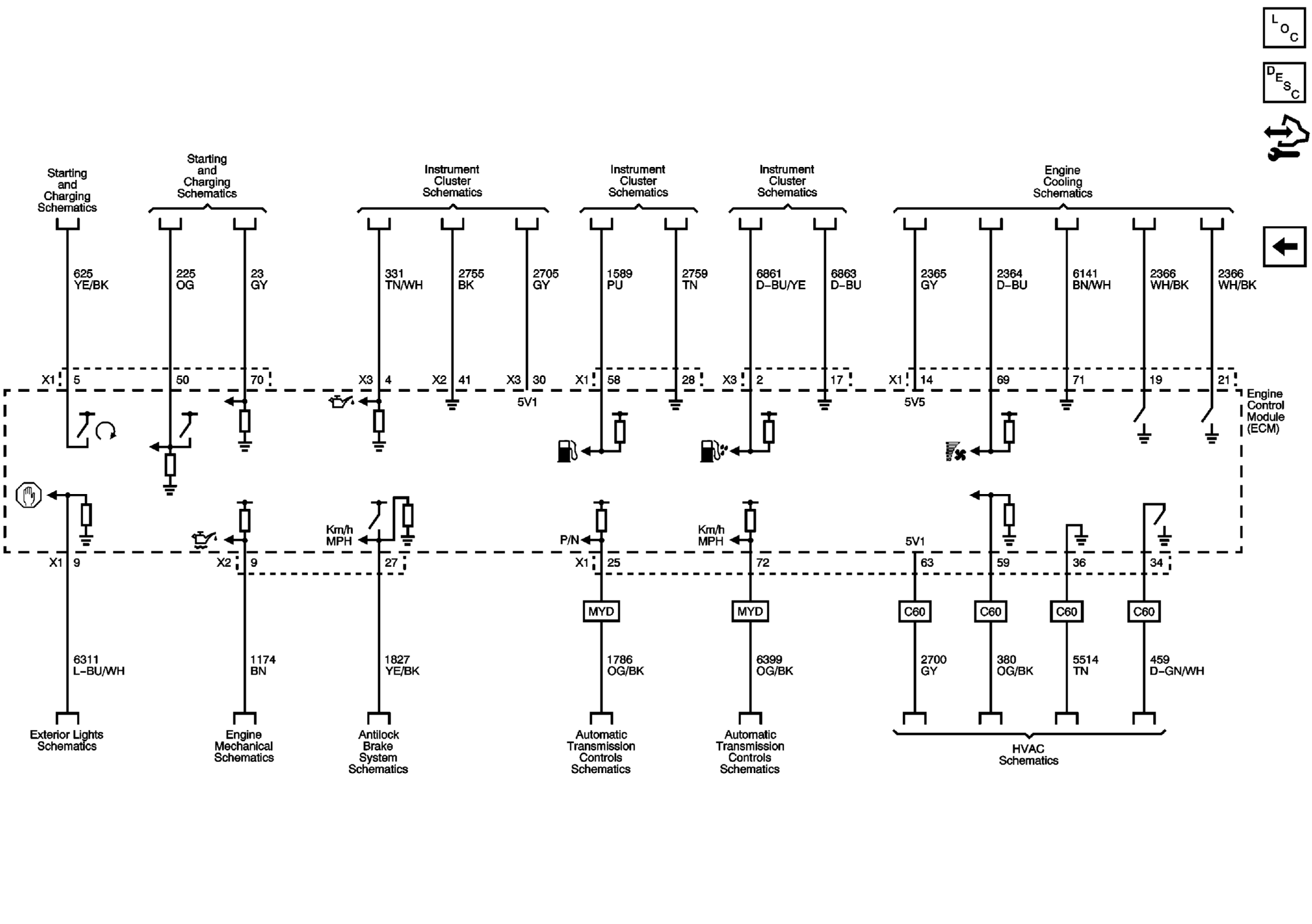

Fig 1: NO CONTENT

GM2407908

Courtesy of GENERAL MOTORS COMPANY
