Exhaust Gas Recirculation Valve Bracket Replacement

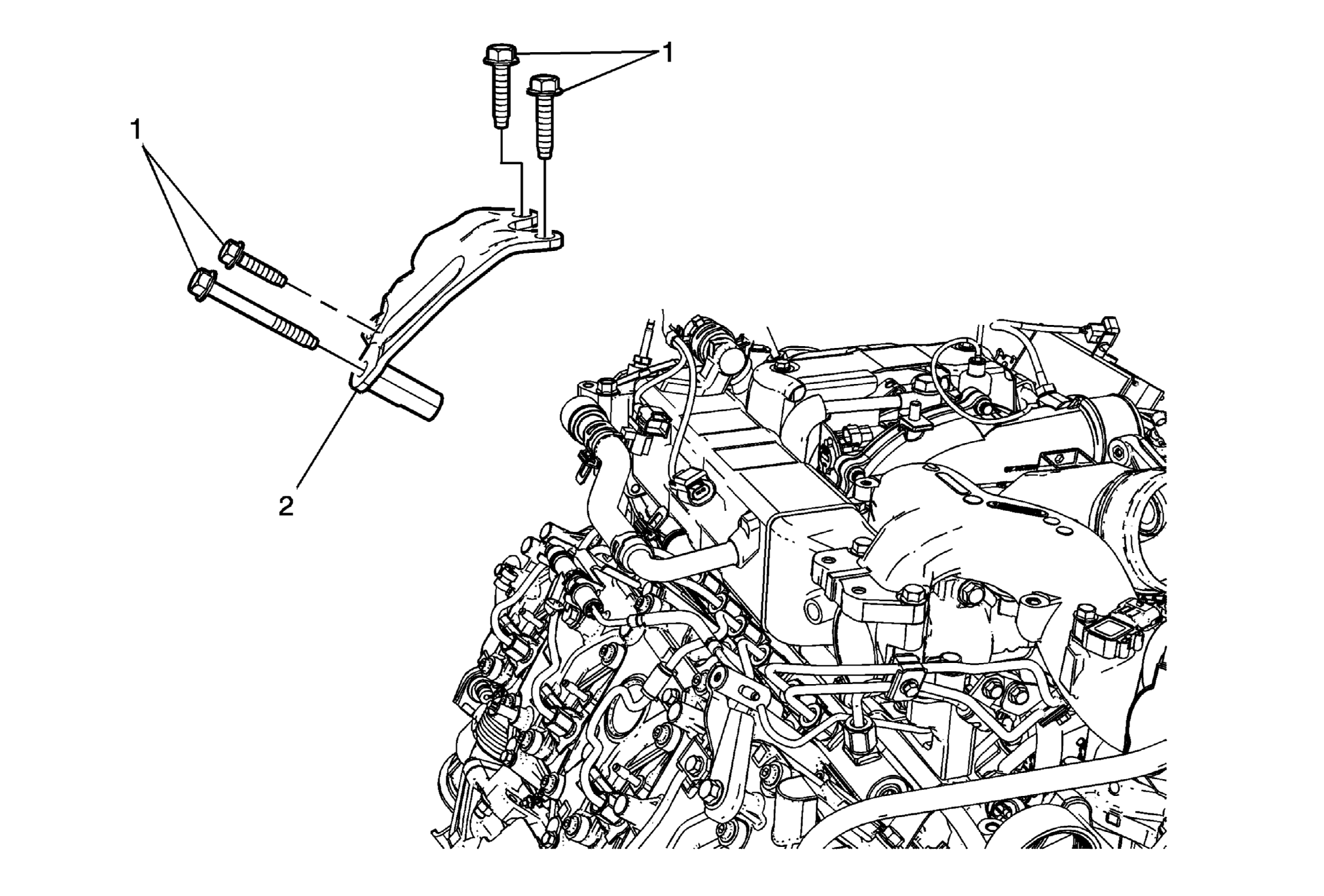

Fig 1: Identifying Exhaust Gas Recirculation Valve Bracket
GM2369741Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Procedure

  1. Remove the engine cover. Refer to Engine Cover Replacement .
  2. Remove the upper portion of the transmission fill tube. Refer to Transmission Fluid Filler Tube And Seal Replacement .
1 Exhaust Gas Recirculation Bracket Fasteners (Qty: 3)
CAUTION:

Refer to Fastener Caution


Tighten
25 N.m (18 lb ft)
2 Exhaust Gas Recirculation Bracket
