Exhaust Gas Recirculation Valve Temperature Sensor Replacement - Position 2

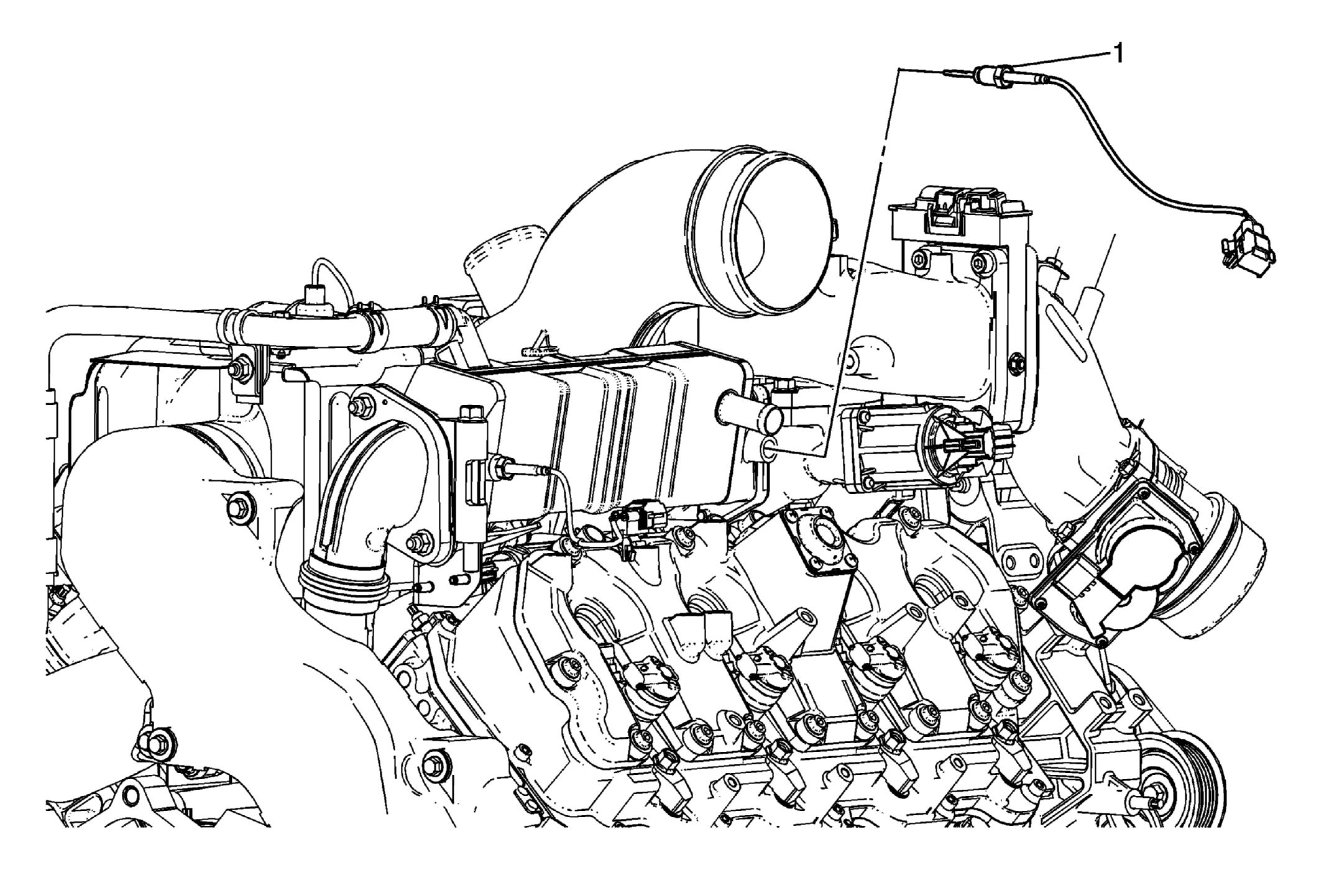

Fig 1: Identifying Exhaust Gas Recirculation Valve Temperature Sensor - Position 2
GM2375385Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the air cleaner outlet duct. Refer to AIR CLEANER OUTLET DUCT REPLACEMENT .
1 Exhaust Gas Recirculation Temperature Sensor
CAUTION: Refer to Fastener Caution .

Procedure:
Disconnect the electrical connector.

Tighten:  44 N.m (32 lb ft)
