Door Component Views

Fig 1: Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A23D Door Latch Assembly - Driver
2	E1D Accent Lamp - Driver Door (FCR)
3	A9A Outside Rearview Mirror - Driver
4	P19H Speaker - Left Front Tweeter
5	S52 Outside Rearview Mirror - Switch
6	M74D Window Motor - Driver
7	S79D Window Switch - Driver
8	P19G Speaker - Left Front
9	S58 Rear Compartment Lid Unlatch Switch

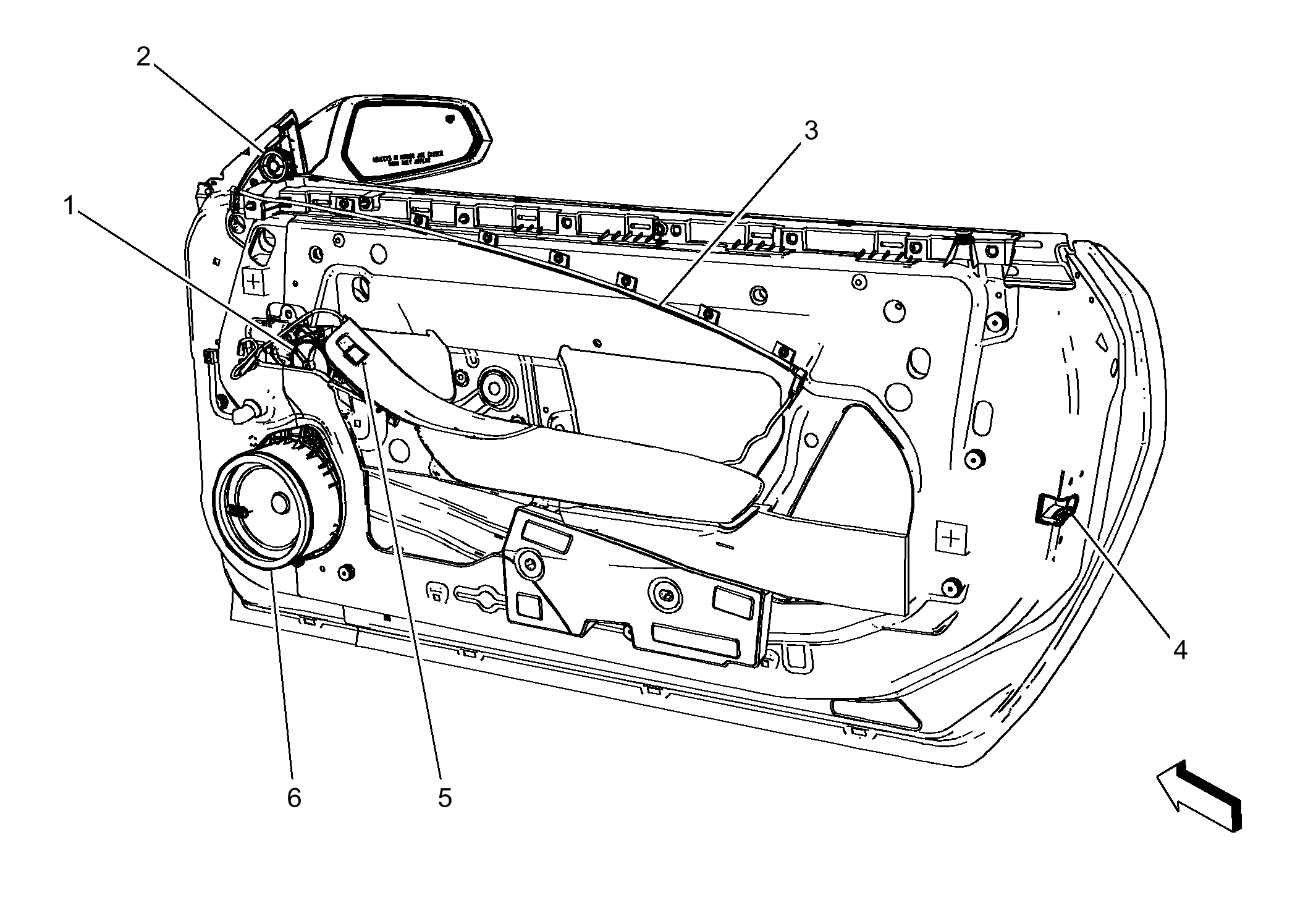

Fig 2: Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	M74P Window Motor - Passenger
2	P19V Speaker - Right Front Tweeter
3	A9B Outside Rearview Mirror - Passenger
4	E1P Accent Lamp - Passenger Door (FCR)
5	A23P Door Latch Assembly - Passenger
6	S79P Window Switch - Passenger
7	P19U Speaker - Right Front
