Automatic Level Control Schematics

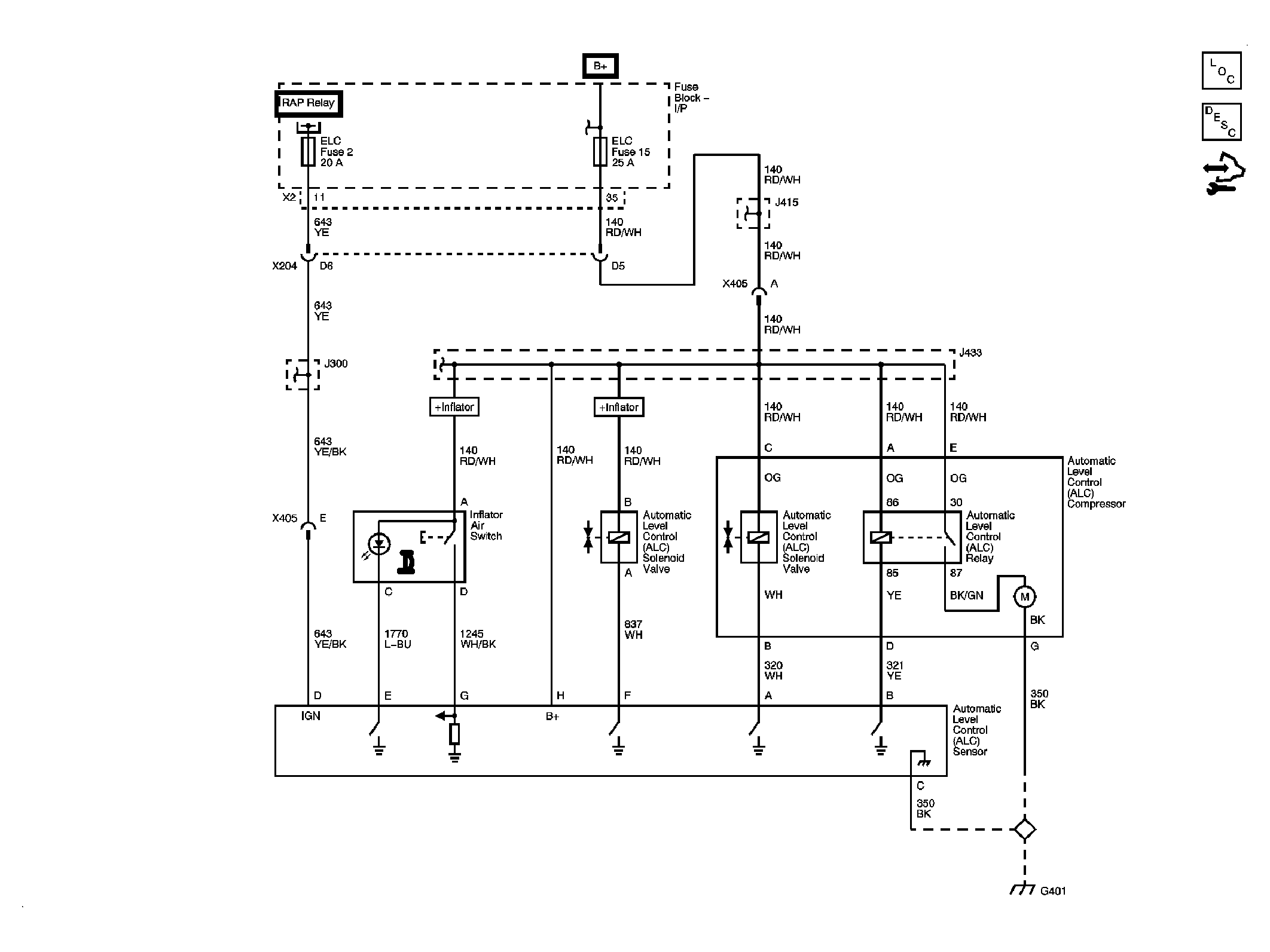

Fig 1: Automatic Level Control Schematic

GM2060273

Courtesy of GENERAL MOTORS CORP.
