Harness Routing Views

Fig 1: Identifying Forward Lamp Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J122
2	J120
3	Fuse Block - Underhood X1
4	G102
5	X120
6	G103
7	X151
8	X107 (W49 or WDA)
9	X108 (W49 or WDA)
10	X150

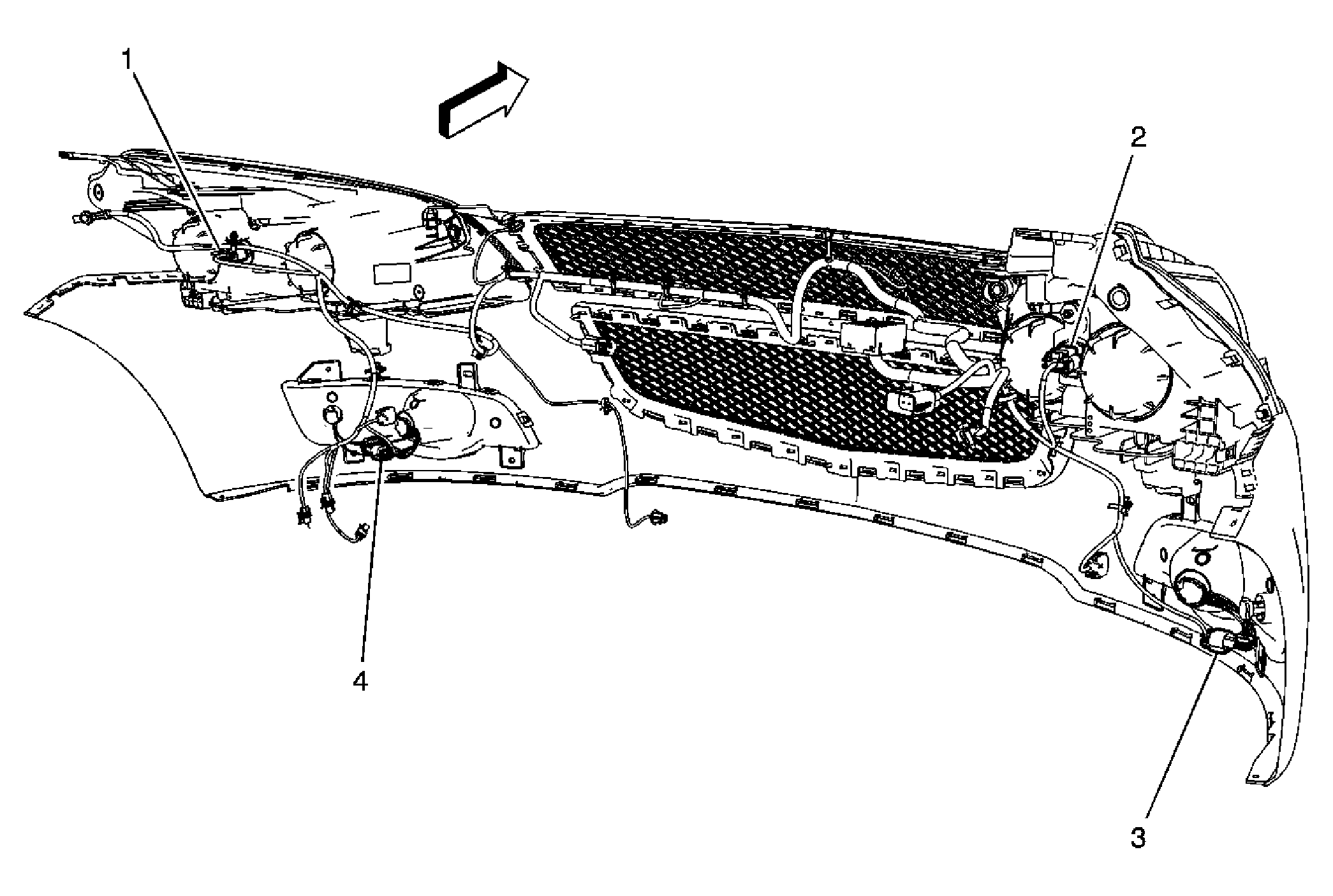

Fig 2: Front Fascia (X88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X150
2	X151
3	X122
4	X123

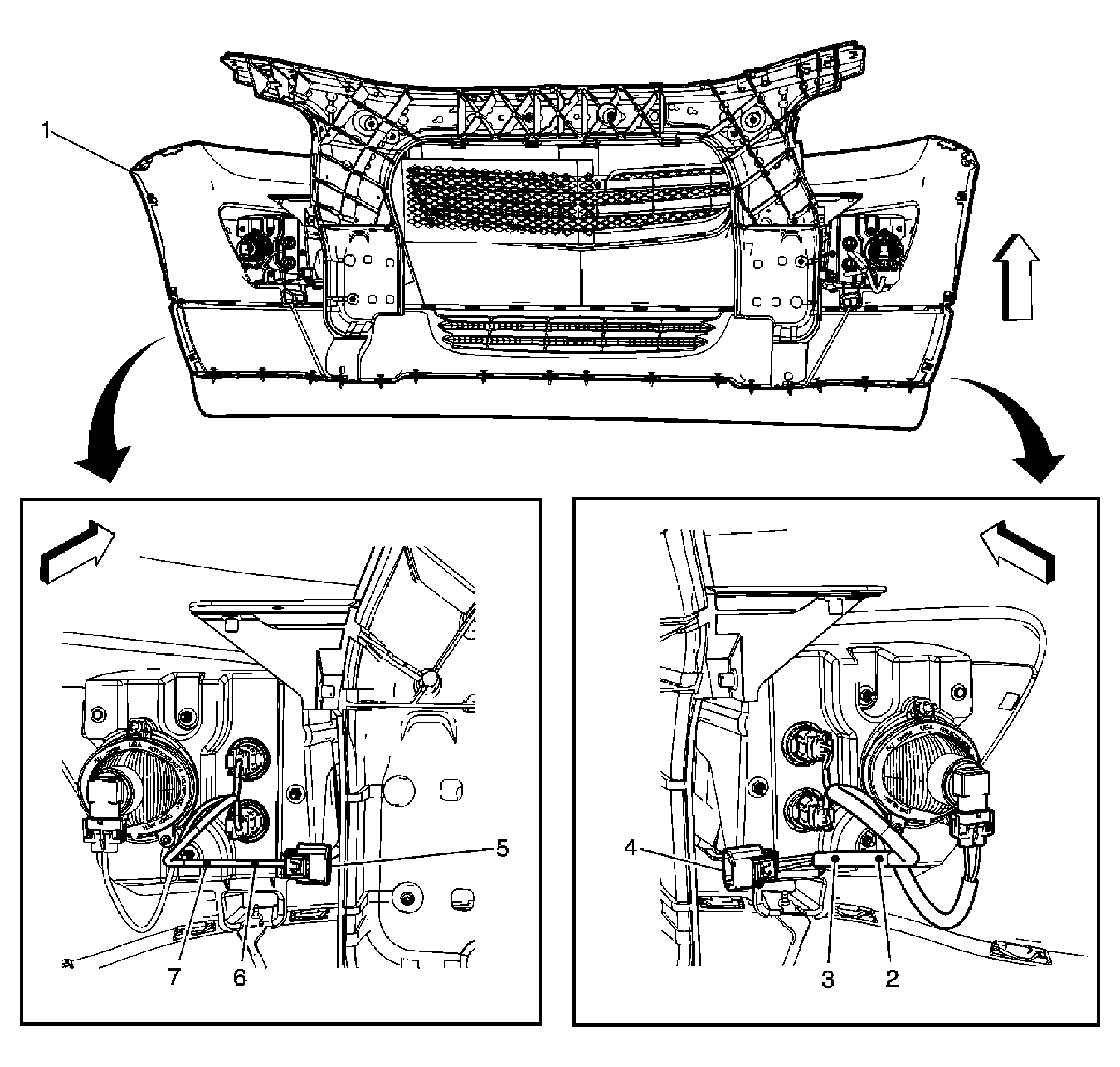

Fig 3: Identifying Fog Lamp Jumper Harnesses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fascia
2	J124 (WDA)
3	J104
4	X108 (W49 or WDA)
5	X107 (W49 or WDA)
6	J119 (WDA)
7	J113 (Z88)

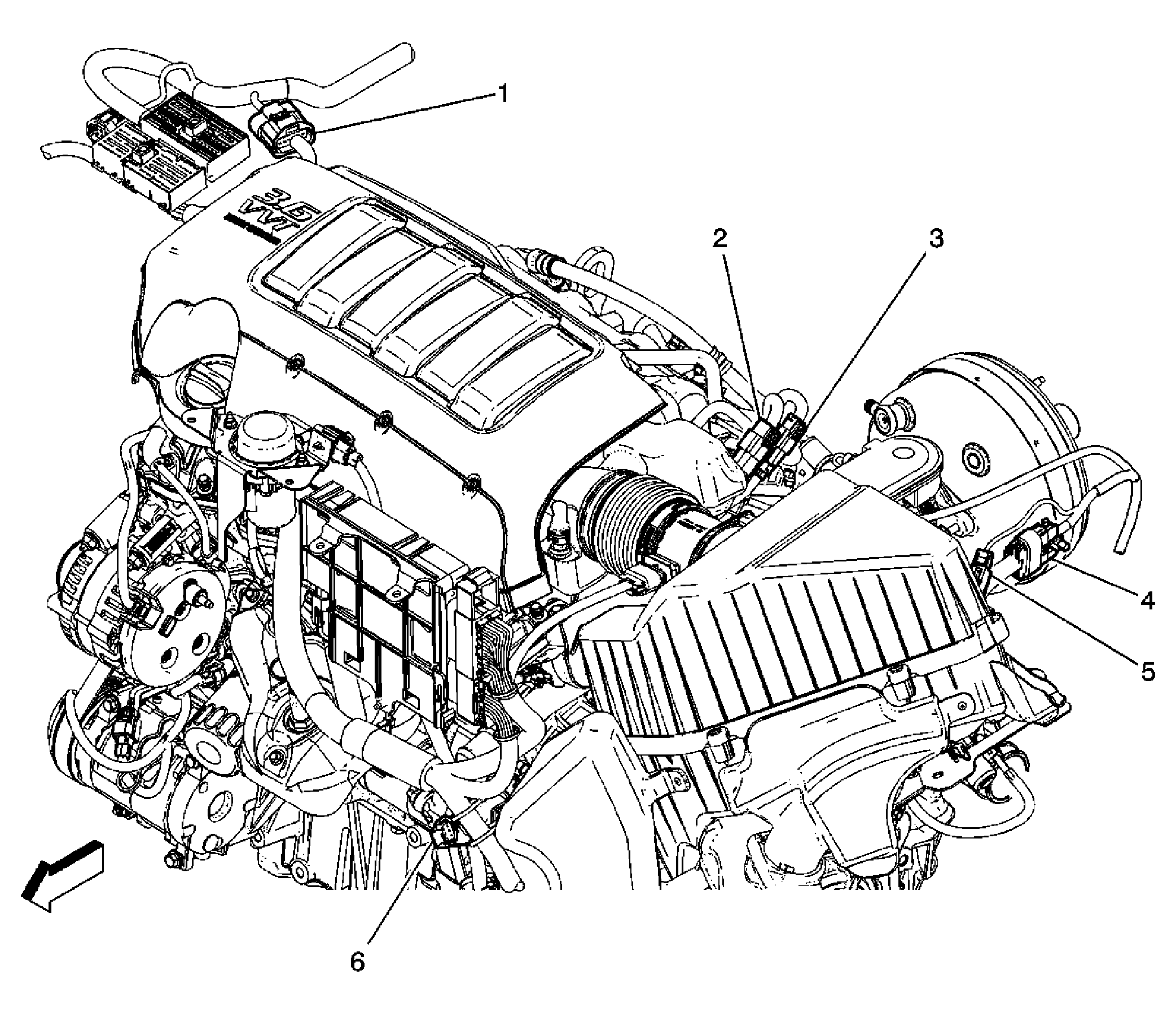

Fig 4: Engine Compartment Harness (LLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X100
2	X117
3	X116
4	X111
5	X109 (XA7)
6	X115 (TSH)

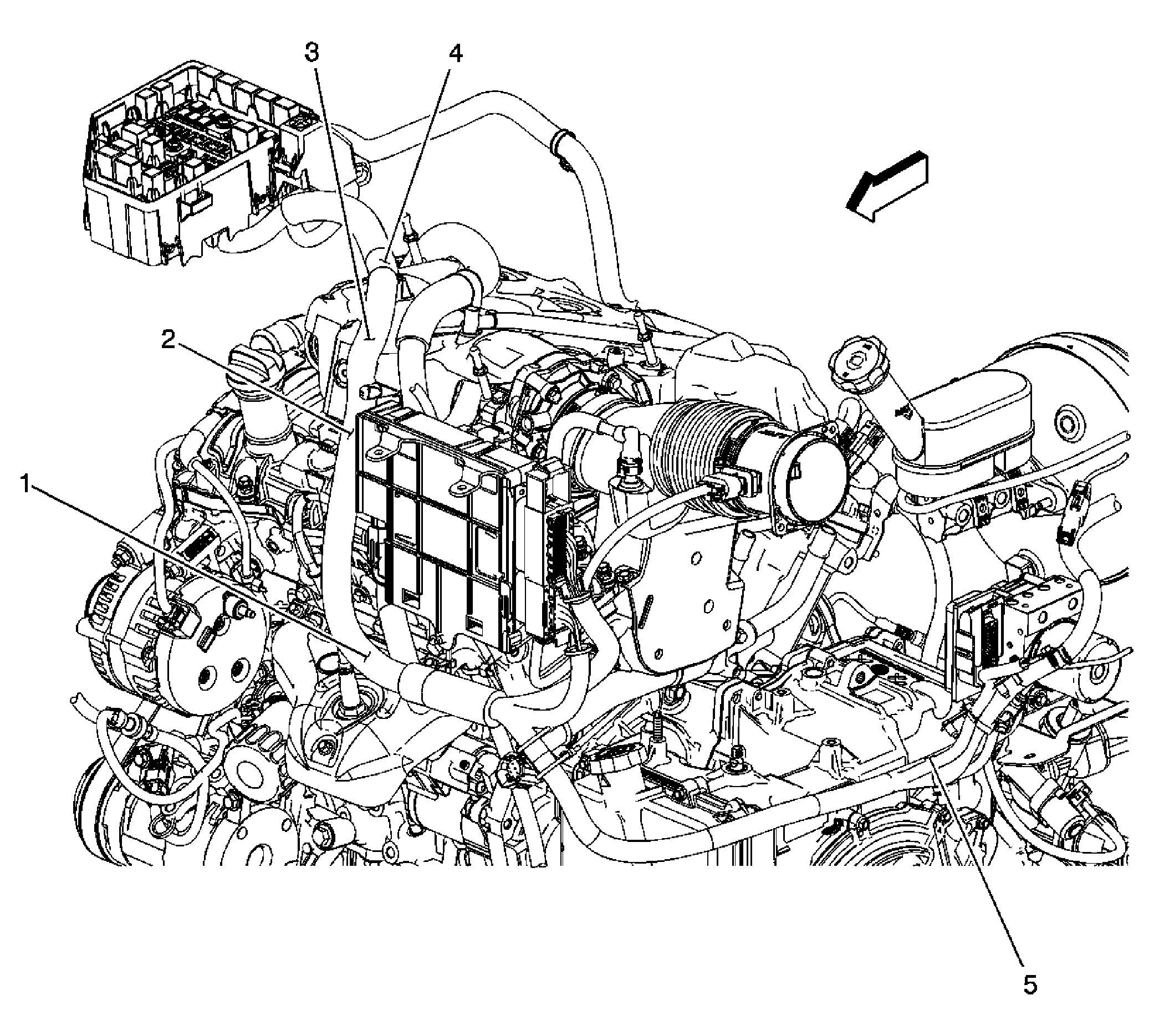

Fig 5: Engine Harness Splices (LLT) - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J134
2	J143
3	J133
4	J132
5	J117 (TSH)

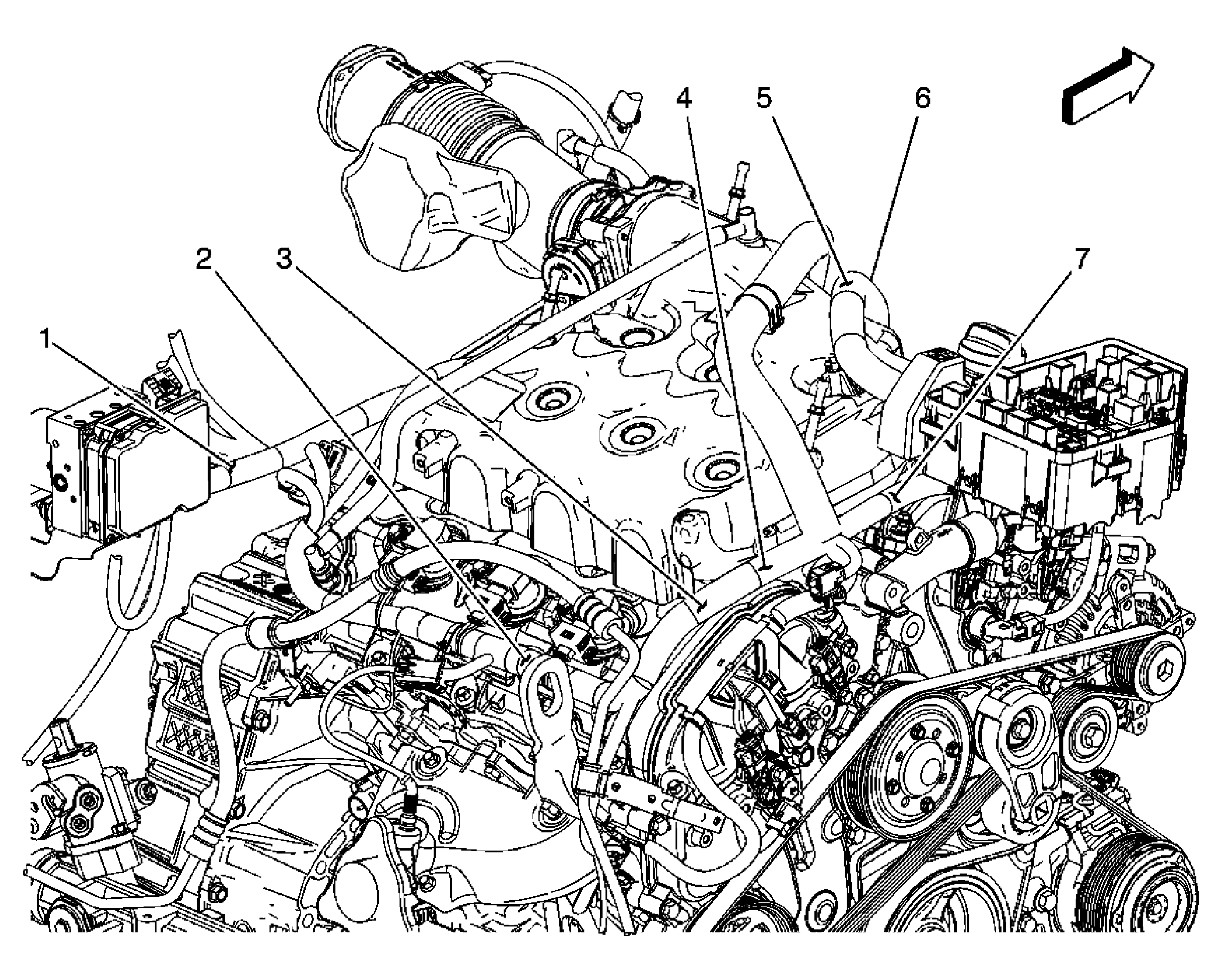

Fig 6: Engine Harness Splices (LLT) - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J117 (TSH)
2	J112
3	J141
4	J131
5	J132
6	J133
7	J140

Fig 7: View Of G113

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine
2	Automatic Transmission
3	G113

Fig 8: View Near Brake Booster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Left Fender
3	G103
4	G101
5	G115
6	G105
7	Electronic Brake Control Module (EBCM)
8	Brake Booster Vacuum Sensor

Fig 9: Identifying I/P Harness - Engine compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dash Panel
2	X109 (XA7)
3	X111
4	G105

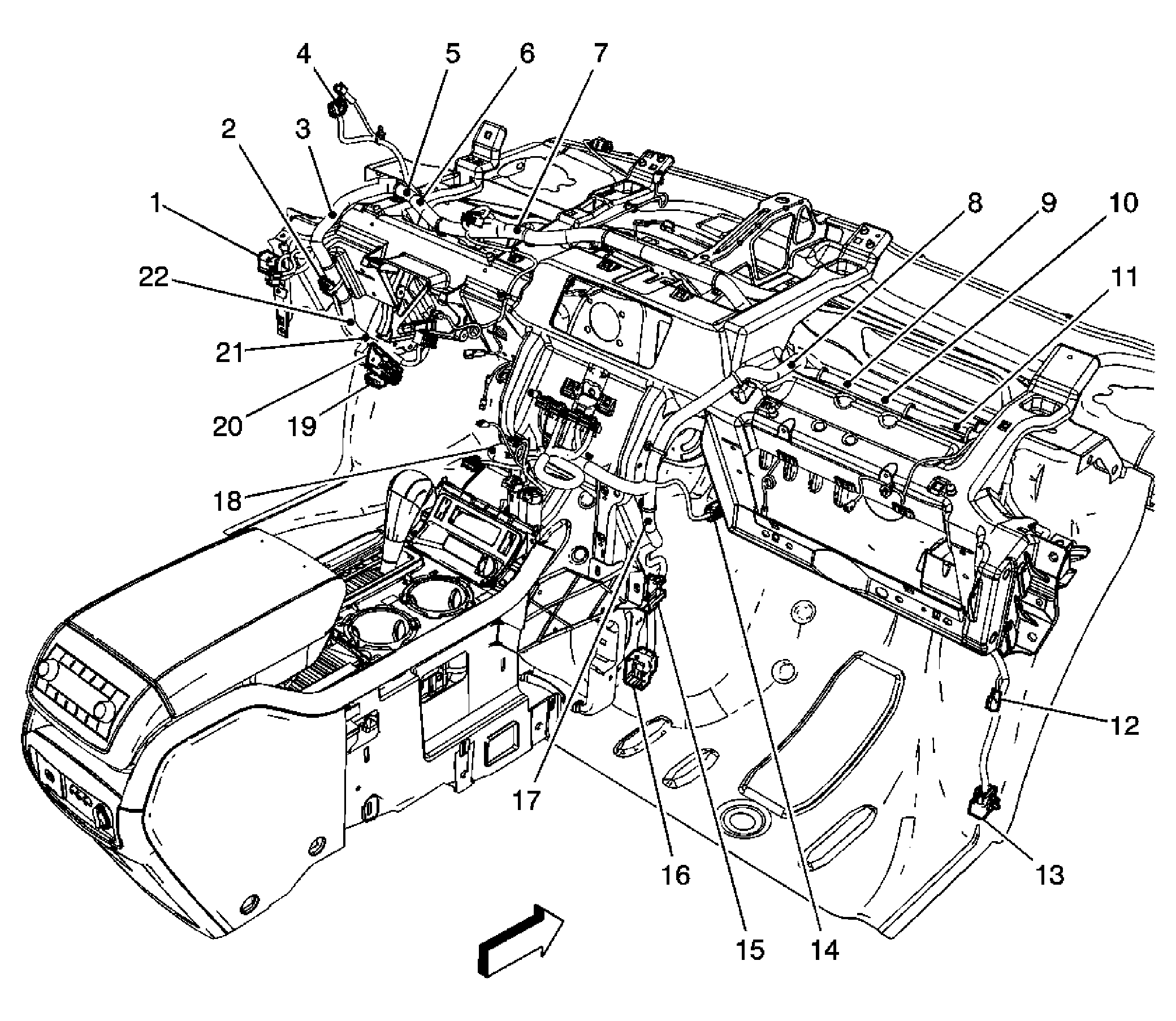

Fig 10: Identifying I/P Harness - Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X203
2	JX205
3	J219 (U42 or UQS)
4	X216 (U42)
5	J216 (MH6)
6	J215
7	J213
8	J206 (CJ2)
9	J202
10	J220
11	J204
12	X252
13	X200
14	X214
15	X240
16	X202
17	J208
18	J211
19	Data Link Connector (DLC)
20	X201
21	J233
22	J231

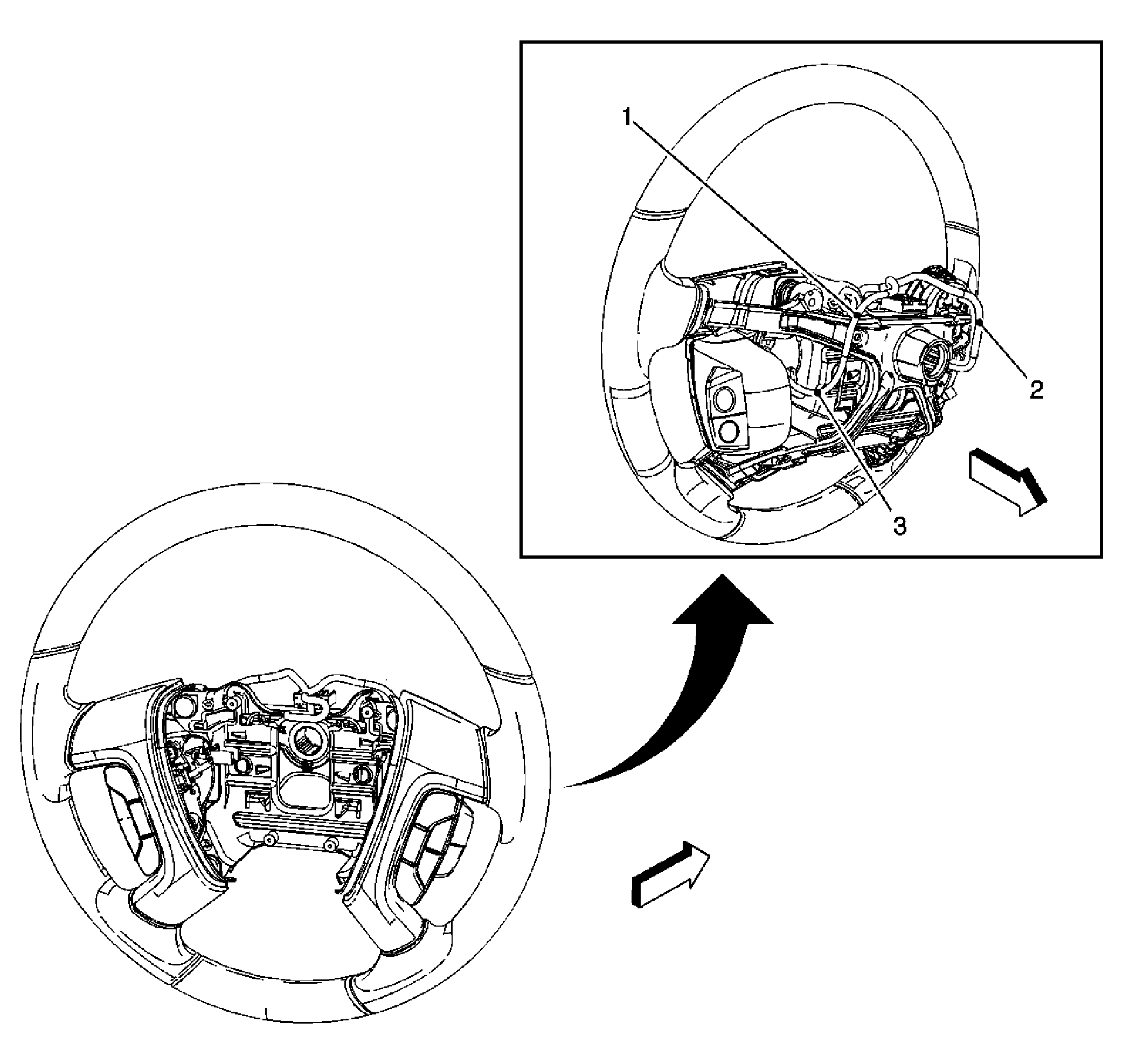

Fig 11: Identifying Steering Wheel Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J297
2	J295 (UK3)
3	J299 (UK3)

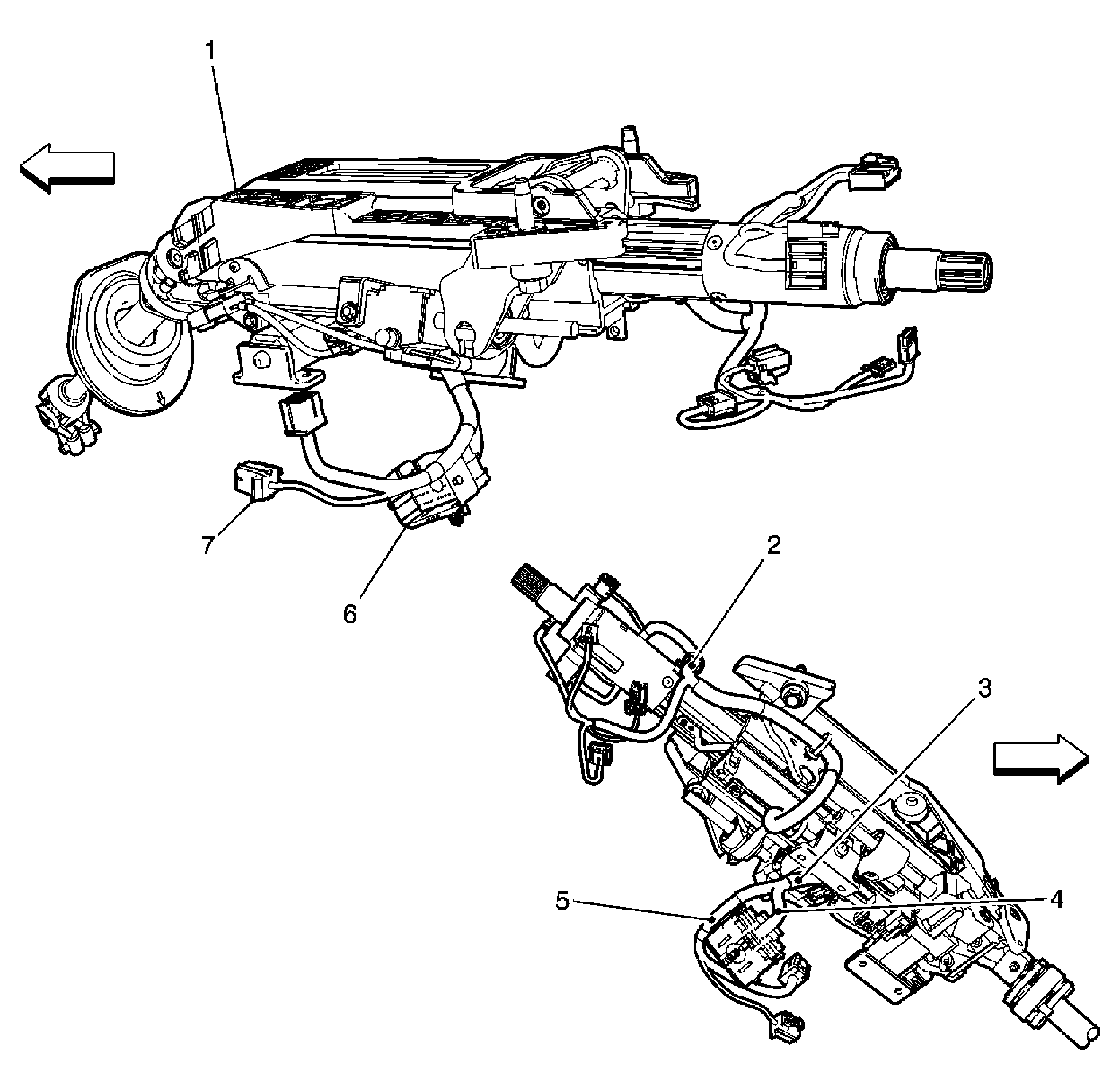

Fig 12: Identifying Steering Column Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Column Assembly
2	J293
3	J271
4	J253
5	J275 (XA7)
6	X201

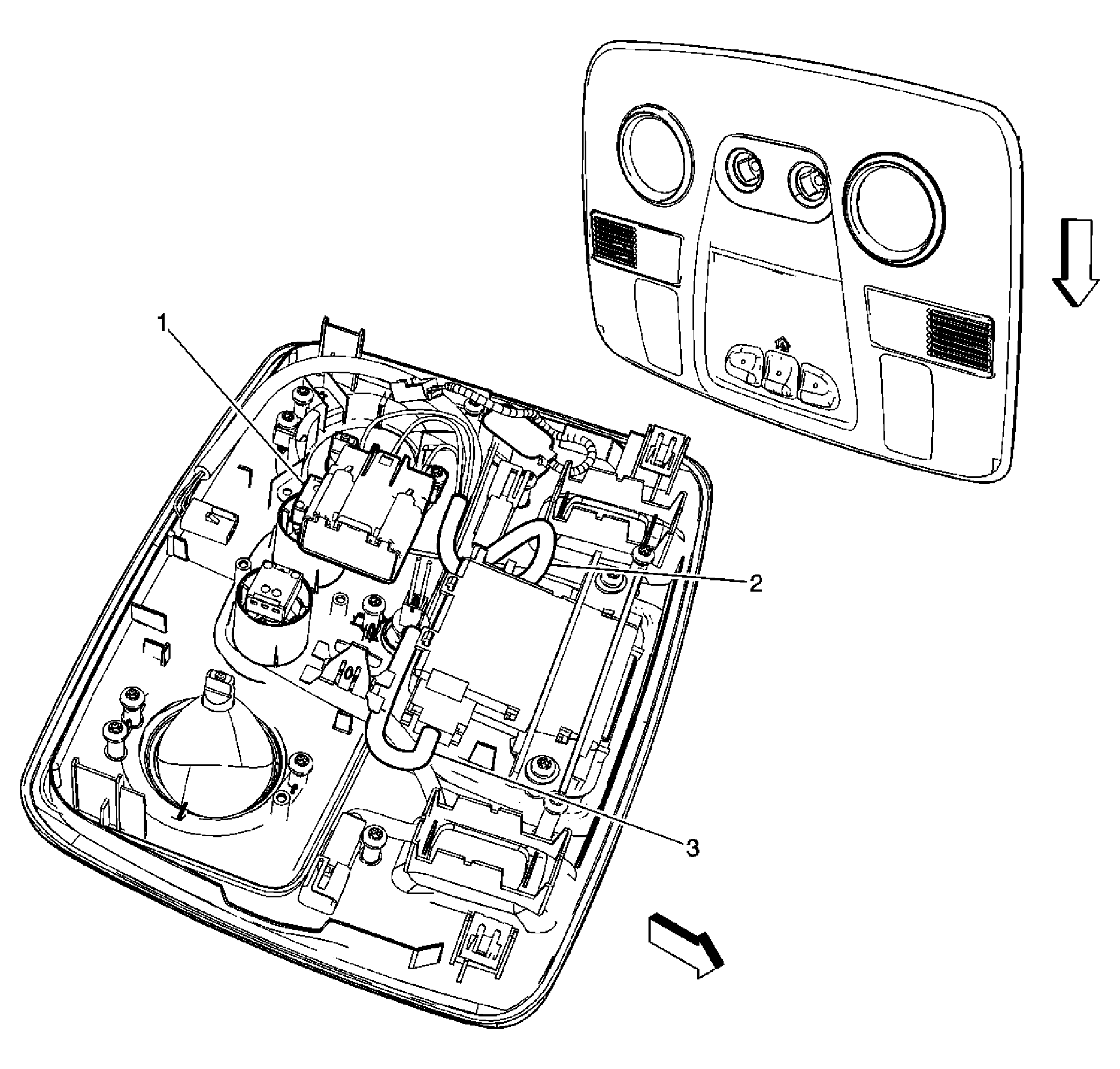

Fig 13: Identifying Overhead Console Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X343
2	J328
3	J364 (C3U)

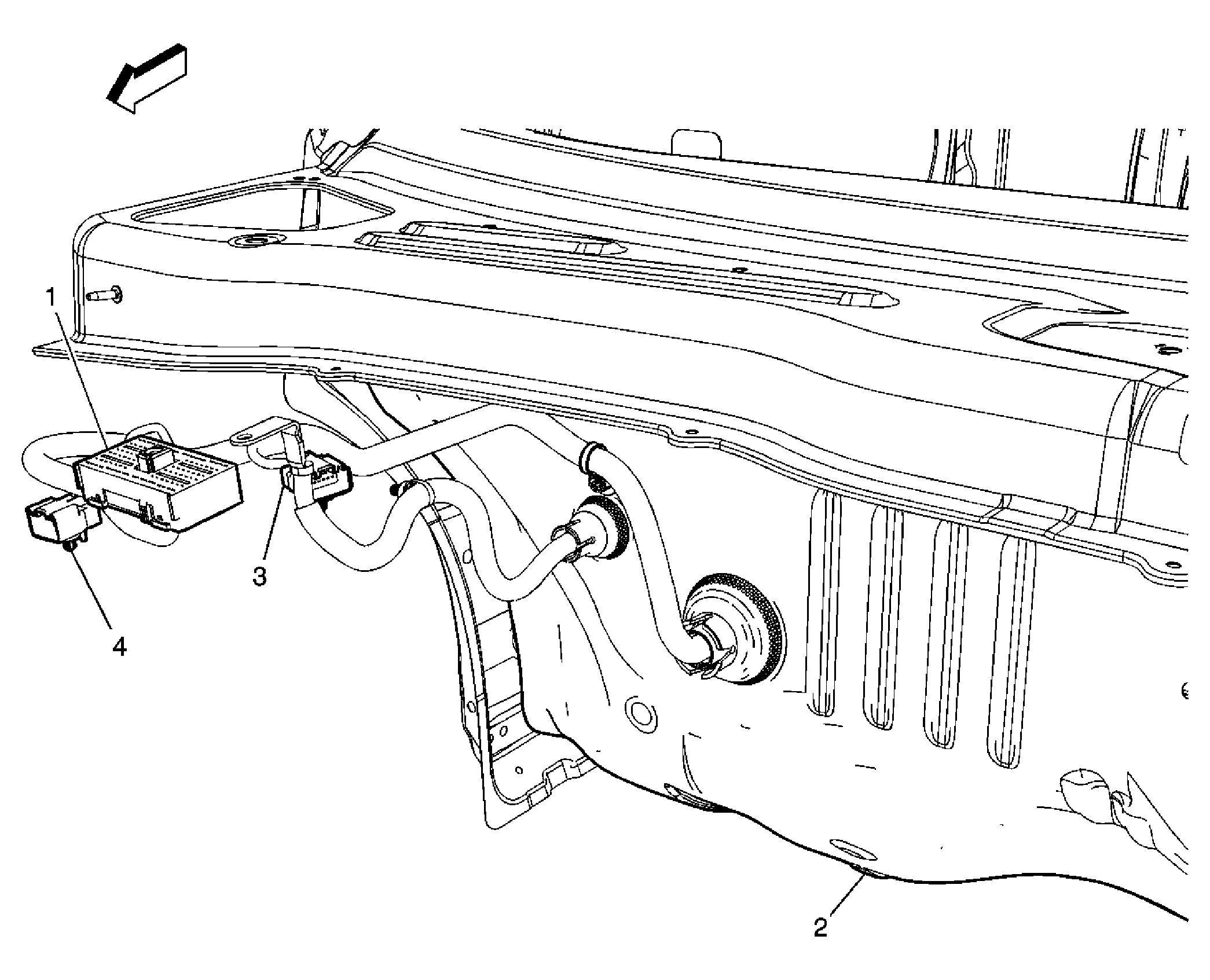

Fig 14: Identifying Body & Battery Cable Harnesses - Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood X2
2	Dash Panel
3	X100
4	X120

Fig 15: Identifying Body Harness - Front Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X202
2	J317
3	X340
4	X200
5	Fuse Block - I/P X1
6	X600
7	Inflatable Restraint I/P Module - Connector
8	G300
9	X314
10	Inflatable Restraint Side Impact Module - Right Connector
11	J308
12	J304
13	X800
14	G302
15	X324
16	J322
17	J302
18	G304
19	J311
20	X305
21	J313
22	G303
23	X700
24	J335
25	J333
26	J319
27	Inflatable Restraint Side Impact Module - Left Connector
28	X315
29	G301
30	X500
31	X209 (V92)
32	JX205

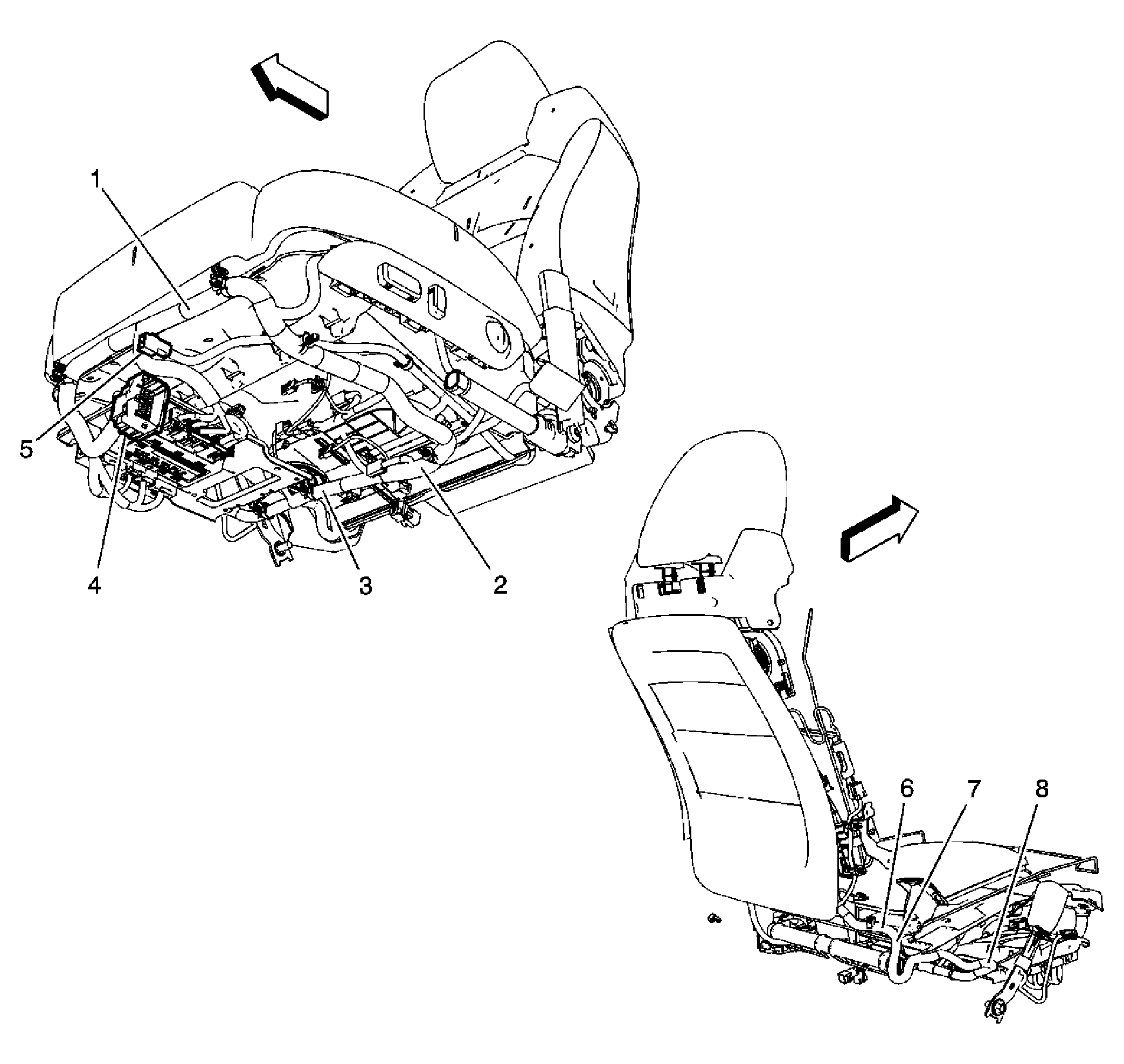

Fig 16: Driver Seat (AG3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J357 (KA1 or KB6)
2	J353 (KA1)
3	J354 (AG3)
4	X315
5	J358 (KB6)
6	J359 (KB6)
7	J350 (AG3)

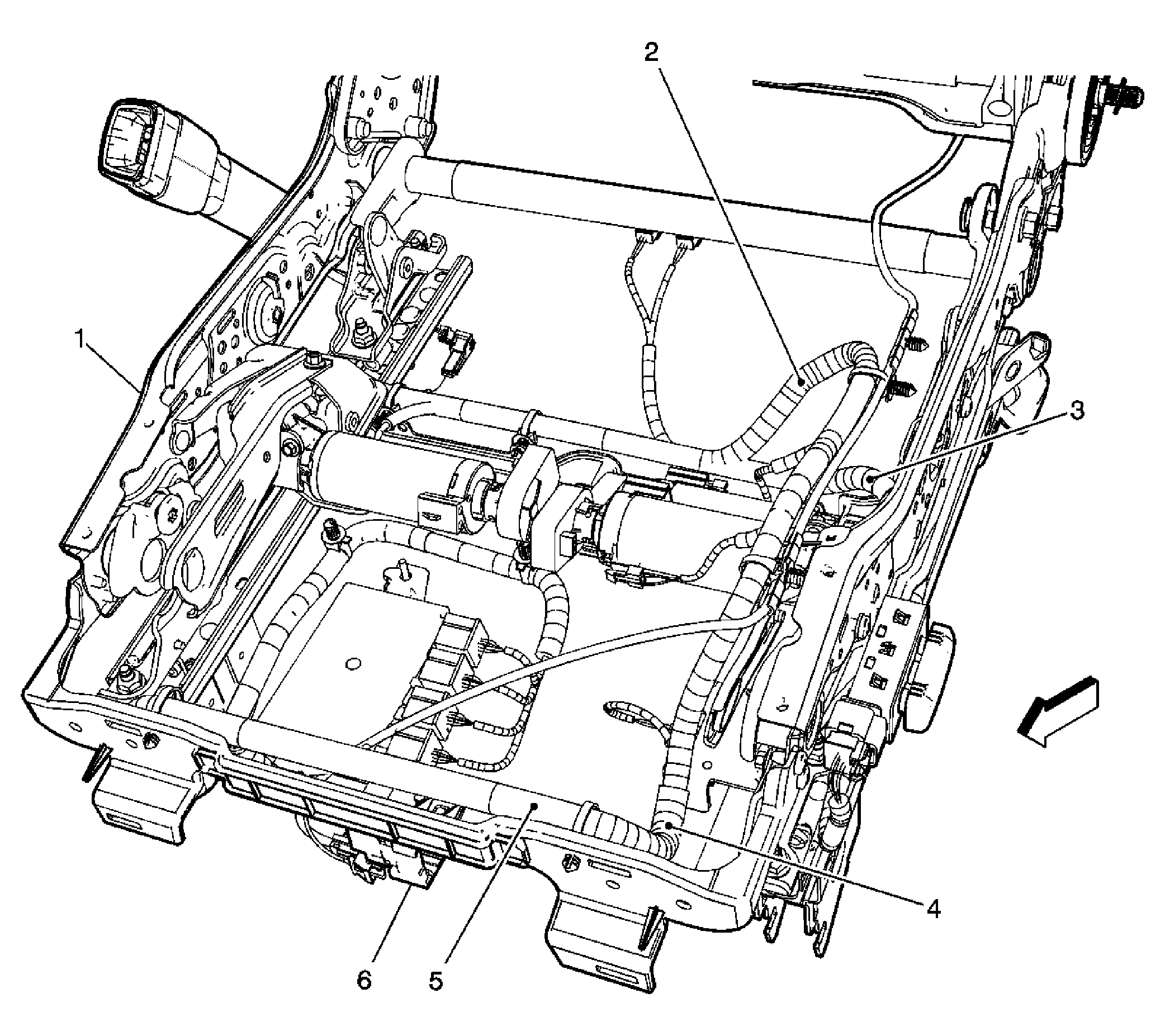

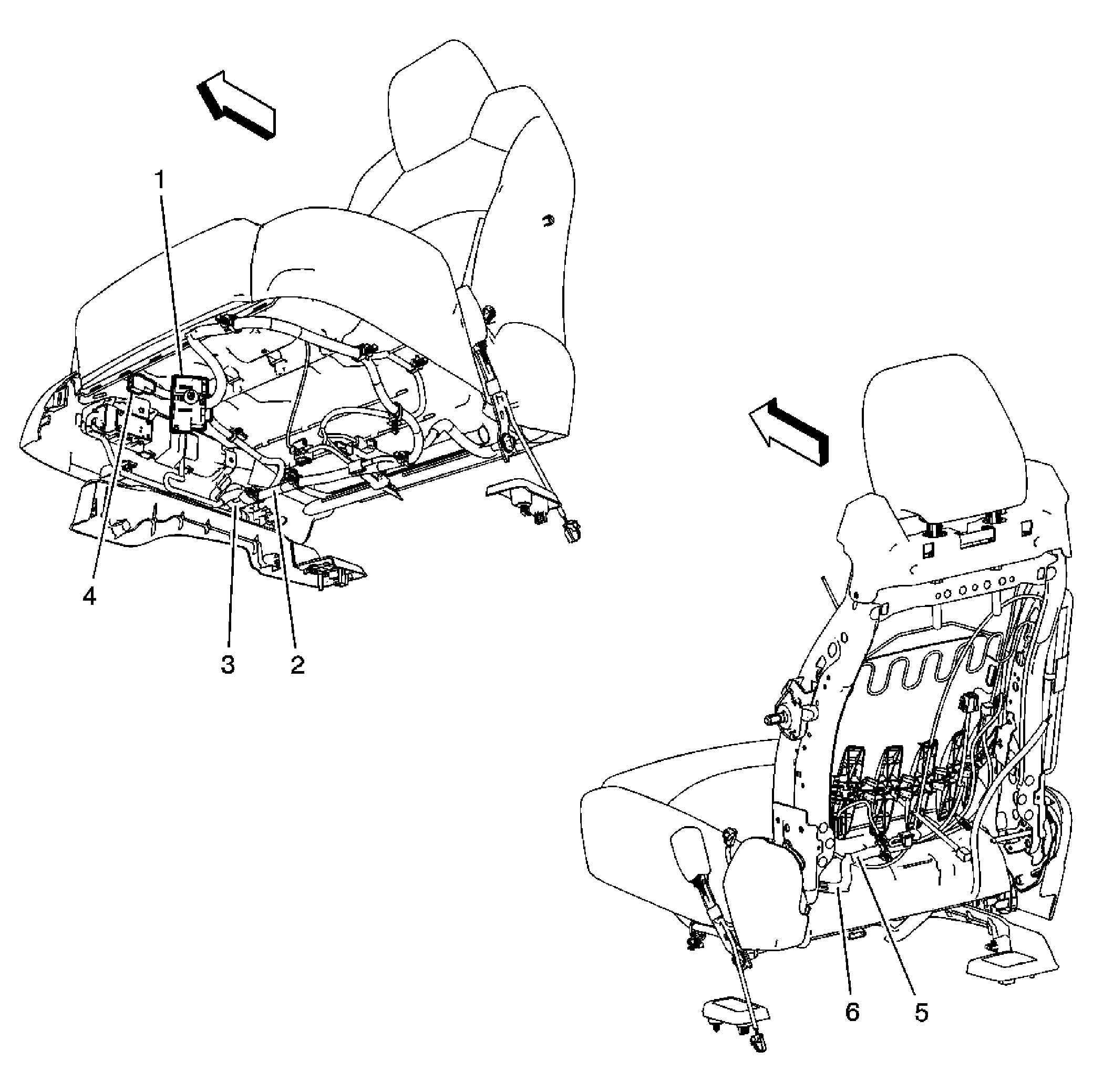

Fig 17: Identifying Driver Seat Harness (w/o AG3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Frame
2	J355 (AH5)
3	J357 (KA1)
4	J353 (KA1)
5	J351
6	X315

Fig 18: Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X314
2	J344 (AAQ or KB6)
3	J346 (AAQ)
4	J349 (KB6)
5	J347 (KB6)

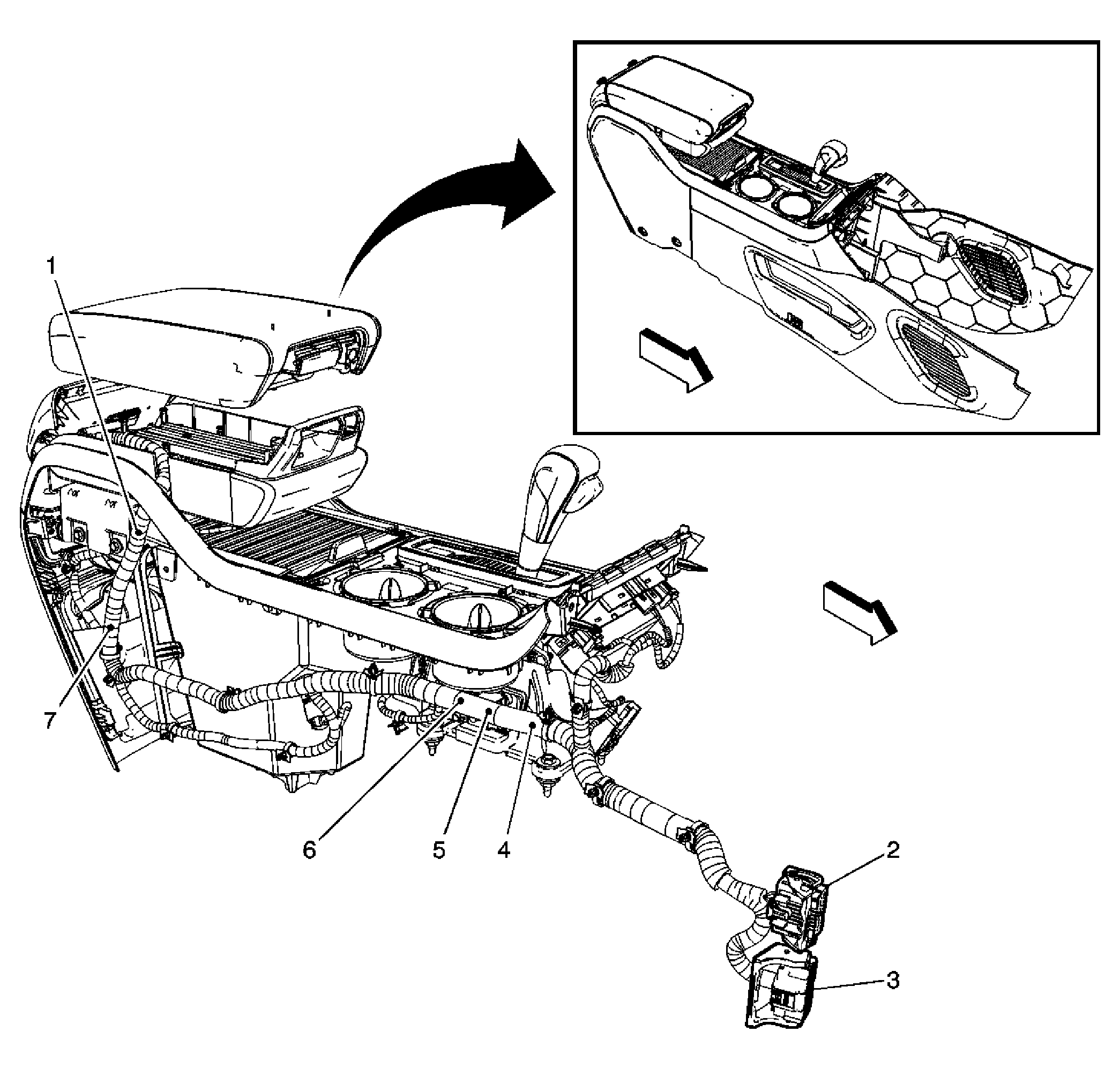

Fig 19: Identifying Floor Console Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J379 (without UK6)
2	X240
3	X340
4	J371 (without KA1 or UK6)
5	J373
6	J375
7	J377

Fig 20: View Of Components Located Near Battery

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Panel
2	G305
3	Battery Current Sensor
4	X324
5	Inline Fuse Onstar (UE1)
6	X325 (UE1)

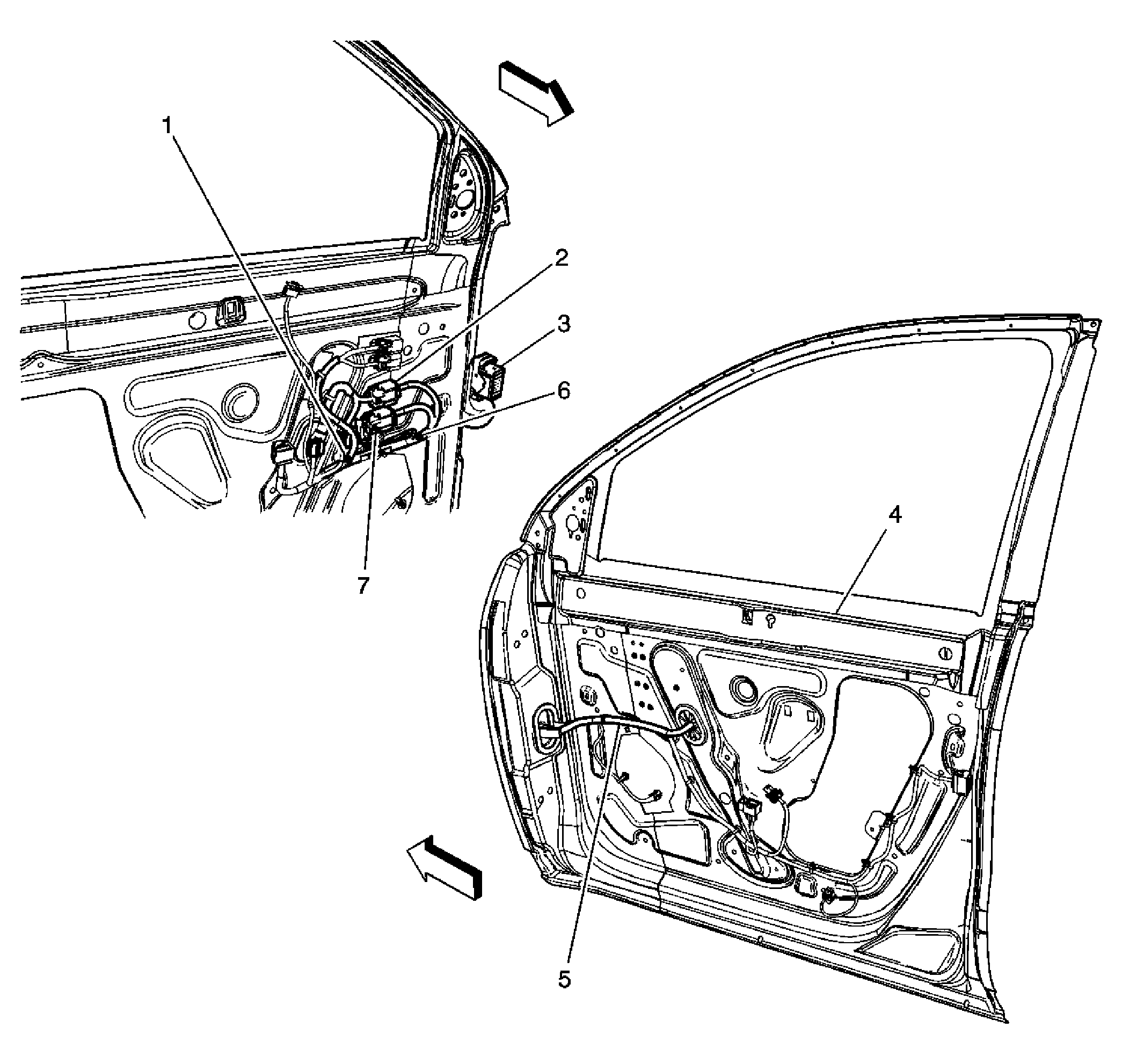

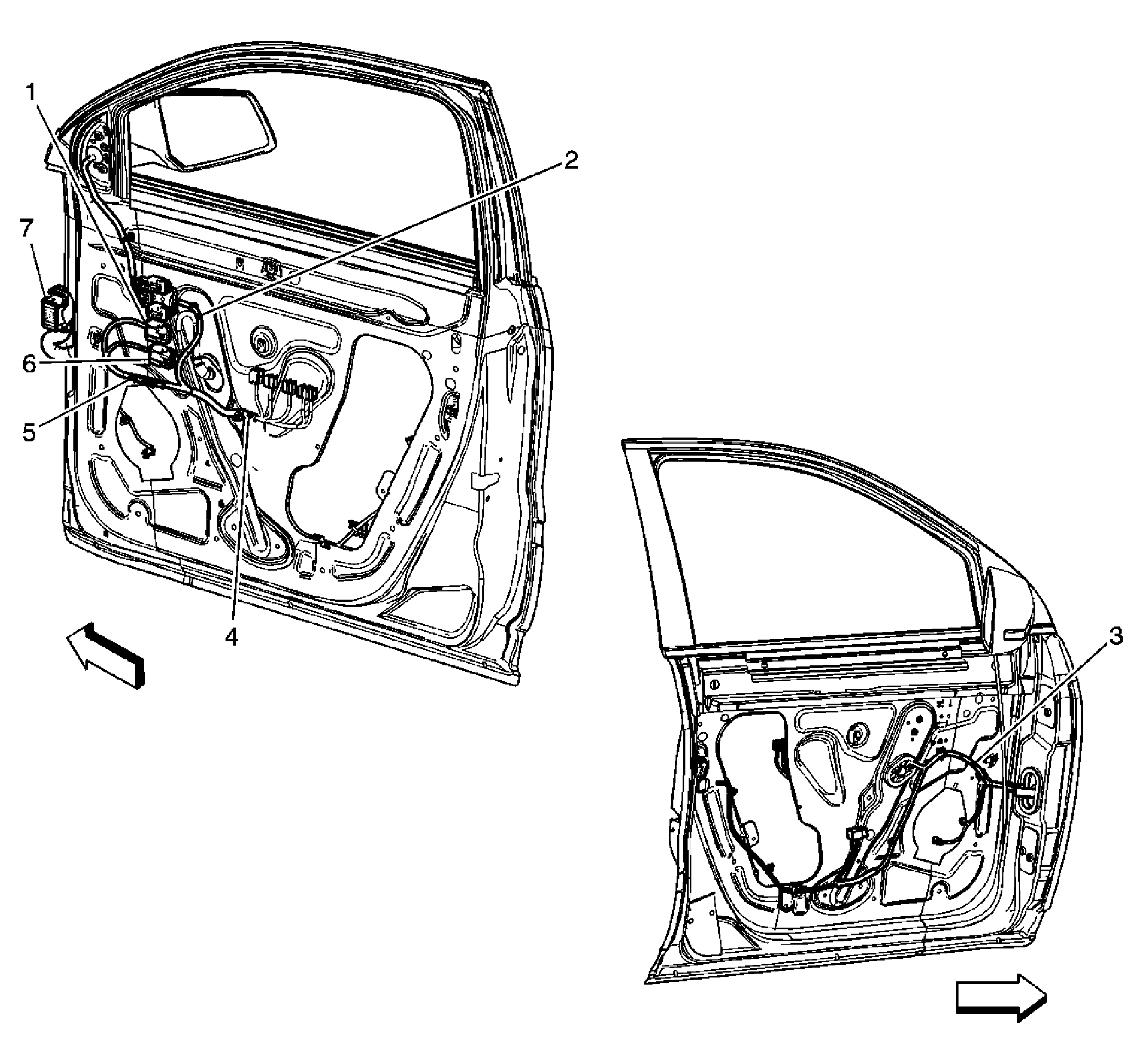

Fig 21: Identifying Driver Door Harnesses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J577 (without AXC or AXE)
2	X553
3	X500
4	Door Frame
5	J555
6	J575
7	X555

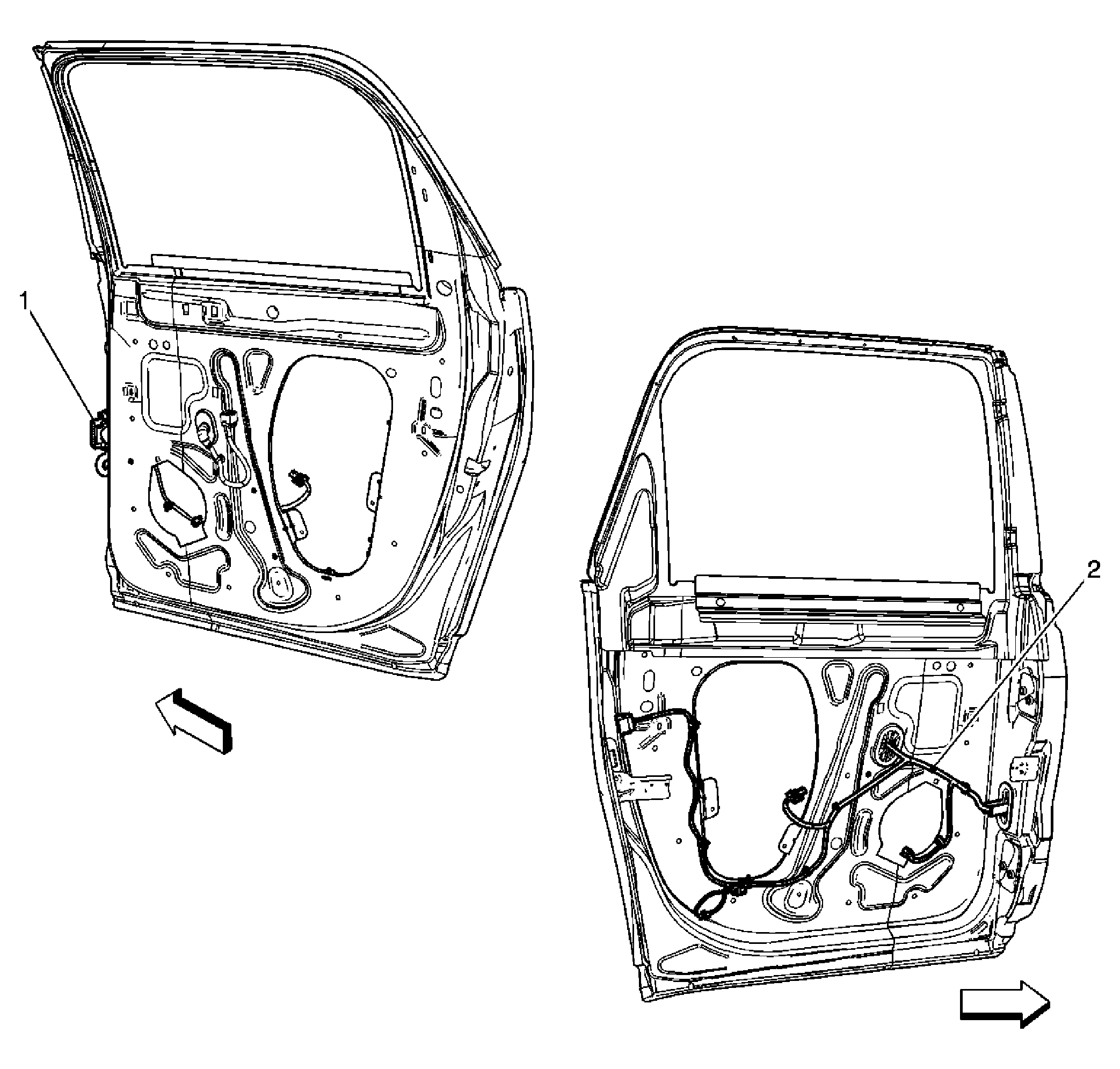

Fig 22: Identifying Passenger Door Harnesses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X666
2	J602
3	J600 (without AXE)
4	J666 (without AXC or AXE)
5	J602
6	X664
7	X600

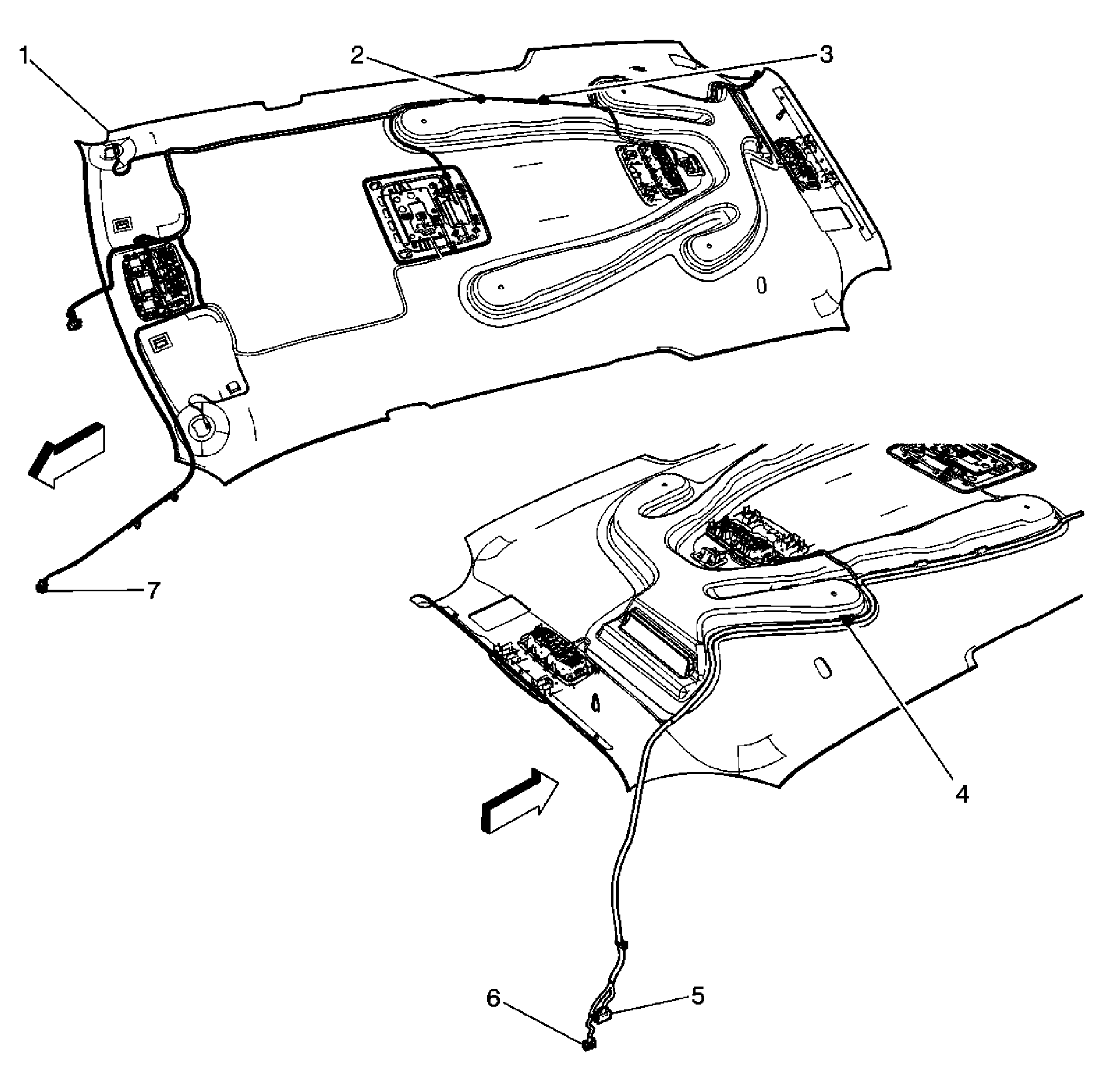

Fig 23: Identifying Headliner Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	J326
3	J339
4	J348
5	X320 (DNP or UD7 or UE1)
6	X322
7	X216 (U42)

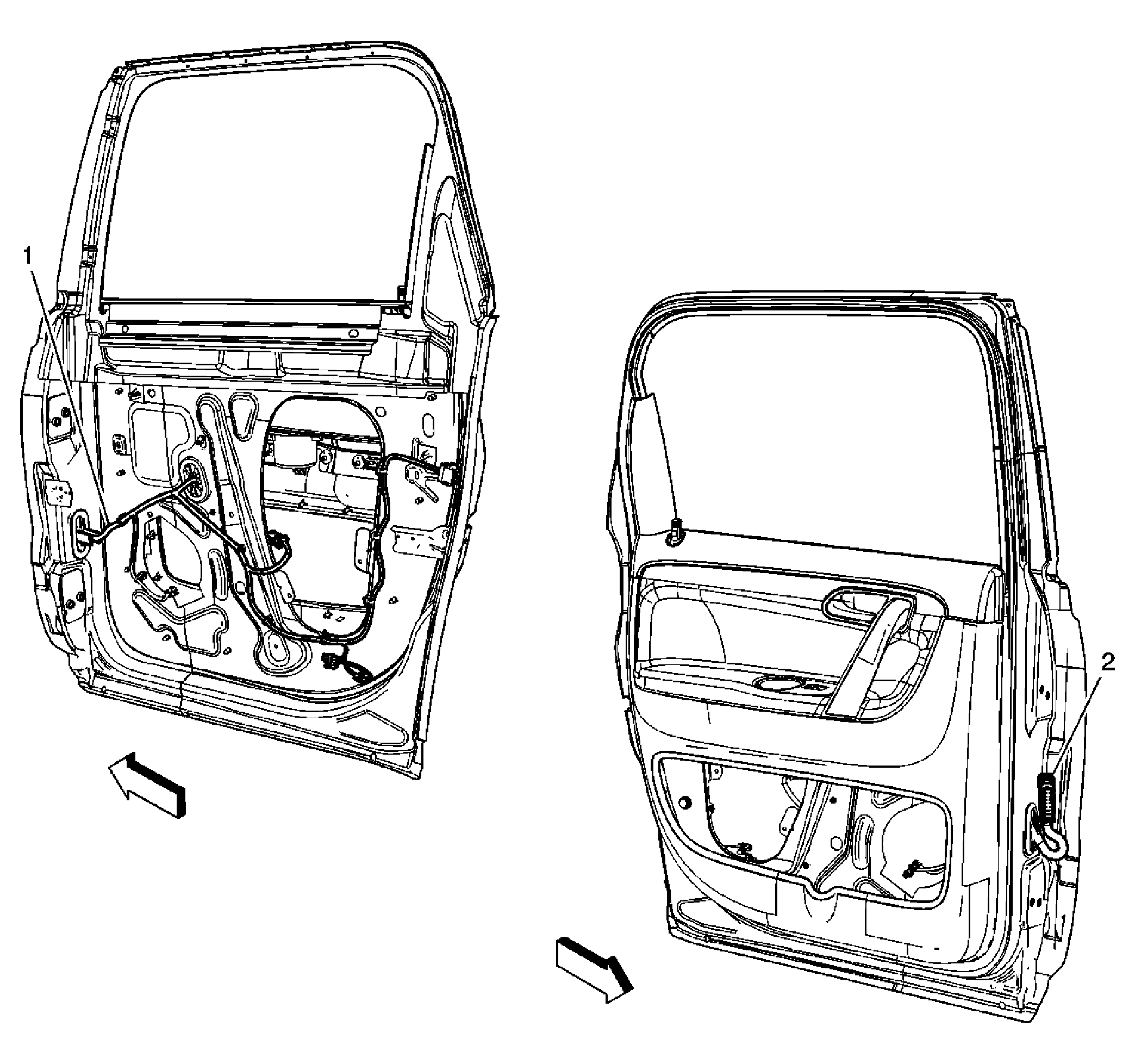

Fig 24: Identifying Right Rear Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X800
2	J800

Fig 25: Identifying Left Rear Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J711
2	X700

Fig 26: Identifying Body Harness - Left Rear Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G401
2	Radio Antenna X1
3	Inflatable Restraint Roof Rail Module - Driver Connector
4	JX405
5	X405

Fig 27: View Of Body Harness - Right Rear Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G402
2	X351
3	Inflatable Restraint Roof Rail Module - Passenger Connector
4	Radio Antenna X2
5	Radio Antenna X1
6	X320 (DNP or UD7 or UE1)
7	X322

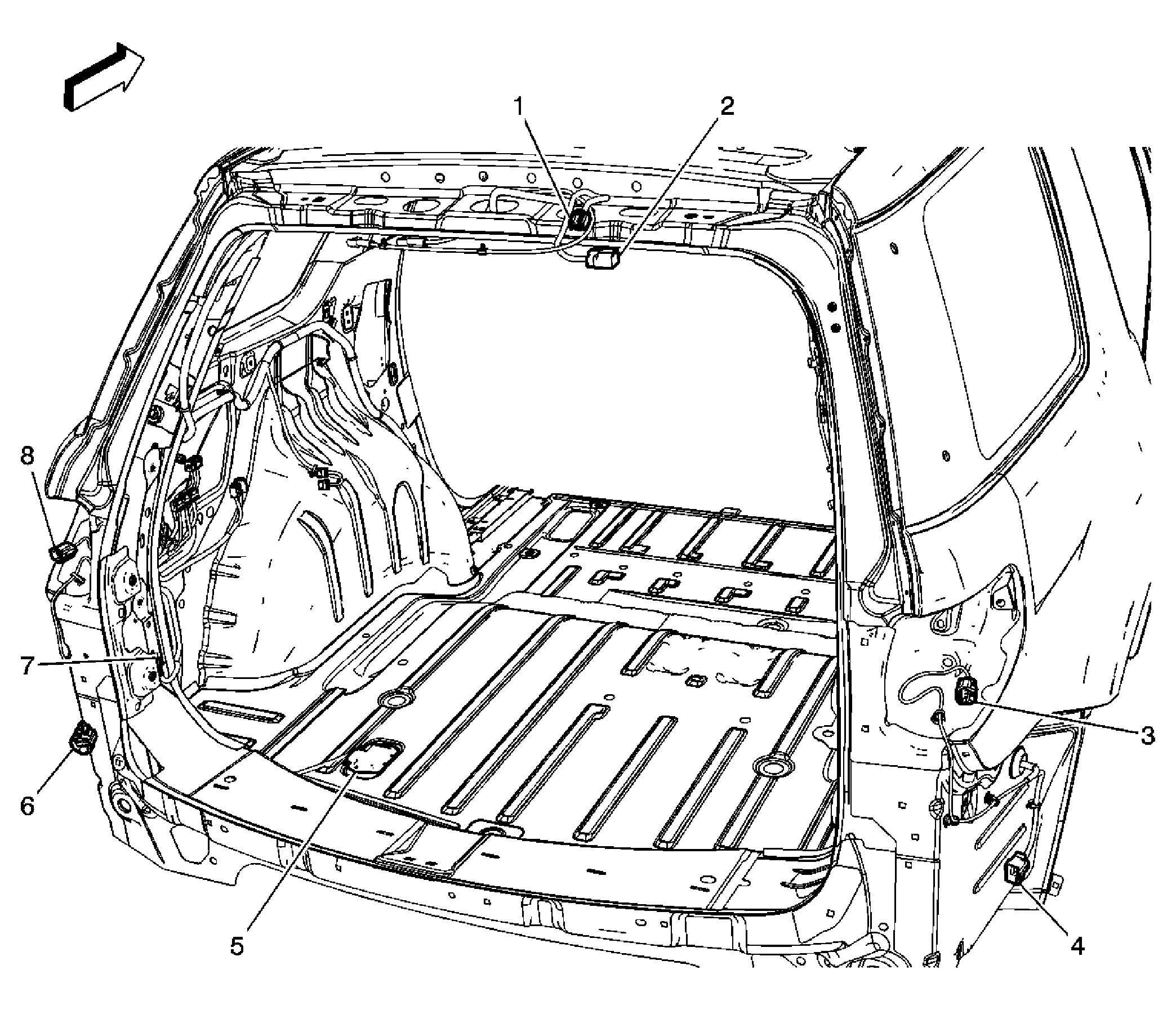

Fig 28: Identifying Body Harness - Near Rear Opening

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X901
2	X903
3	X450 (W49 or WDA or X88)
4	X442 (V92)
5	X405
6	X440 (UD7 or X88)
7	G401
8	X451 (W49 or WDA or X88)

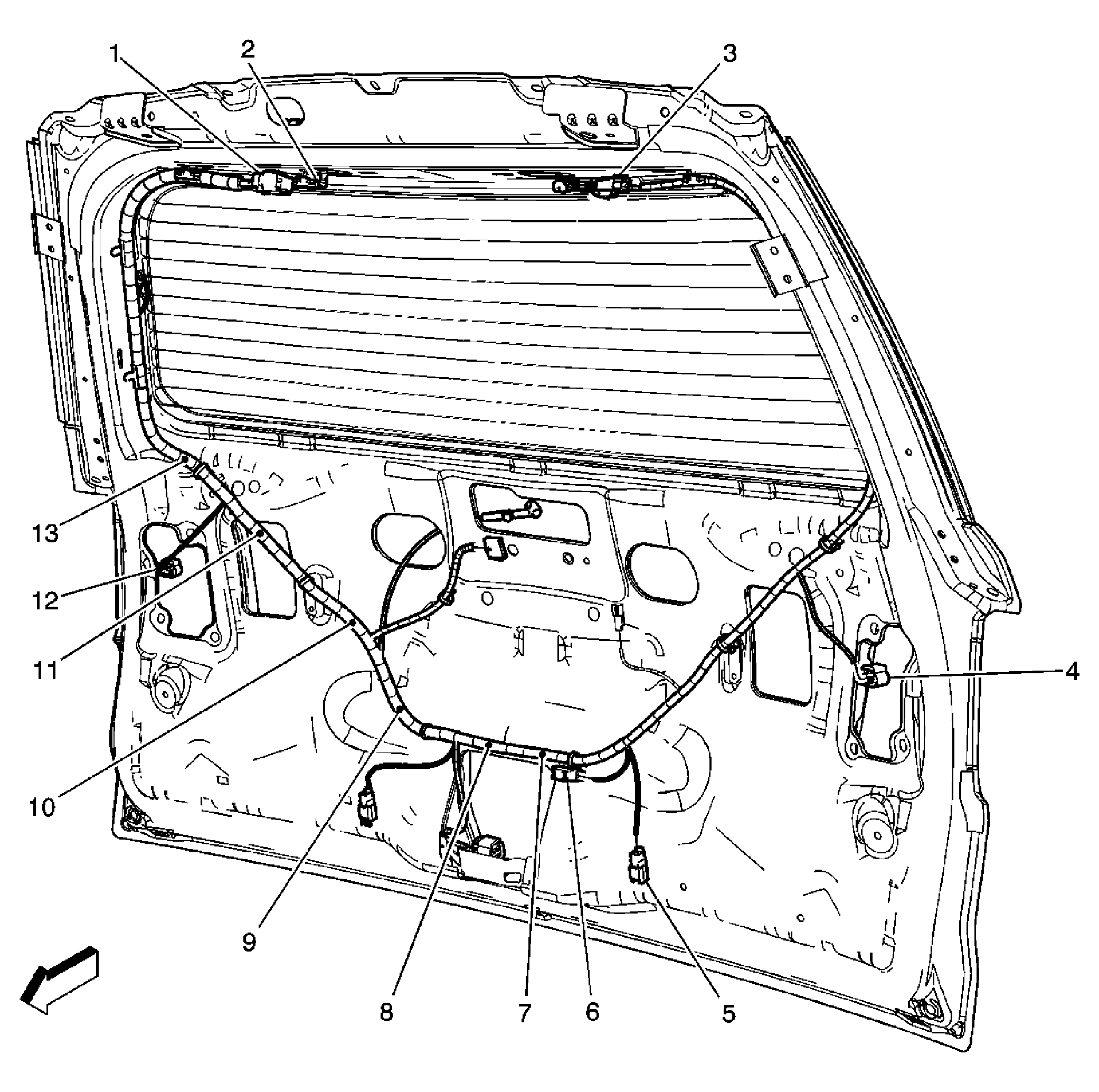

Fig 29: Identifying Liftgate Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X903
2	X901
3	X911
4	X931 (W49 or Z88)
5	Liftgate Control Switch - Interior (TB5) Connector
6	Liftgate Control Switch - Exterior Connector
7	J911 (Z88)
8	J915
9	J905 (TB5)
10	J907 (TB5)
11	J913
12	X920 (W49 or Z88)
13	J903 (WDA or Z88)

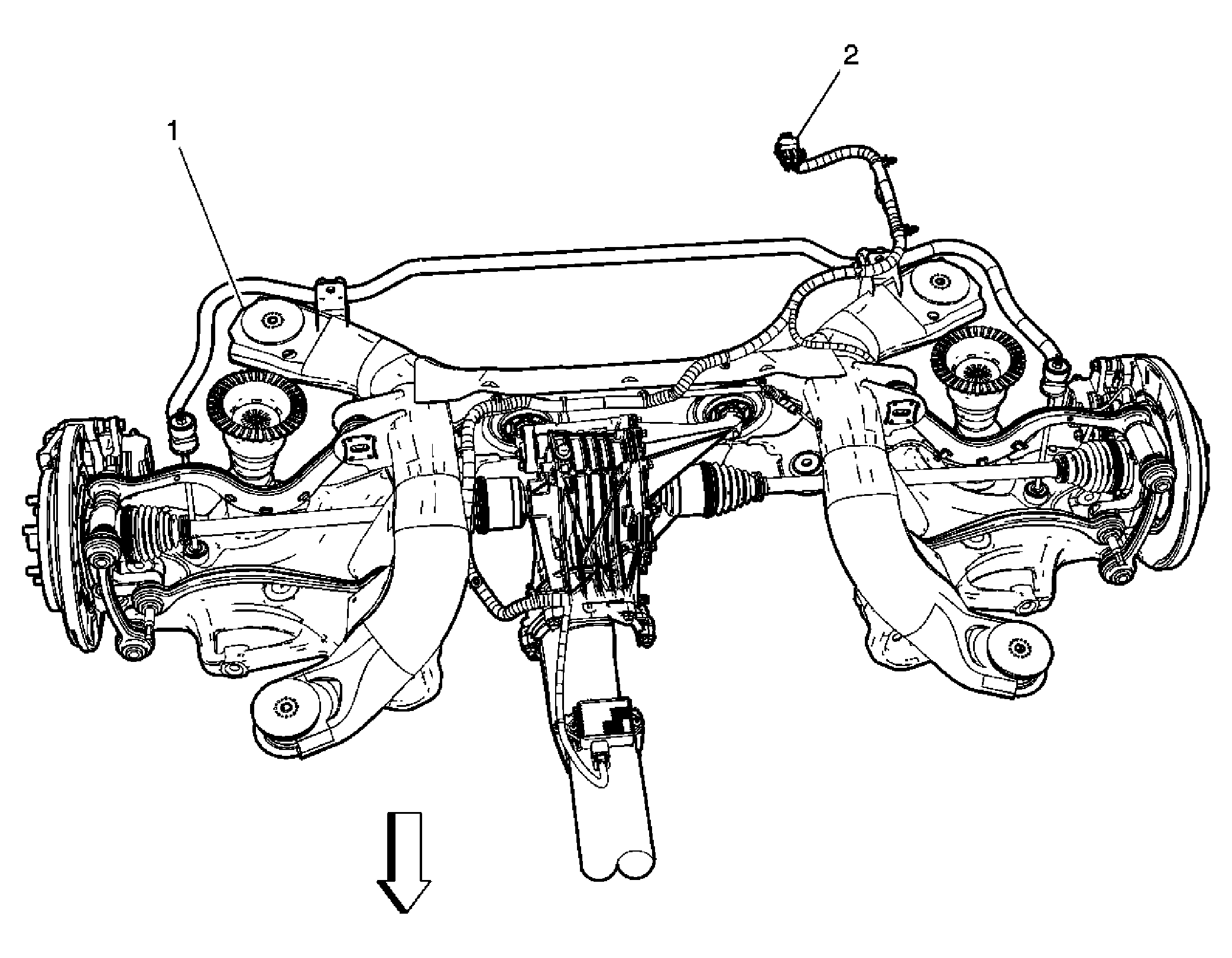

Fig 30: Identifying Chassis Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Cradle
2	X405

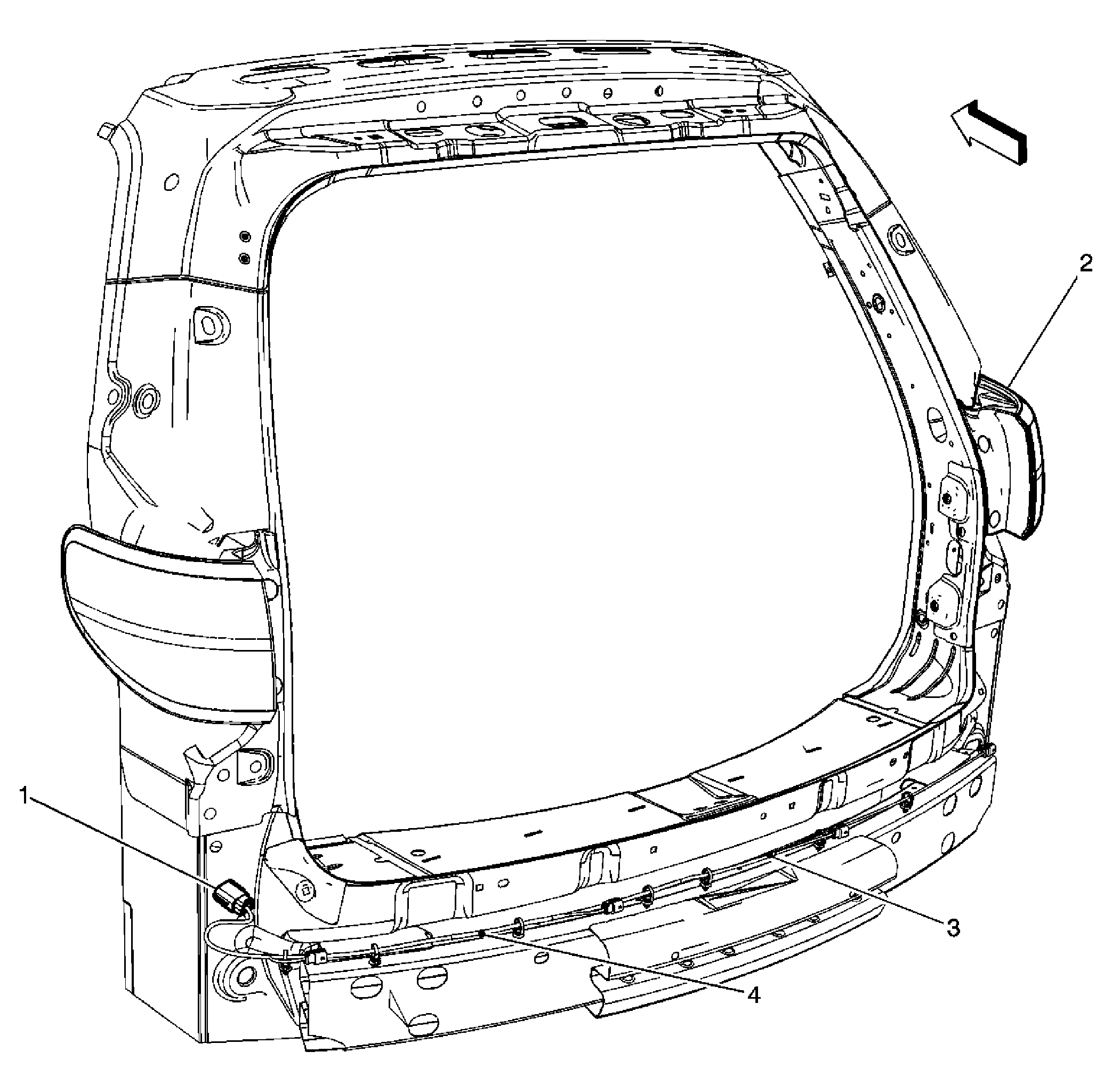

Fig 31: Identifying Rear Bumper Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X440 (UD7 or X88)
2	Tail Lamp - Right (Z88)
3	J444 (UD7)
4	J440 (UD7)

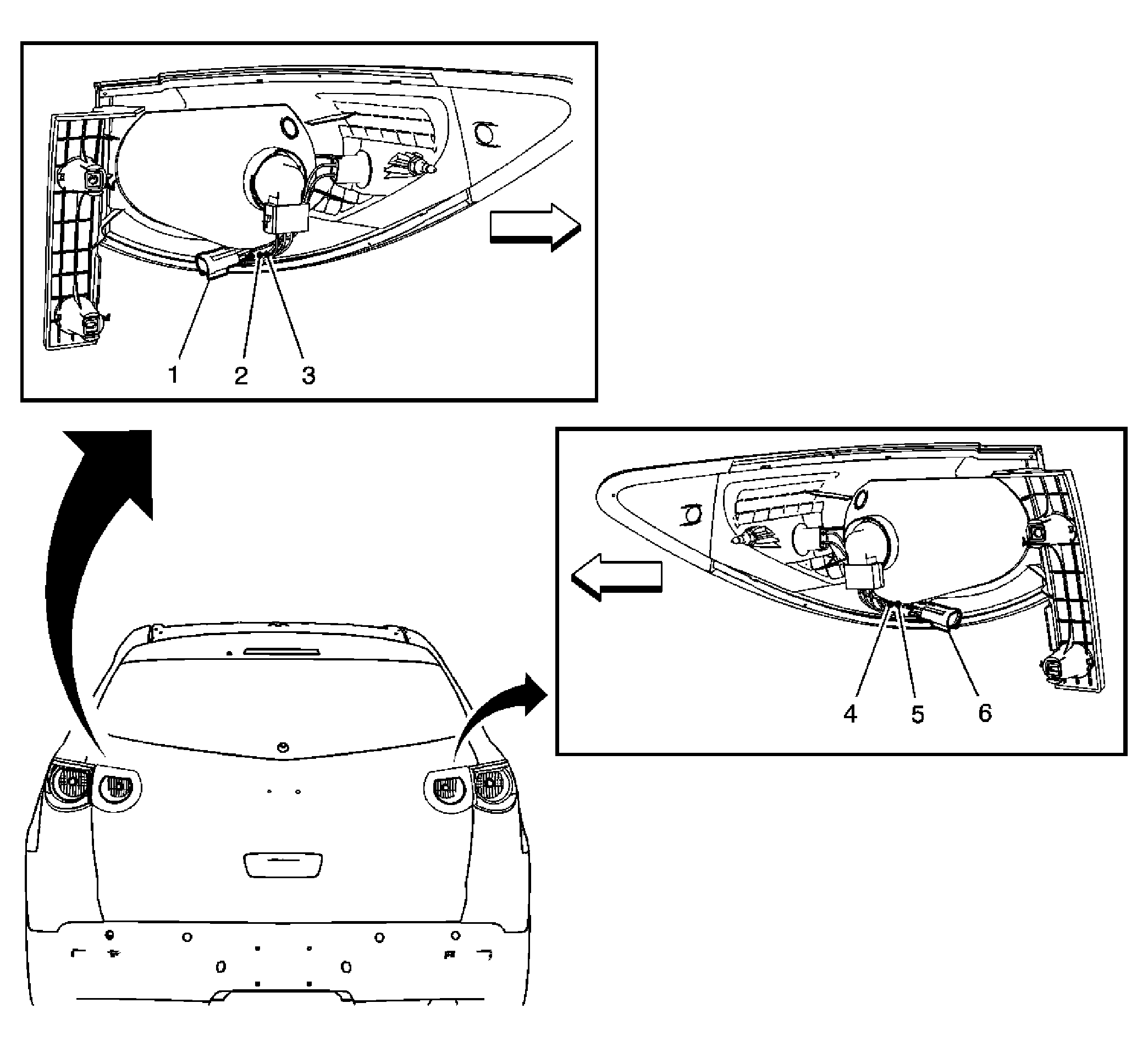

Fig 32: Tail Lamp Harness (X88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X451
2	J493
3	J495
4	J490
5	J488
6	X450
