Automatic Transmission Controls Schematics

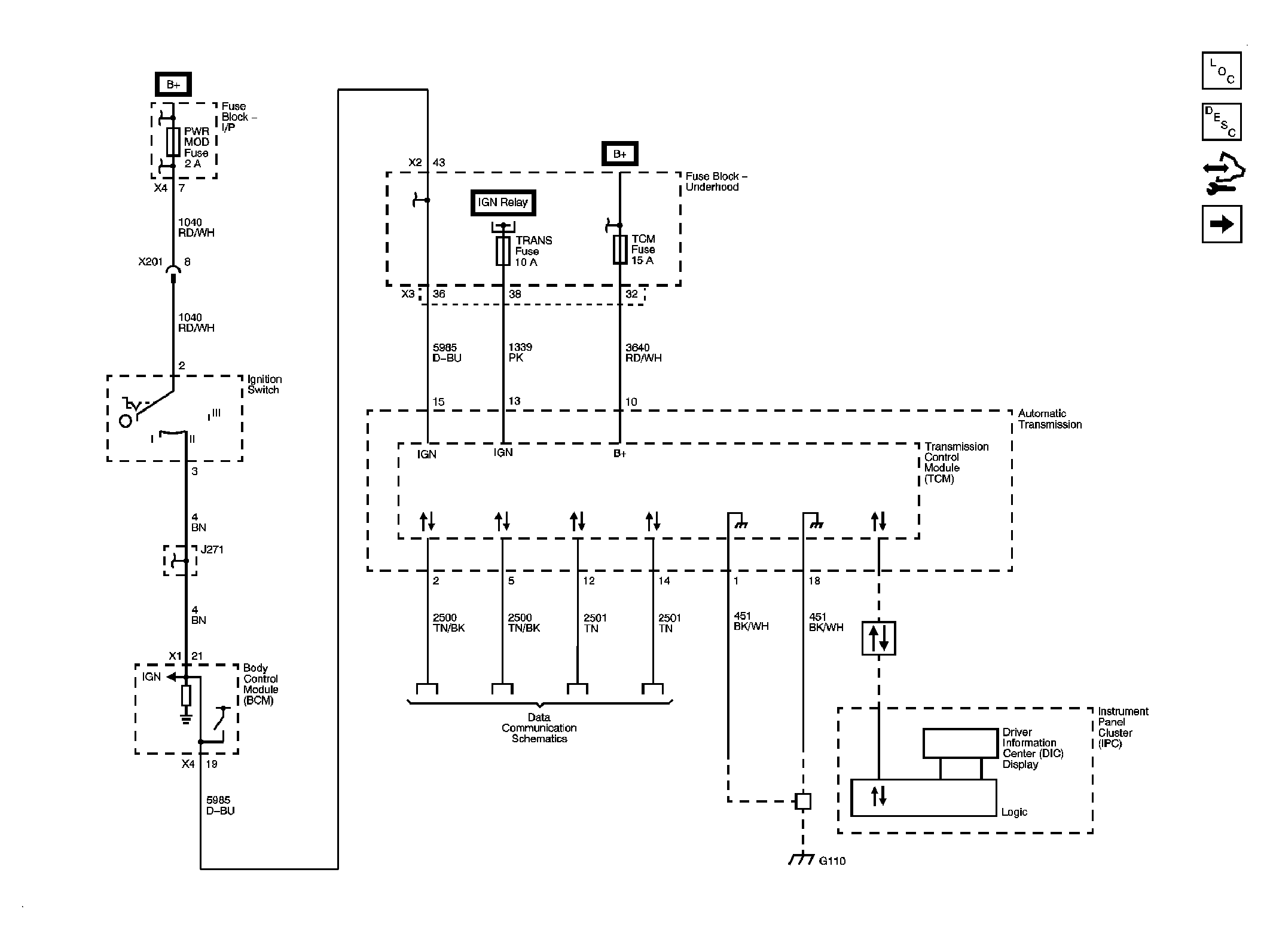

Fig 1: Module Power, Ground, Data Communication & MIL Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

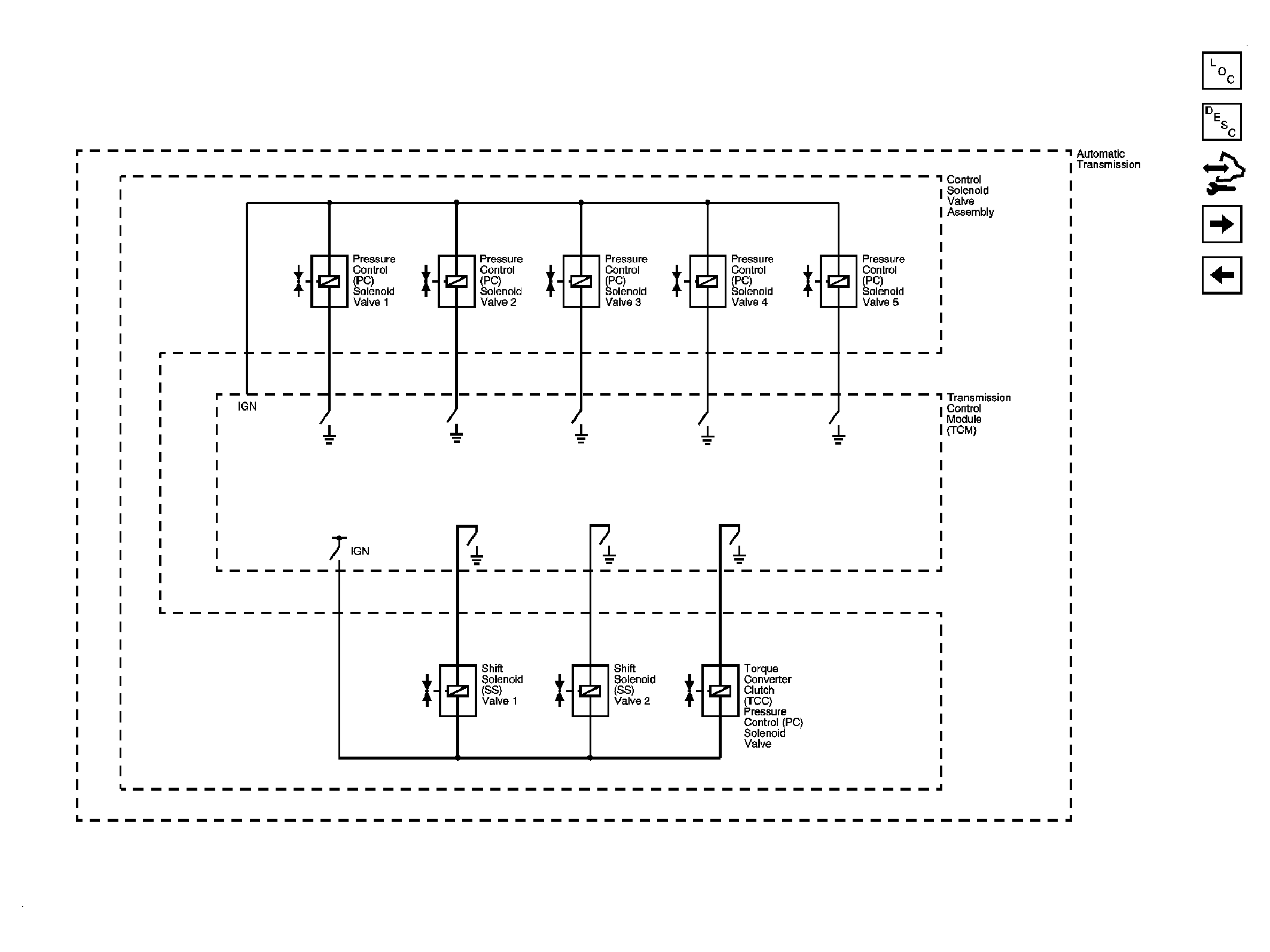

Fig 2: Pressure Controls & Shift Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: ISS, OSS, TFP & TFT Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

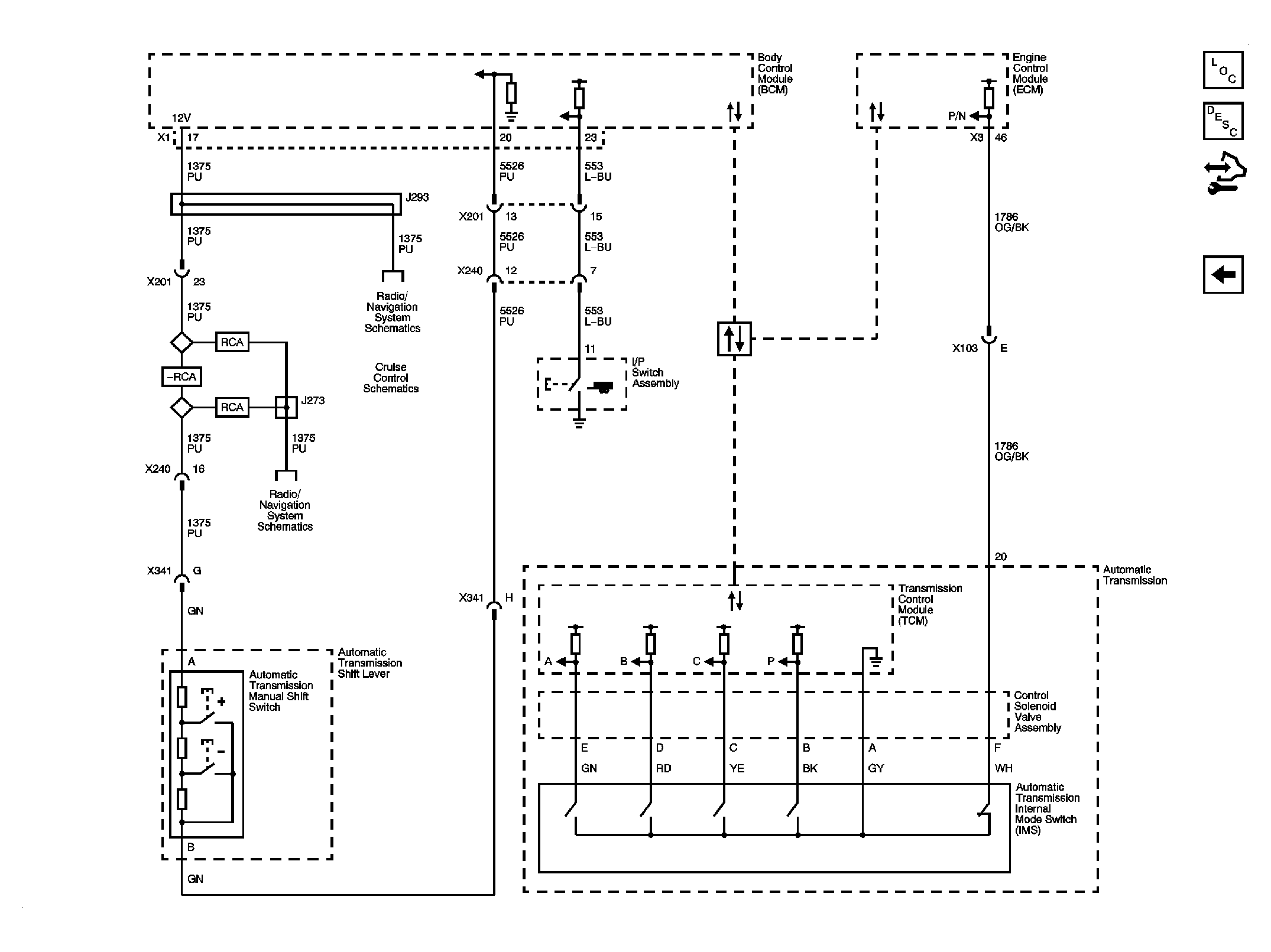

Fig 4: IMS & Tap Up/Tap Down Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
