Home >> Chevrolet >> 2009 >> Traverse LS, AWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Schematic and Routing Diagrams >> Seat Belt Schematics

Seat Belt Schematics

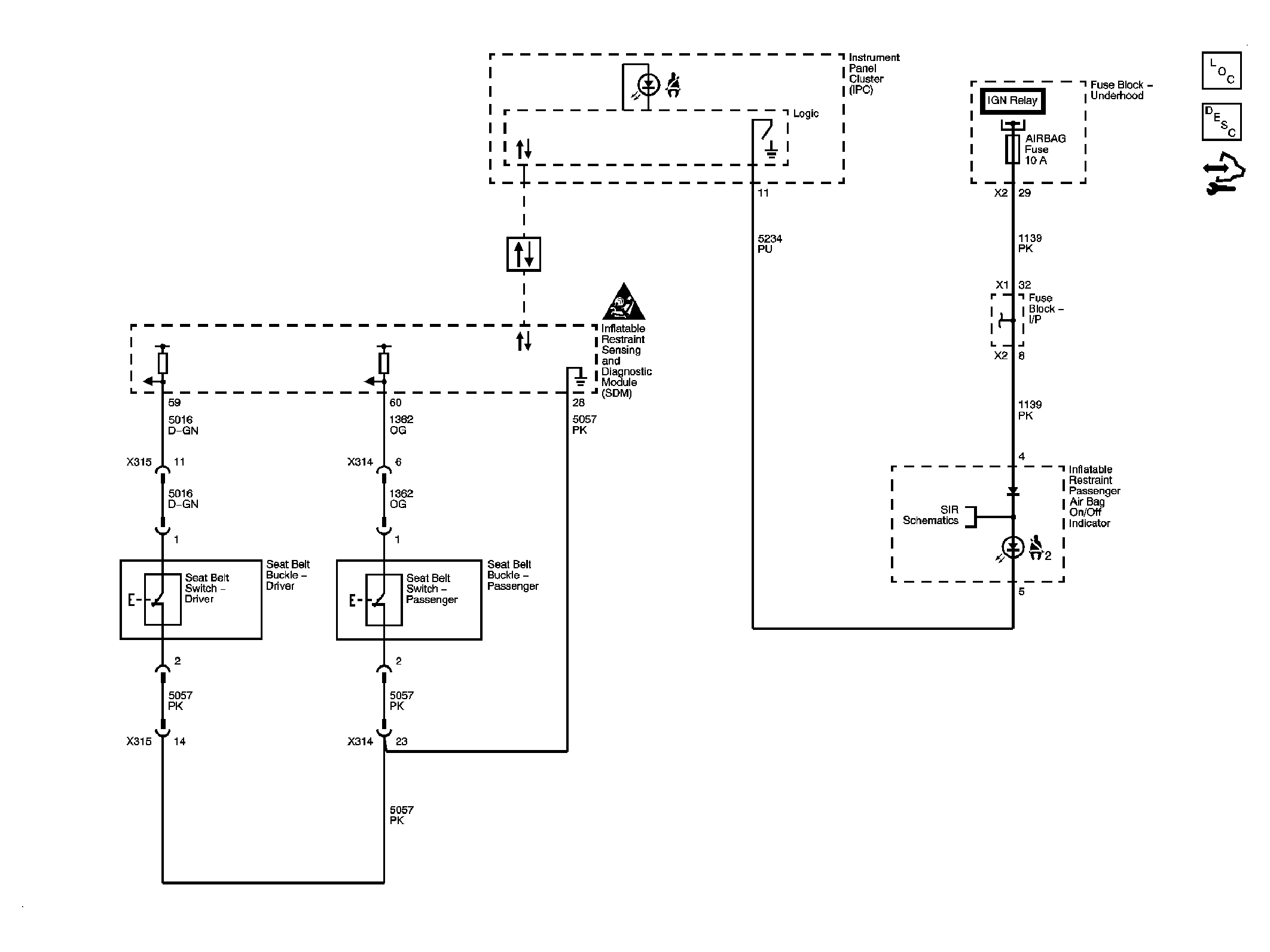

Fig 1: Seat Belt Circuit Schematic

GM2078004

Courtesy of GENERAL MOTORS CORP.
