Stabilizer Shaft Insulator Replacement
WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

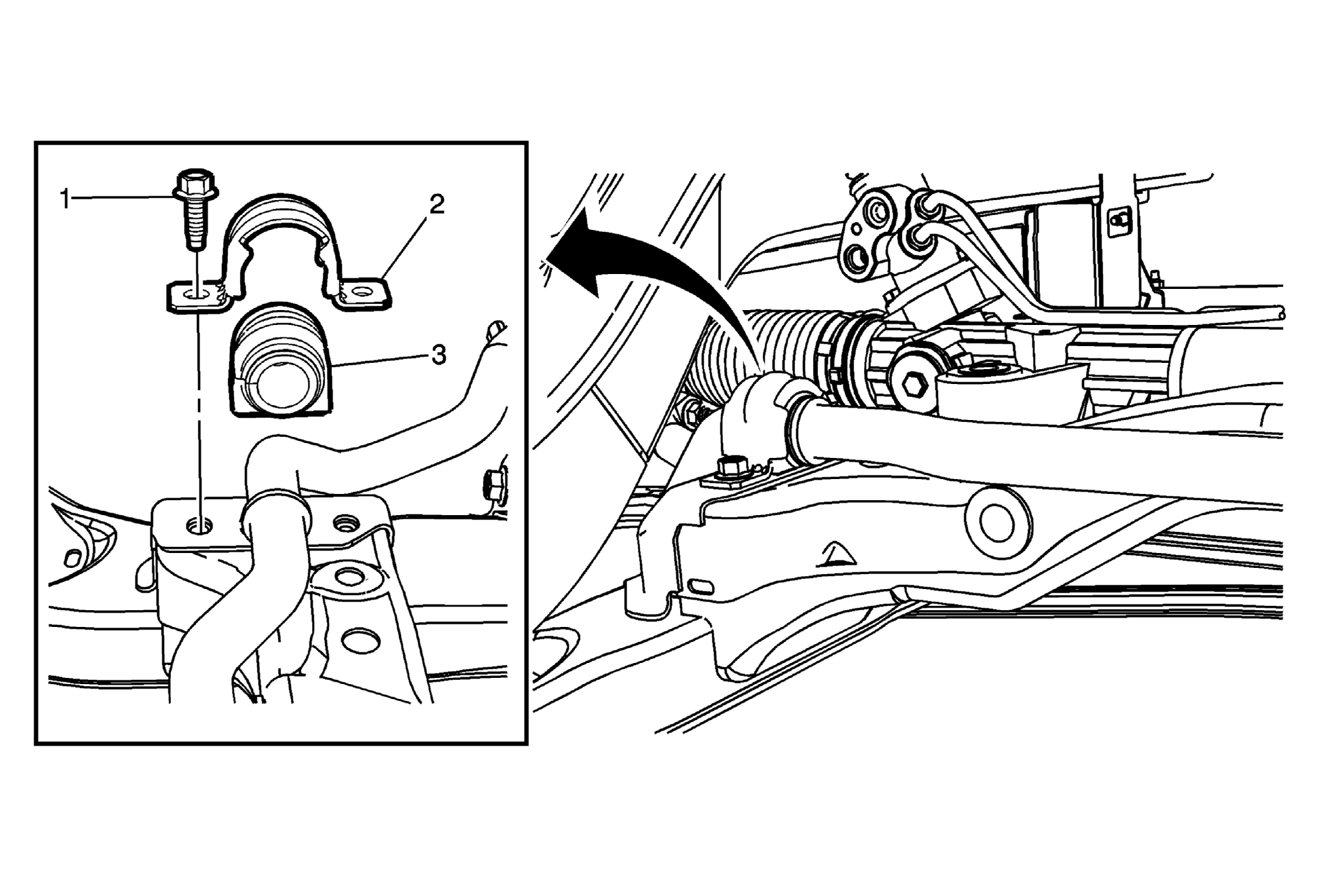

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Stabilizer Shaft Clamp Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 50 N.m (37 lb ft) |
| 2 | Stabilizer Shaft Insulator Clamp (Qty: 2) |
| 3 | Stabilizer Shaft Insulator (Qty: 2) Tip: Lift up on the stabilizer shaft to gain enough clearance to remove the insulator. |
