Front Floor Console Replacement (Traverse)

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

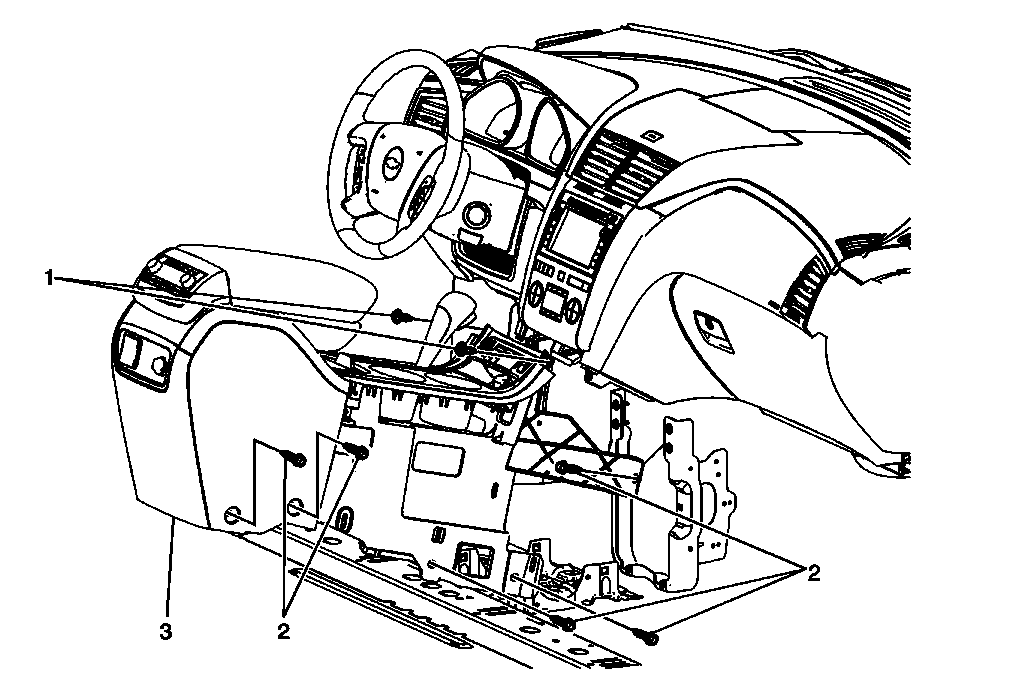

Fig 1: View Of Front Floor Console (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front floor console accessory housing. Refer to Front Floor Console Accessory Housing Replacement (Traverse) . Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement (Traverse) . Remove the right and left front floor console extension panels. Refer to Front Floor Console Extension Panel Replacement - Right Side (Traverse) and Front Floor Console Extension Panel Replacement - Left Side (Traverse) . Disconnect the automatic transmission range selector lever cable. Refer to Range Selector Lever Cable Replacement .
1	Front Floor Console Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure: Remove the fastener covers in order to access the fasteners. Tighten: 2 N.m (18 lb in)
2	Front Floor Console Bolt (Qty: 10) Tip: Before installing the right lower forward bolt, ensure that the console wiring harness is tucked below the fastener location to avoid driving the bolt into the harness. Tighten: 9 N.m (80 lb in)
3	Front Floor Console Assembly Procedure Note location and routing of the front floor console wiring harness prior to removal of the front floor console assembly to ensure proper reinstallation. Disconnect the electrical connectors. With the aid of an assistant remove the console assembly from the vehicle. When replacing the front floor console, transfer all necessary components.
