Hazard Warning Switch Replacement (Enclave/Traverse)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

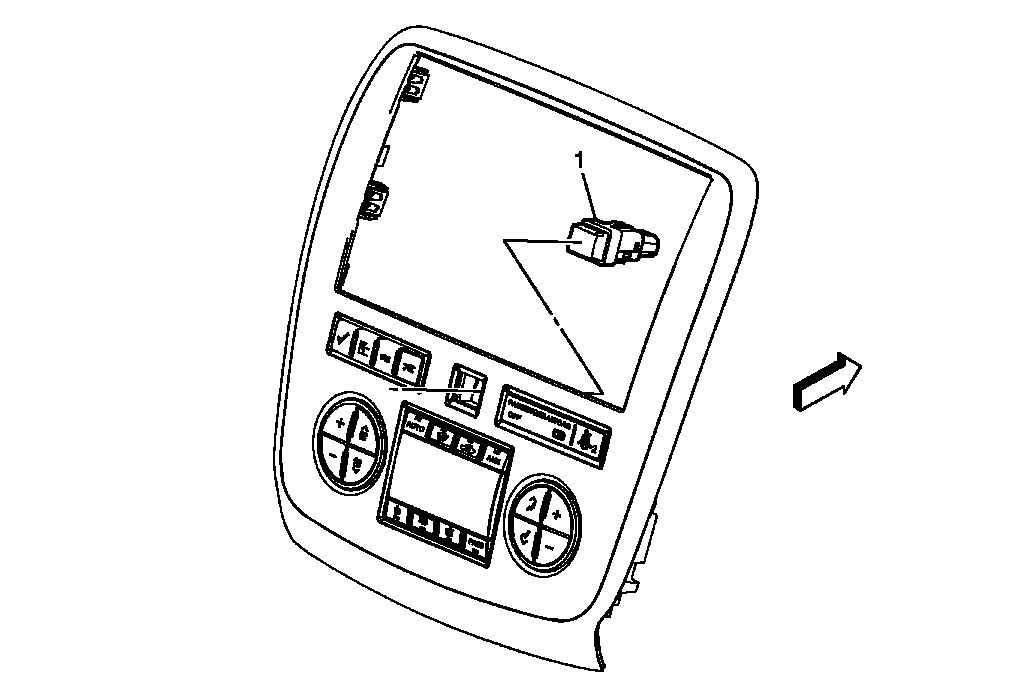

Fig 1: Hazard Warning Switch (Enclave/Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Acadia) , Instrument Panel Accessory Trim Plate Replacement (Enclave) , Instrument Panel Accessory Trim Plate Replacement (Traverse) .
1	Hazard Warning Switch Assembly Procedure Release tab on top and bottom of switch to remove. Disconnect Electrical Connector.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Acadia) , Instrument Panel Accessory Trim Plate Replacement (Enclave) , Instrument Panel Accessory Trim Plate Replacement (Traverse) .

Hazard Warning Switch Assembly

Procedure

Release tab on top and bottom of switch to remove.
Disconnect Electrical Connector.
