Emission Hose Routing Diagram

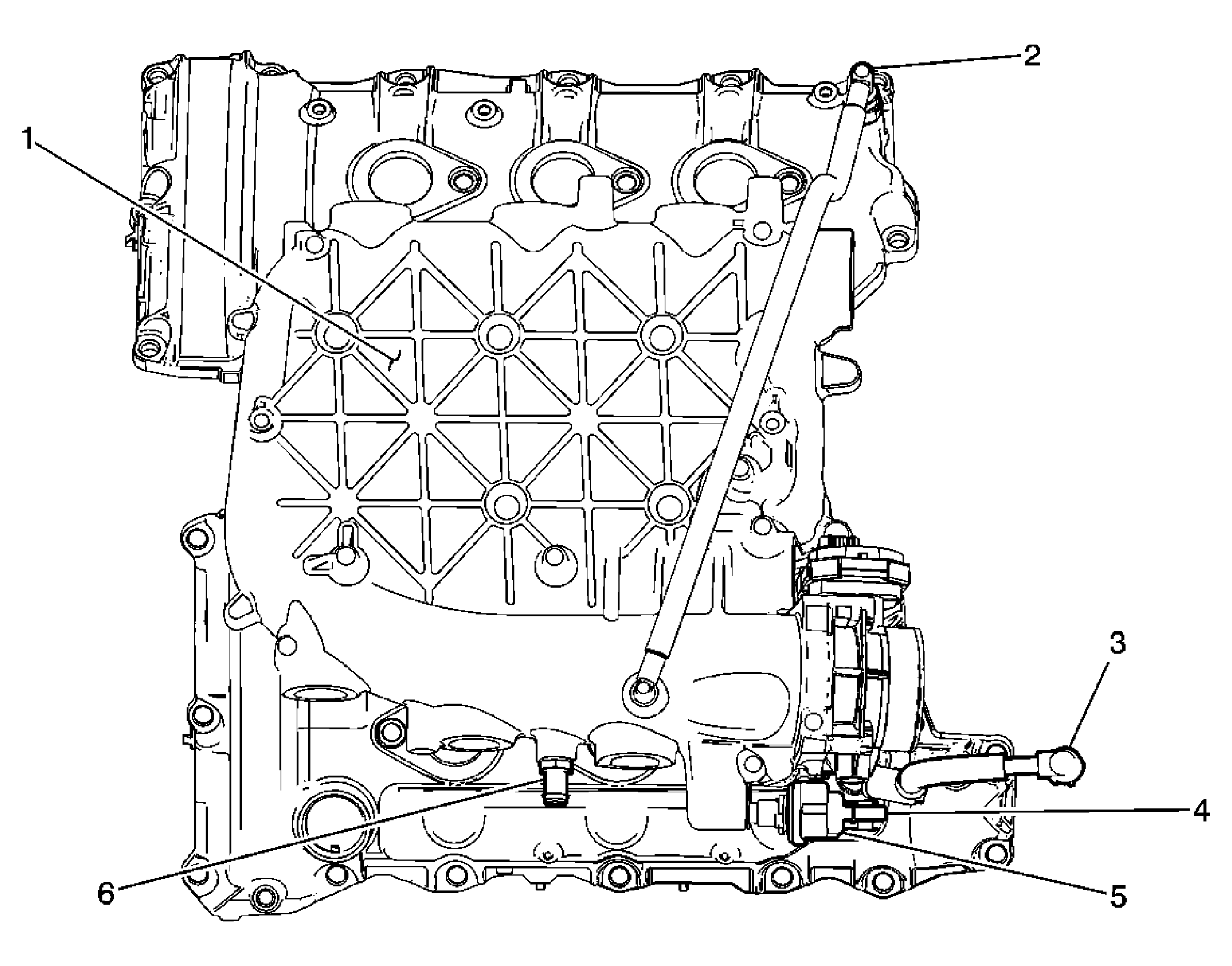

Fig 1: View Of Emission Hose Routing
GM2095311Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Intake Manifold
2 Positive Crankcase Ventilation (PCV) Orifice
3 PCV Fresh Air Inlet Hose
4 Hose/Pipe to Evaporative Emission (EVAP) Canister
5 EVAP Purge Valve
6 To Brake Booster
