Ground Distribution Schematics

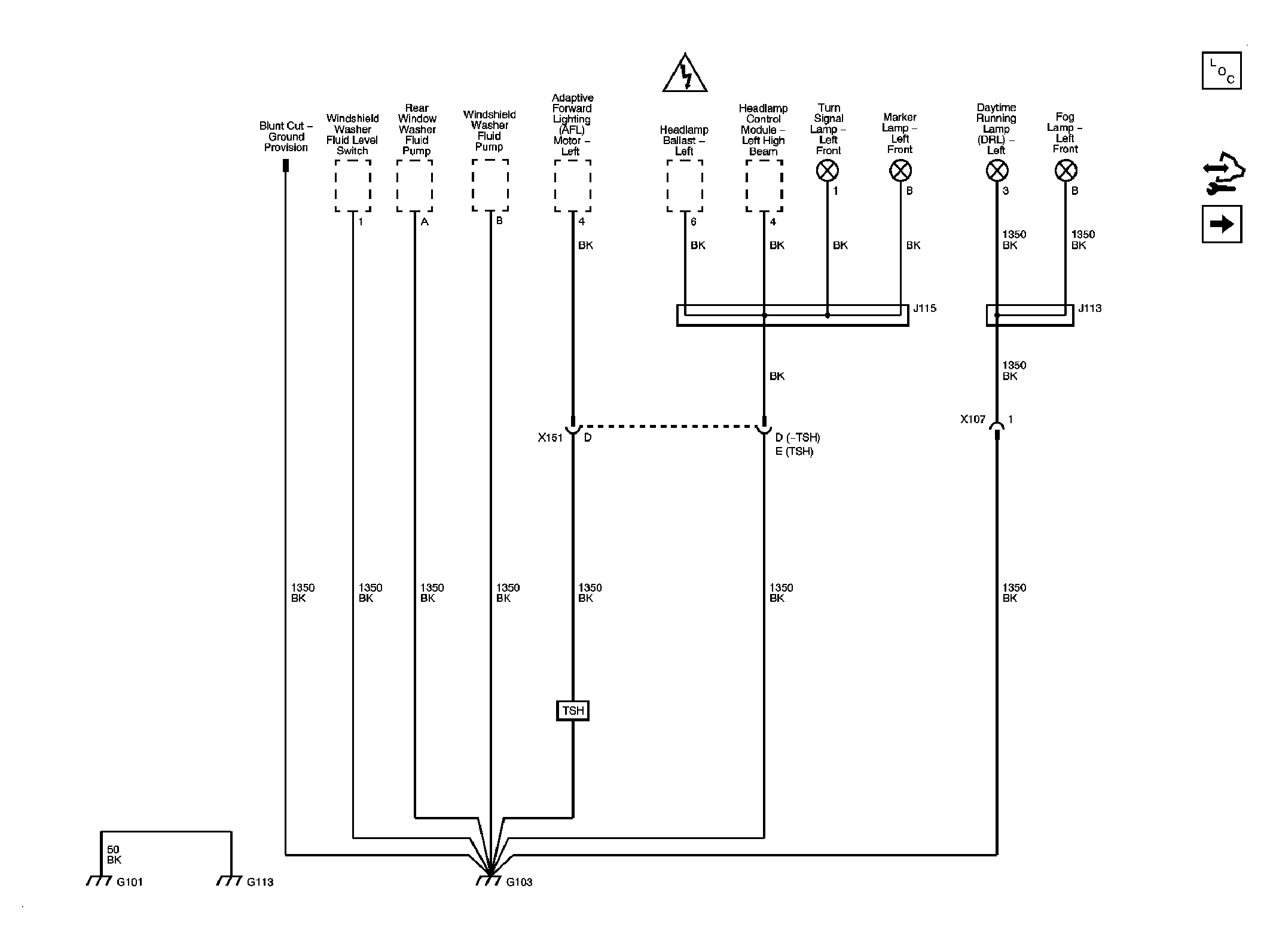

Fig 1: G101, G103, and G113 Circuit Schematic(W49)

GM2077749

Courtesy of GENERAL MOTORS CORP.

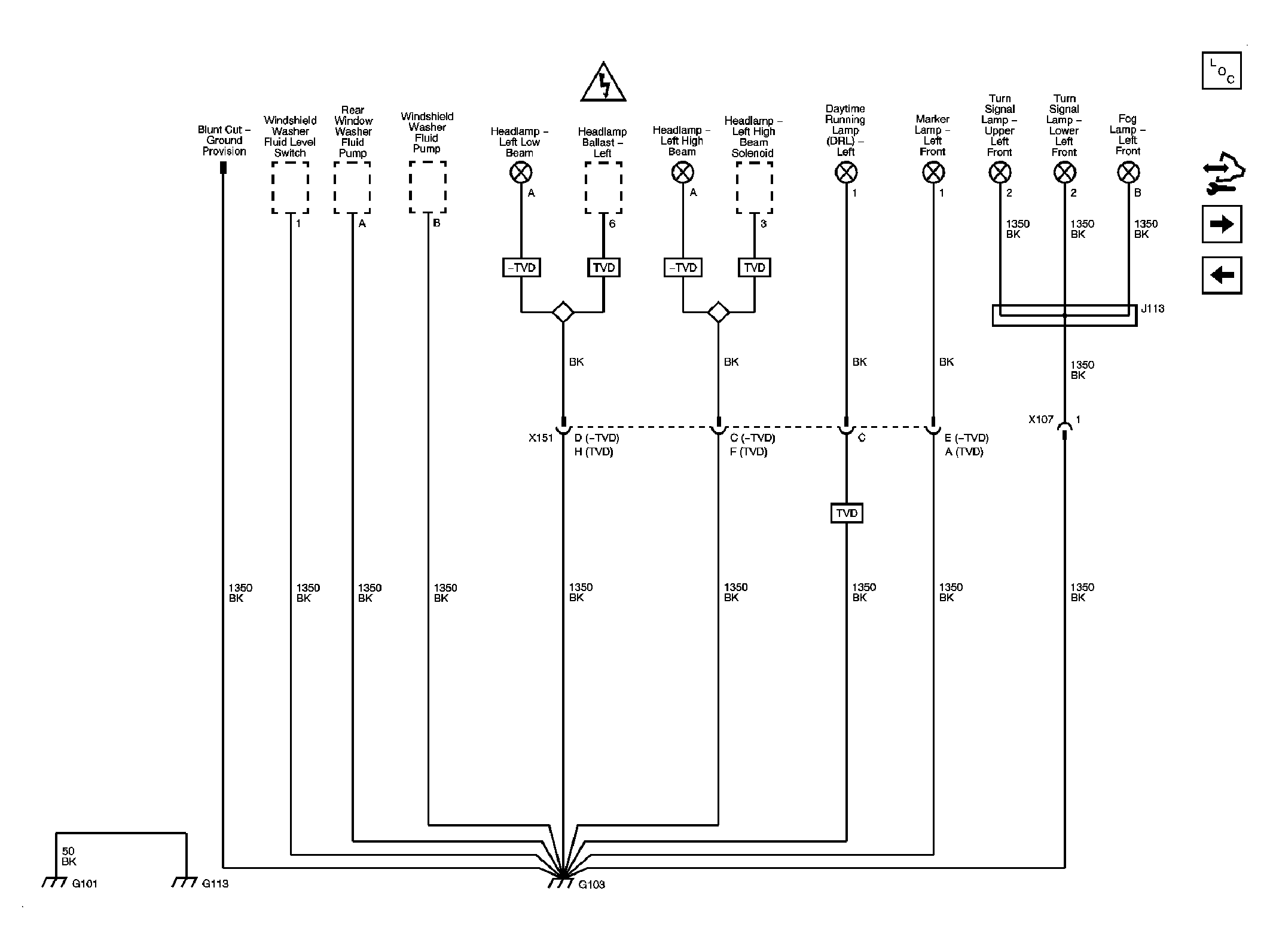

Fig 2: G101, G103, and G113 Circuit Schematic (WDA)

GM2077752

Courtesy of GENERAL MOTORS CORP.

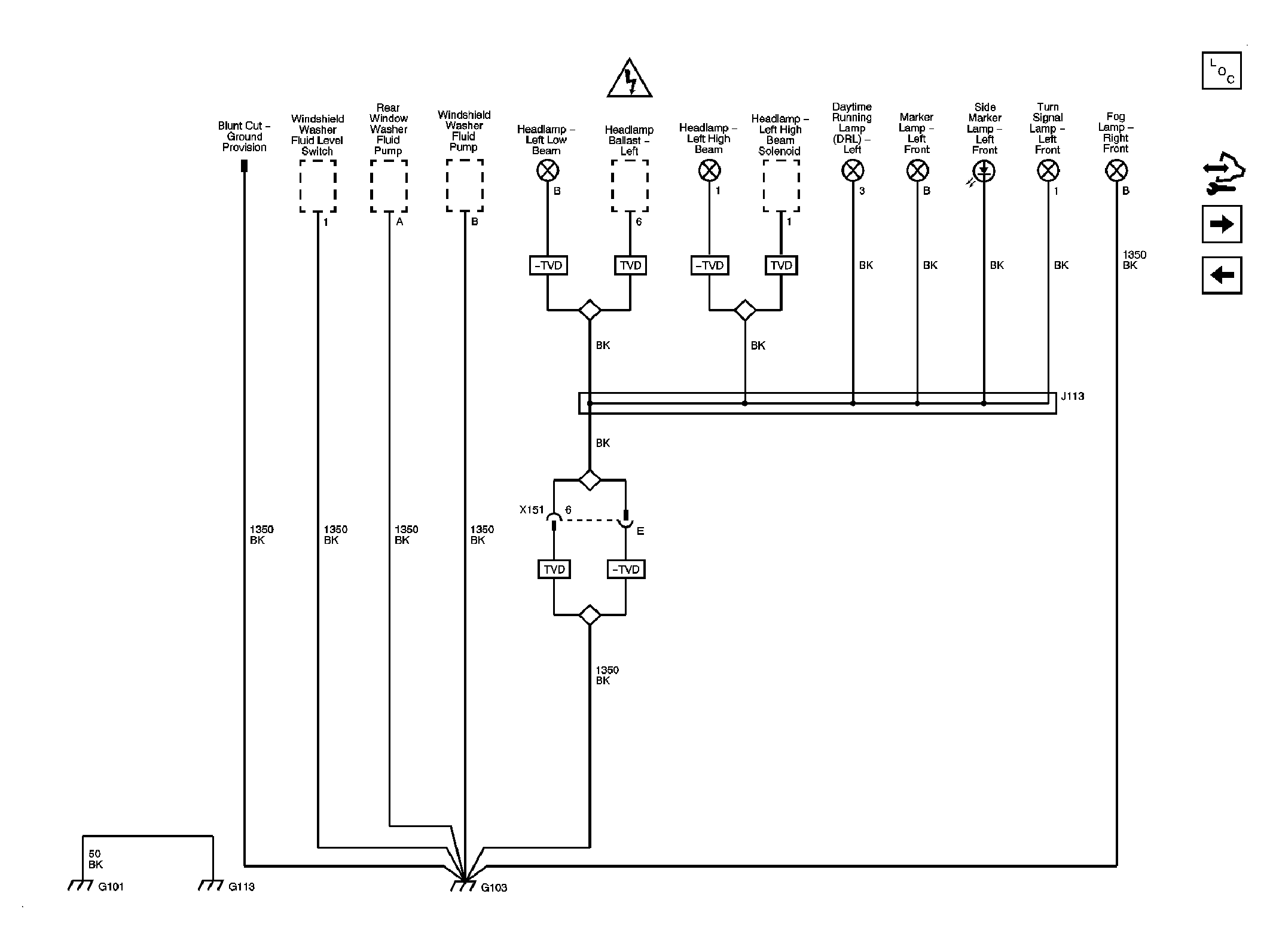

Fig 3: G101, G103, and G113 Circuit Schematic (Z88)

GM2077754

Courtesy of GENERAL MOTORS CORP.

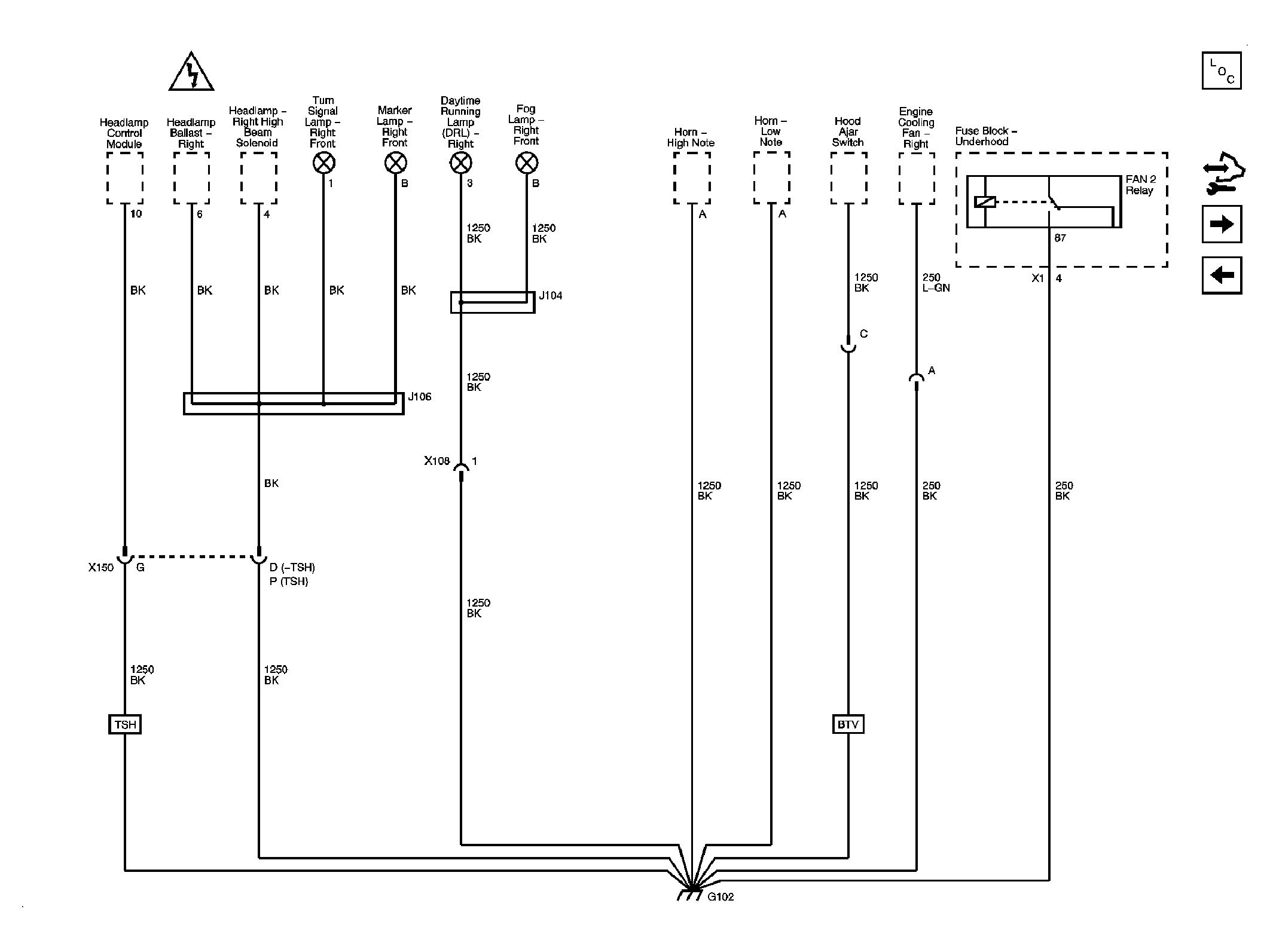

Fig 4: G102 Circuit Schematic (W49)

GM2077759

Courtesy of GENERAL MOTORS CORP.

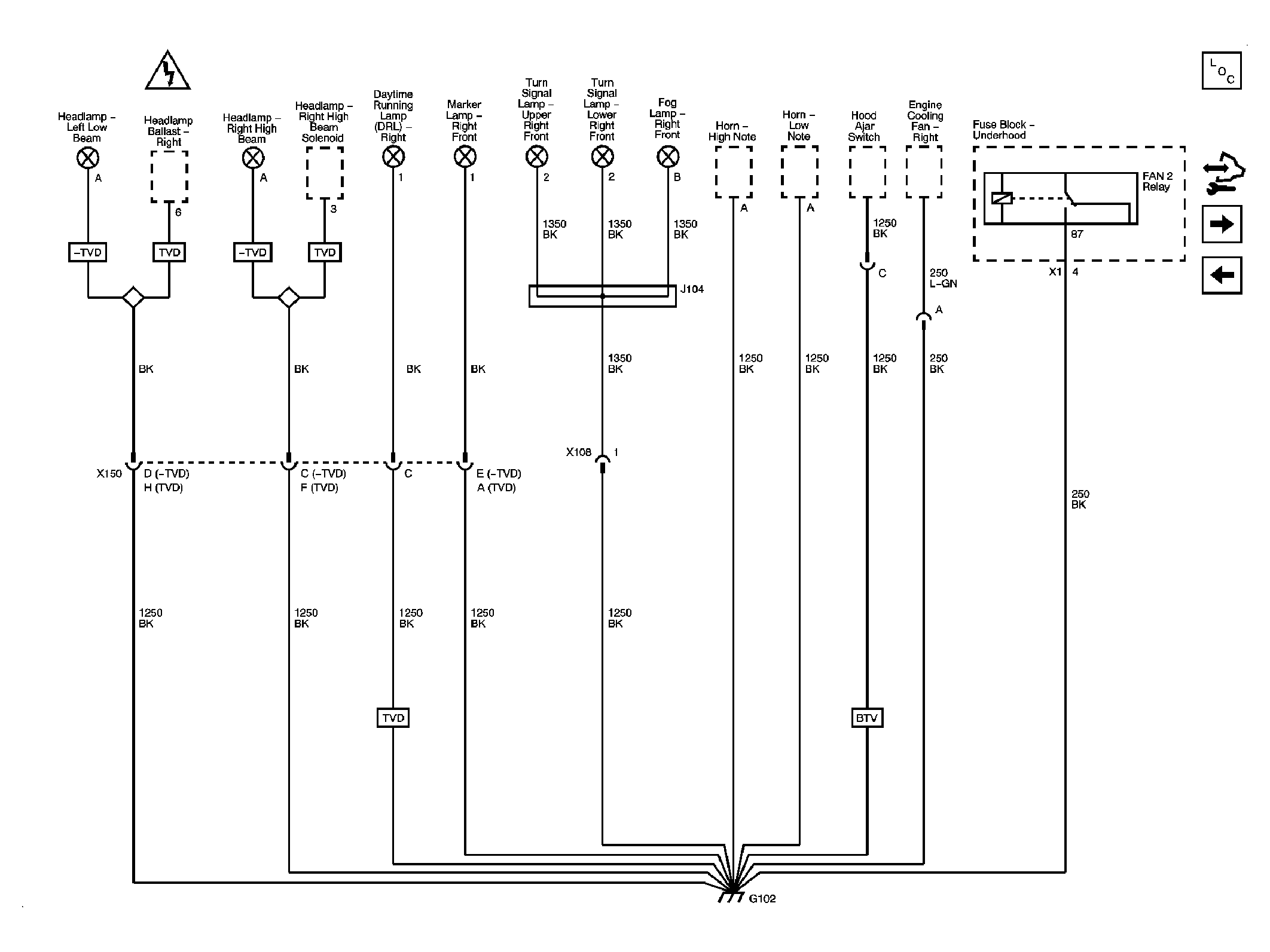

Fig 5: G102 Circuit Schematic (WDA)

GM2077761

Courtesy of GENERAL MOTORS CORP.

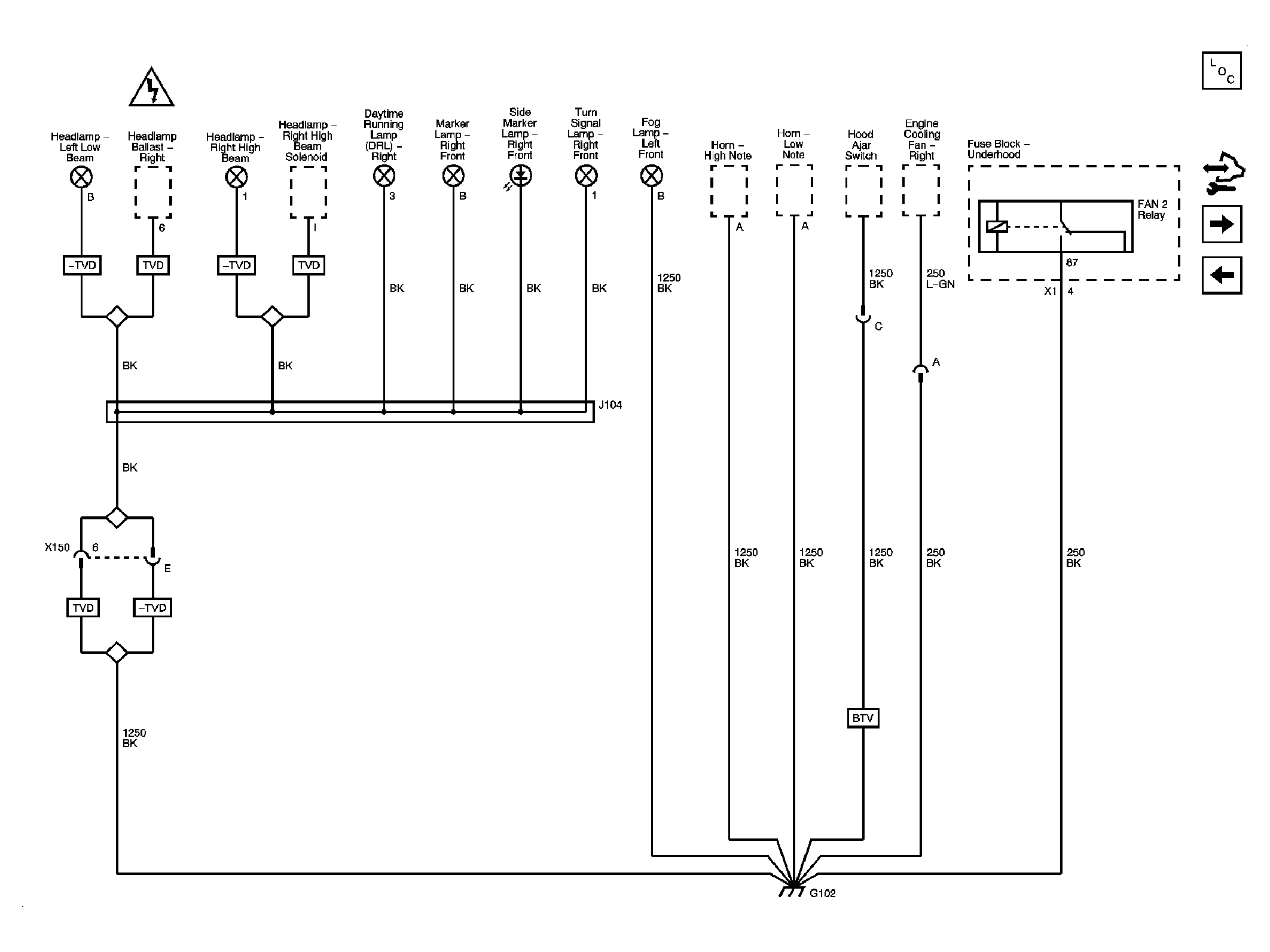

Fig 6: G102 Circuit Schematic (Z88)

GM2077763

Courtesy of GENERAL MOTORS CORP.

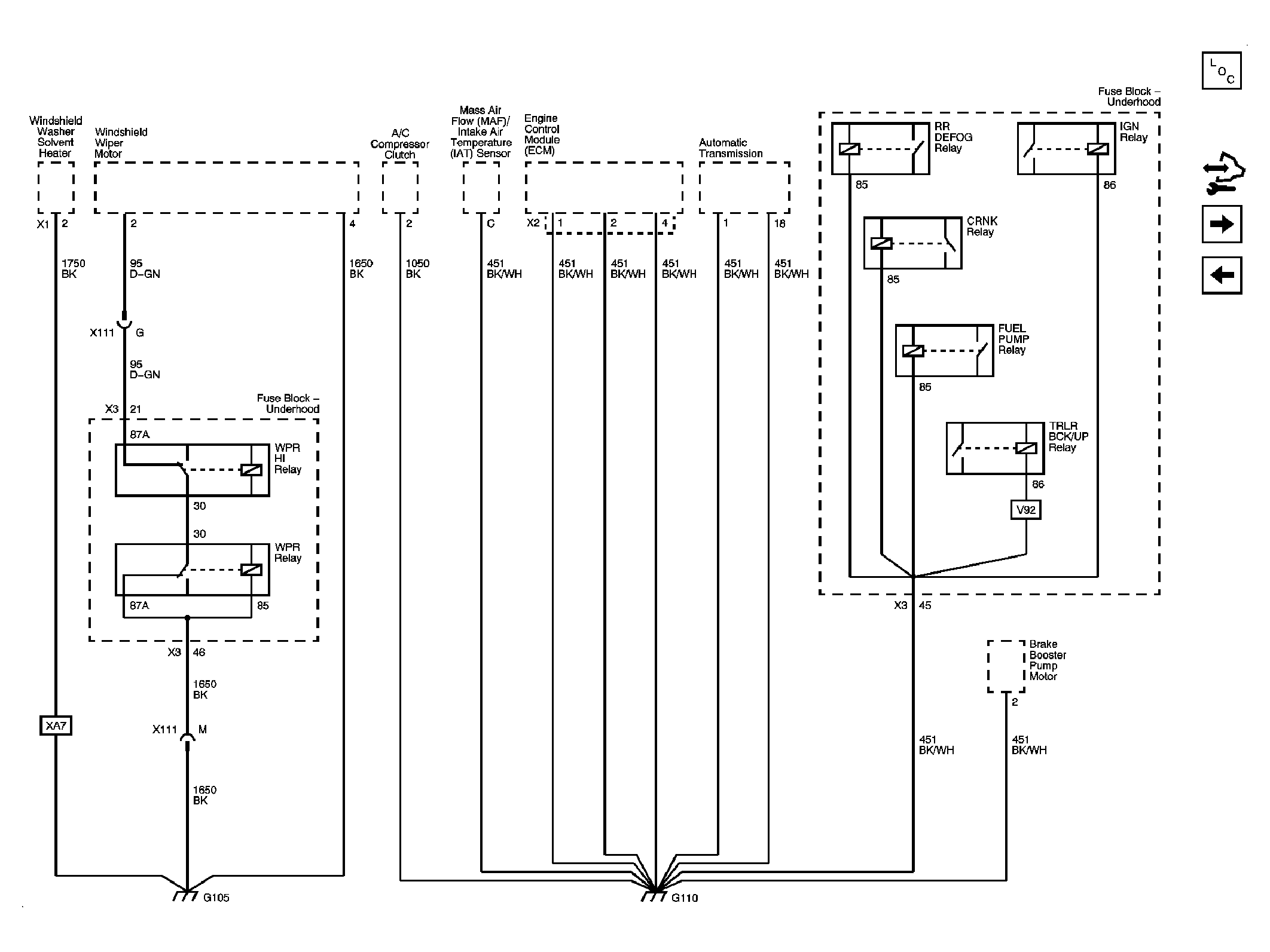

Fig 7: G105 and G110 Circuit Schematic

GM2077767

Courtesy of GENERAL MOTORS CORP.

Fig 8: G112, G114, and G115 Circuit Schematic

GM2077769

Courtesy of GENERAL MOTORS CORP.

Fig 9: G300 Circuit Schematic

GM2077774

Courtesy of GENERAL MOTORS CORP.

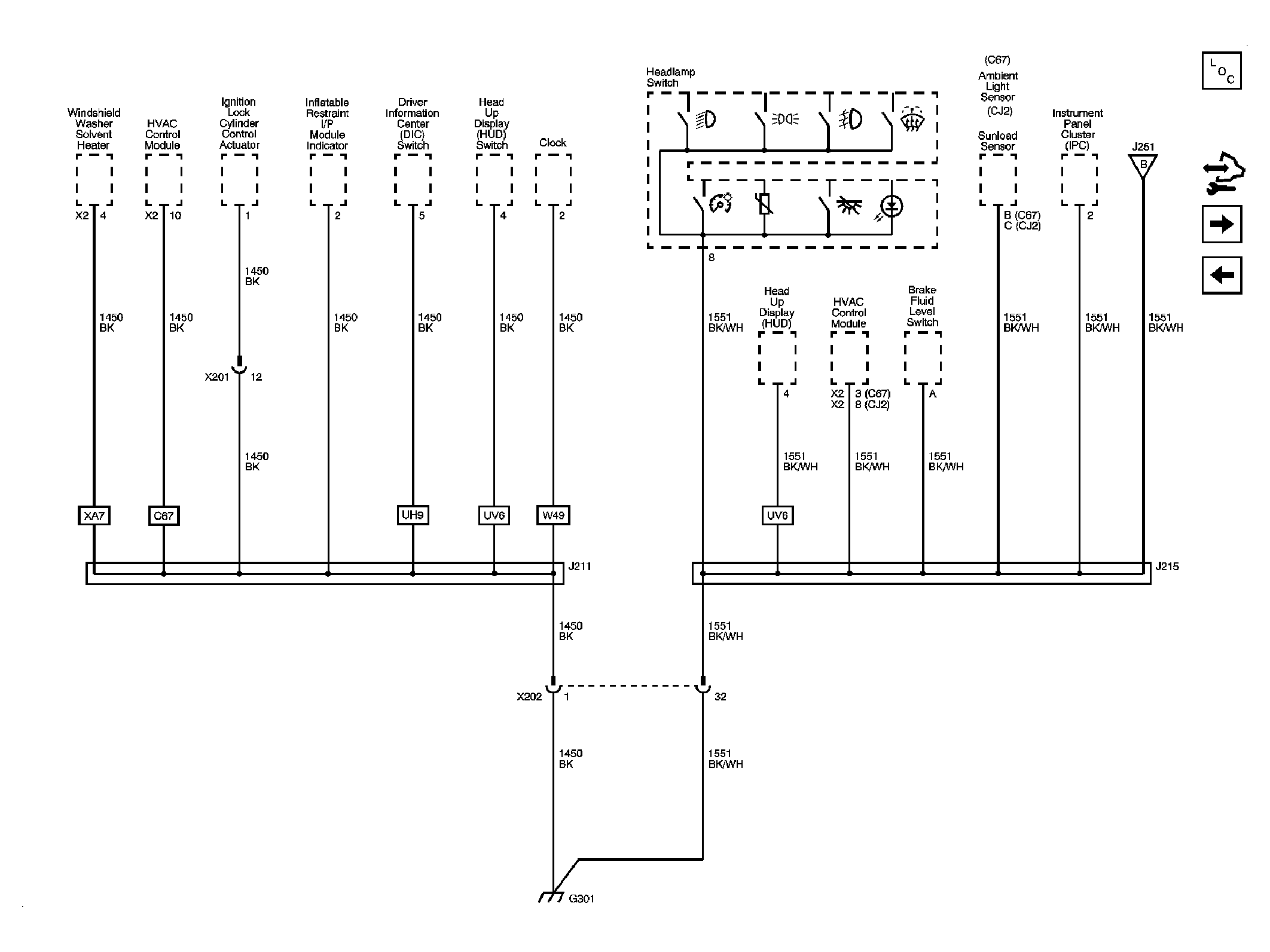

Fig 10: G301 Circuit Schematic 1 of 2

GM2077778

Courtesy of GENERAL MOTORS CORP.

Fig 11: G301 Circuit Schematic 2 of 2

GM2077780

Courtesy of GENERAL MOTORS CORP.

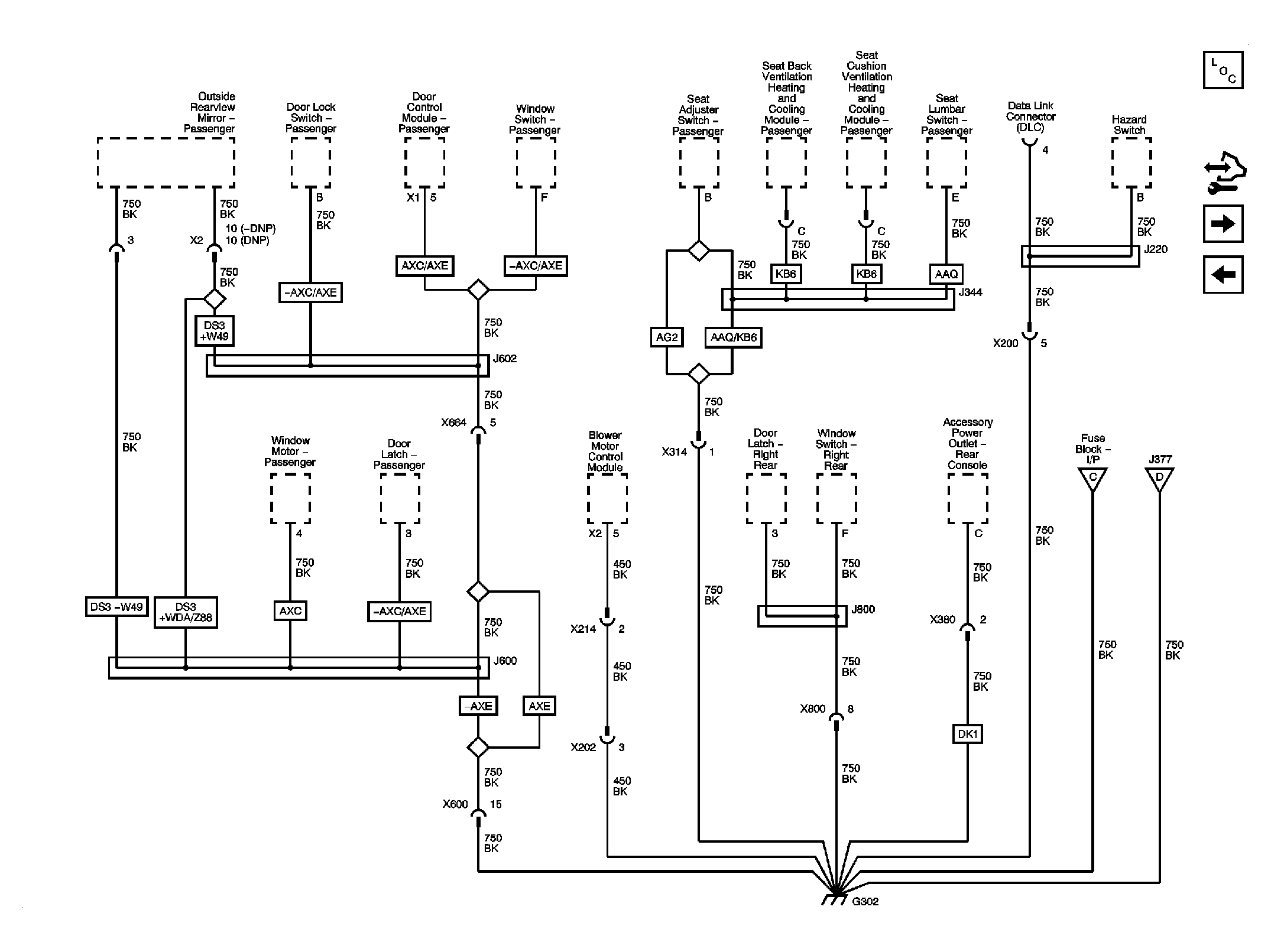

Fig 12: G302 Circuit Schematic 1 of 3

GM2077782

Courtesy of GENERAL MOTORS CORP.

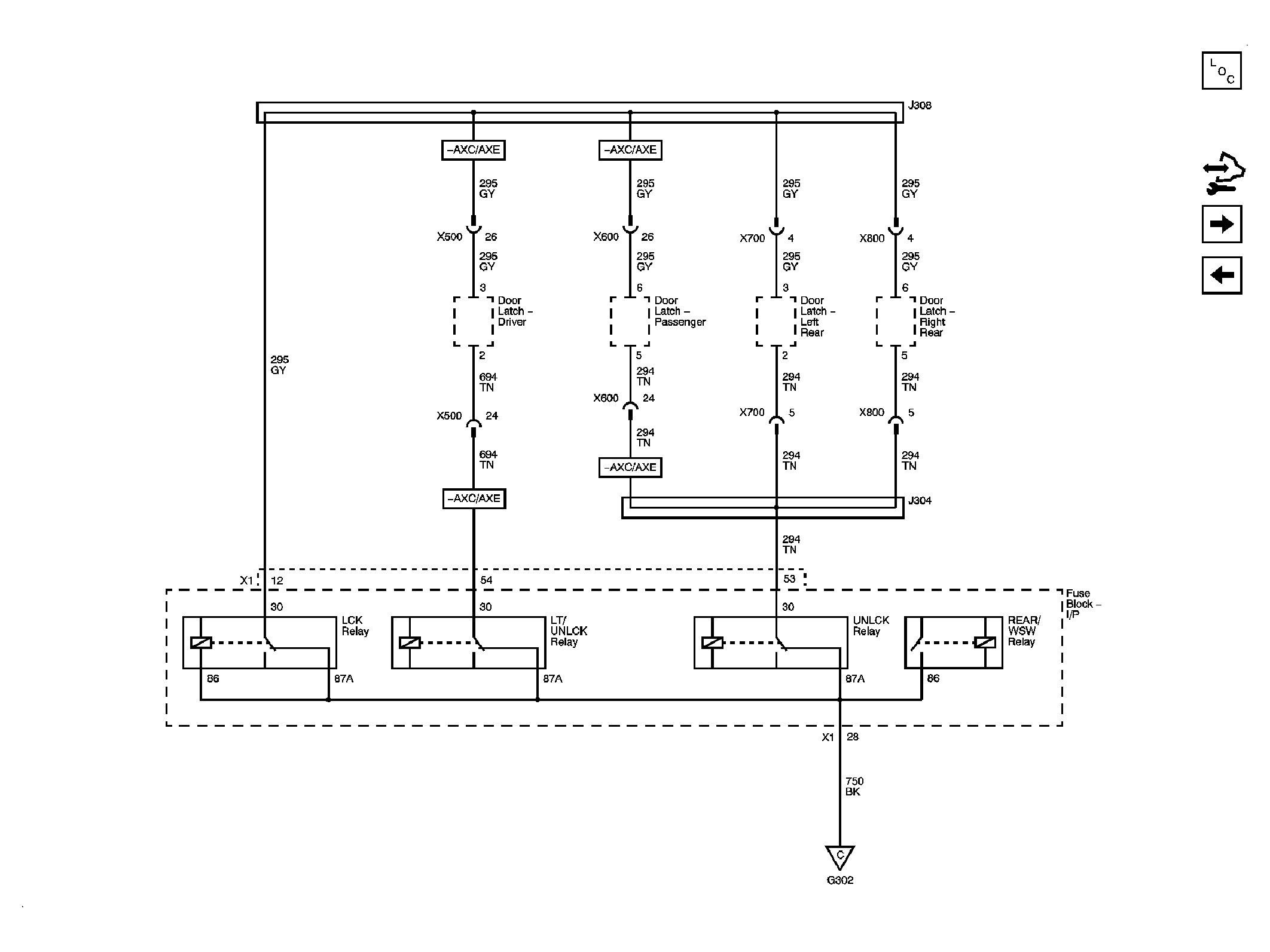

Fig 13: G302 Circuit Schematic 2 of 3

GM2077794

Courtesy of GENERAL MOTORS CORP.

Fig 14: G302 Circuit Schematic 3 of 3

GM2077797

Courtesy of GENERAL MOTORS CORP.

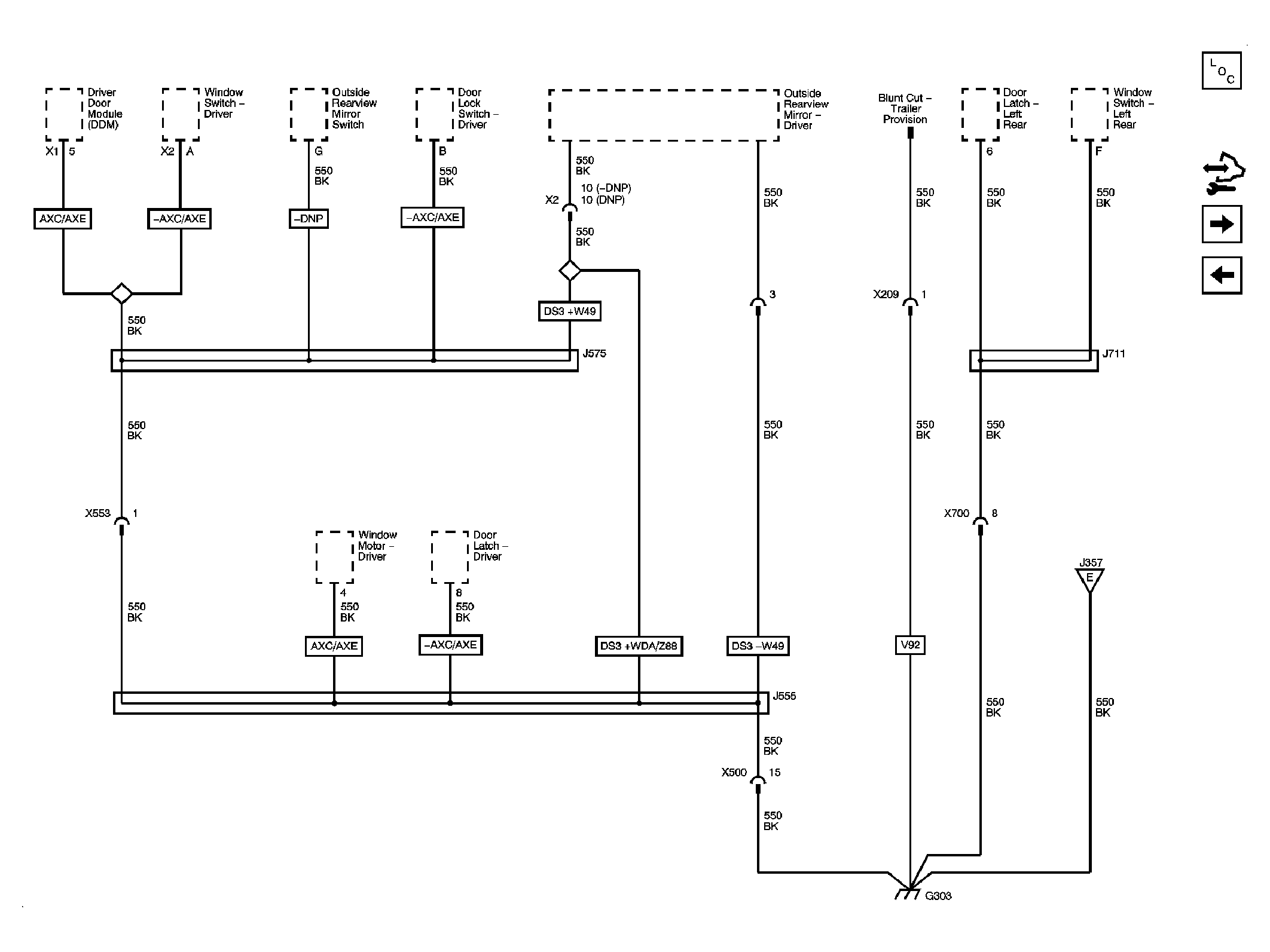

Fig 15: G303 Circuit Schematic 1 of 2

GM2077801

Courtesy of GENERAL MOTORS CORP.

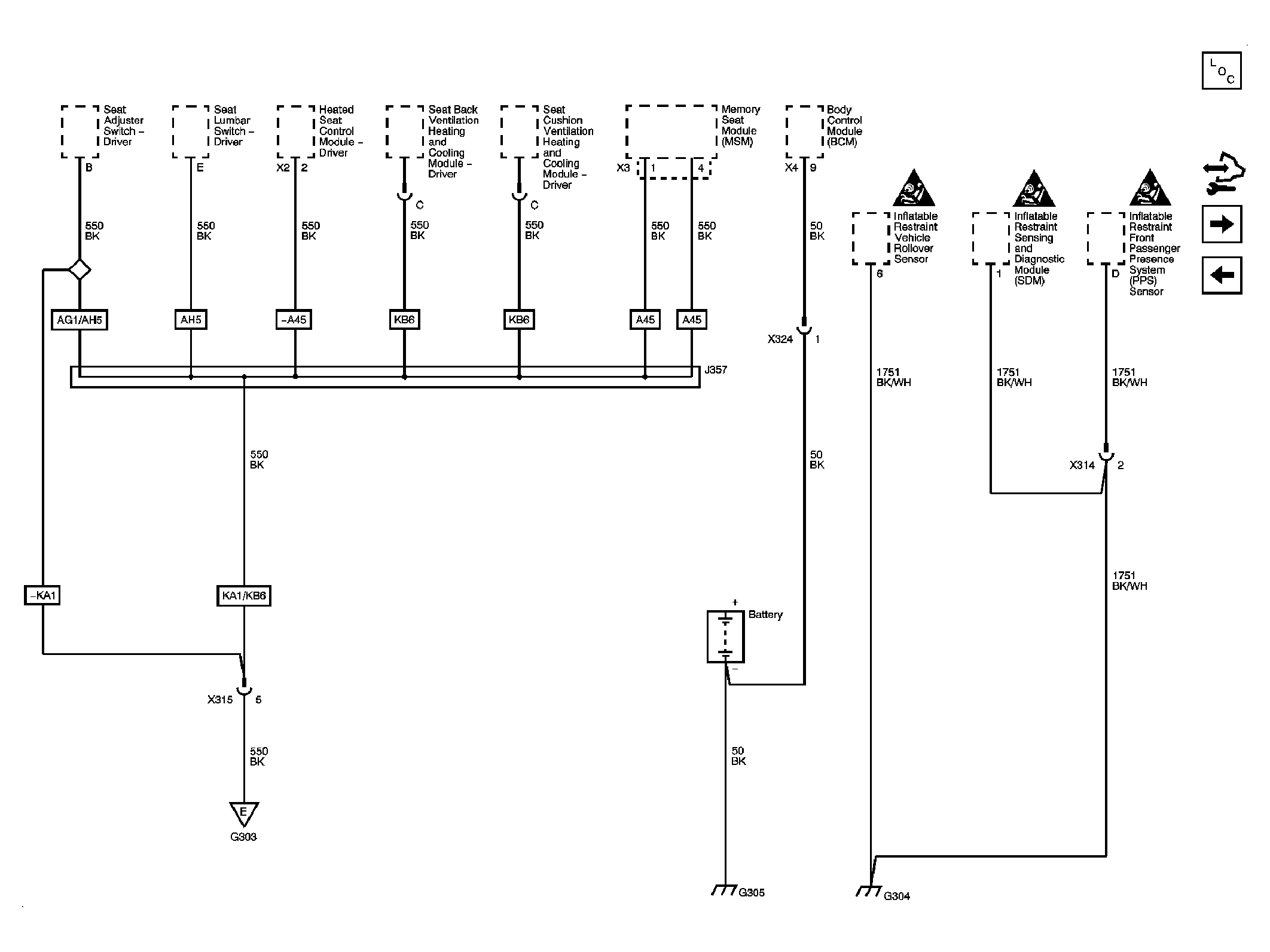

Fig 16: G303 2 of 2, G304, and G305 Circuit Schematic

GM2077807

Courtesy of GENERAL MOTORS CORP.

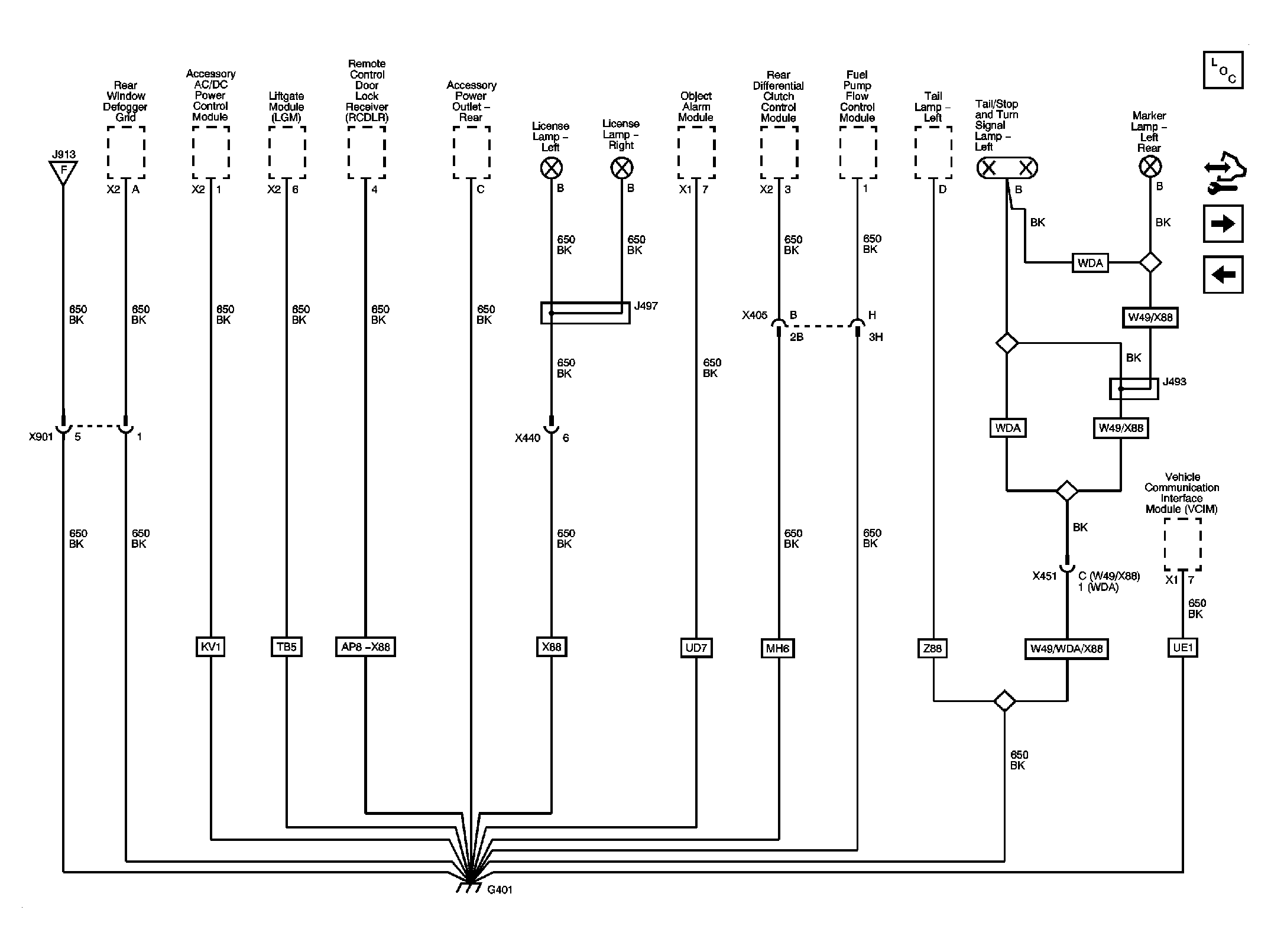

Fig 17: G401 1 of 2 Circuit Schematic

GM2077811

Courtesy of GENERAL MOTORS CORP.

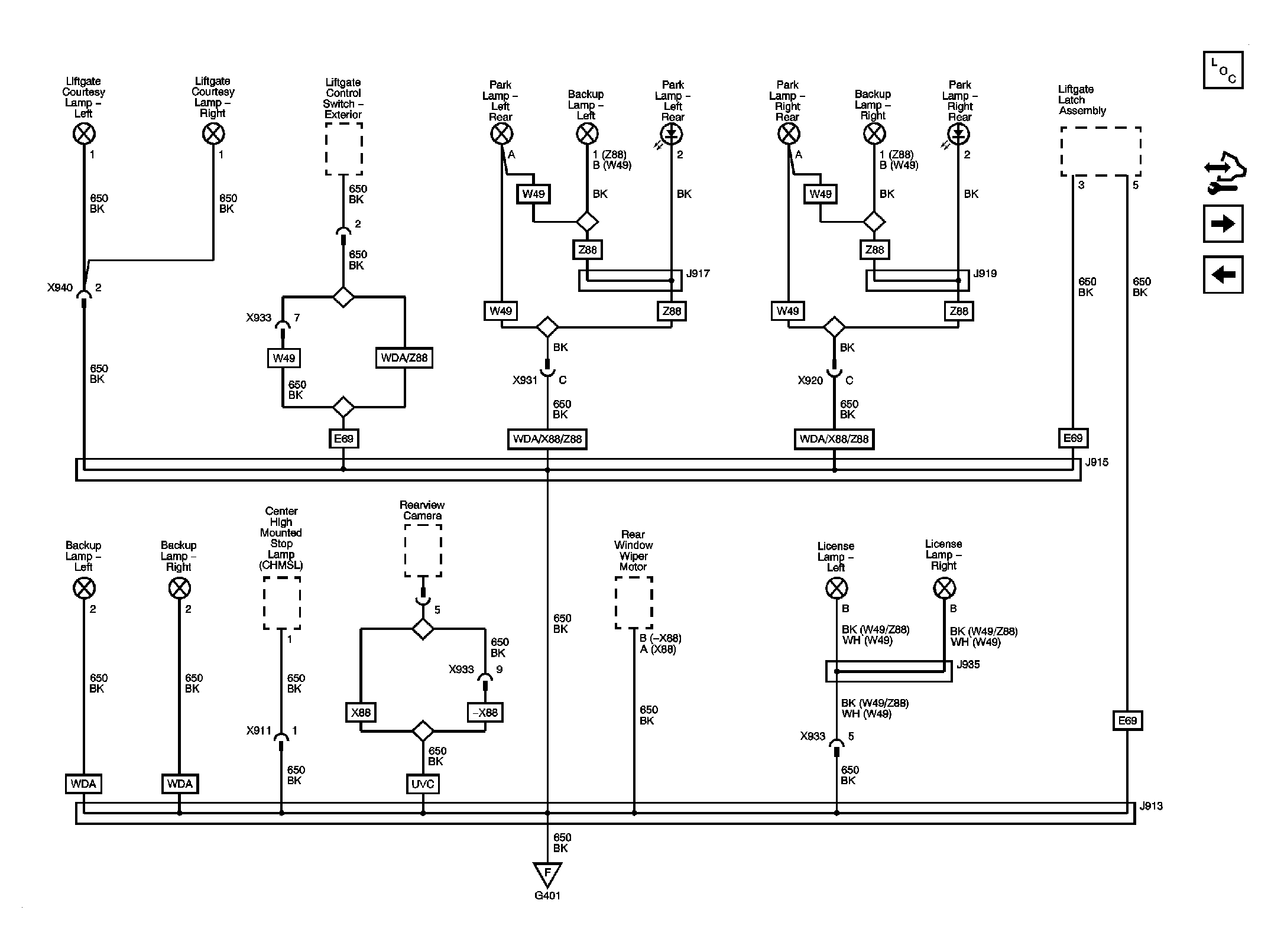

Fig 18: G401 2 of 2 Circuit Schematic

GM2077815

Courtesy of GENERAL MOTORS CORP.

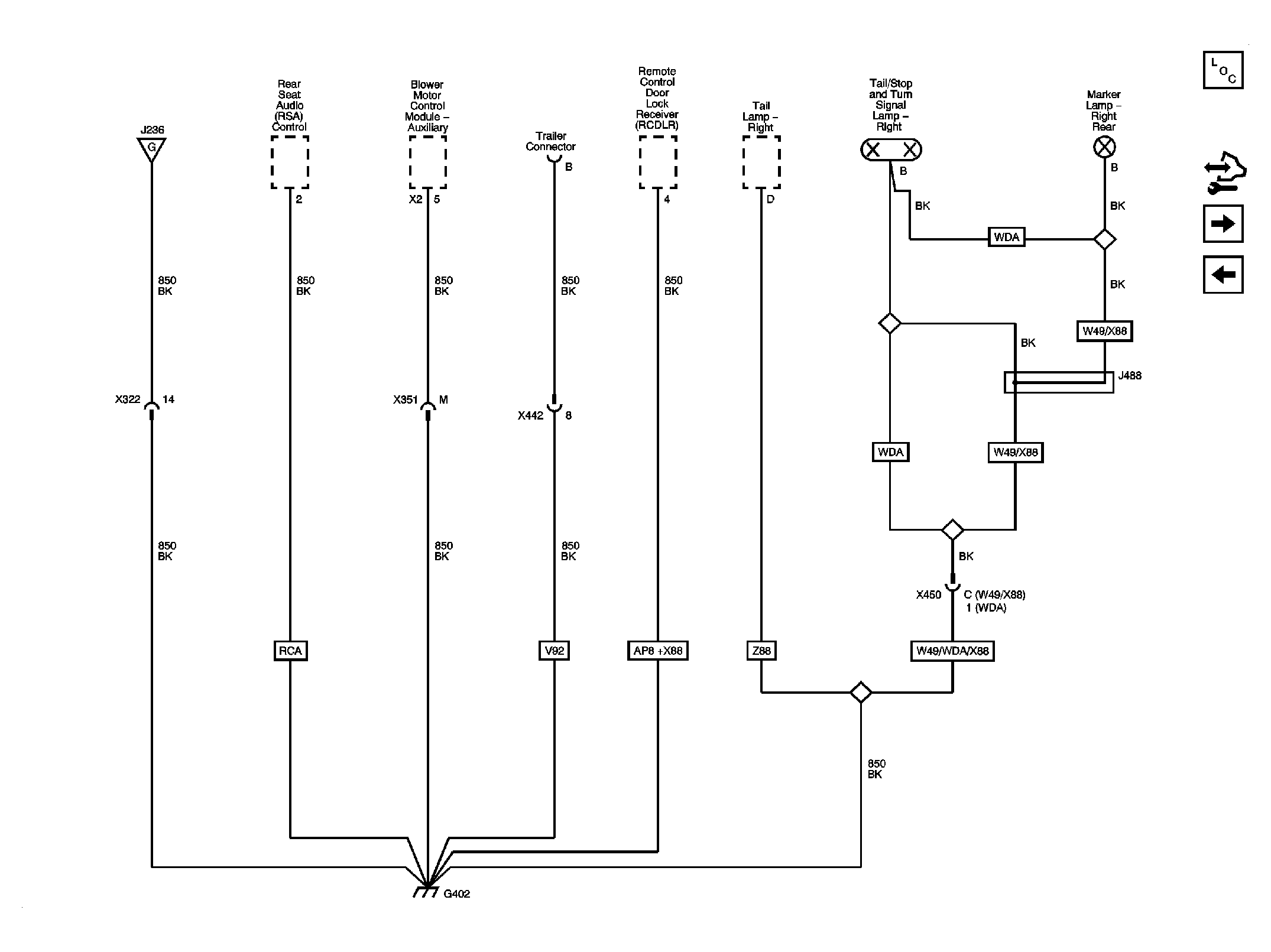

Fig 19: G402 1 of 2 Circuit Schematic

GM2077818

Courtesy of GENERAL MOTORS CORP.

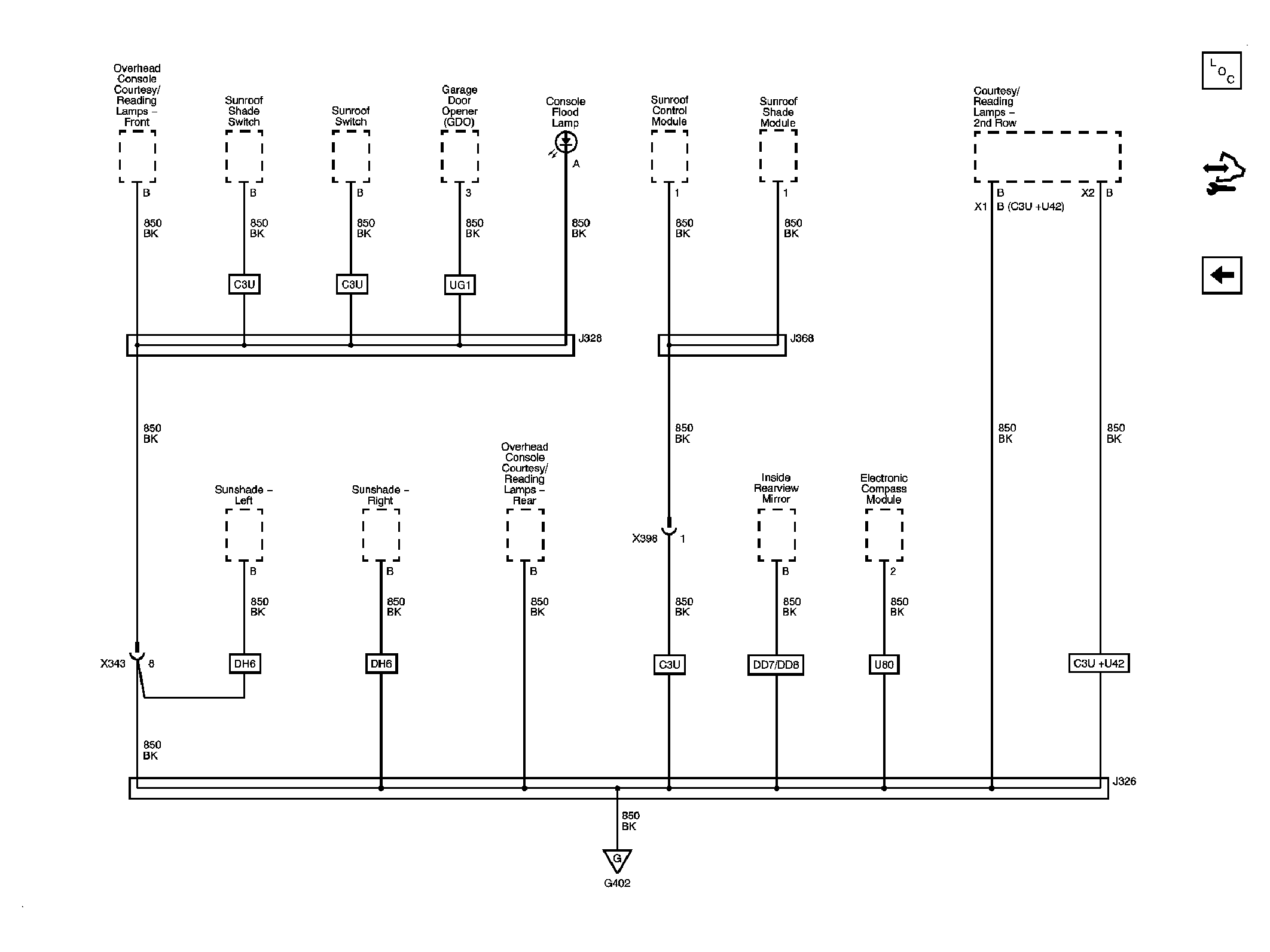

Fig 20: G402 2 of 2 Circuit Schematic

GM2077824

Courtesy of GENERAL MOTORS CORP.
