Immobilizer Schematics

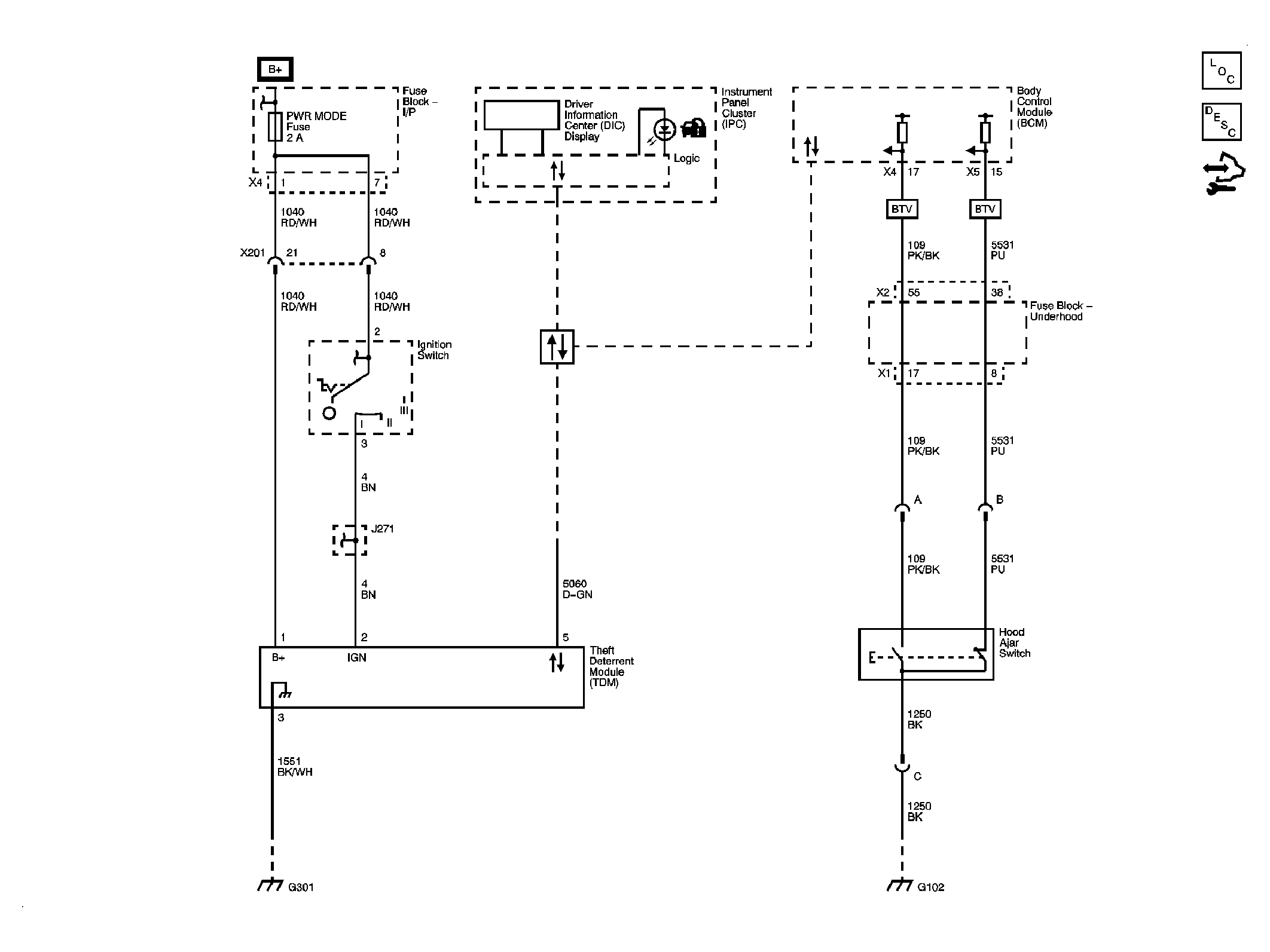

Fig 1: Immobilizer Circuit Schematic

GM2078162

Courtesy of GENERAL MOTORS CORP.
