Door Control Module Schematics

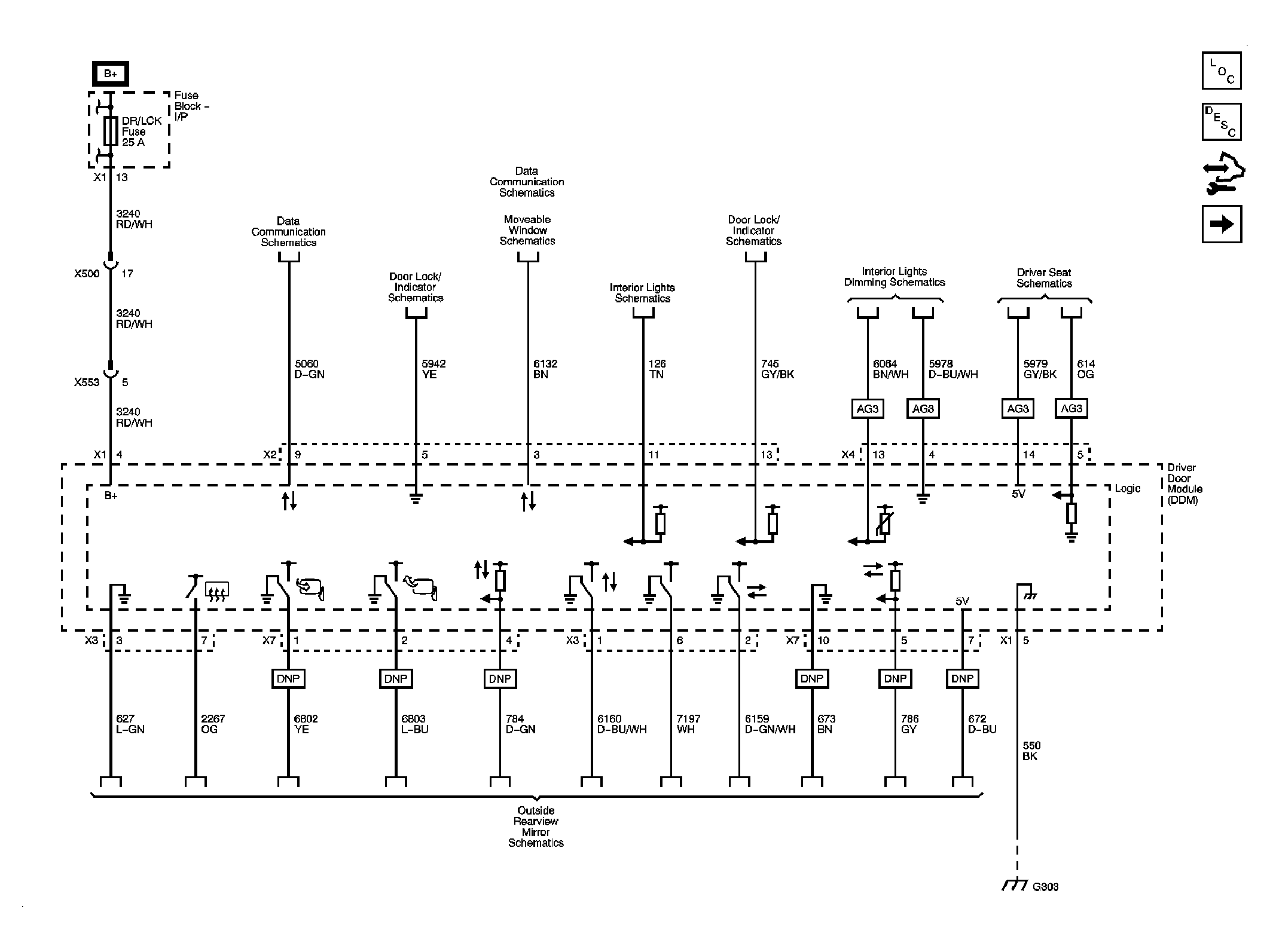

Fig 1: DDM Power, Ground & all except KA1 or KB6 References Circuit Schematic
GM2078093Courtesy of GENERAL MOTORS CORP.

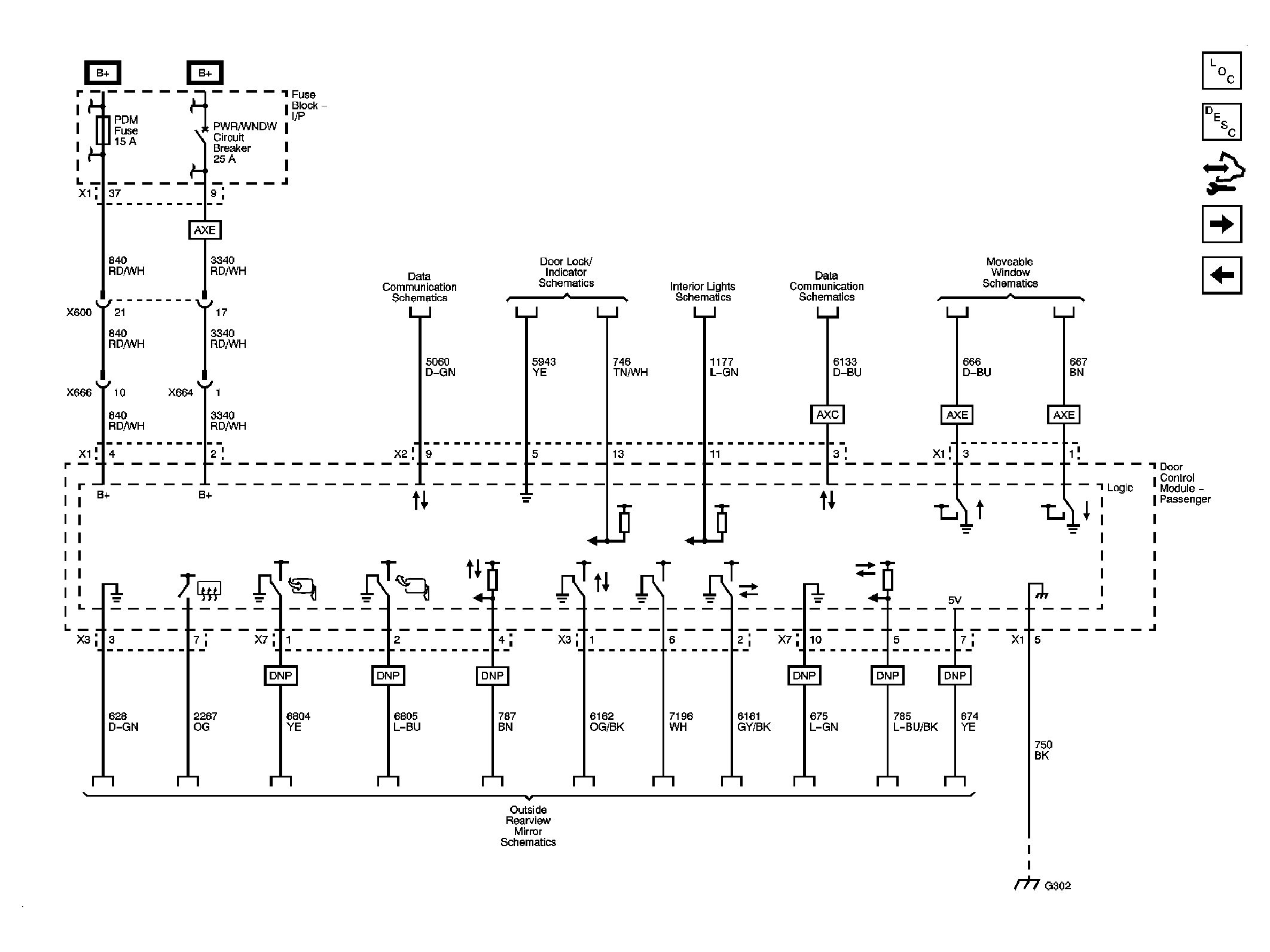

Fig 2: PDM Power, Ground & all except KA1 or KB6 References Circuit Schematic
GM2078096Courtesy of GENERAL MOTORS CORP.
Fig 3: KA1 and KB6 References Circuit Schematic
GM2078098Courtesy of GENERAL MOTORS CORP.
