Installation Procedure

WARNING: This page is about a different car, the 2008 Saab 9-7X. However, it is still accessible from the selected car via links, so may be relevant.

Install the actuator assembly.

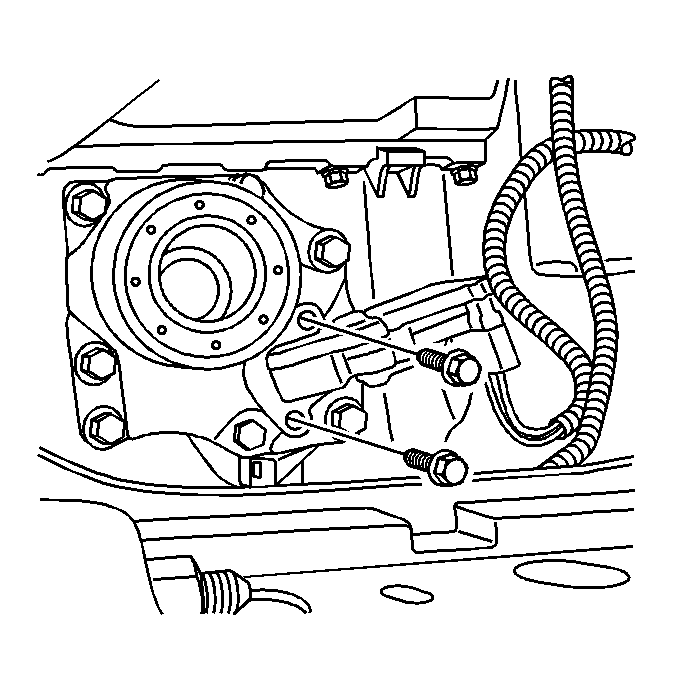

Fig 1: Actuator Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the actuator assembly bolts.
Tighten: Tighten the bolts to 6 N.m (53 lb in).
Connect the electrical connector to the actuator assembly.
Install the engine protection shield. Refer to Engine Protection Shield Replacement .
Lower the vehicle.
