Engine Controls Schematics (LAT)

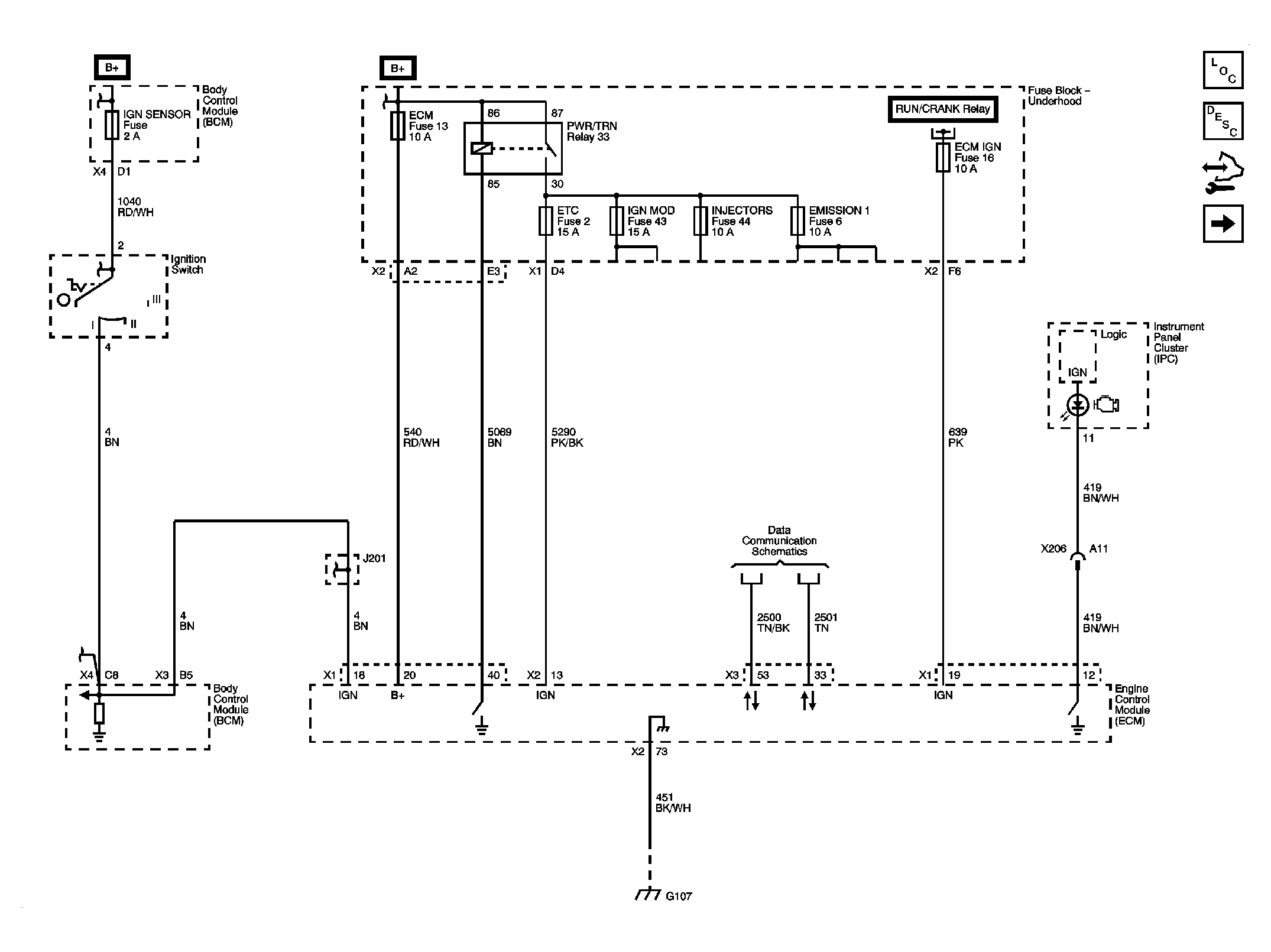

Fig 1: Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

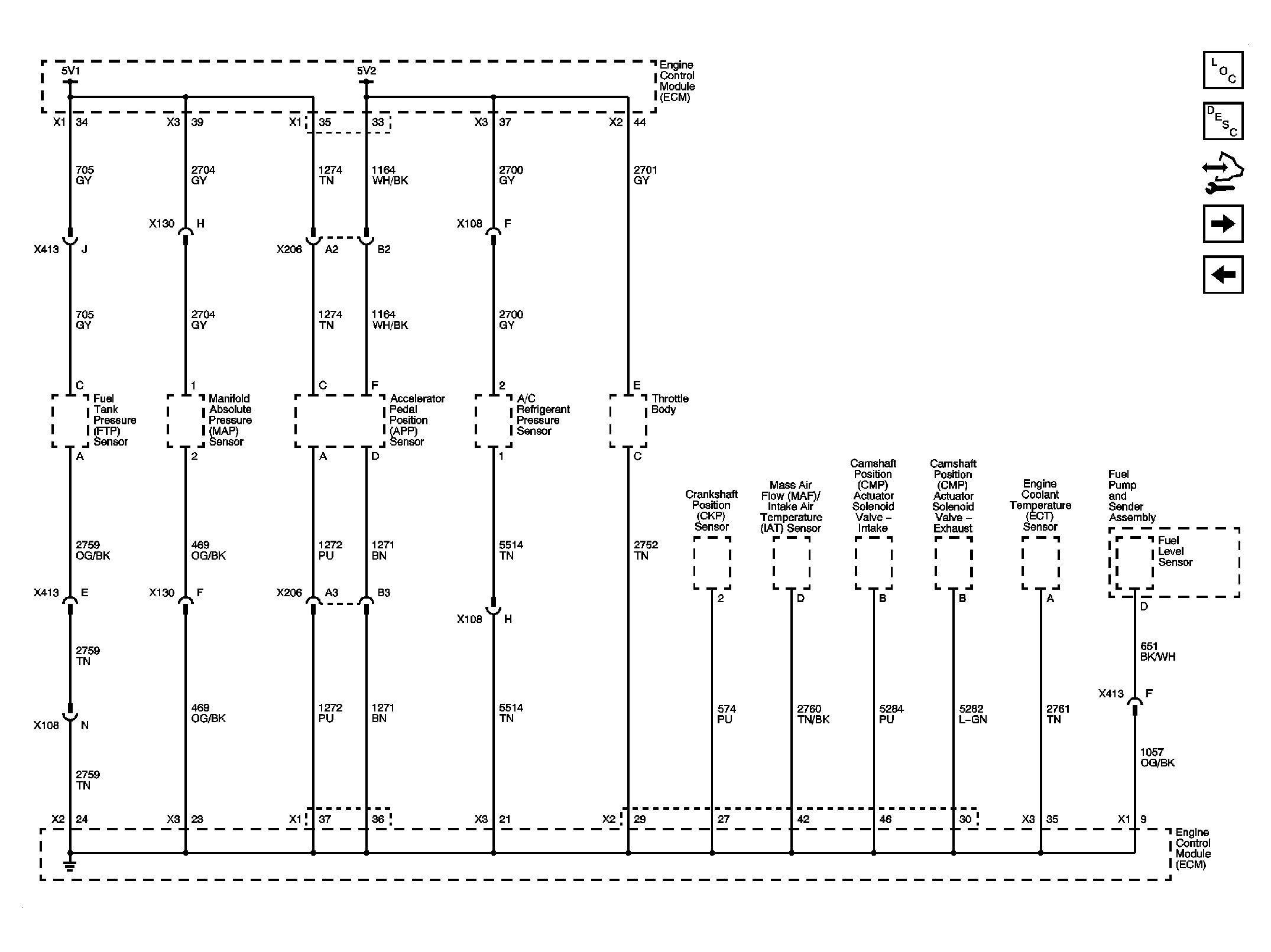

Fig 2: 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

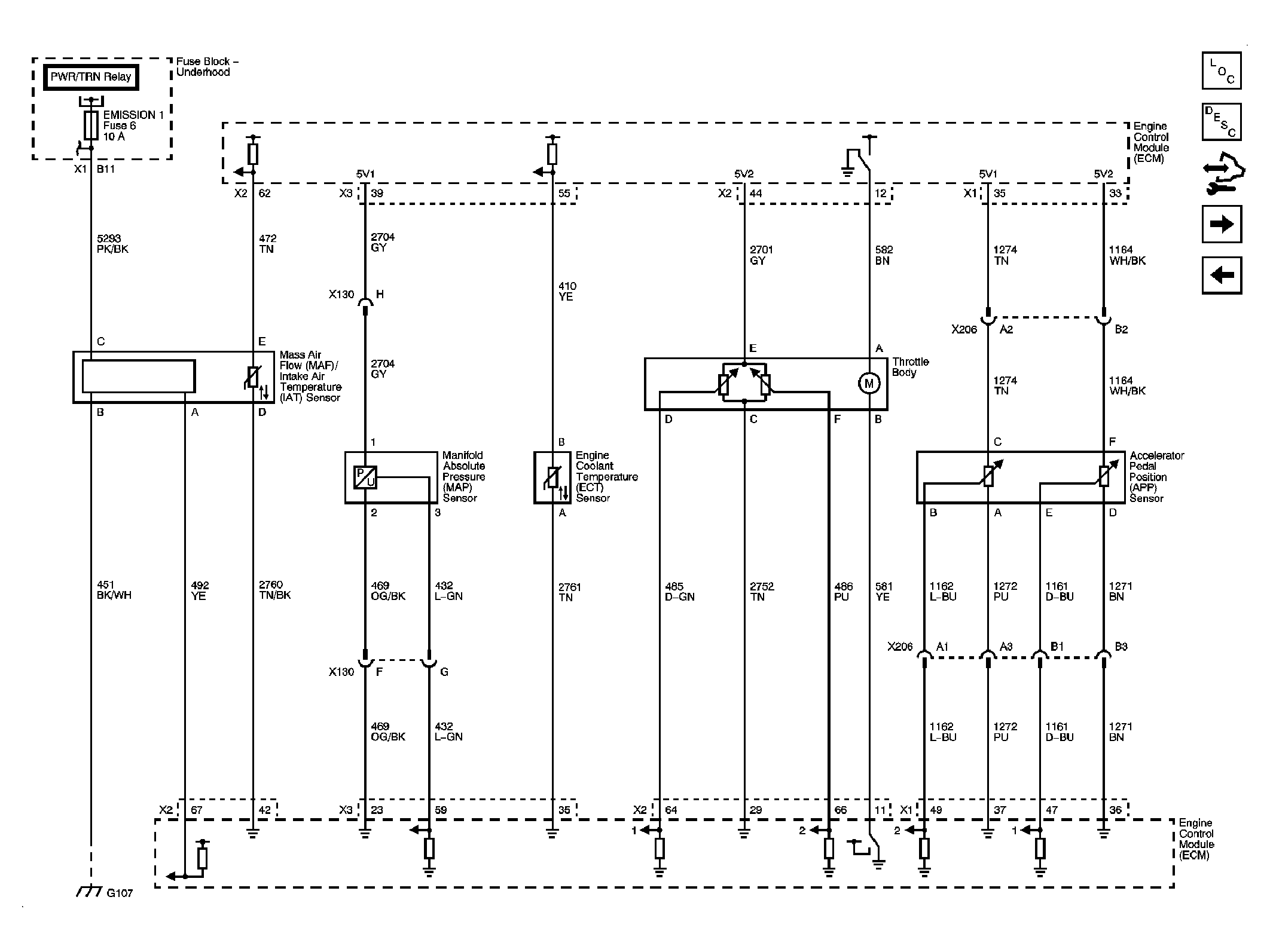

Fig 3: Engine Data Sensors - Pressure, Temperature, and Throttle Controls

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

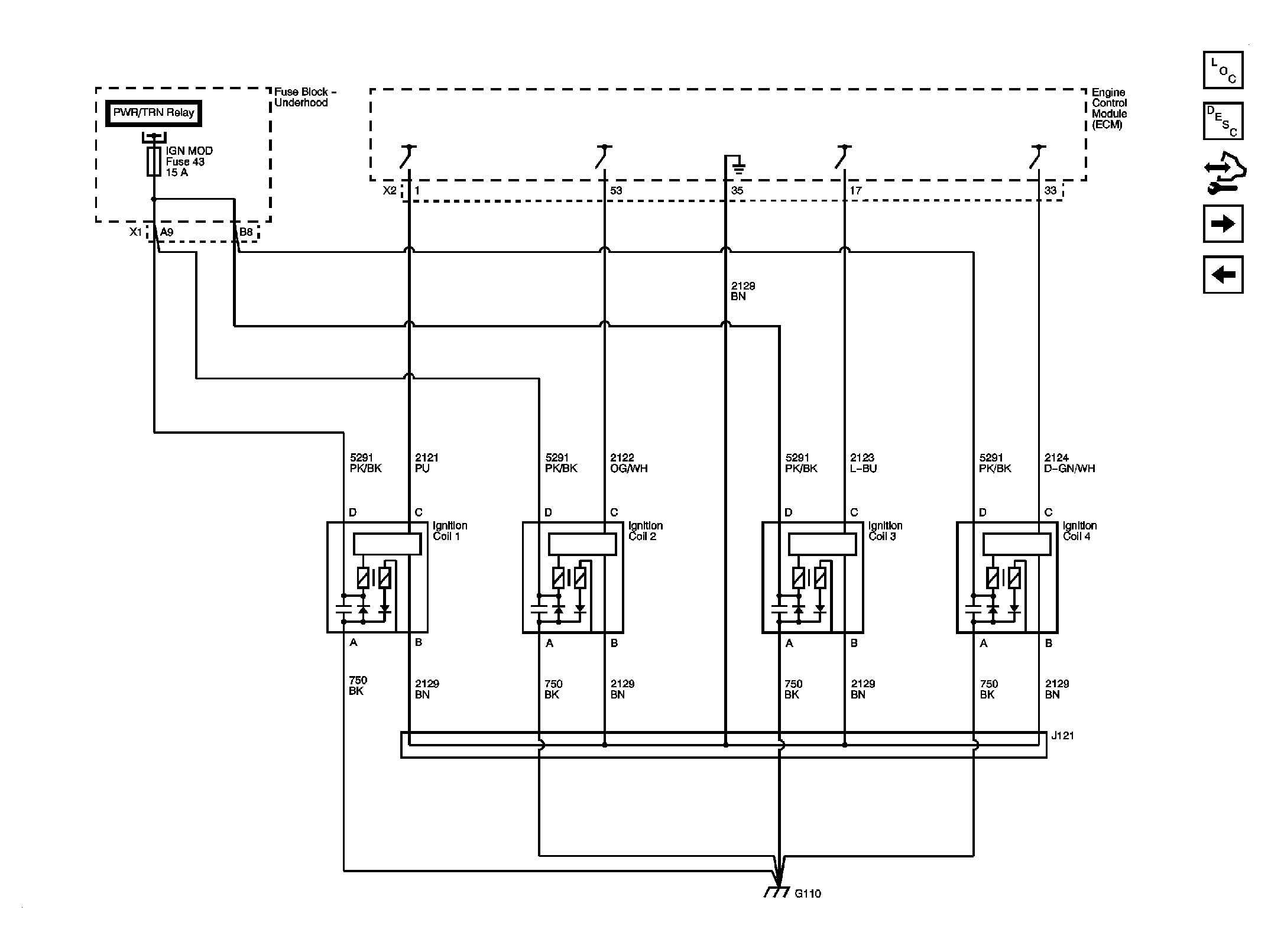

Fig 5: Ignition Controls - Ignition System

Courtesy of GENERAL MOTORS CORP.

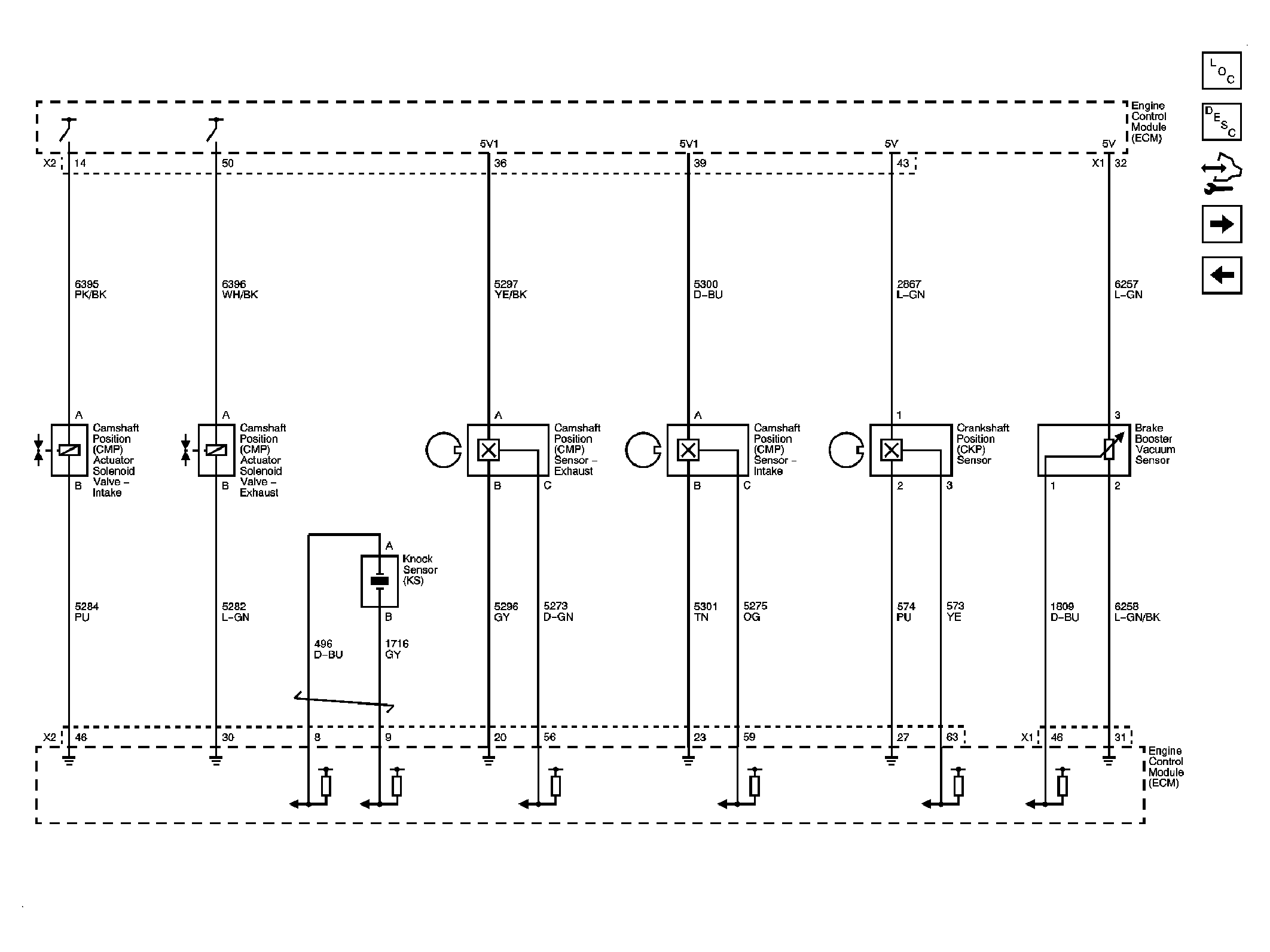

Fig 6: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

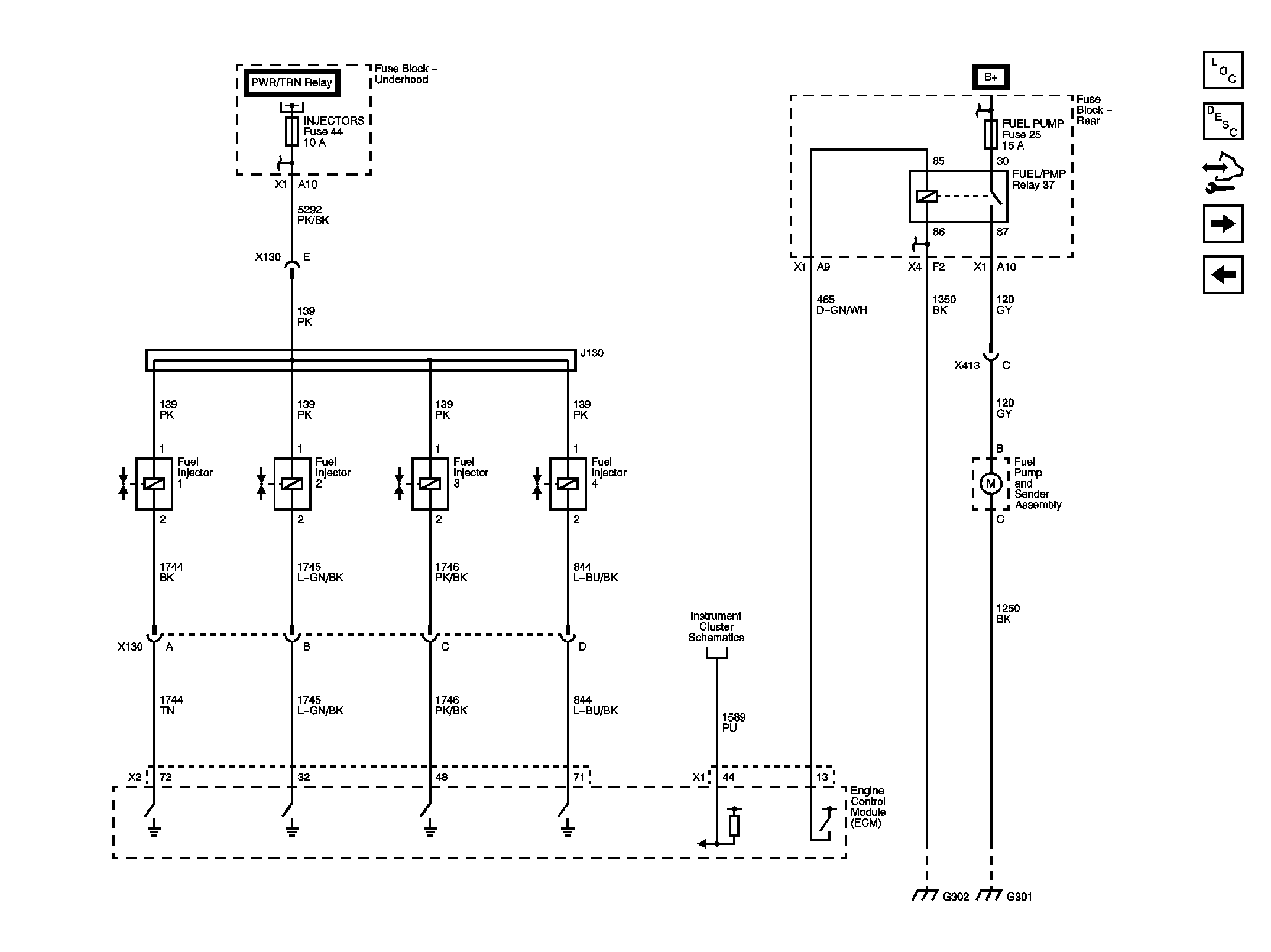

Fig 7: Fuel Controls - Fuel Injectors and Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

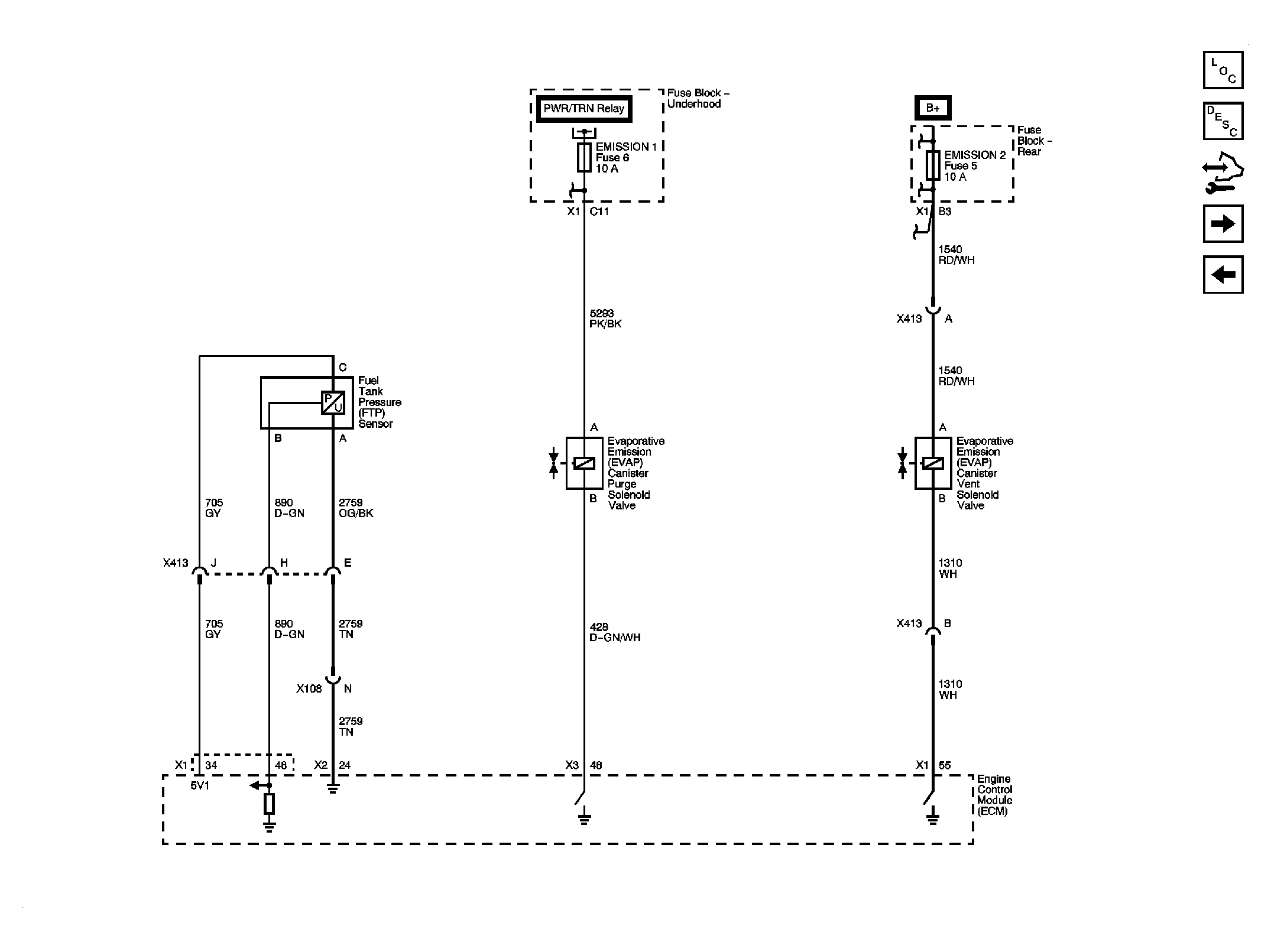

Fig 8: Fuel Controls - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

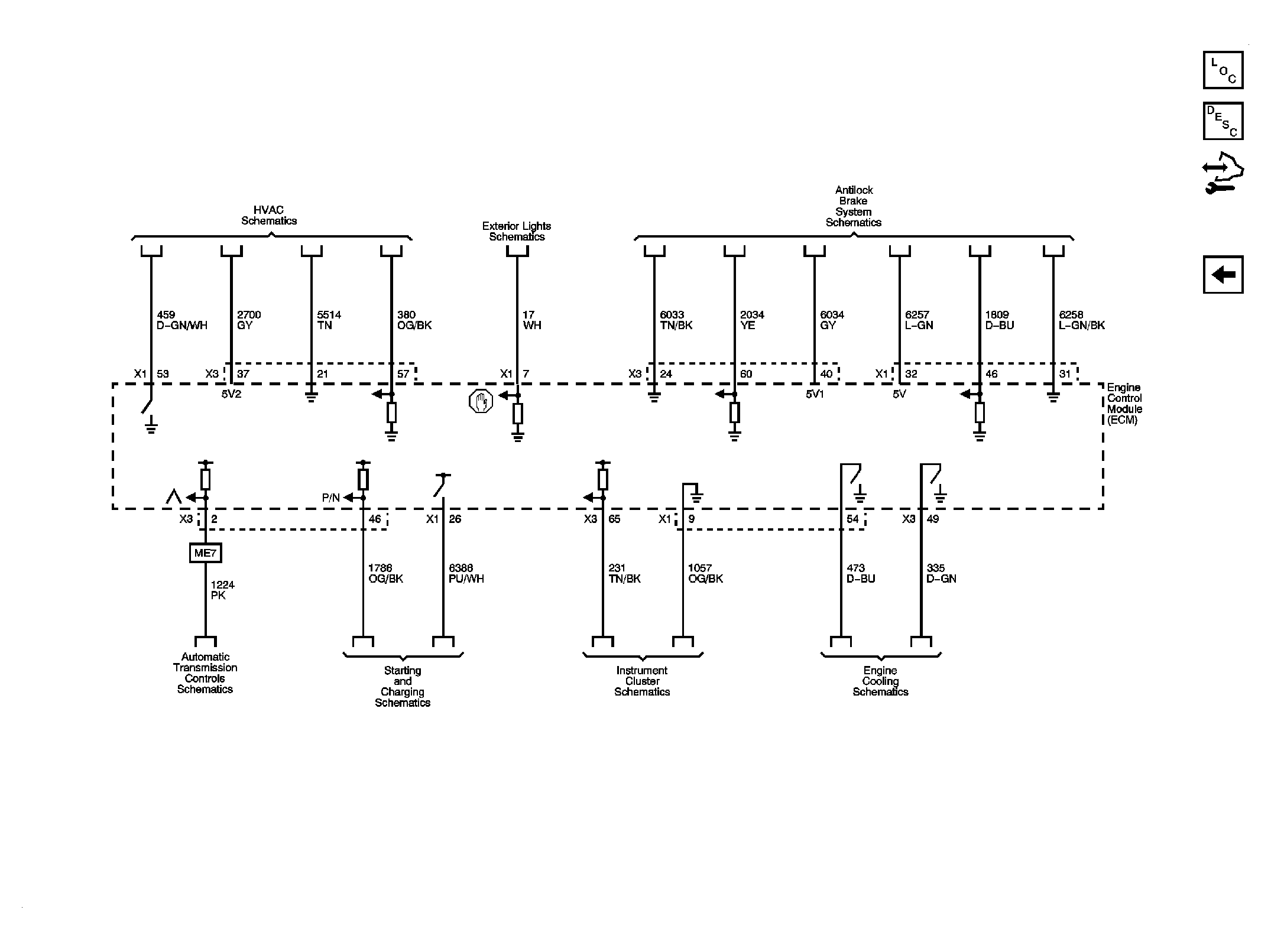

Fig 9: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
