Antilock Brake System Schematics

Fig 1: Power, Ground, and Brake Pressure Modulator Valve Schematic
GM2080335Courtesy of GENERAL MOTORS CORP.

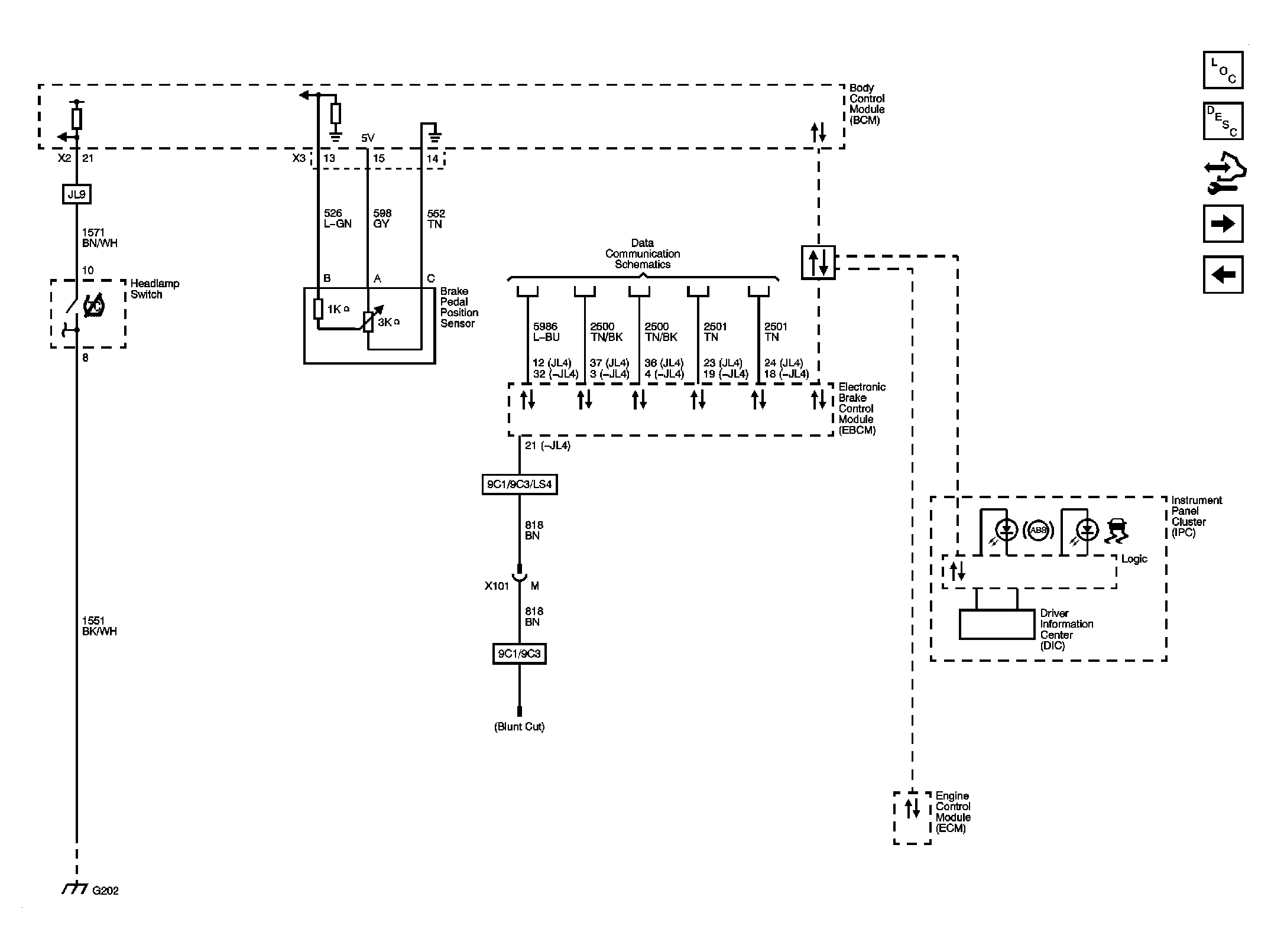

Fig 2: Indicators, ABS, and Traction Control Schematic
GM2080344Courtesy of GENERAL MOTORS CORP.

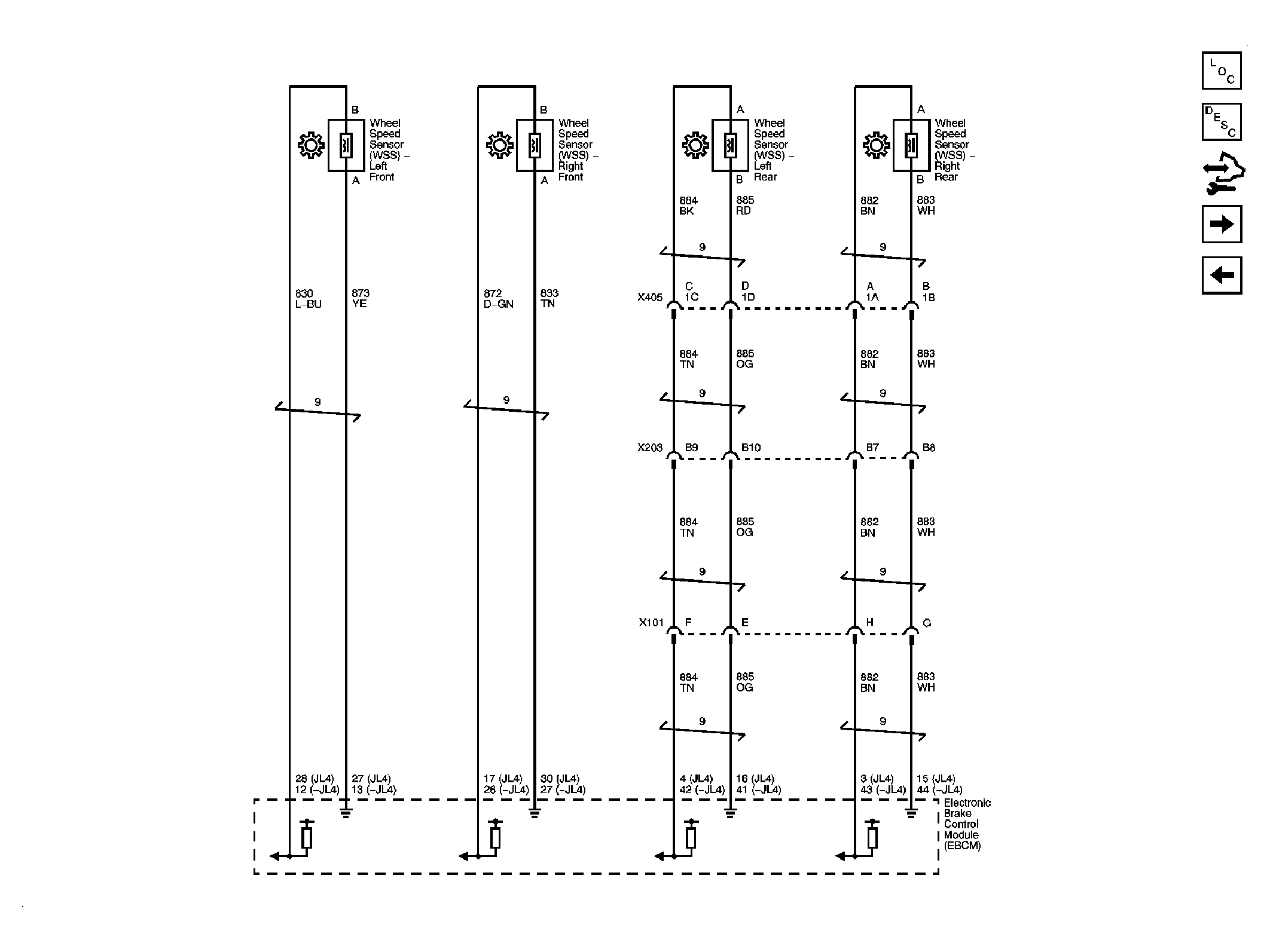

Fig 3: Wheel Speed Sensor Schematic
GM2080353Courtesy of GENERAL MOTORS CORP.

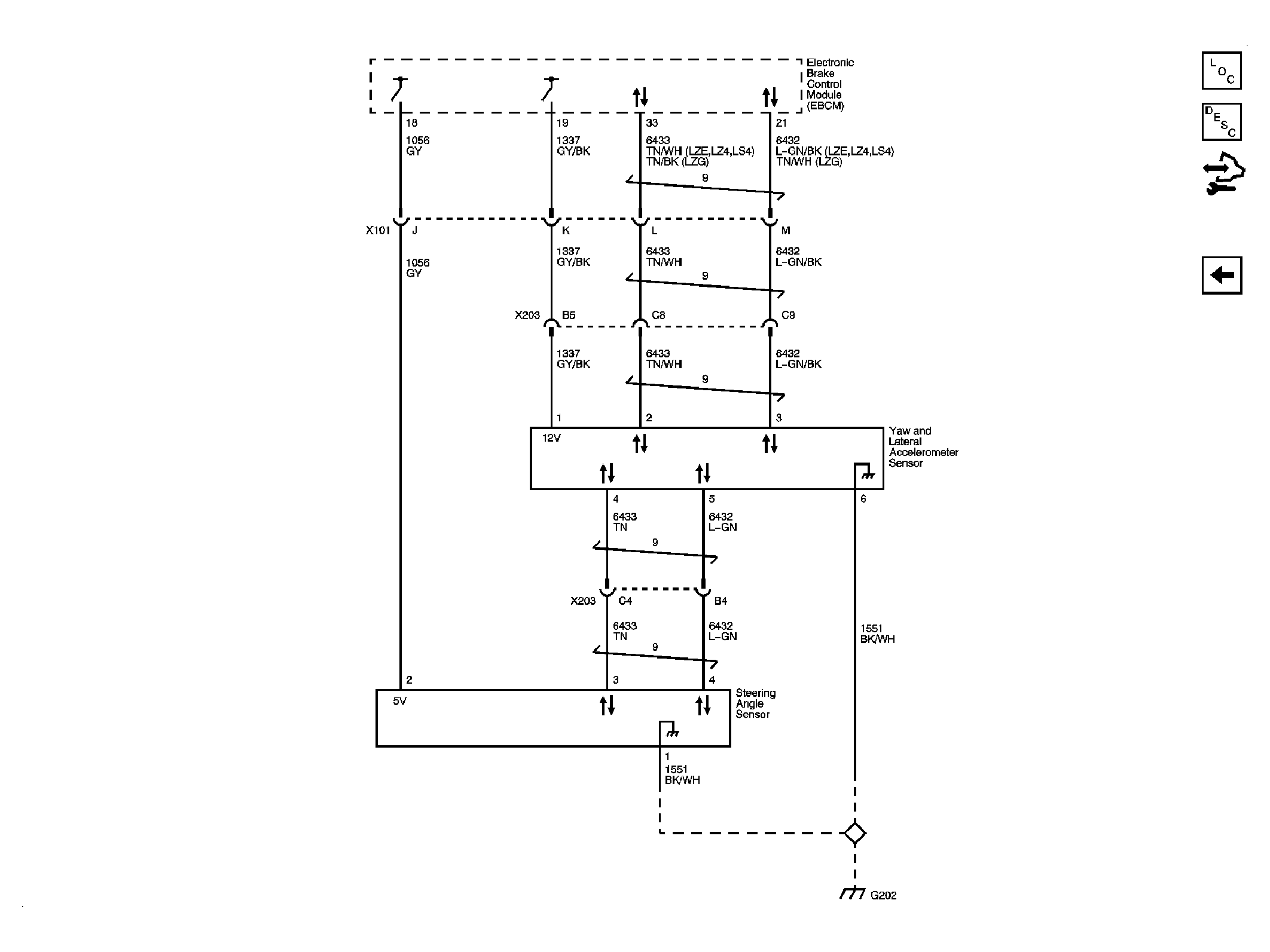

Fig 4: Steering Angle and Yaw and Lateral Accelometer Sensors (JL4) Schematic
GM2080360Courtesy of GENERAL MOTORS CORP.
