Power Distribution Schematics

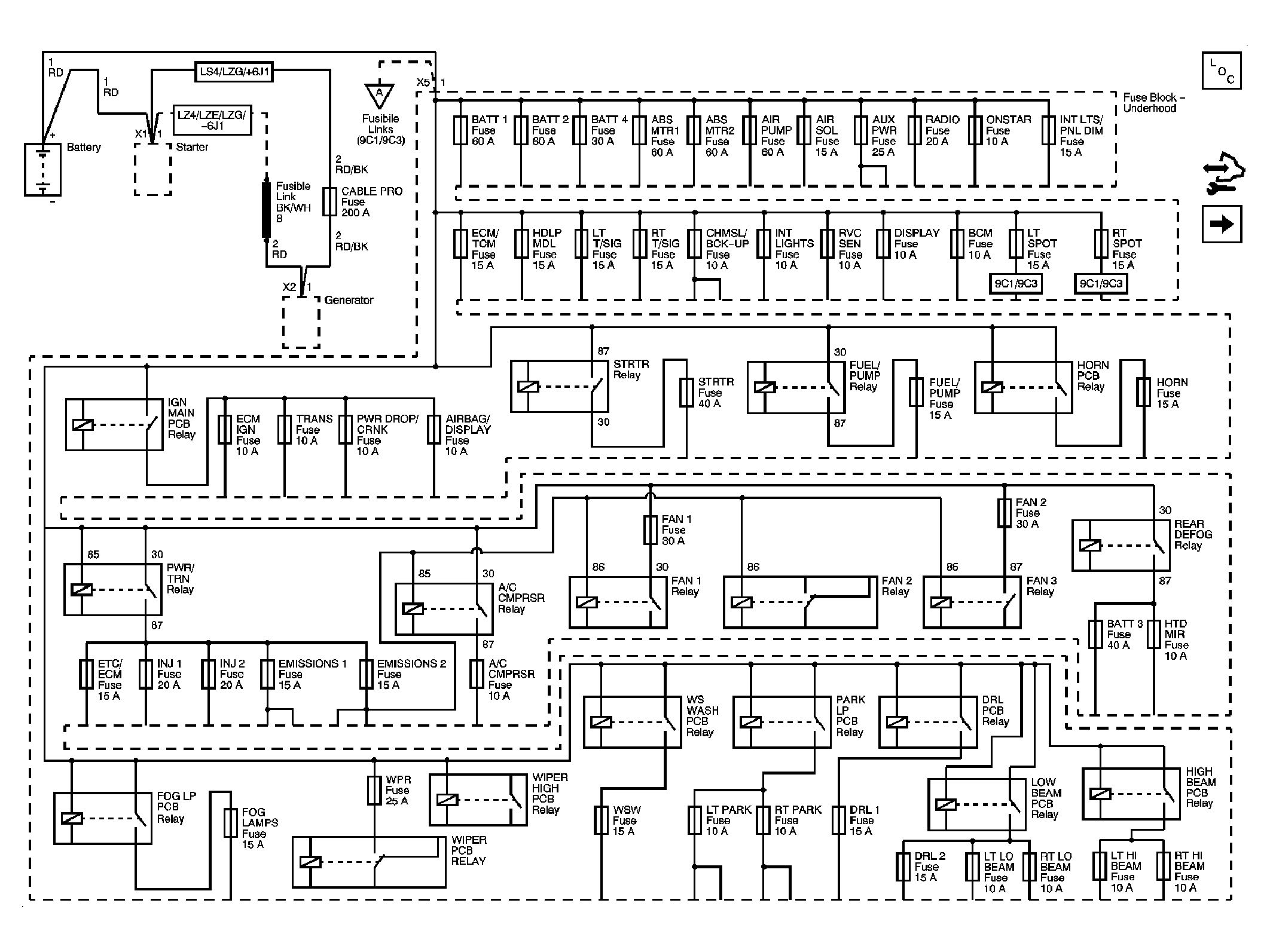

Fig 1: Fuse Block - Underhood Bussing

Courtesy of GENERAL MOTORS CORP.

Fig 2: SEO 9C1/9C3 Schematic

Courtesy of GENERAL MOTORS CORP.

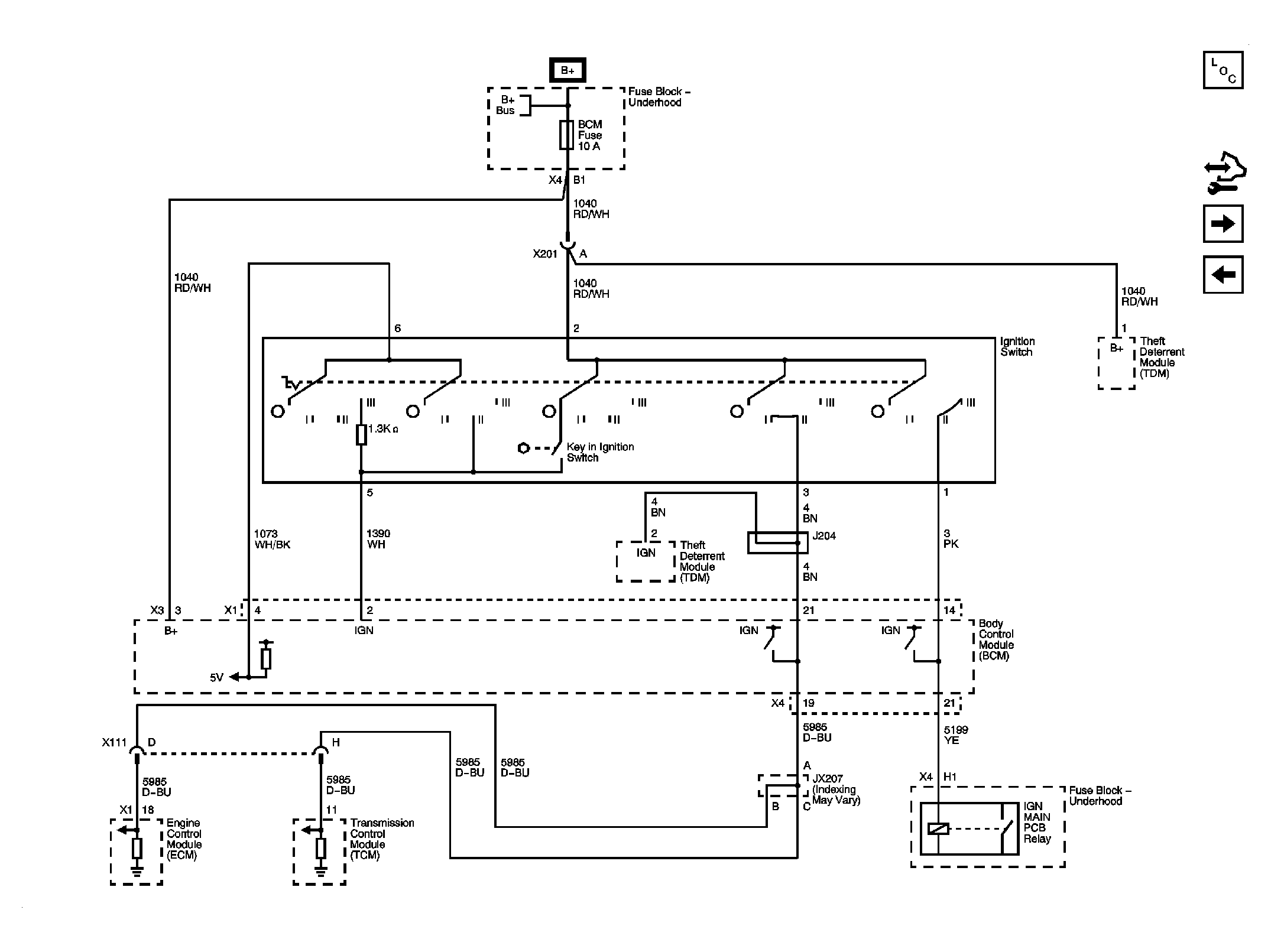

Fig 3: Ignition Switch Schematic

Courtesy of GENERAL MOTORS CORP.

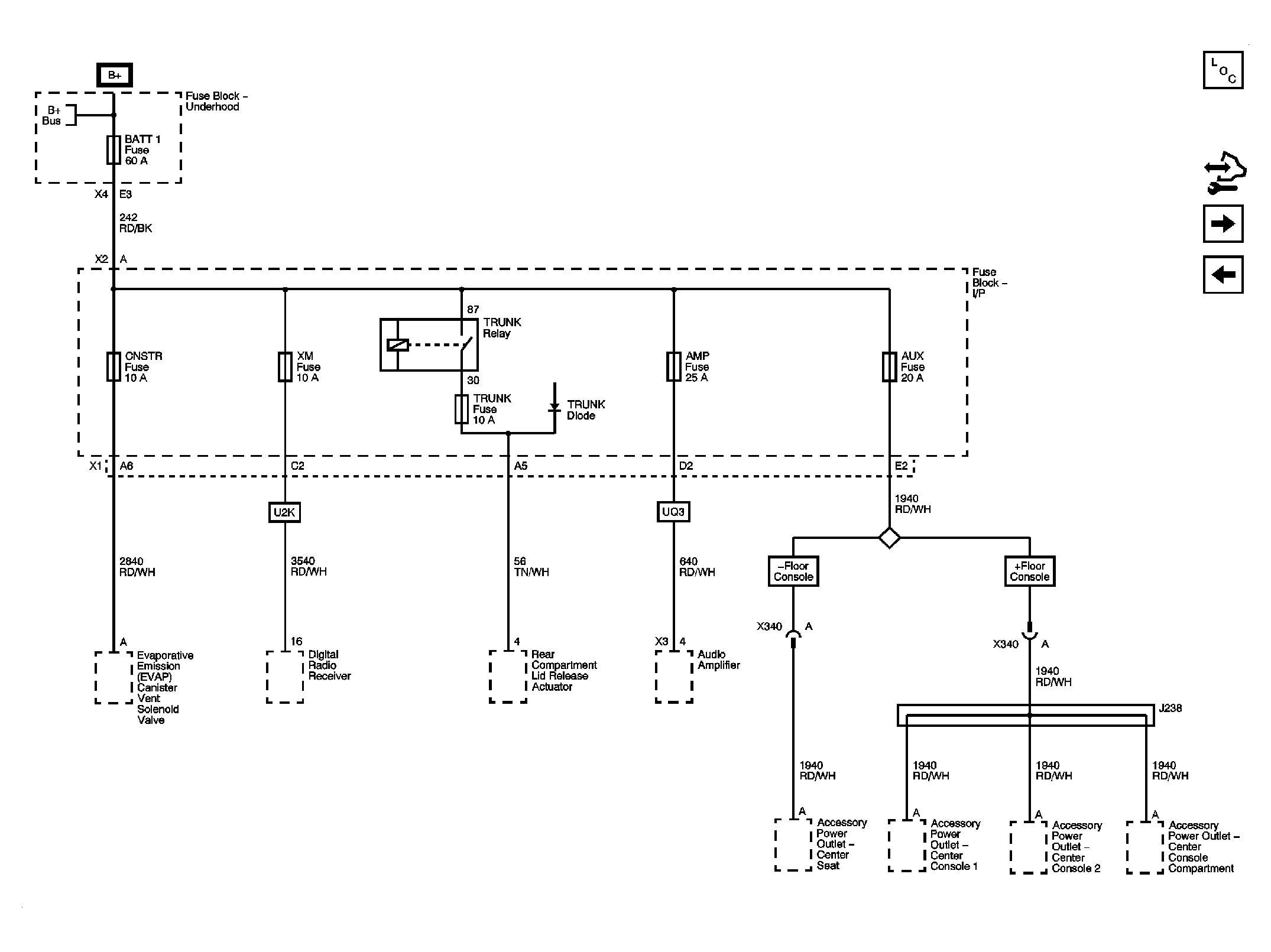

Fig 4: BATT 1, CNSTR, XM, TRUNK, AMP, AUX Fuses, and TRUNK Relay Schematic

Courtesy of GENERAL MOTORS CORP.

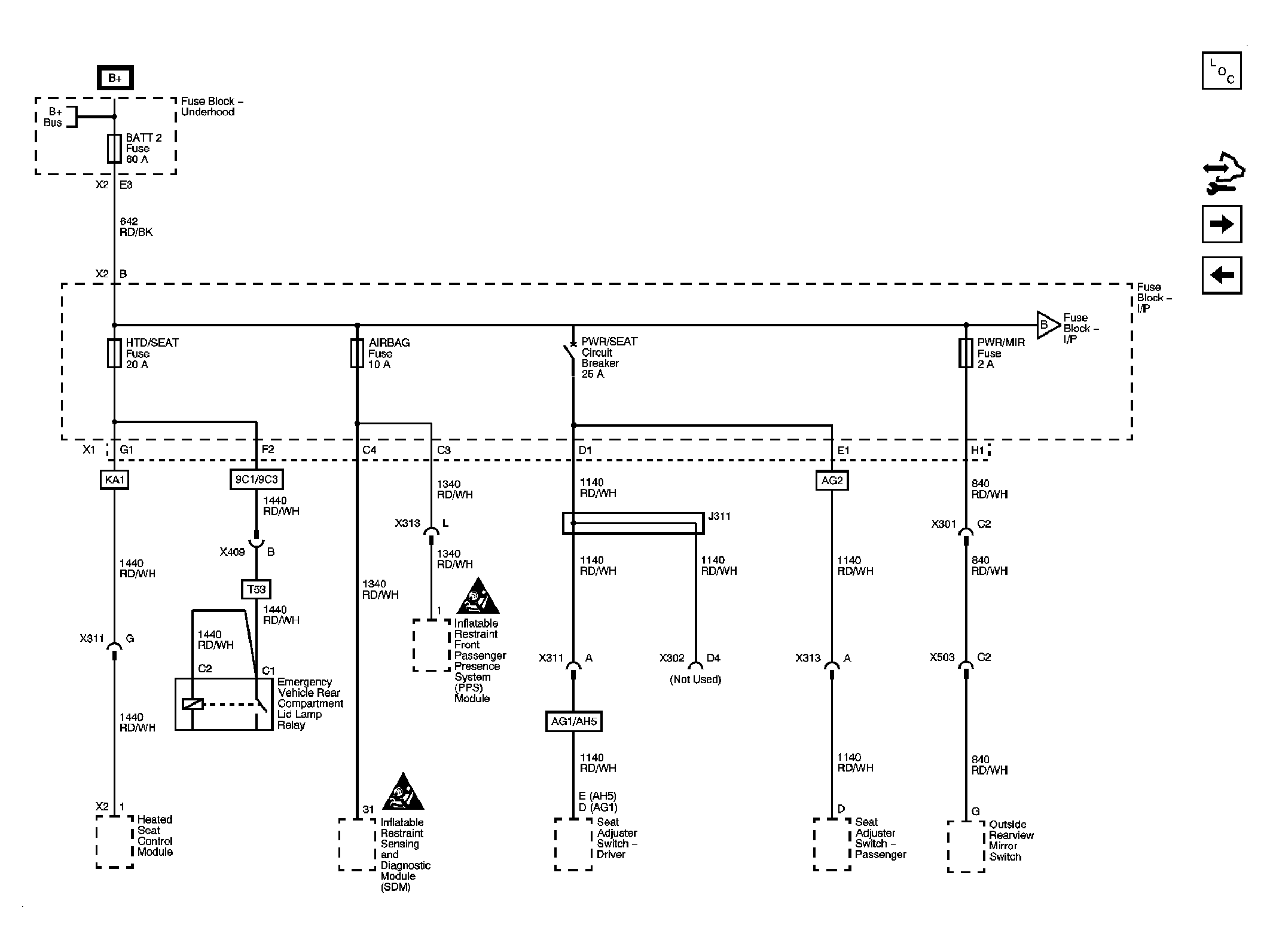

Fig 5: BATT 2, HTD/SEAT, AIRBAG, PWR/MIR Fuses, and PWR/SEAT Circuit Breaker Schematic

Courtesy of GENERAL MOTORS CORP.

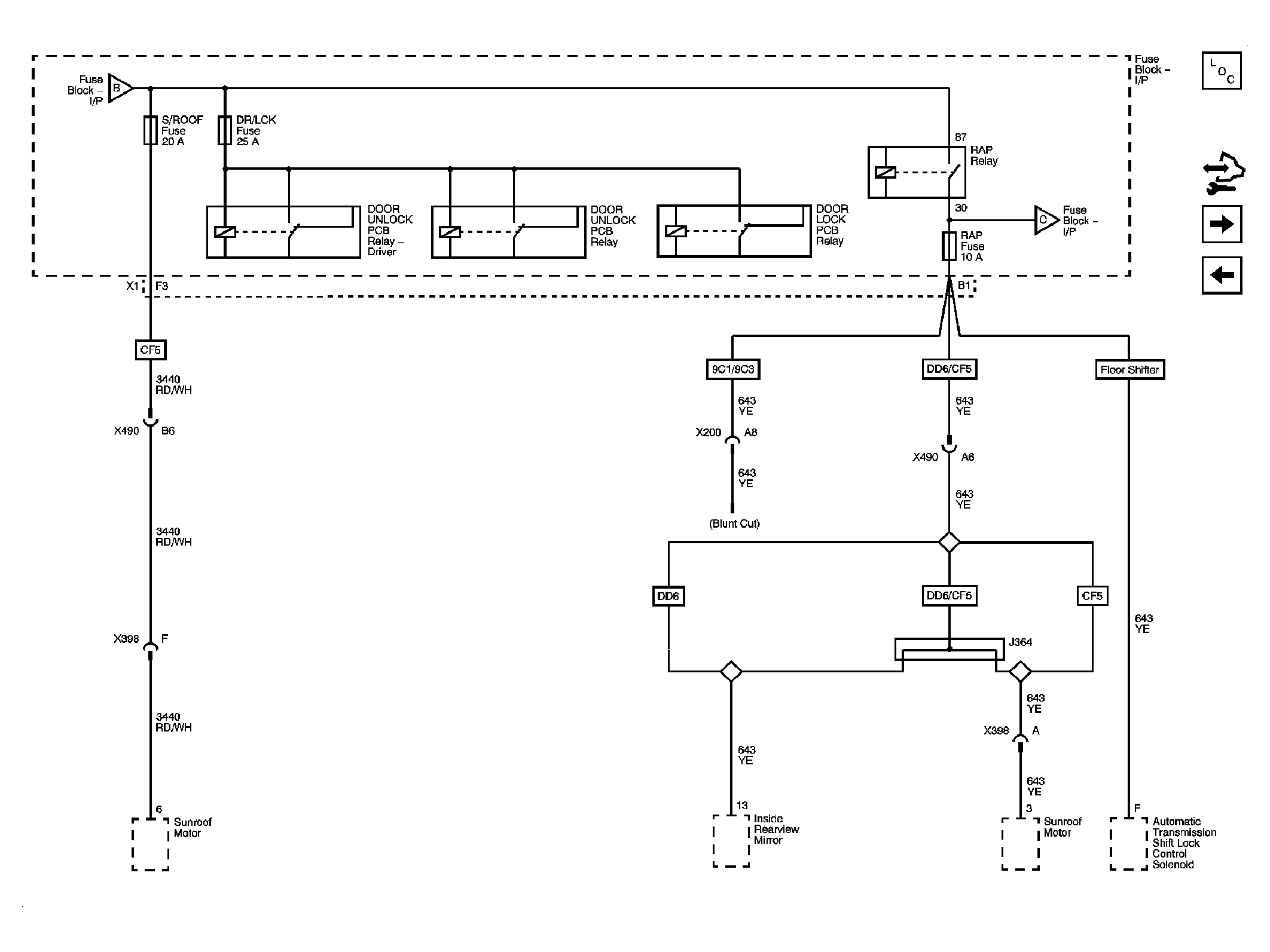

Fig 6: S/ROOF, DR/LCK, RAP Fuses, and RAP Relay, DOOR UNLOCK PCB Relay - Driver, DOOR UNLOCK PCB Relay, and DOOR LOCK PCB Relay Schematic

Courtesy of GENERAL MOTORS CORP.

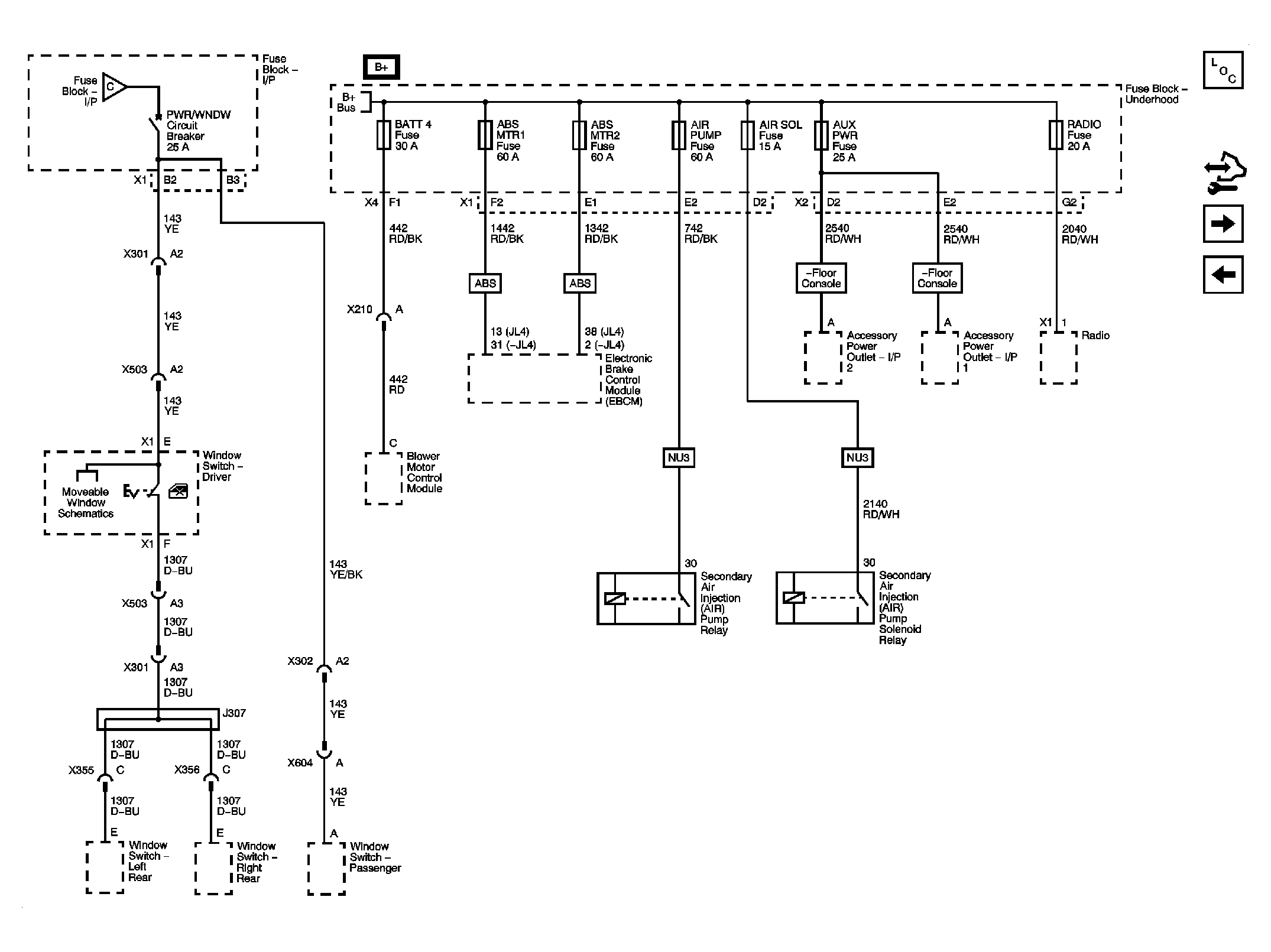

Fig 7: BATT 4, ABS MTR1, ABS MTR2, AIR PUMP, AIR SOL, AUX PWR, RADIO Fuses, and PWR/WNDW Circuit Breaker Schematic

Courtesy of GENERAL MOTORS CORP.

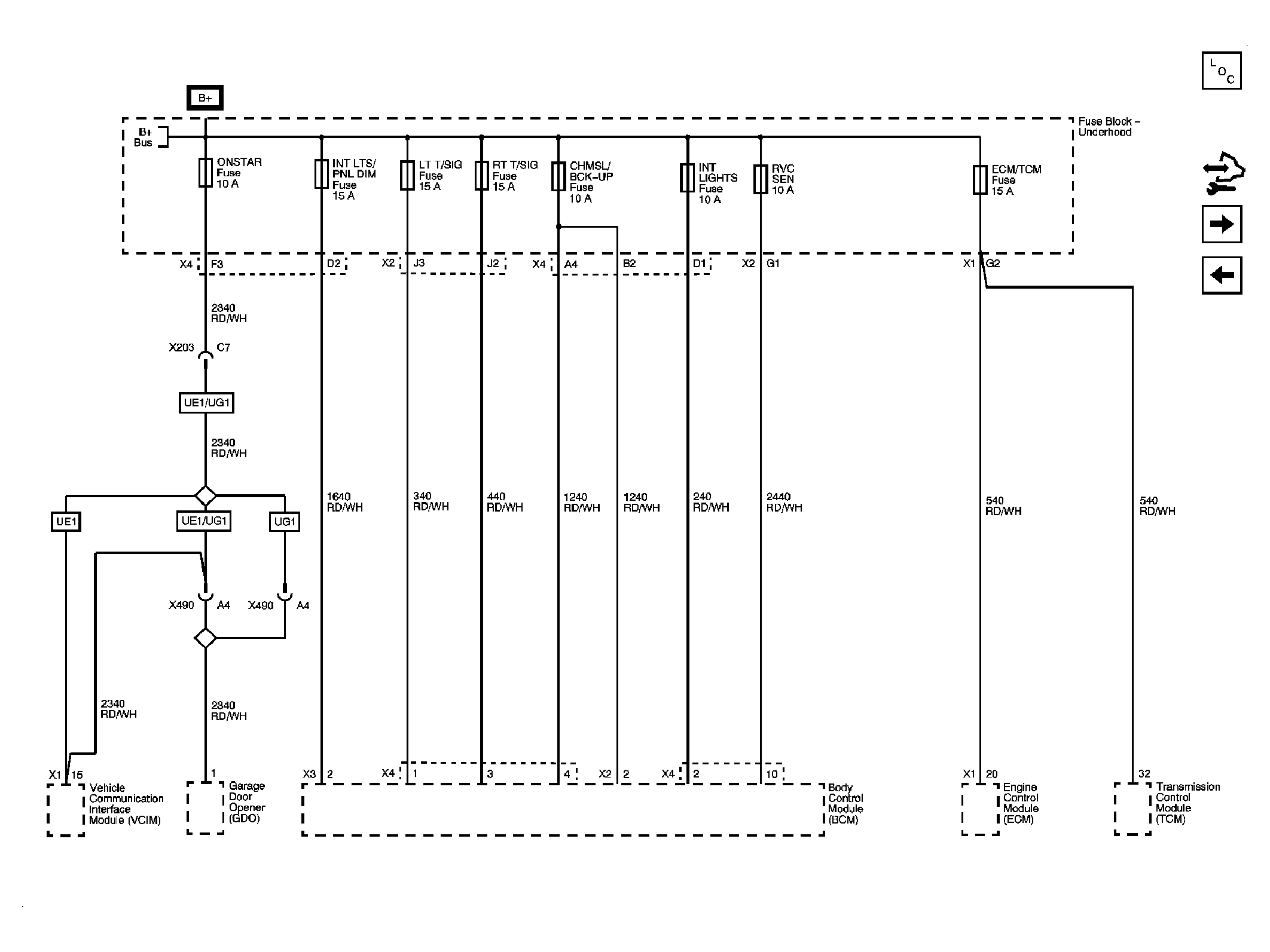

Fig 8: ONSTAR, INT LTS/PNL DIM, LT T/SIG, RT T/SIG, CHMSL/BCK-UP, INT LIGHTS, RVC SEN, and ECM/TCM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

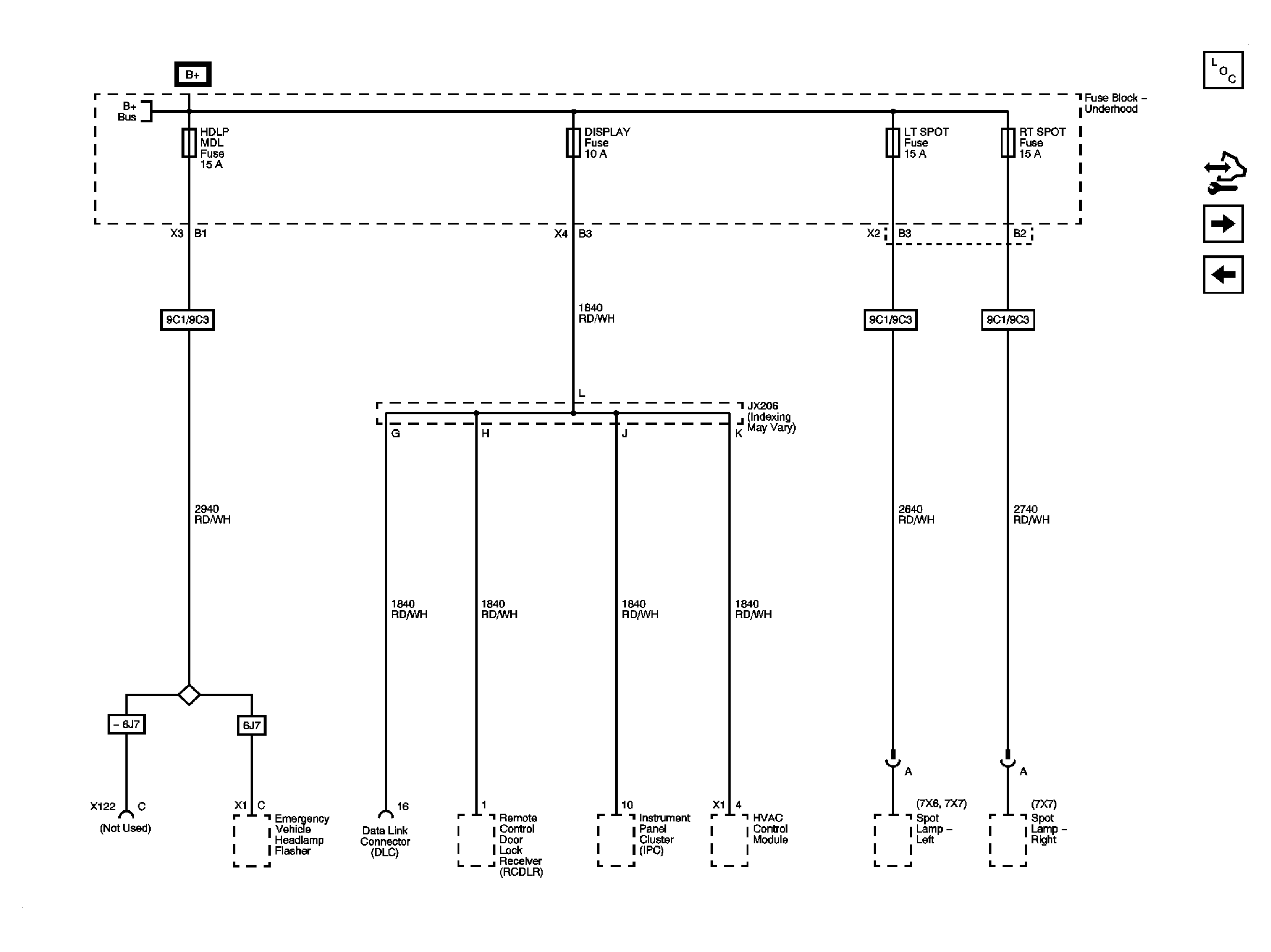

Fig 9: HDLP MDL, DISPLAY, LT SPOT, and RT SPOT Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

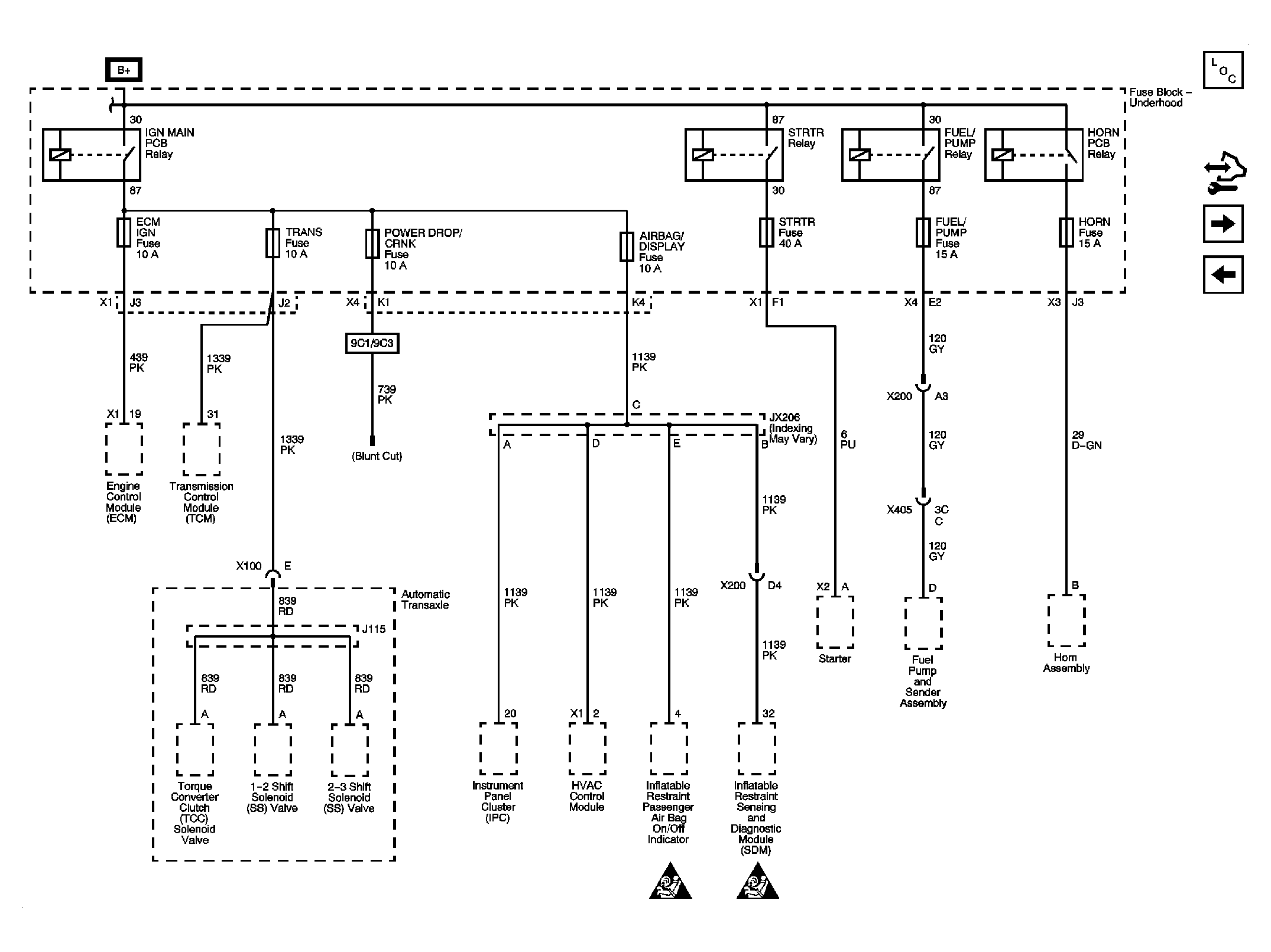

Fig 10: ECM IGN, TRANS, PWR DROP/CRNK, AIRBAG/DISPLAY, STRTR, FUEL/PUMP, and HORN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

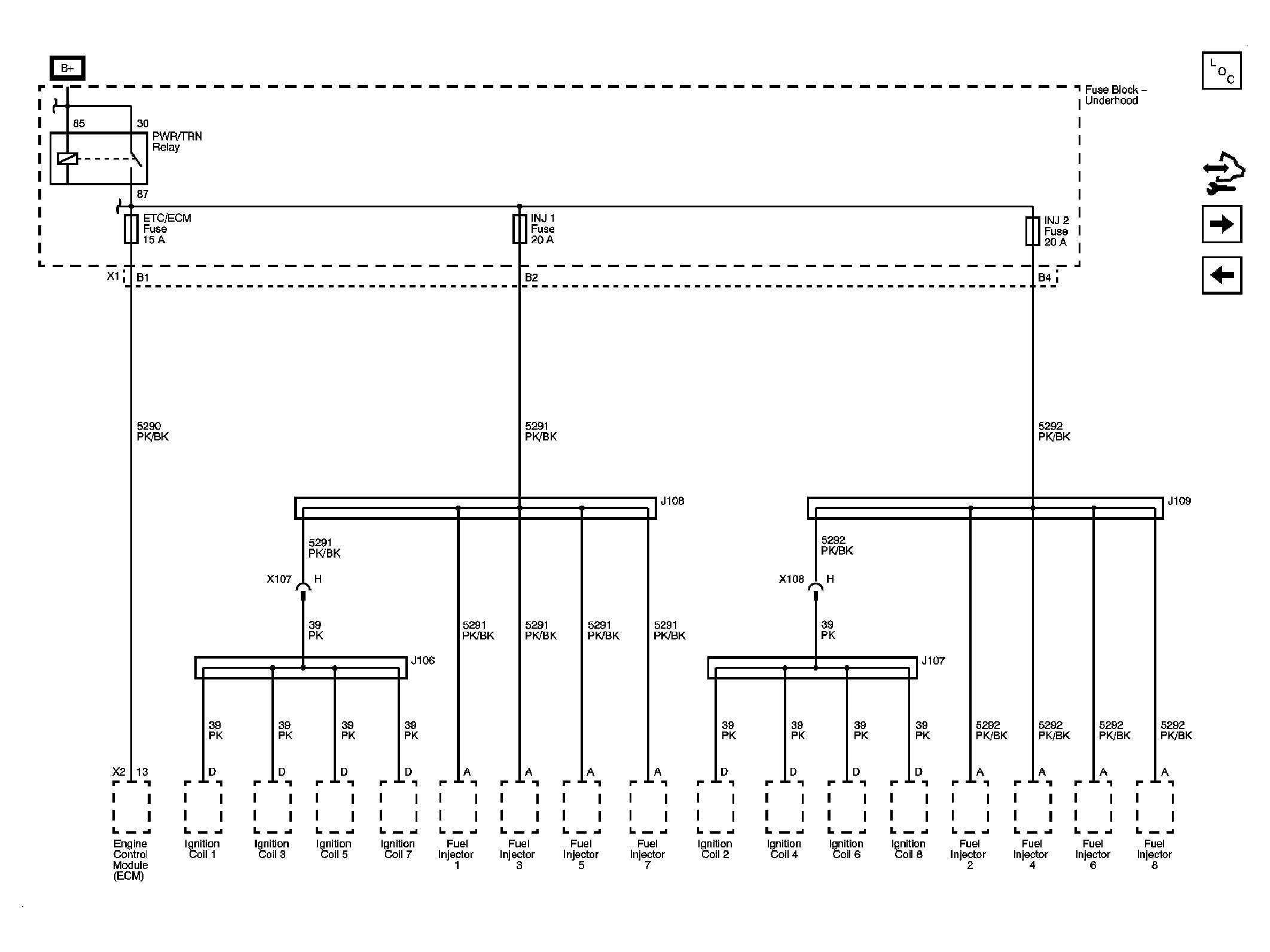

Fig 11: ETC/ECM, INJ 1, and INJ 2 Fuses (LZE, LZ4, LZG) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: ETC/ECM, INJ 1, and INJ 2 Fuses (LS4) Schematic

Courtesy of GENERAL MOTORS CORP.

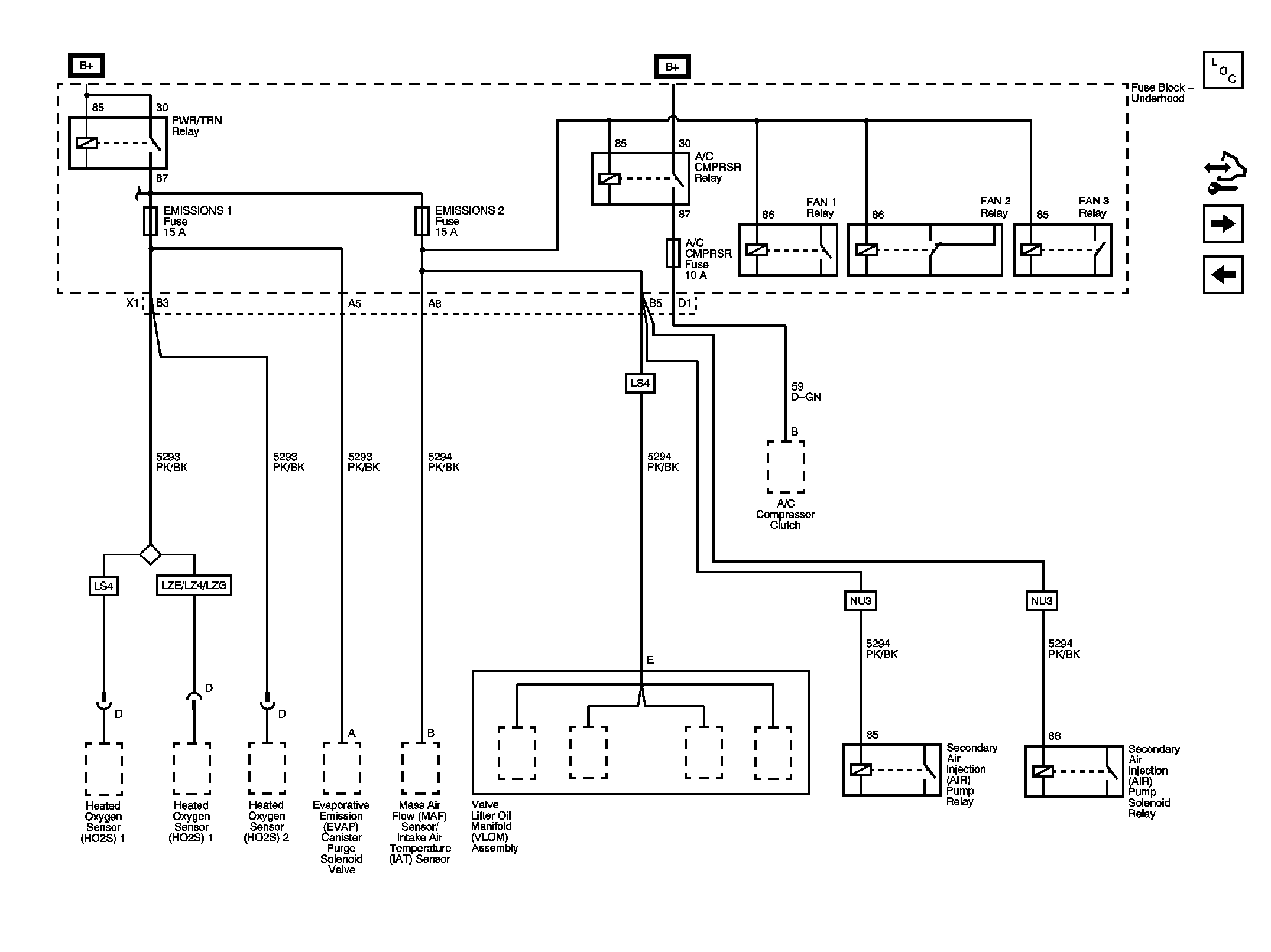

Fig 13: EMISSIONS 1, EMISSIONS 2, A/C CMPRSR Fuses, A/C CMPRSR, FAN 1, FAN 2, and FAN 3 Relays Schematic

Courtesy of GENERAL MOTORS CORP.

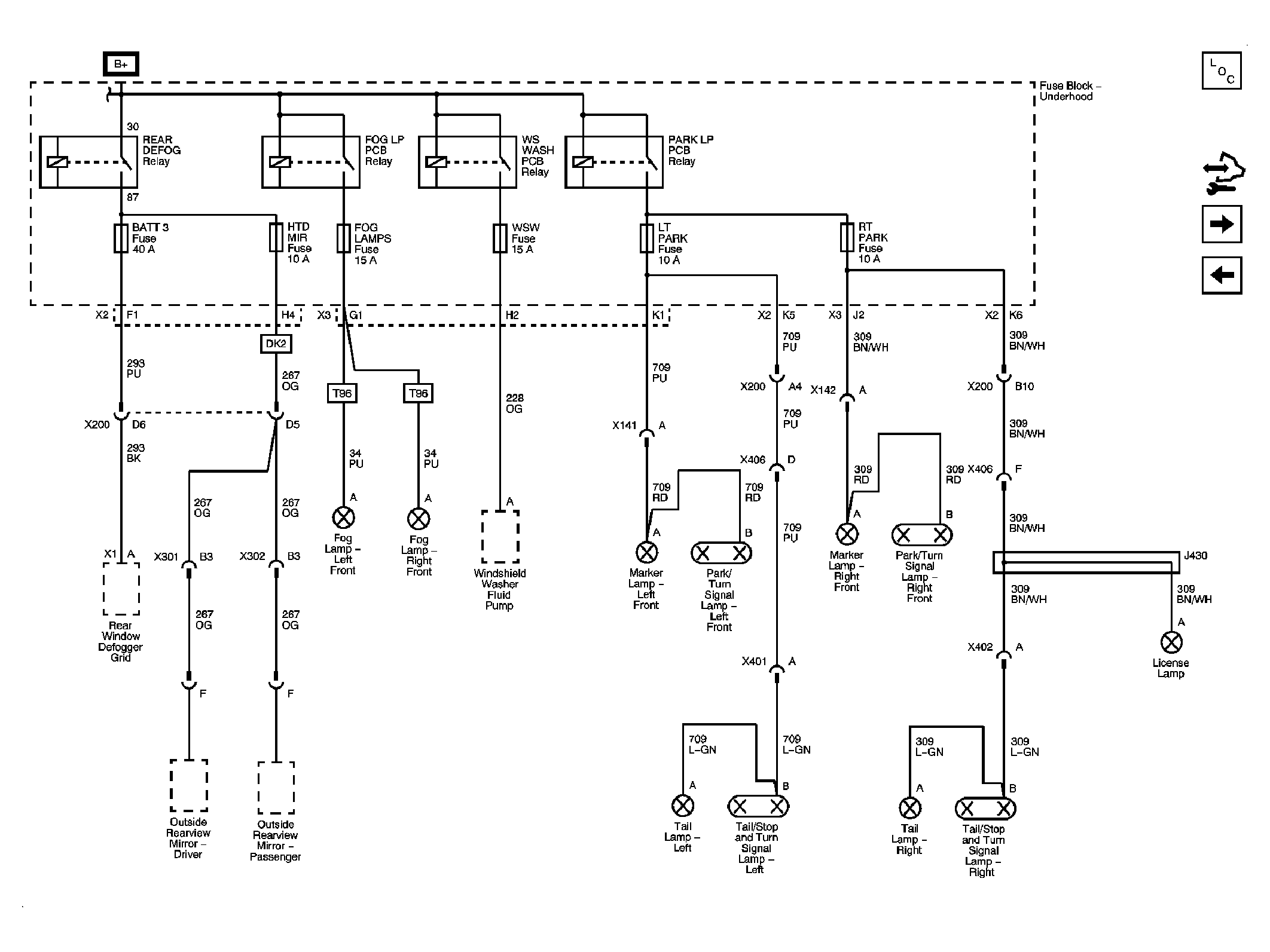

Fig 14: BATT 3, HTD MIR, FOG LAMPS, WSW, LT PARK, and RT PARK Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

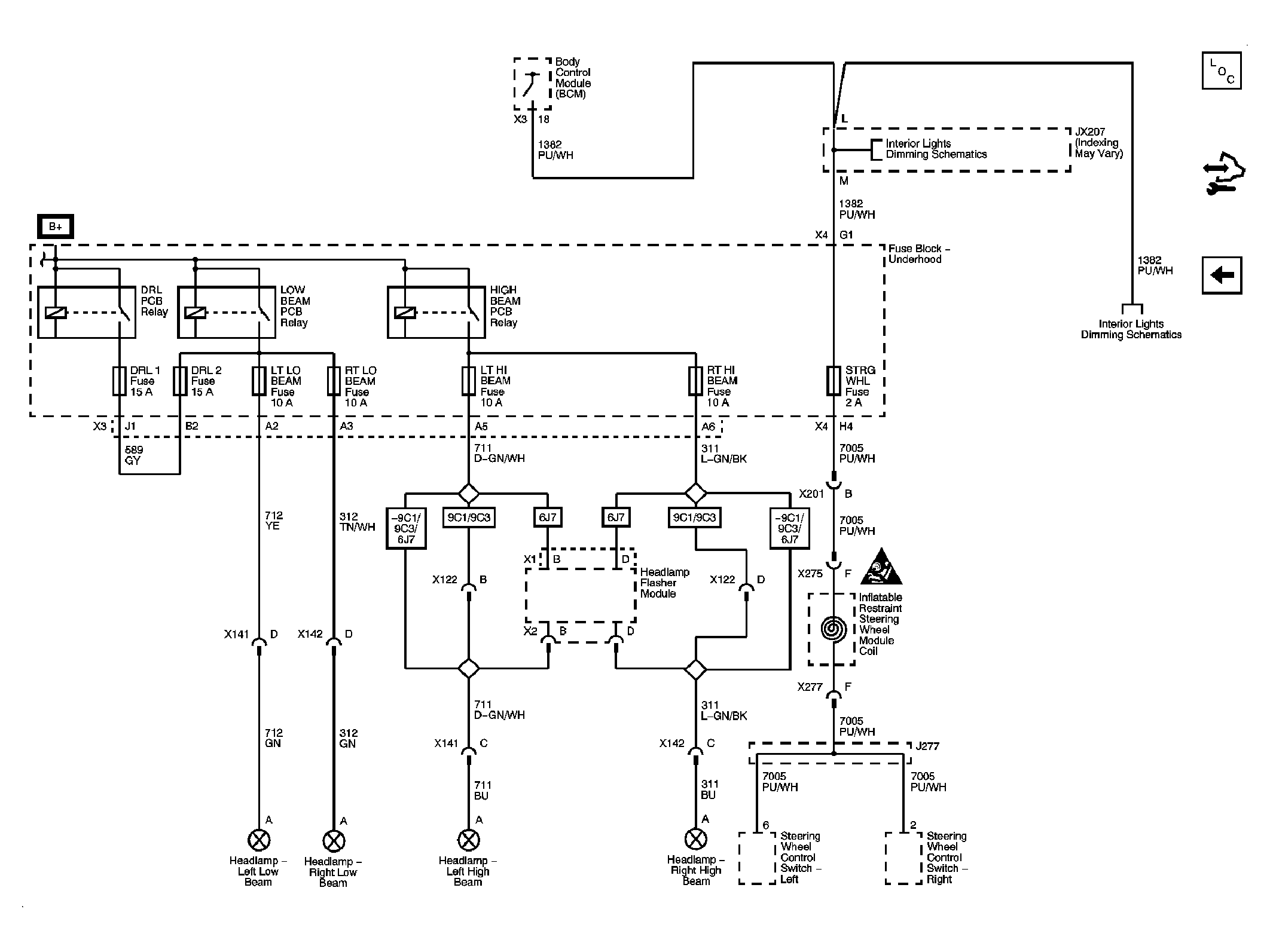

Fig 15: DRL 1, DRL 2, LT LO BEAM, RT LO BEAM, LT HI BEAM, RT HI BEAM, and STRG WHL Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
