Ground Distribution Schematics

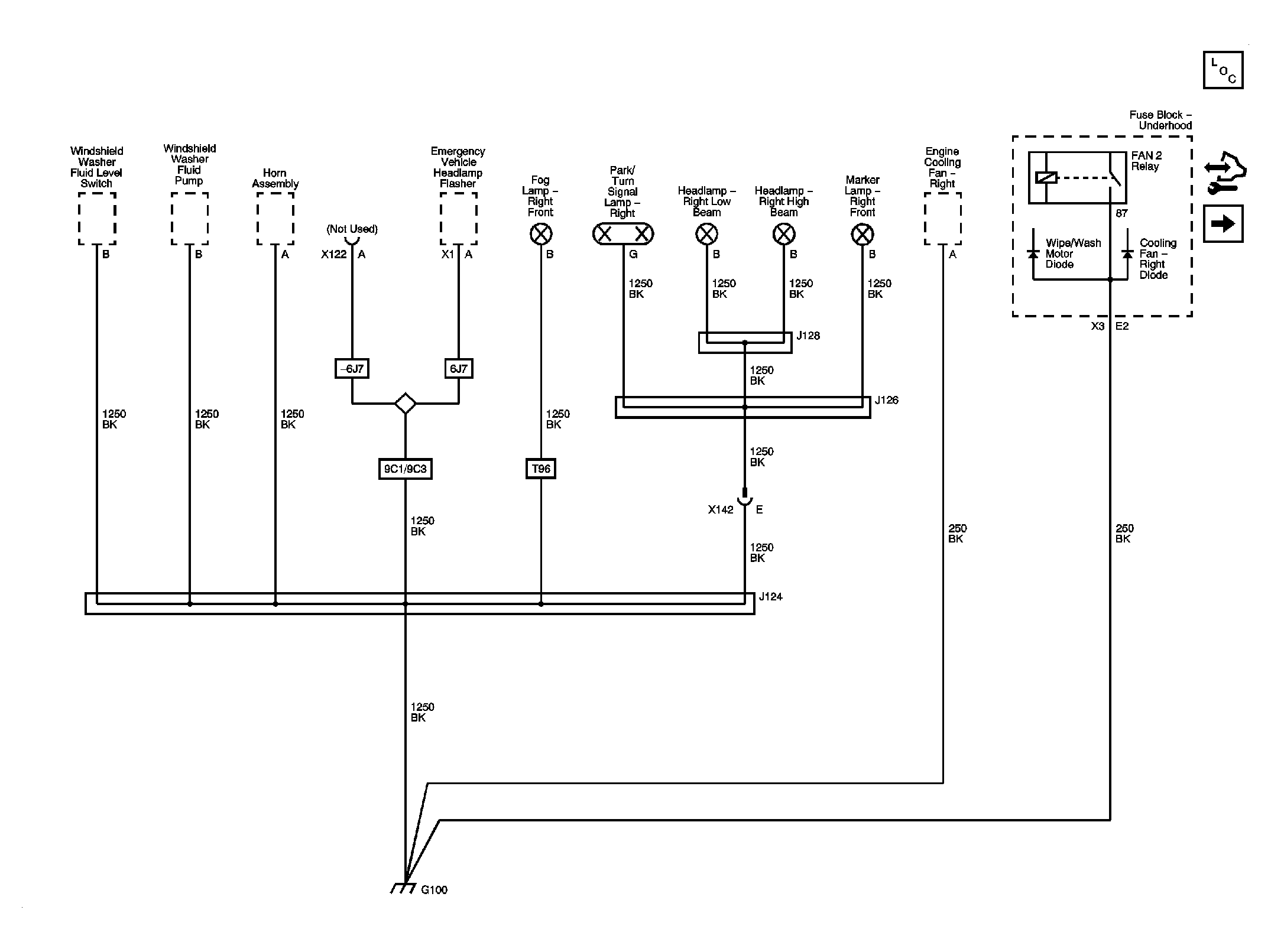

Fig 1: G100 Schematic
GM2080016Courtesy of GENERAL MOTORS CORP.

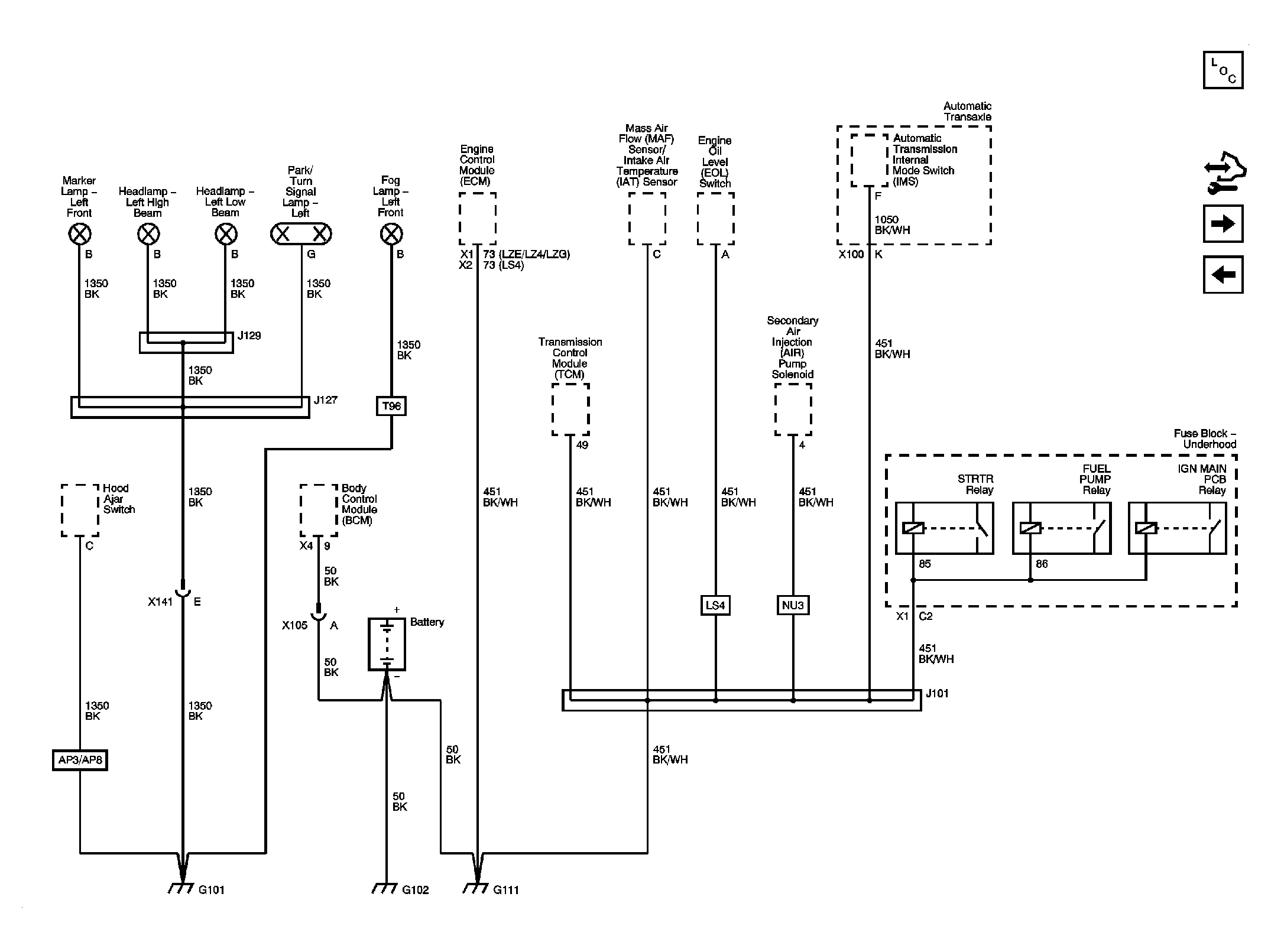

Fig 2: G101, G102, and G111 Schematic
GM2080019Courtesy of GENERAL MOTORS CORP.
Fig 3: G113, and G115 Schematic
GM2080020Courtesy of GENERAL MOTORS CORP.

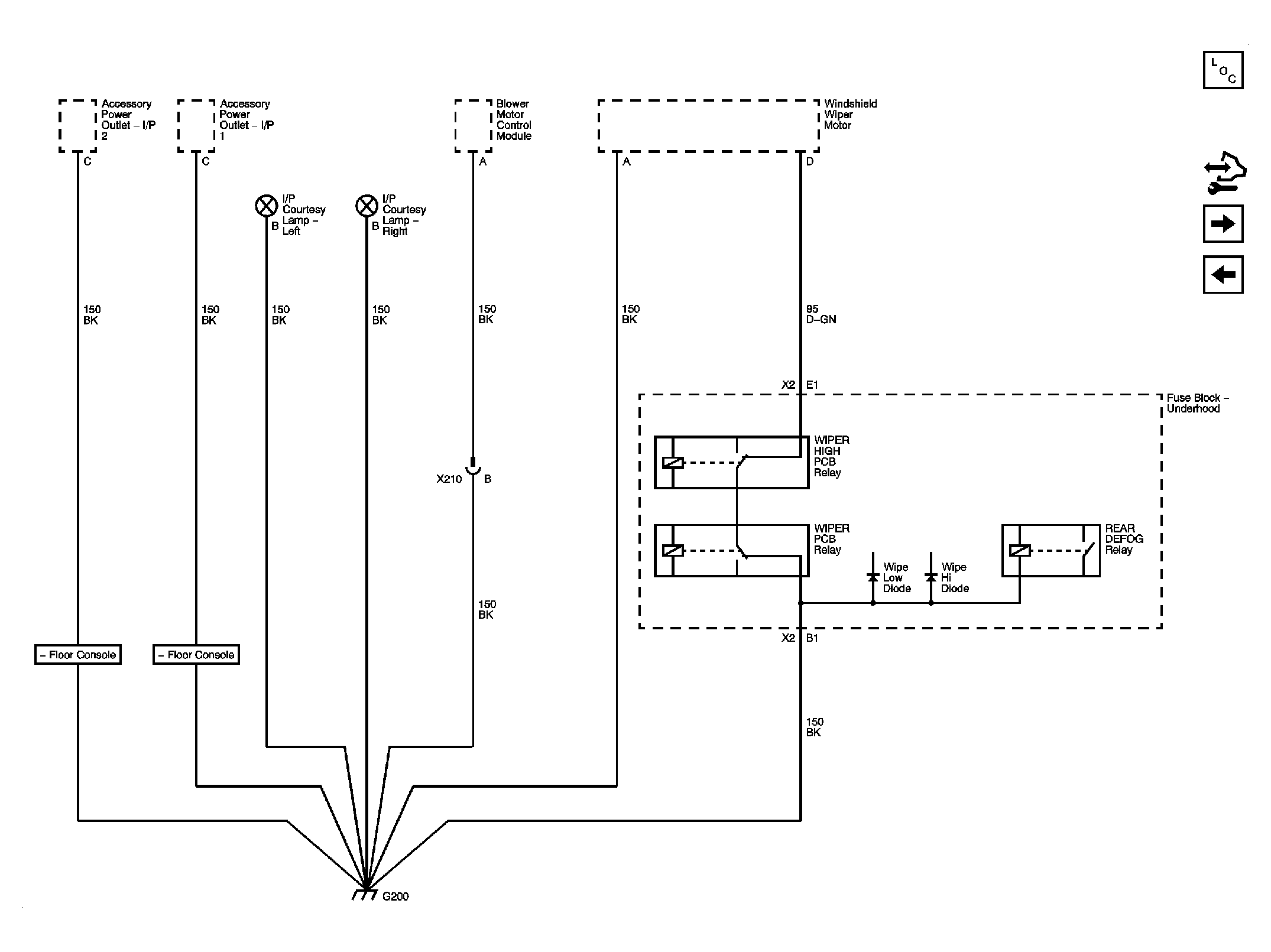

Fig 4: G200 Schematic
GM2080027Courtesy of GENERAL MOTORS CORP.

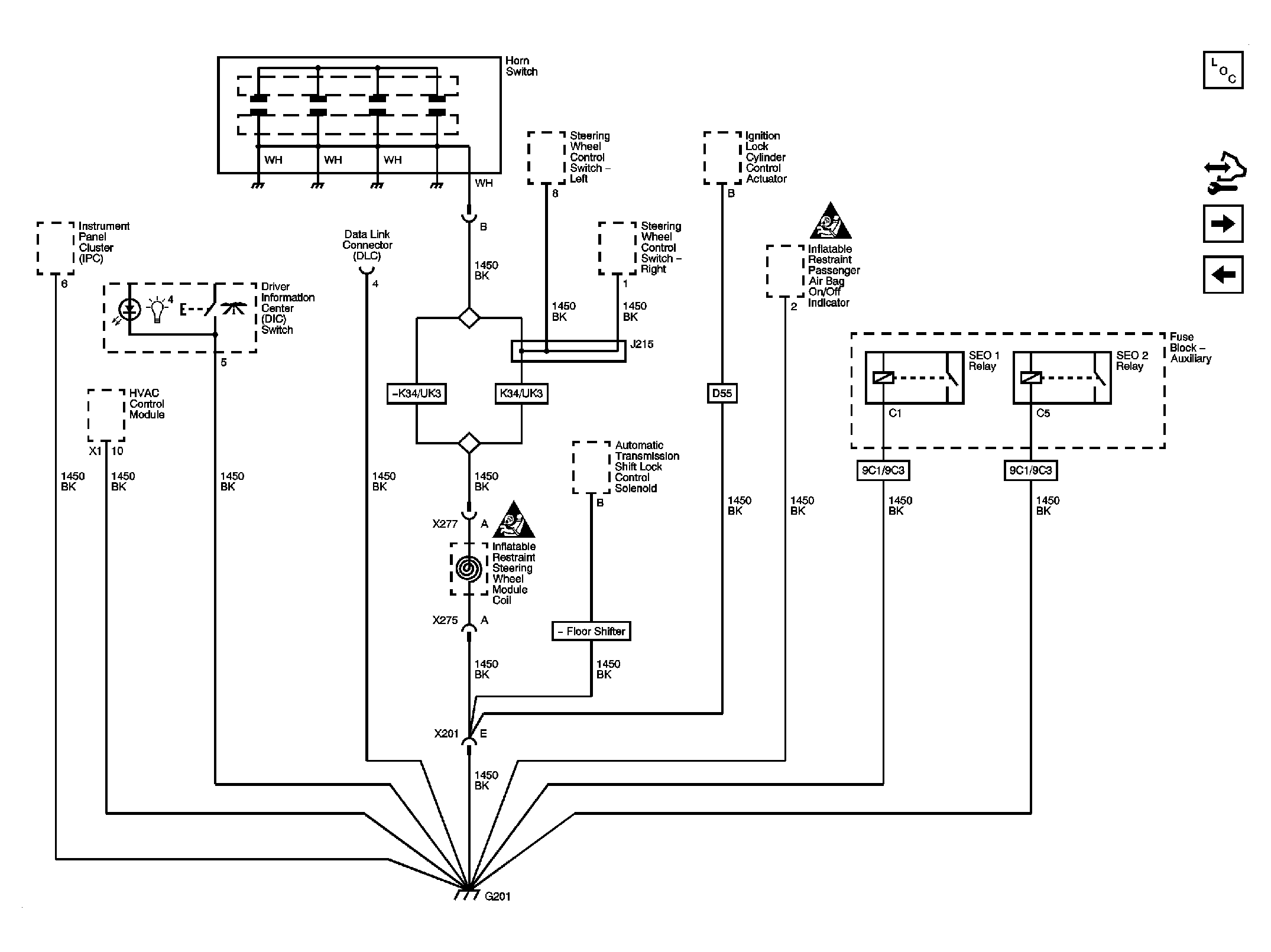

Fig 5: G201 Schematic
GM2080029Courtesy of GENERAL MOTORS CORP.

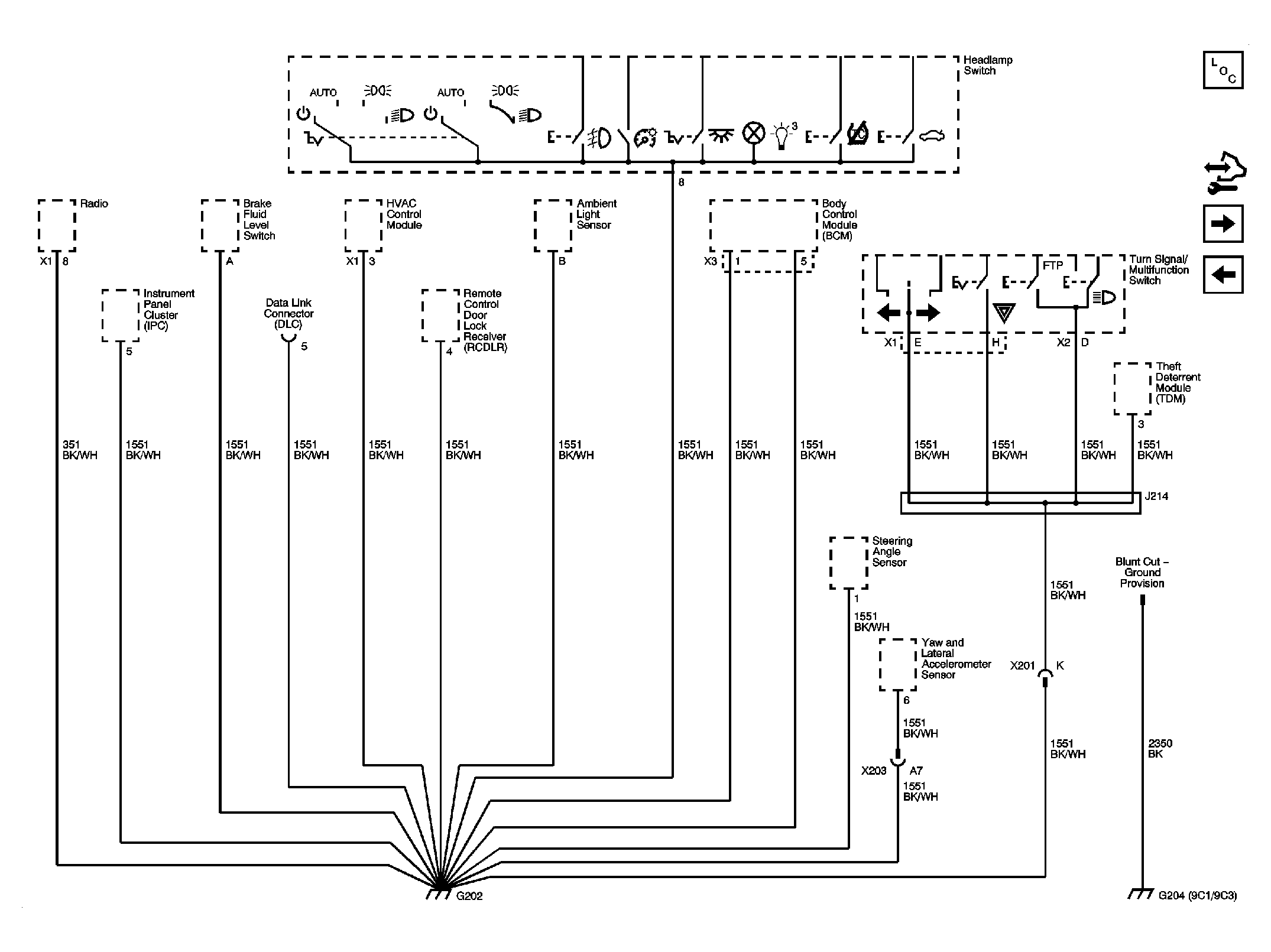

Fig 6: G202, and G204 Schematic
GM2080032Courtesy of GENERAL MOTORS CORP.

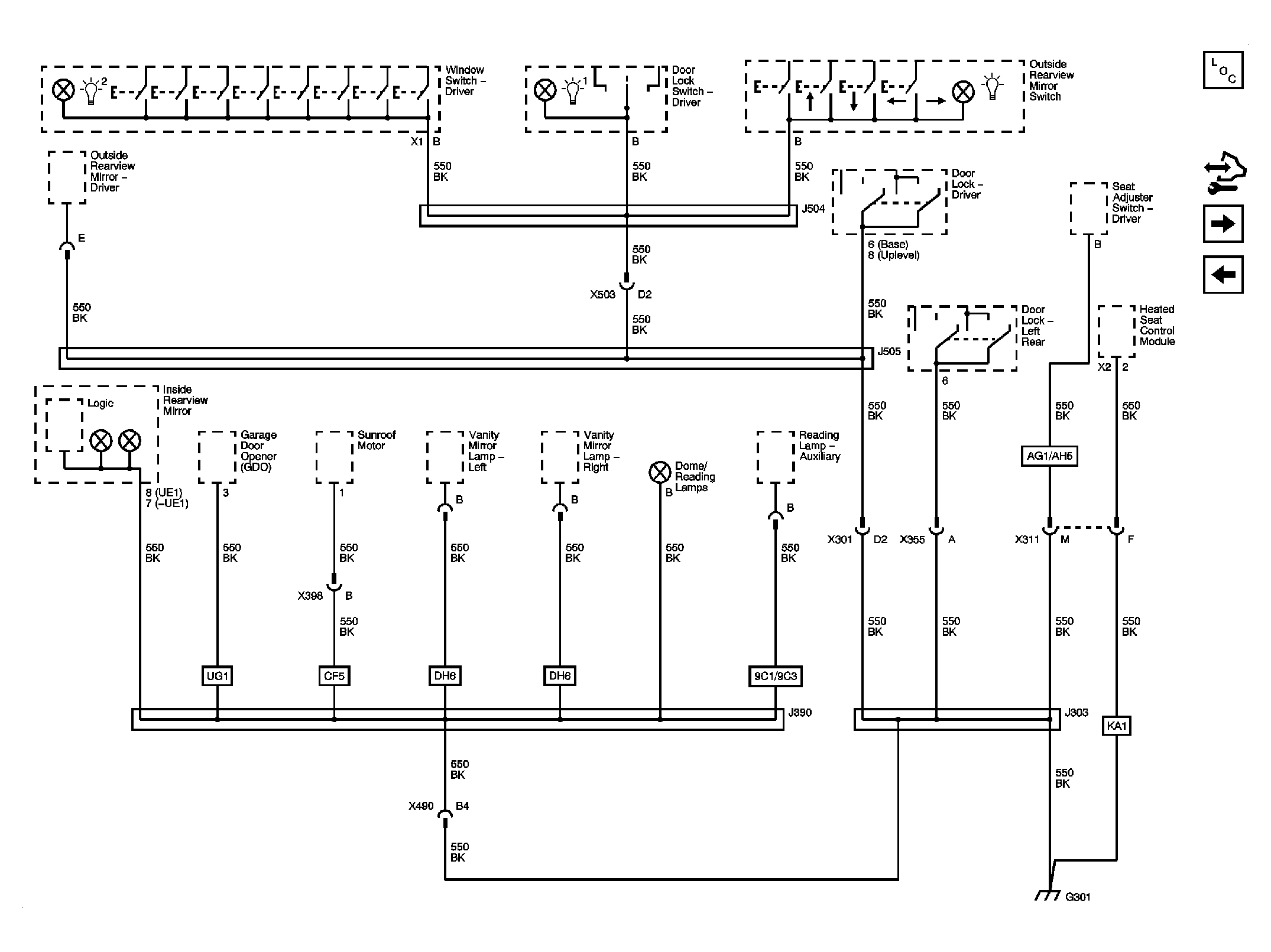

Fig 7: G301 Schematic
GM2080034Courtesy of GENERAL MOTORS CORP.

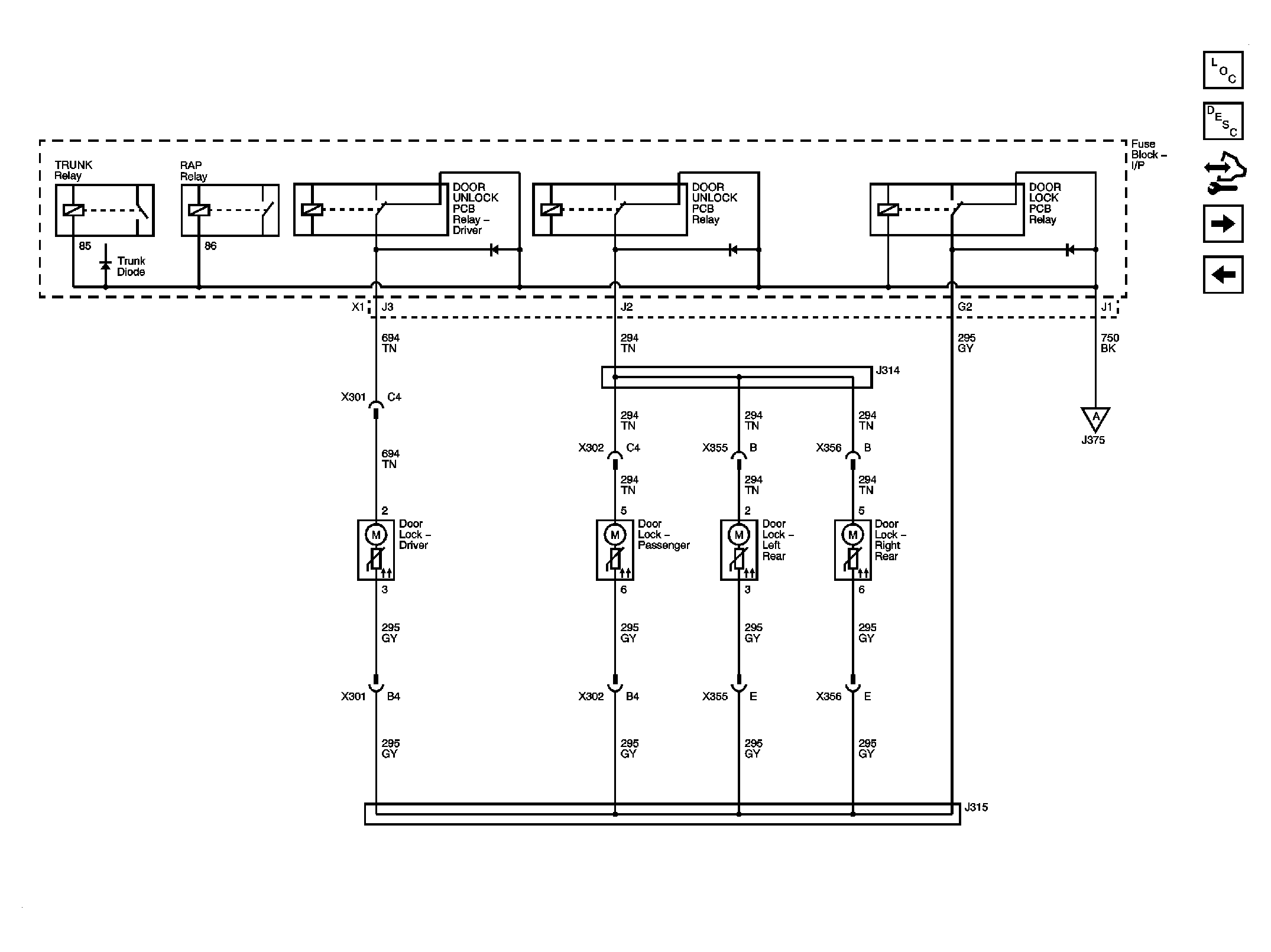

Fig 8: G302 (1 of 2) Schematic
GM2080037Courtesy of GENERAL MOTORS CORP.

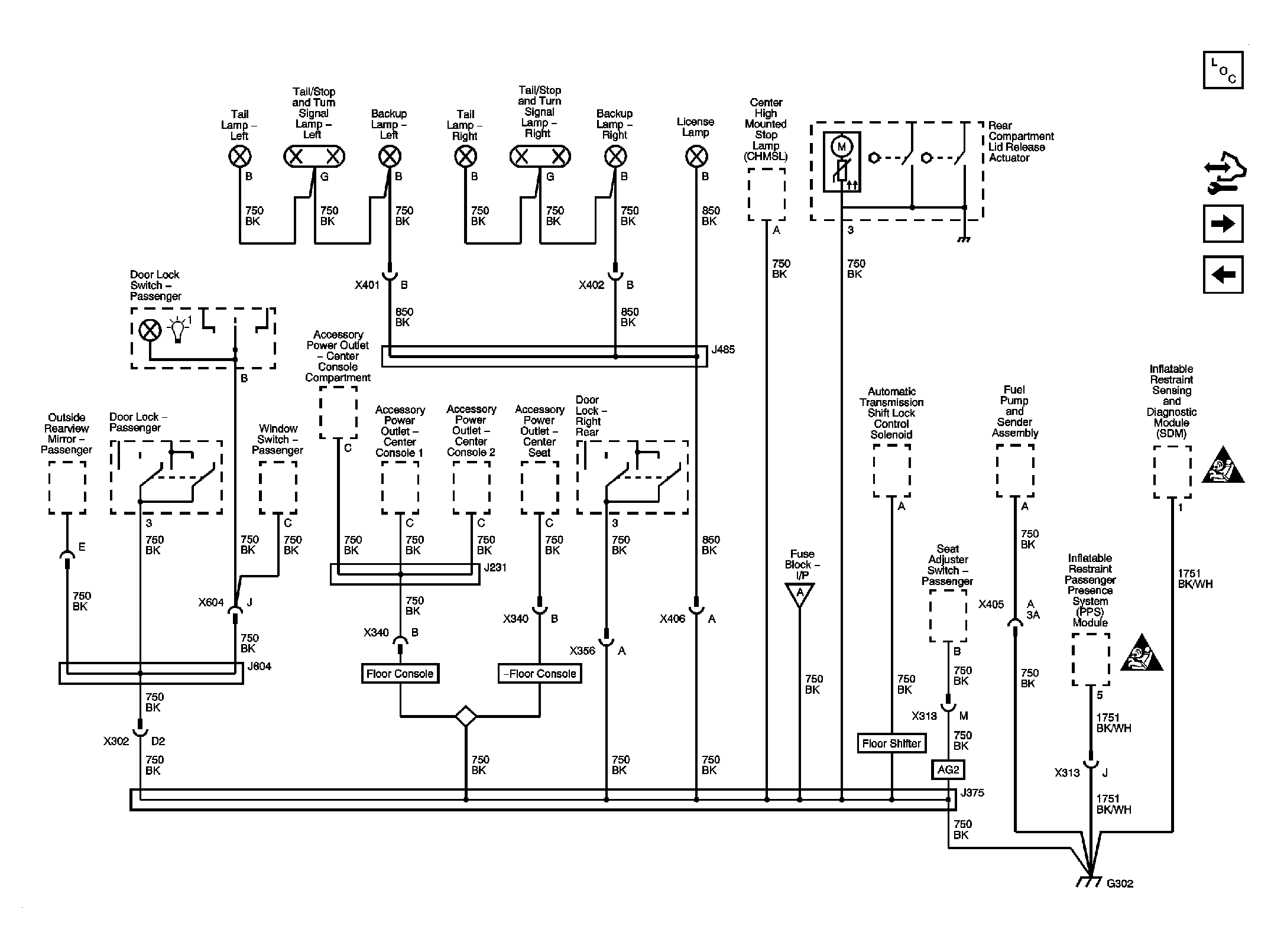

Fig 9: G302 (2 of 2) Schematic
GM2080040Courtesy of GENERAL MOTORS CORP.
Fig 10: G403, and G404 Schematic
GM2080042Courtesy of GENERAL MOTORS CORP.
