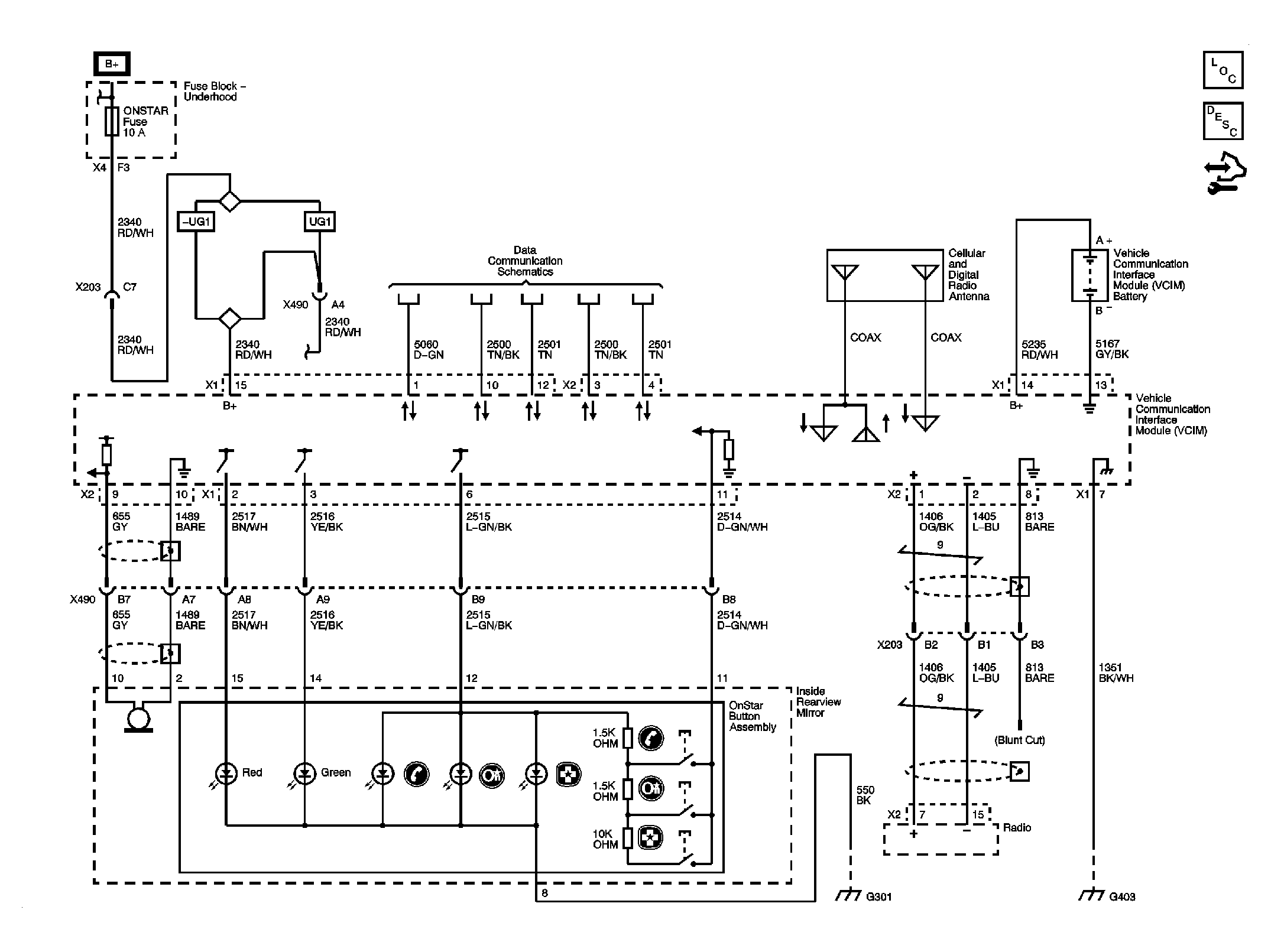

Home >> Chevrolet >> 2009 >> Impala SS >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Cellular System, Entertainment System, And Navigation System >> Schematic and Routing Diagrams >> OnStar Schematics
