Home >> Chevrolet >> 2009 >> HHR SS, Standard >> Repair and Diagnosis >> Steering >> Power Steering System >> Schematic and Routing Diagrams >> Power Steering Schematics

Power Steering Schematics

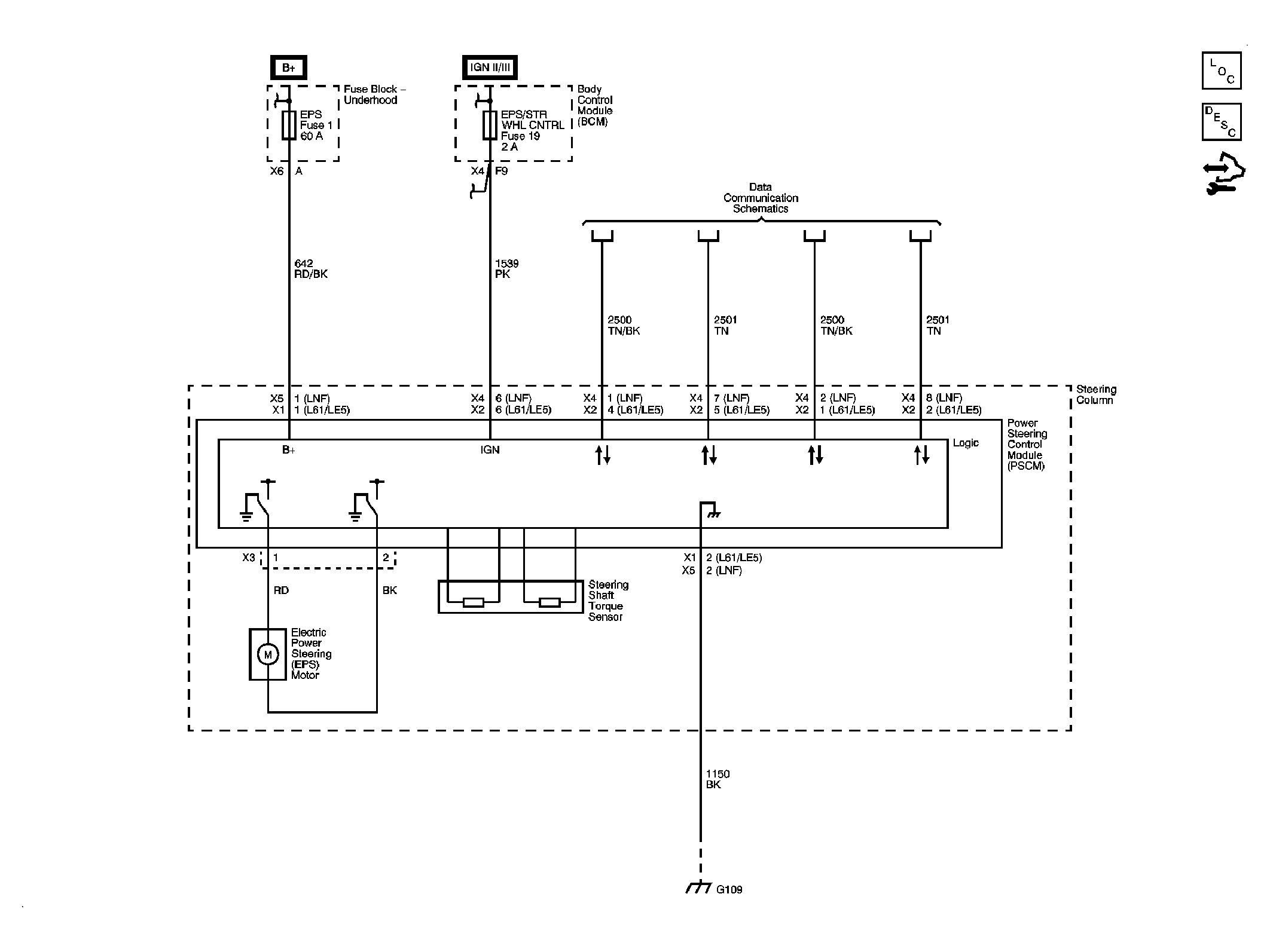

Fig 1: Power Steering Circuit Schematic (L61/LE5)

GM2085158

Courtesy of GENERAL MOTORS CORP.

Fig 2: Power Steering Circuit Schematic (LNF)

GM2085445

Courtesy of GENERAL MOTORS CORP.
